Spacer CS for Uni Blocks 18 / 25, Gray

Product information "Spacer CS for Uni Blocks 18 / 25, Gray"

Color:
Gray

Delivery Countries:
Worldwide

Description:

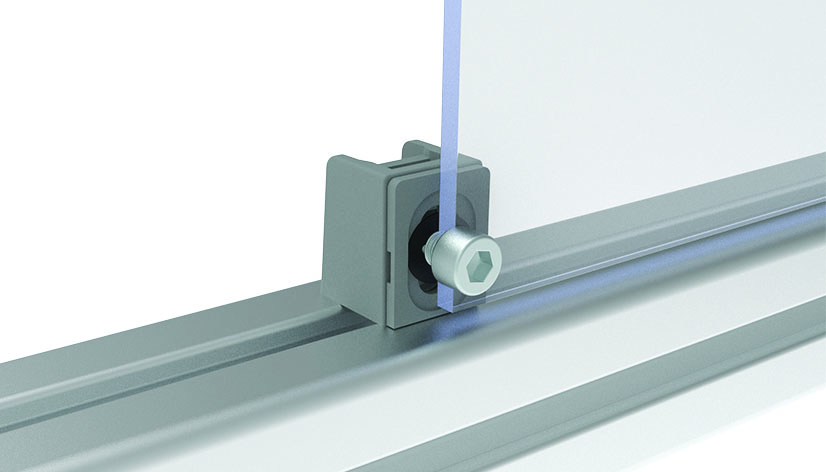

For height adjustment of the contact surfaces, for flush mounting of panels

Material:
Plastic PA, glass fiber reinforced

Tip:
Compatible Uni Block see 094100CSM6S01 and 094003CSM6S01

Tip 2:
* No further spacers can be added!
Pack Quantity: 100 pieces
Model: Plastic PA
Weight (g): 1.0
ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360492
ECLASS 12.0: 23360492
ECLASS 13.0: 23360492
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097
ERP Number: 147119

Variants

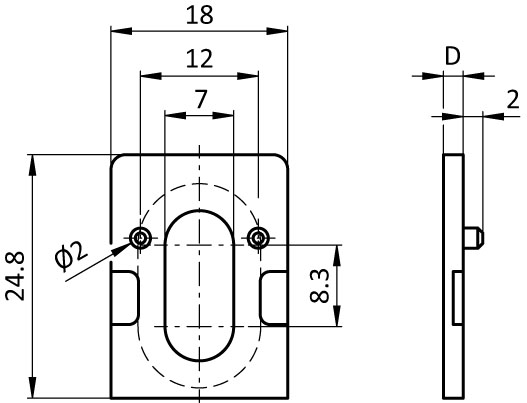

Part # D (mm) Fig. Color
094102CSS03 *2.0 Gray ≈ RAL 7042
094102CSS10 *2.0 Gray ≈ RAL 7004
094103CSS04 3.0 Gray ≈ RAL 7042
094103CSS12 3.0 Gray ≈ RAL 7004
094105CSS03 5.0 Gray ≈ RAL 7042
094105CSS12 5.0 Gray ≈ RAL 7004
