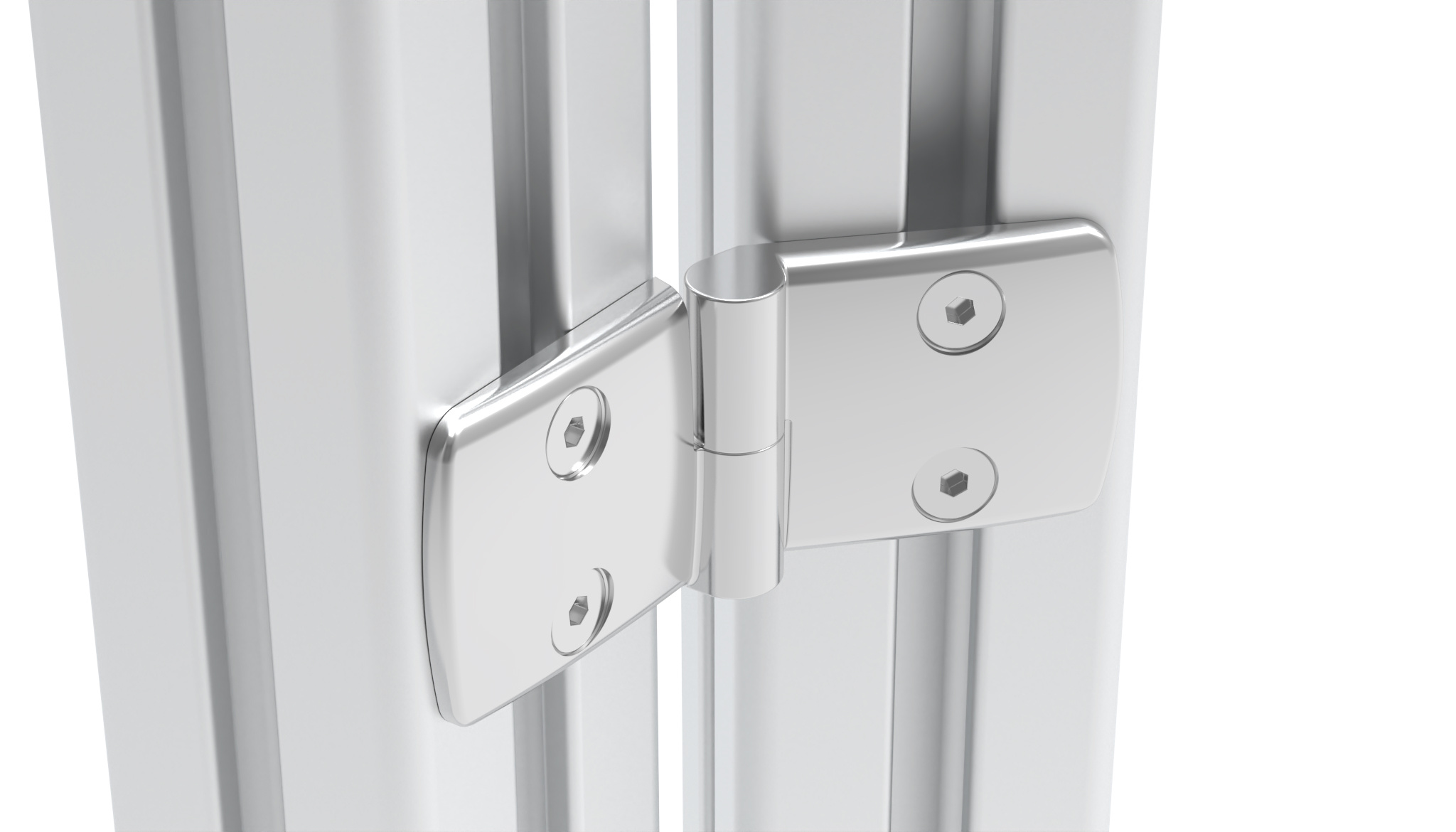

Stainless Steel Combi Hinge 60, Detachable

€0.00

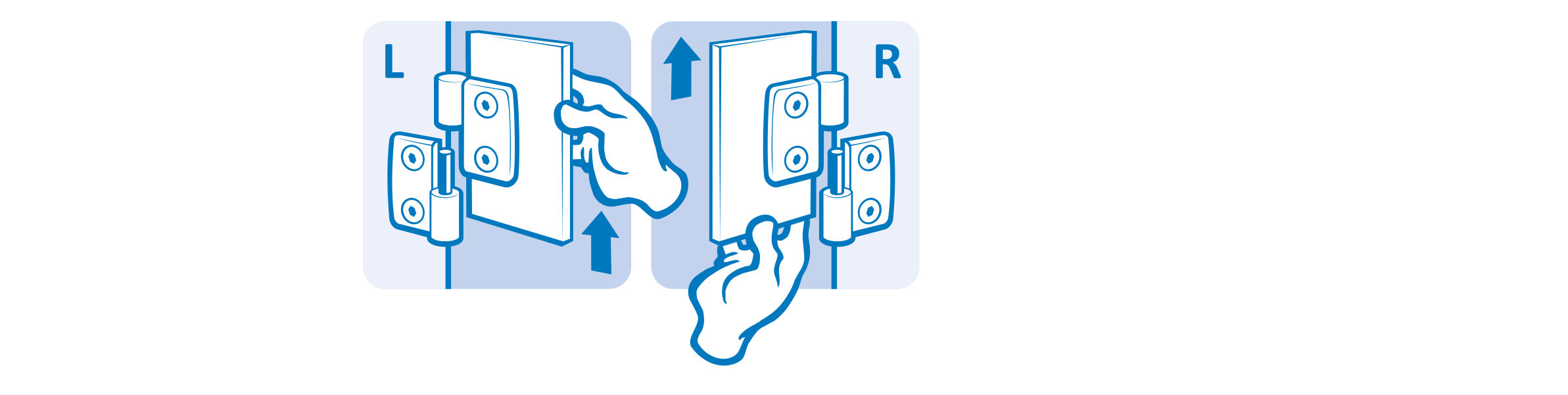

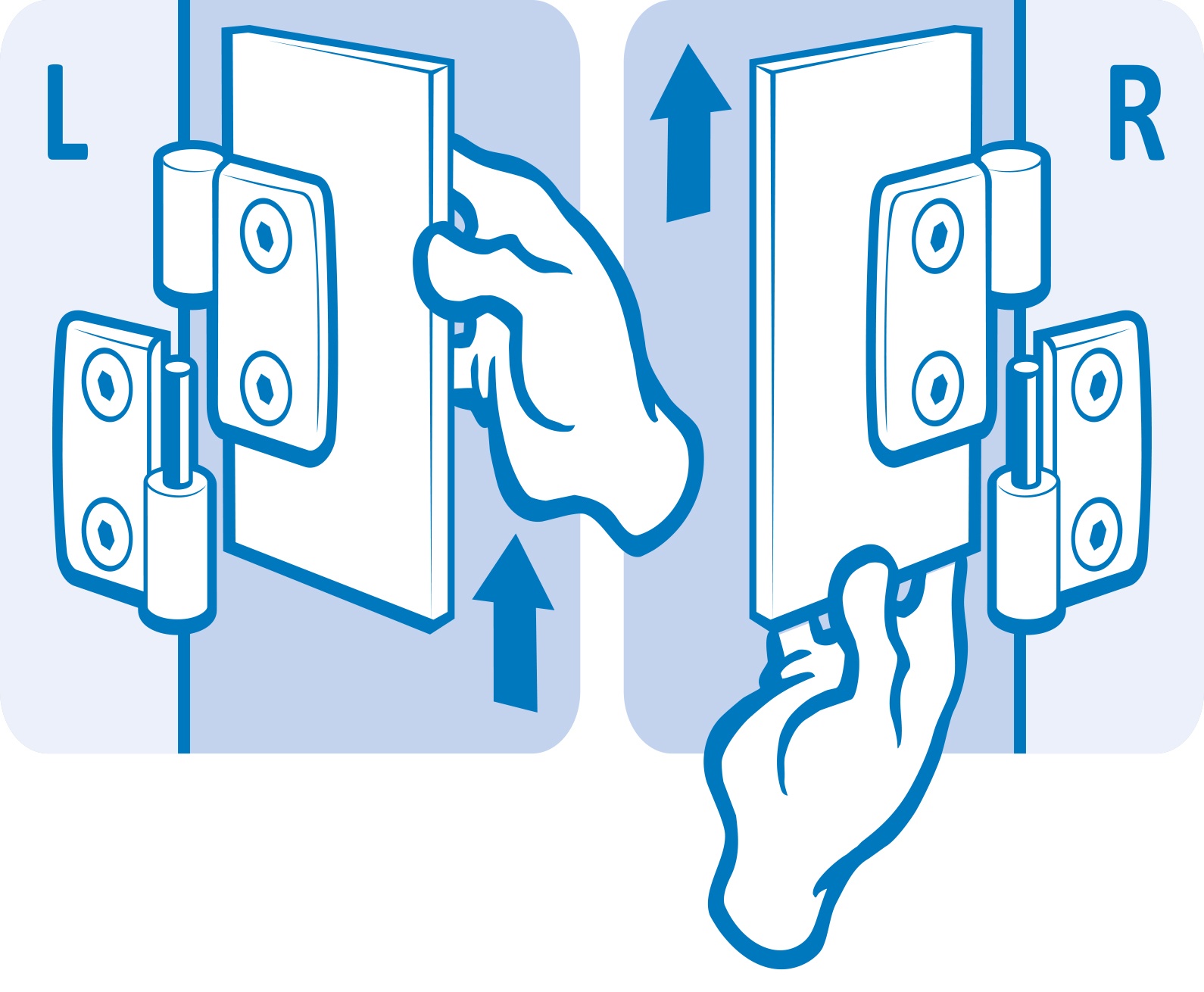

Version

L: Left

R: Right

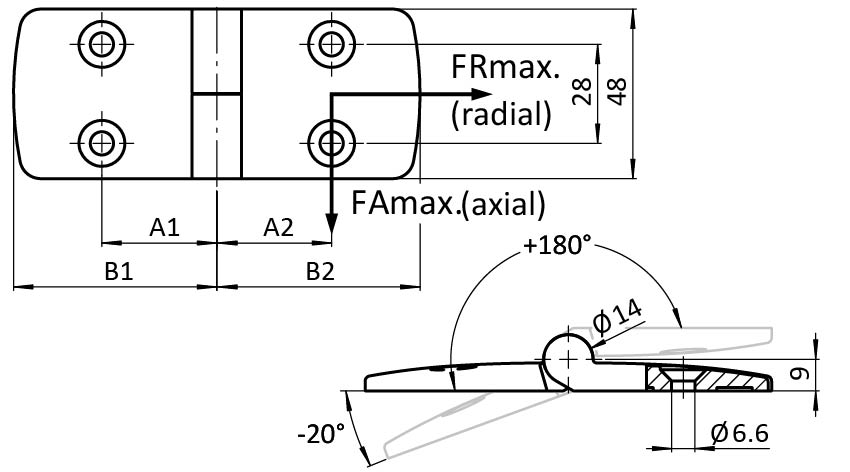

B1 (mm)

56.5

B2 (mm)

56.5

Combination

60 / 60

FAmax (N)

350

FRmax (N)

1200

A1 (mm)

32.5

A2 (mm)

32.5

Part #: 095E6060L

Pack Quantity: 10 pieces

Product information "Stainless Steel Combi Hinge 60, Detachable"

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles

Fastening:
From the front, using M6 countersunk screws

Material:
Wing: Stainless steel SS316
Bolt: Stainless steel SS430 F

Surface:
Plain

Pack Quantity:	10 pieces
Model:	Detachable
Weight (g):	286.0
ERP Number:	114064

Global keywords / tags:

Profile Type	Profile Type B, Profile Type I
Application Area	Machinery & Plant Engineering

Variants

Part #	Version	B1 (mm)	B2 (mm)	Combination	FAmax (N)	FRmax (N)	A1 (mm)	A2 (mm)
095E6060L	L: Left	56.5	56.5	60 / 60	350	1200	32.5	32.5
095E6060R	R: Right	56.5	56.5	60 / 60	350	1200	32.5	32.5

CAD Downloads

Classifications

ECLASS 6.0: 23219090
ECLASS 7.0: 23219090
ECLASS 8.0: 23219090
ECLASS 9.0: 23219090
ECLASS 10.0: 23219090
ECLASS 11.0: 23219090
ECLASS 12.0: 23219090
ECLASS 13.0: 23219090
Zolltarifnummer: 83021000900
Customs Tariff Number Export: 83021000

Certificates
