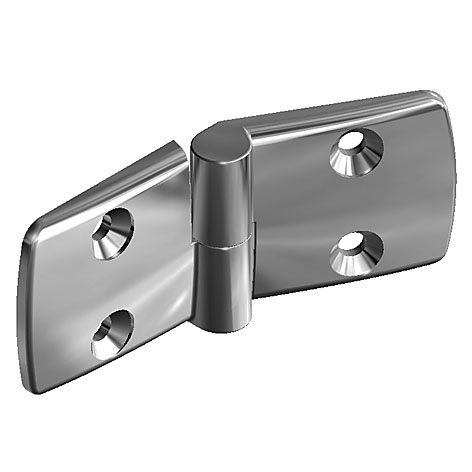

Stainless Steel Combi Hinge 60, Detachable

Product information "Stainless Steel Combi Hinge 60, Detachable"

Delivery Countries:
Worldwide

Description:

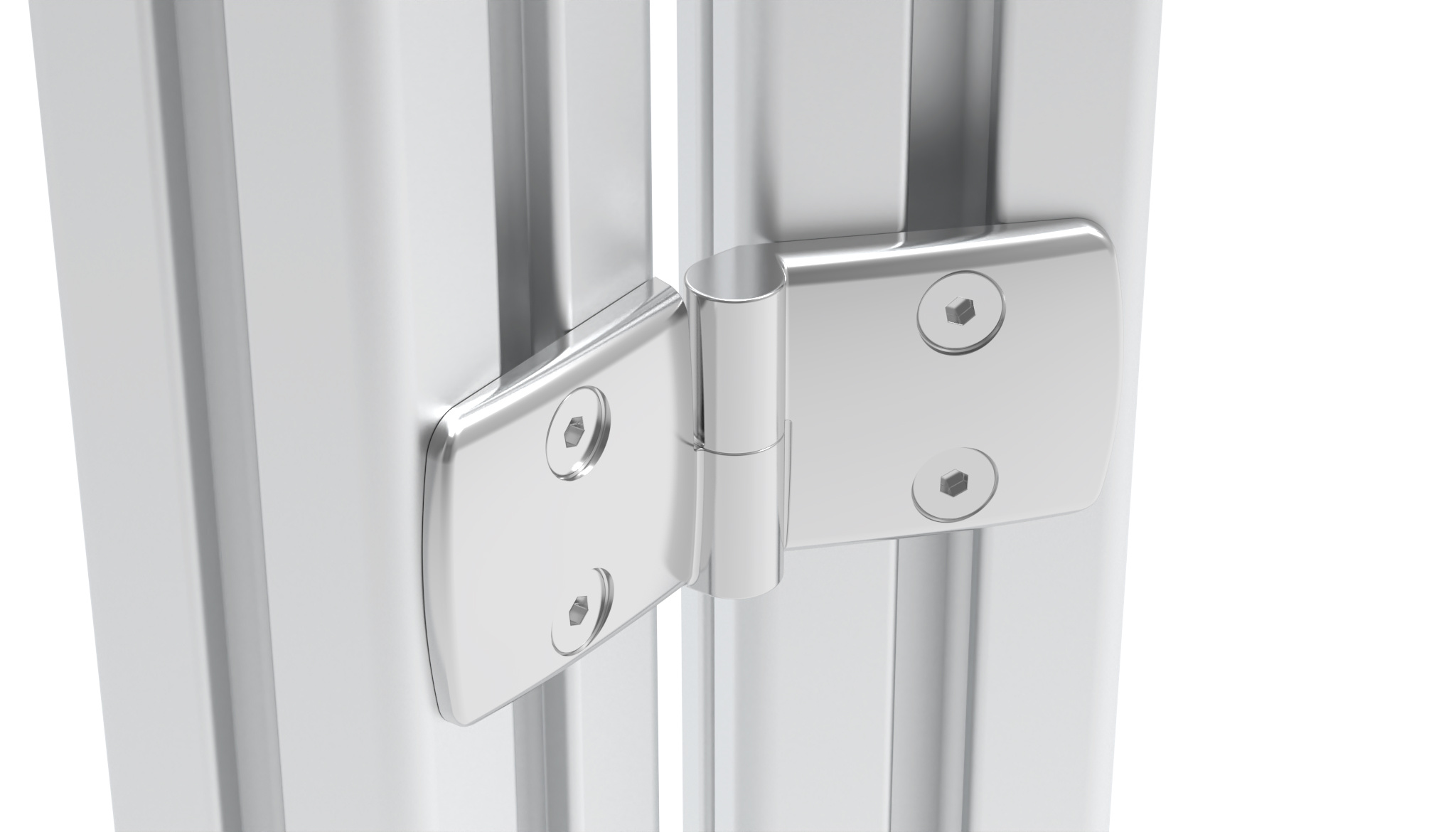

To hinge panels or aluminum profiles

Material:
Wing: Stainless steel SS316
Bolt: Stainless steel SS430 F

Surface:
Plain

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws
Model: Detachable
Pack Quantity: 10 pieces
Weight (g): 286.0

Variants

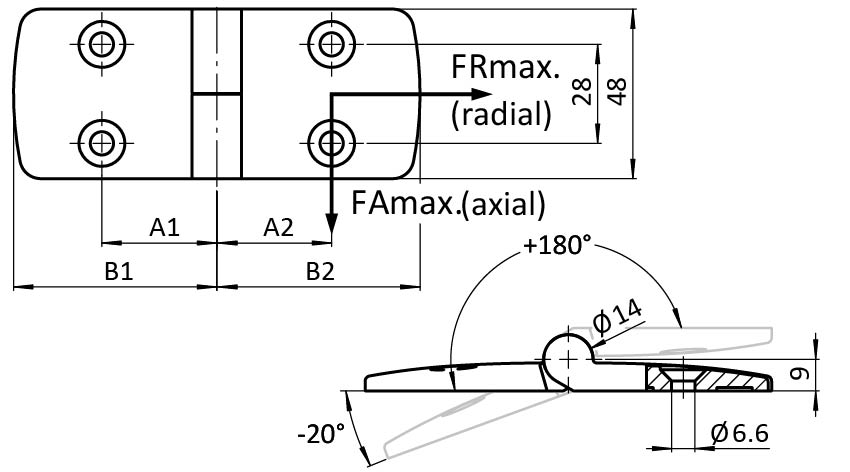

Product ID A1 (mm) B1 (mm) A2 (mm) B2 (mm) FRmax (N) Combination Version FAmax (N)
095E6060L 32.5 56.5 32.5 56.5 1200 60 / 60 L: Left 350

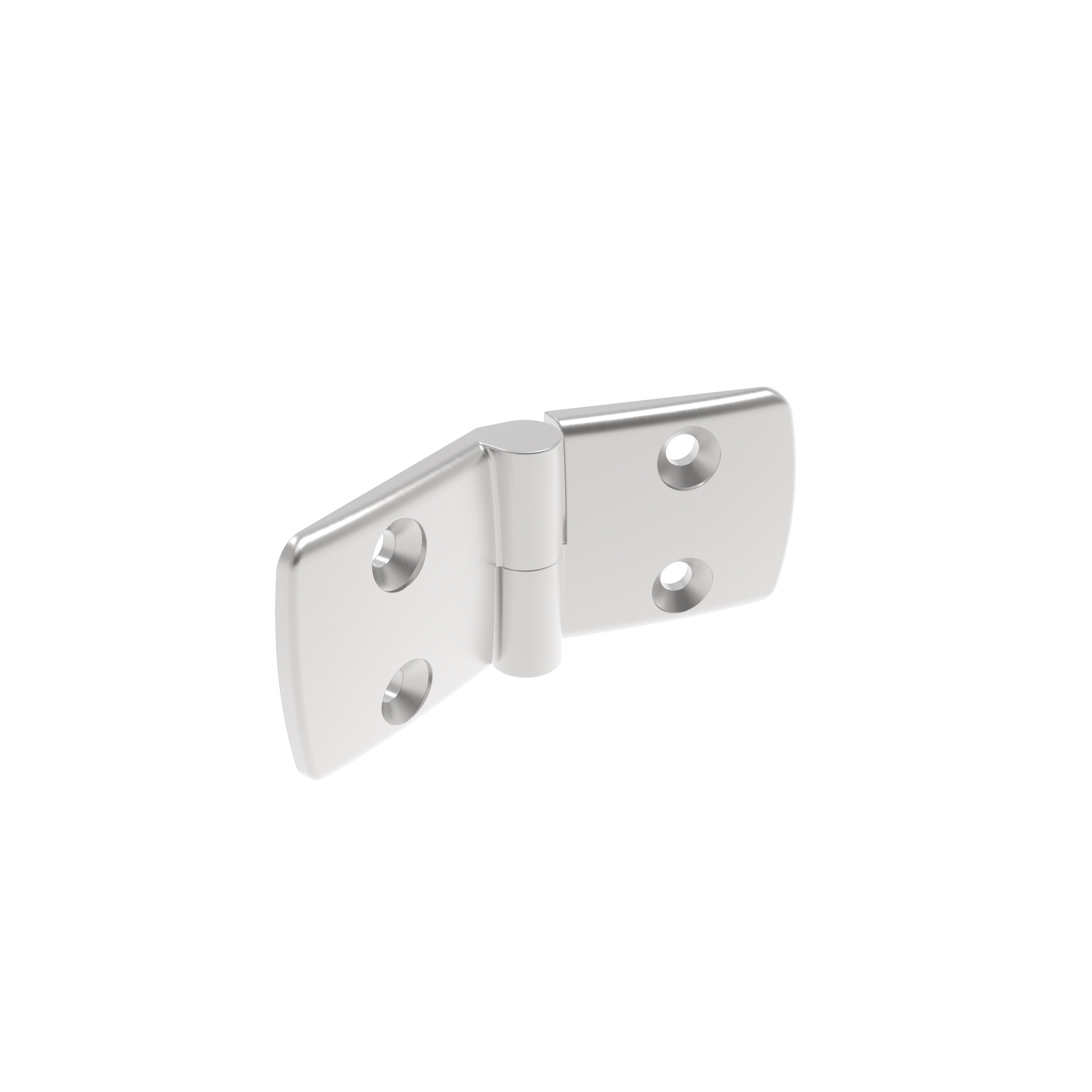

095E6060R 32.5 56.5 32.5 56.5 1200 60 / 60 R: Right 350
