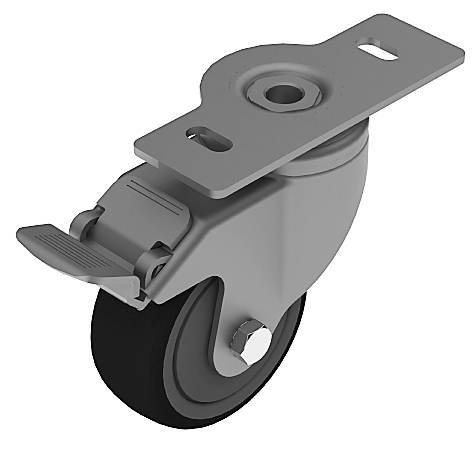

Swivel Caster Ø 80 / 100 / 125 with System Brake and Mounting Plate 40 / 45

Product information "Swivel Caster Ø 80 / 100 / 125 with System Brake and Mounting Plate 40 / 45"

Color:
Housing: Alu color
Tread: See table
Wheel body: Black, gray

Delivery Countries:
Worldwide

Description:

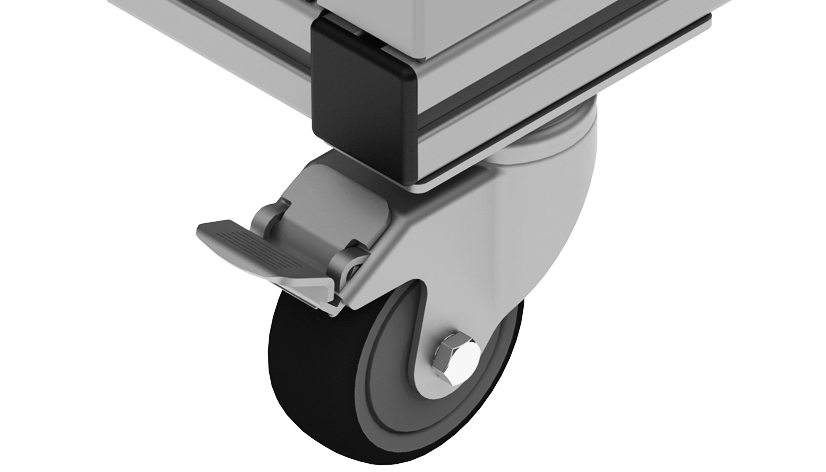

Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; integrated mounting plate for asymmetric fixation to aluminum profiles without overhang; compatible with all swivel and fixed casters due to consistent height level; no additional transport and base plate needed; swivel caster either in standard version or as ESD electrostatical discharging version

Material:
Housing: Steel
Tread: See table
Wheel body: See table

Specials:
Other kinds of wheels, other colors, other surfaces on request

Surface:
Housing: Powder coated

Model:	With bolt hole pattern and system brake
Pack Quantity:	1 piece
Customs Tariff Number Export:	73269098
Weight (g):	723.0
(ECLASS 6.0):	23370201
(ECLASS 7.0):	23370201
(ECLASS 8.0):	23370201
(ECLASS 9.0):	23370201
(ECLASS 10.0):	23370201
(ECLASS 11.0):	23370201
(ECLASS 12.0):	23370201
(ECLASS 13.0):	23370201
ERP Number:	140600
Zolltarifnummer:	73269098900

Variants

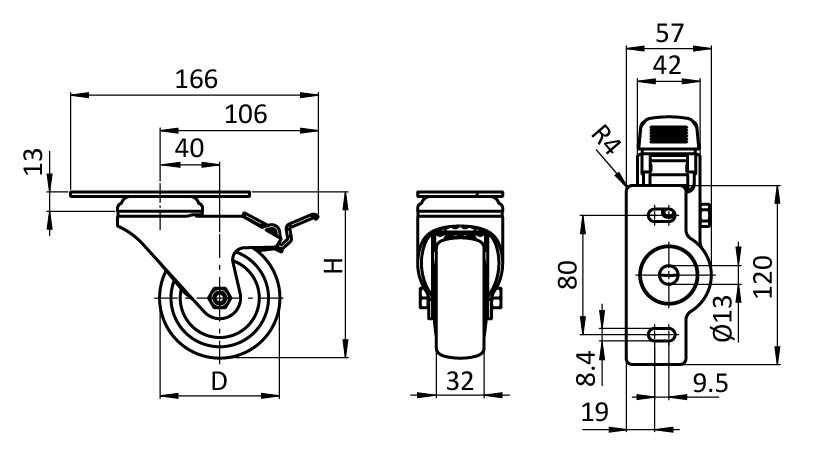

Part #	Bearing	ESD	D (mm)	H (mm)	Max. Load (N)	Swivel Caster Tread	Wheel Body
098S080AD4045N	Slide bearing	-	80	111	1000	PA, black; *with slide bearings	PA, black
098S080GD4045N	Ball bearing	-	80	111	800	Solid rubber, gray ≈ RAL 7001	PA, black
098S080GD4045NESD	Ball bearing	ESD	80	111	600	Solid rubber, black	PA, black
098S080TD4045N	Ball bearing	-	80	111	1000	TPE, gray ≈ RAL 7031	PP, gray
098S080TD4045NESD	Ball bearing	ESD	80	111	650	TPE, gray ≈ RAL 7031	PP, black
098S080UD4045N	Ball bearing	-	80	111	1200	TPU, gray ≈ RAL 7024	PA, gray
098S080UD4045NESD	Ball bearing	ESD	80	111	1000	TPU, gray ≈ RAL 7024	PA, black
098S100AD4045N	Slide bearing	-	100	136	1200	PA, black; *with slide bearings	PA, black
098S100GD4045N	Ball bearing	-	100	136	1100	Solid rubber, gray ≈ RAL 7001	PA, black
098S100GD4045NESD	Ball bearing	ESD	100	136	800	Solid rubber, black	PA, black
098S100TD4045N	Ball bearing	-	100	136	1100	TPE, gray ≈ RAL 7031	PP, gray
098S100TD4045NESD	Ball bearing	ESD	100	136	700	TPE, gray ≈ RAL 7031	PP, black
098S100UD4045N	Ball bearing	-	100	136	1200	TPU, gray ≈ RAL 7024	PA, gray
098S100UD4045NESD	Ball bearing	ESD	100	136	1200	TPU, gray ≈ RAL 7024	PA, black
098S125AD4045N	Slide bearing	-	125	161	1200	PA, black; *with slide bearings	PA, black
098S125GD4045N	Ball bearing	-	125	161	1000	Solid rubber, gray ≈ RAL 7001	PA, black
098S125GD4045NESD	Ball bearing	ESD	125	161	750	Solid rubber, black	PA, black
098S125TD4045N	Ball bearing	-	125	161	1200	TPE, gray ≈ RAL 7031	PP, gray
098S125TD4045NESD	Ball bearing	ESD	125	161	800	TPE, gray ≈ RAL 7031	PP, black
098S125UD4045N	Ball bearing	-	125	161	1200	TPU, gray ≈ RAL 7024	PA, gray
098S125UD4045NESD	Ball bearing	ESD	125	161	1200	TPU, gray ≈ RAL 7024	PA, black
