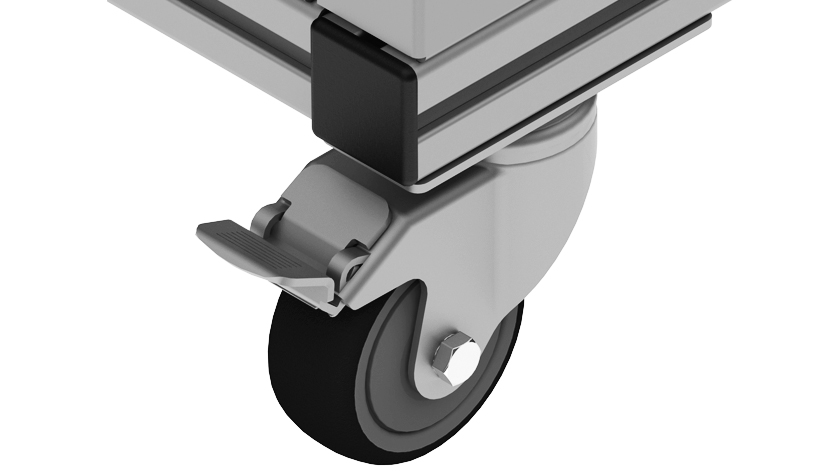

Swivel Caster Ø 80 / 100 / 125 with System Brake and Mounting Plate 40 / 45
Product number:
098S100GD4045N
Product information "Swivel Caster Ø 80 / 100 / 125 with System Brake and Mounting Plate 40 / 45"
Color:
Housing: Alu color
Tread: See table
Wheel body: Black, gray
Delivery Countries:
Worldwide
Description:
Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; integrated mounting plate for asymmetric fixation to aluminum profiles without overhang; compatible with all swivel and fixed casters due to consistent height level; no additional transport and base plate needed; swivel caster either in standard version or as ESD electrostatical discharging version
Material:
Housing: Steel
Tread: See table
Wheel body: See table
Specials:
Other kinds of wheels, other colors, other surfaces on request
Surface:
Housing: Powder coated
Zolltarifnummer:
73269098900
Housing: Alu color
Tread: See table
Wheel body: Black, gray
Delivery Countries:
Worldwide
Description:
Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; integrated mounting plate for asymmetric fixation to aluminum profiles without overhang; compatible with all swivel and fixed casters due to consistent height level; no additional transport and base plate needed; swivel caster either in standard version or as ESD electrostatical discharging version
Material:
Housing: Steel
Tread: See table
Wheel body: See table
Specials:
Other kinds of wheels, other colors, other surfaces on request
Surface:
Housing: Powder coated
Zolltarifnummer:
73269098900
(ECLASS 6.0): | 23370201 |
---|---|
(ECLASS 7.0): | 23370201 |
(ECLASS 8.0): | 23370201 |
(ECLASS 9.0): | 23370201 |
(ECLASS 10.0): | 23370201 |
(ECLASS 11.0): | 23370201 |
(ECLASS 12.0): | 23370201 |
(ECLASS 13.0): | 23370201 |
Model: | With bolt hole pattern and system brake |
Pack Quantity: | 1 piece |
Weight (g): | 885.0 |
Variants

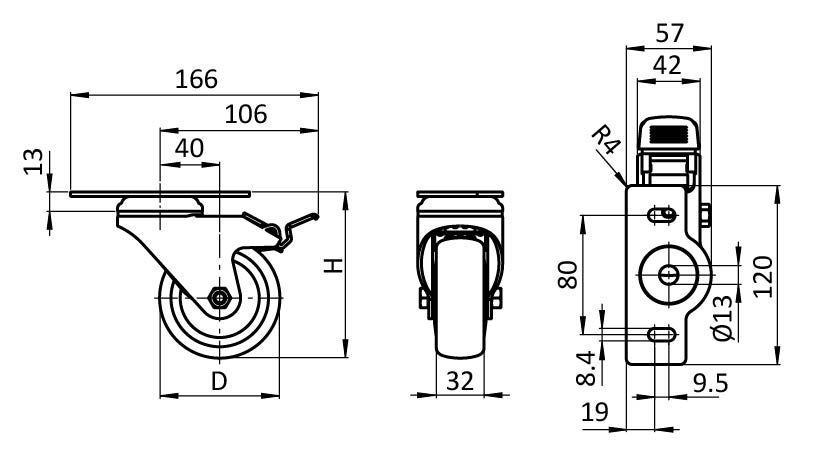

Product ID | ESD | Wheel Body | Bearing | Swivel Caster Tread | D (mm) | Max. Load (N) | H (mm) |
---|---|---|---|---|---|---|---|
098S080AD4045N | PA, black | Slide bearing | PA, black; *with slide bearings | 80 | 1000 | 111 | |
098S080GD4045N | PA, black | Ball bearing | Solid rubber, gray ≈ RAL 7001 | 80 | 800 | 111 | |
098S080GD4045NESD | ESD | PA, black | Ball bearing | Solid rubber, black | 80 | 600 | 111 |
098S080TD4045N | PP, gray | Ball bearing | TPE, gray ≈ RAL 7031 | 80 | 1000 | 111 | |
098S080TD4045NESD | ESD | PP, black | Ball bearing | TPE, gray ≈ RAL 7031 | 80 | 650 | 111 |
098S080UD4045N | PA, gray | Ball bearing | TPU, gray ≈ RAL 7024 | 80 | 1200 | 111 | |
098S080UD4045NESD | ESD | PA, black | Ball bearing | TPU, gray ≈ RAL 7024 | 80 | 1000 | 111 |
098S100AD4045N | PA, black | Slide bearing | PA, black; *with slide bearings | 100 | 1200 | 136 | |
098S100GD4045N | PA, black | Ball bearing | Solid rubber, gray ≈ RAL 7001 | 100 | 1100 | 136 | |
098S100GD4045NESD | ESD | PA, black | Ball bearing | Solid rubber, black | 100 | 800 | 136 |
098S100TD4045N | PP, gray | Ball bearing | TPE, gray ≈ RAL 7031 | 100 | 1100 | 136 | |
098S100TD4045NESD | ESD | PP, black | Ball bearing | TPE, gray ≈ RAL 7031 | 100 | 700 | 136 |
098S100UD4045N | PA, gray | Ball bearing | TPU, gray ≈ RAL 7024 | 100 | 1200 | 136 | |
098S100UD4045NESD | ESD | PA, black | Ball bearing | TPU, gray ≈ RAL 7024 | 100 | 1200 | 136 |
098S125AD4045N | PA, black | Slide bearing | PA, black; *with slide bearings | 125 | 1200 | 161 | |
098S125GD4045N | PA, black | Ball bearing | Solid rubber, gray ≈ RAL 7001 | 125 | 1000 | 161 | |
098S125GD4045NESD | ESD | PA, black | Ball bearing | Solid rubber, black | 125 | 750 | 161 |
098S125TD4045N | PP, gray | Ball bearing | TPE, gray ≈ RAL 7031 | 125 | 1200 | 161 | |
098S125TD4045NESD | ESD | PP, black | Ball bearing | TPE, gray ≈ RAL 7031 | 125 | 800 | 161 |
098S125UD4045N | PA, gray | Ball bearing | TPU, gray ≈ RAL 7024 | 125 | 1200 | 161 | |
098S125UD4045NESD | ESD | PA, black | Ball bearing | TPU, gray ≈ RAL 7024 | 125 | 1200 | 161 |
