Swivel Foot, PA / SS - BDH - Ball Joint 15
Product number:
9D100KBZ16100E
Product information "Swivel Foot, PA / SS - BDH - Ball Joint 15"
Color:
Base: Black
Delivery Countries:
Worldwide
Description:

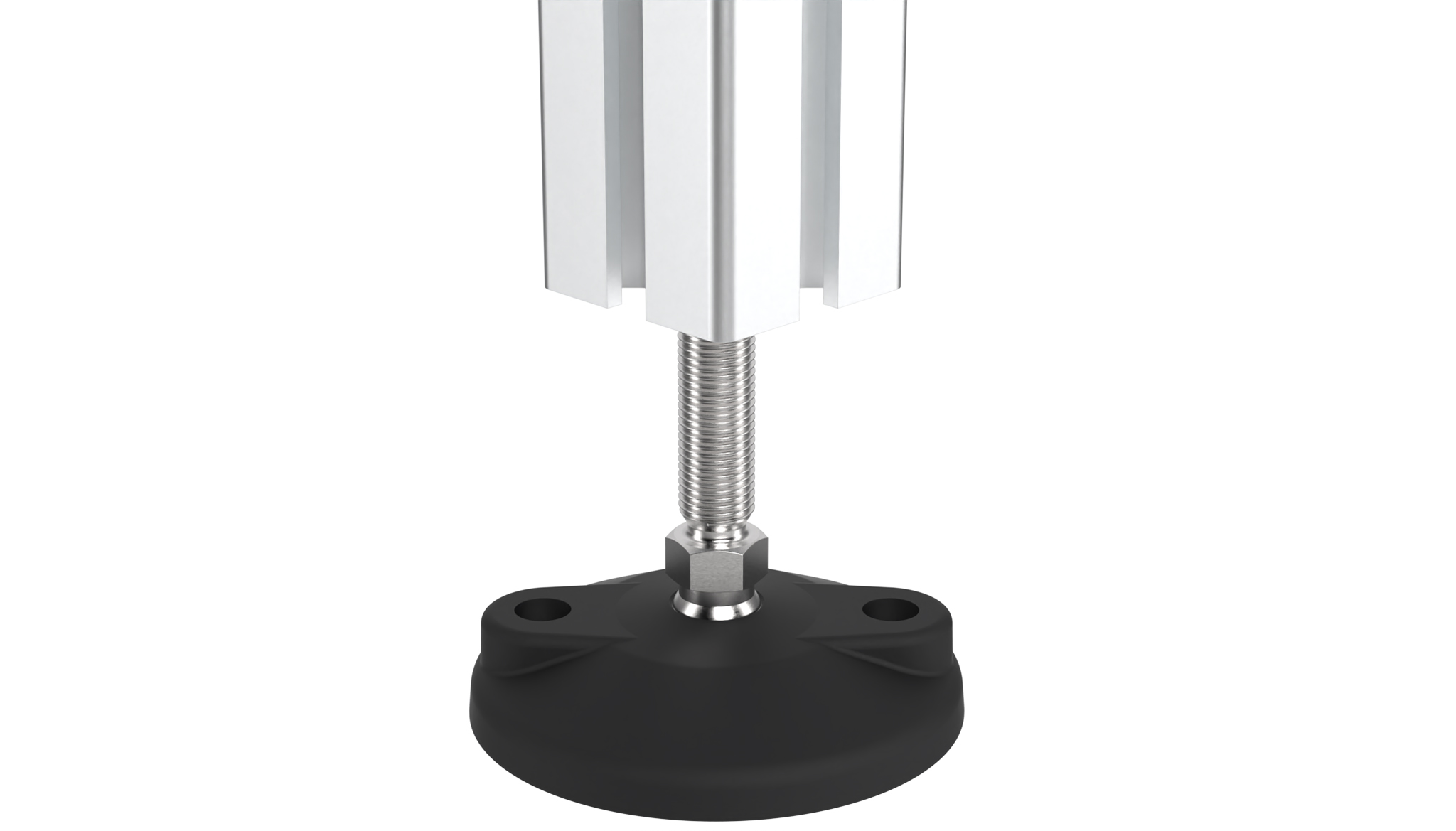

A swiveling leveling foot which can be fixed to the floor
Material:
Base: Plastic PA, glass ball reinforced
Threaded rod: Stainless steel
Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request
Surface:
Threaded rod: Plain
Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq., * Bolt-down holes closed
Zolltarifnummer:
73269098900
Base: Black
Delivery Countries:
Worldwide
Description:
A swiveling leveling foot which can be fixed to the floor
Material:
Base: Plastic PA, glass ball reinforced
Threaded rod: Stainless steel
Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request
Surface:
Threaded rod: Plain
Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq., * Bolt-down holes closed
Zolltarifnummer:
73269098900
Ball Joint: | Swiveling range ±20° |
---|---|
Model: | Plastic PA / stainless steel, with bolt-down holes |
Pack Quantity: | 1 piece |
Weight (g): | 242.0 |
Variants

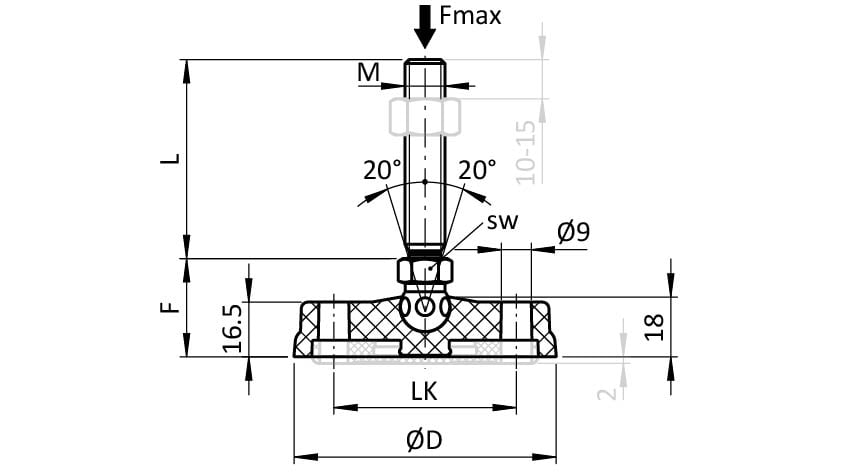

Product ID | F (mm) | Version | D (mm) | LK (mm) | Base | M x L (mm) | Fmax (N) | SW (mm) |
---|---|---|---|---|---|---|---|---|
9D080KB12066E | 29.5 | without anti-slip plate | 79 | 55 | 80 | M12 x 66 | 7550 | 14 |
9D080KB16100E | 29.5 | without anti-slip plate | 79 | 55 | 80 | M16 x 100 | 8800 | 17 |
9D080KBZ14100E | 29.5 | without anti-slip plate | 79 | 55 | *80 | M14 x 100 | 8800 | 14 |
9D080KBZ16100E | 29.5 | without anti-slip plate | 79 | 55 | *80 | M16 x 100 | 8800 | 17 |
9D100KBZ14125E | 29.5 | without anti-slip plate | 99 | 74 | *100 | M14 x 125 | 8800 | 14 |
9D100KBZ16100E | 29.5 | without anti-slip plate | 99 | 74 | *100 | M16 x 100 | 8800 | 17 |
9D100KBZ20100E | 32.5 | without anti-slip plate | 99 | 74 | *100 | M20 x 100 | 8800 | 22 |
