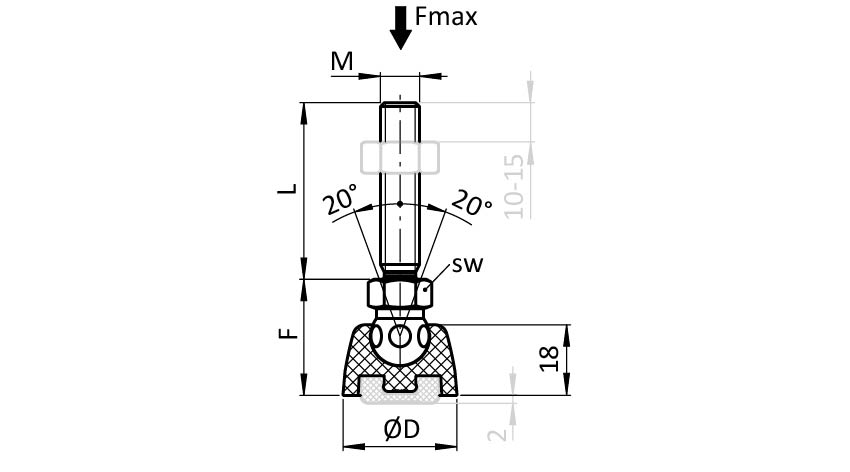

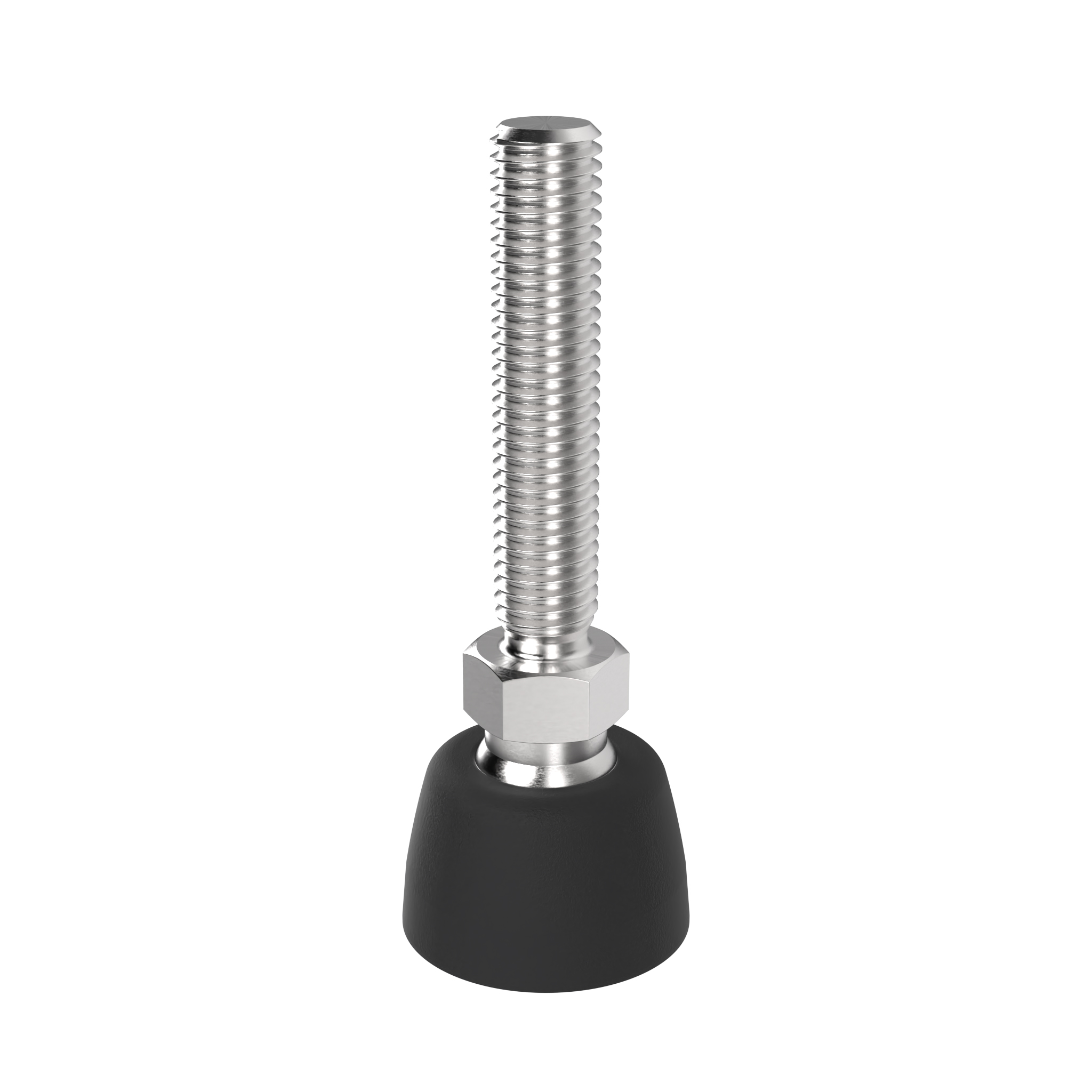

Swivel Foot, PA / SS - Ball Joint 15
€0.00
Product information "Swivel Foot, PA / SS - Ball Joint 15"
Base: Black
Delivery Countries:
Worldwide
Description:
A swiveling leveling foot for strong positioning on uneven floors
Material:
Base: Plastic PA, glass ball reinforced
Threaded rod: Stainless steel
Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request
Surface:
Threaded rod: Plain
Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq.
| Pack Quantity: | 1 piece |
|---|---|
| Ball Joint: | Swiveling range ±20° |
| Model: | Plastic PA / Stainless Steel, without bolt-down holes |
| Weight (g): | 86.0 |
| ERP Number: | 120134 |
Classifications
- ECLASS 6.0
- 90900110
- ECLASS 7.0
- 90900109
- ECLASS 8.0
- 90900108
- ECLASS 9.0
- 90900107
- ECLASS 10.0
- 90900106
- ECLASS 11.0
- 90900105
- ECLASS 12.0
- 90900104
- ECLASS 13.0
- 90900103
- ECLASS 14.0
- 90900102
- ECLASS 15.0
- 90900101
- ECLASS 16.0
- 23010702
- Zolltarifnummer
- 73269098900
- Customs Tariff Number Export
- 73269098
