System Arm I40H 370 (Set)
Part #:
6FDG40NH370S40N08
Product information "System Arm I40H 370 (Set)"
Color:
Arm: Alu color
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Monitor mount: Black
Delivery Countries:
Worldwide
Description:

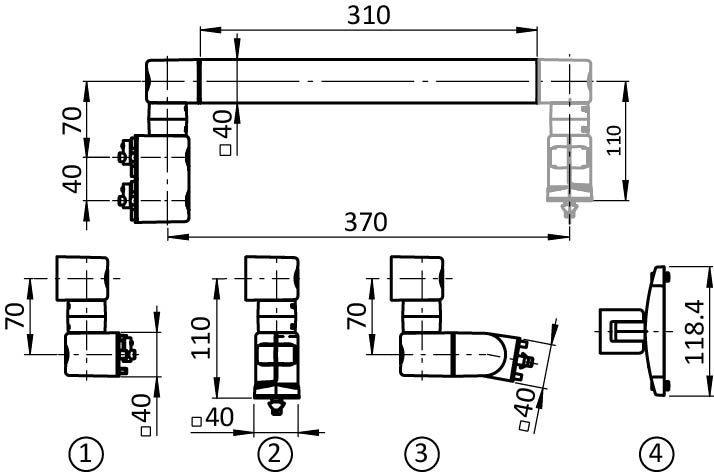

Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled

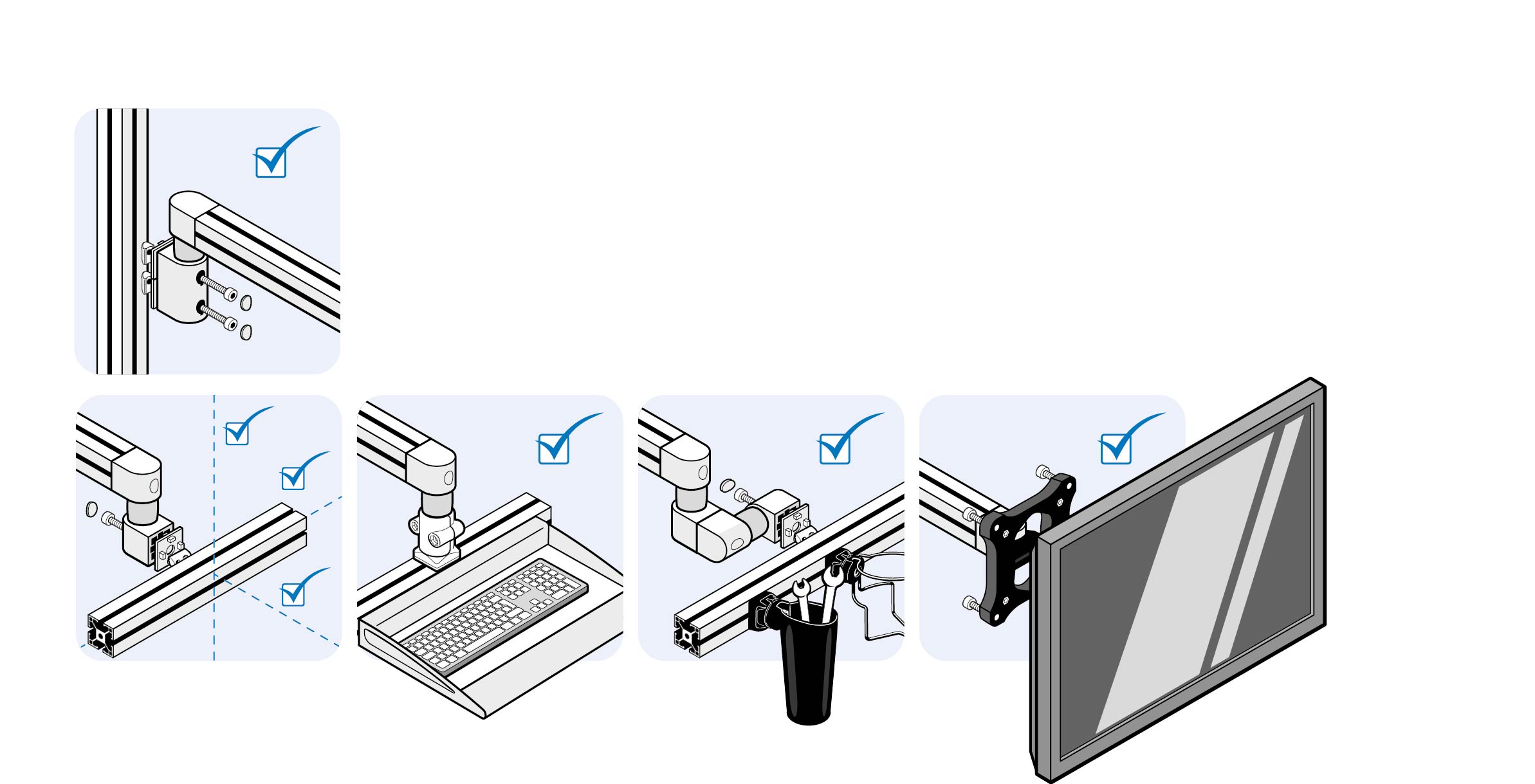

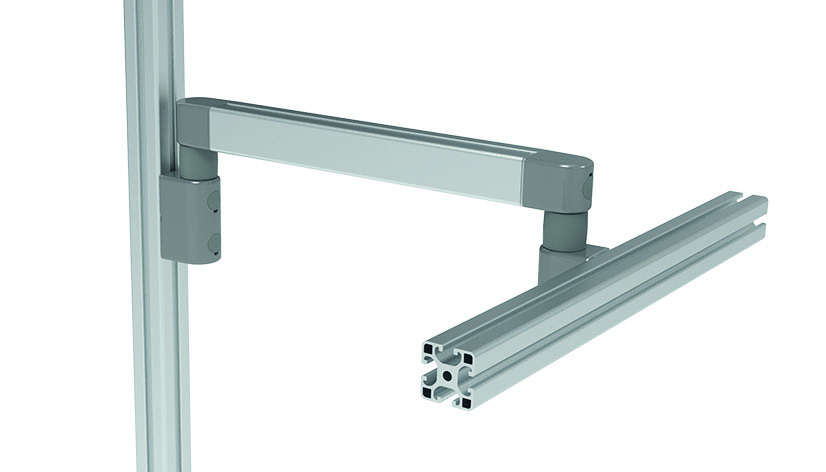

System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Material:
Arm: Aluminum
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Monitor mount: Plastic PA, glas fiber reinforced

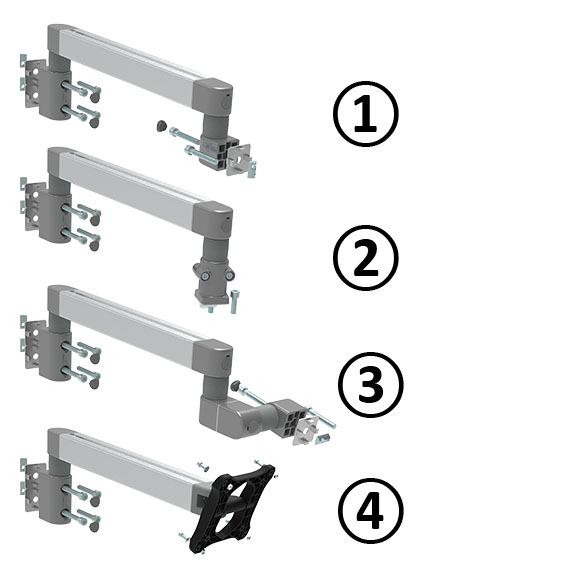

Set 1:
1 system arm I40H 370 with friction joint
3 cover caps
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
3 washers 8-FSt,
3 centering plates,
3 T-slot nuts - slot 8 - M8
Set 2:
1 system arm I40H 370 with end friction joint
2 cover cap
2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side),
2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side),
3 washers 8-FSt,
3 centering plates,
3 T-slot nuts - slot 8 - M8
Set 3:
1 system arm I40H 370 with double friction joint
3 cover caps
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
3 washers 8-FSt,
3 centering plates,
3 T-slot nuts - slot 8 - M8
Set 4:
1 system arm I40H 370 with monitor mount
2 cover cap
2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
2 washer 8-FSt,
2 centering plate,
2 T-slot nut - slot 8 - M8
1 assembly set for monitor: 4 screws DIN EN ISO 4762 (DIN 912) - M4 x 12, 4 washers
Surface:
Arm: Anodized
Housing: Powder coated
Screws: Zinc plated
Washers: Zinc plated
Centering plates: Powder coated
T-slot nuts: Zinc plated
Arm: Alu color
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Monitor mount: Black
Delivery Countries:
Worldwide
Description:
Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled
System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Material:
Arm: Aluminum
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Monitor mount: Plastic PA, glas fiber reinforced
Set 1:
1 system arm I40H 370 with friction joint
3 cover caps
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
3 washers 8-FSt,
3 centering plates,
3 T-slot nuts - slot 8 - M8
Set 2:
1 system arm I40H 370 with end friction joint
2 cover cap
2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side),
2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side),
3 washers 8-FSt,
3 centering plates,
3 T-slot nuts - slot 8 - M8
Set 3:
1 system arm I40H 370 with double friction joint
3 cover caps
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
3 washers 8-FSt,
3 centering plates,
3 T-slot nuts - slot 8 - M8
Set 4:
1 system arm I40H 370 with monitor mount
2 cover cap
2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
2 washer 8-FSt,
2 centering plate,
2 T-slot nut - slot 8 - M8
1 assembly set for monitor: 4 screws DIN EN ISO 4762 (DIN 912) - M4 x 12, 4 washers
Surface:
Arm: Anodized
Housing: Powder coated
Screws: Zinc plated
Washers: Zinc plated
Centering plates: Powder coated
T-slot nuts: Zinc plated
| Customs Tariff Number Export: | 76169990 |
|---|---|
| ERP Number: | 148266 |
| Model: | pre-assembled, profile 40 and up |
| Pack Quantity: | 1 piece |
| Weight (g): | 3112.5 |
| Zolltarifnummer: | 76169990990 |
