System Arm I80H 370 (Set)

Product information "System Arm I80H 370 (Set)"

Color:
Arm: Alu color
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color

Delivery Countries:
Worldwide

Description:

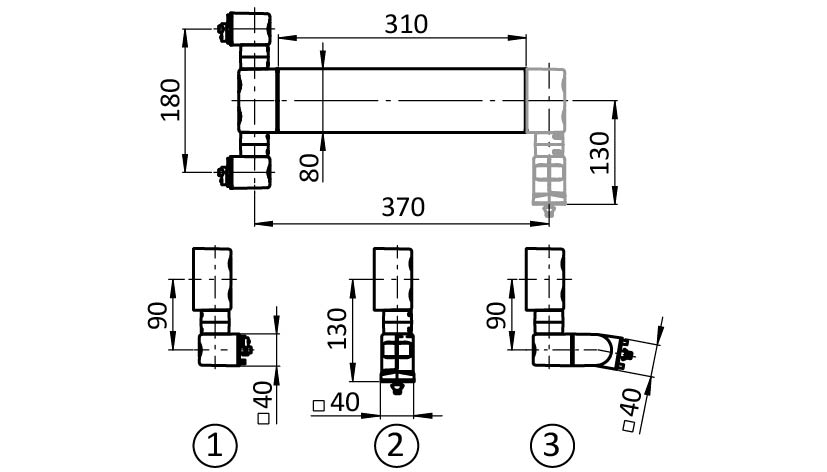

Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled

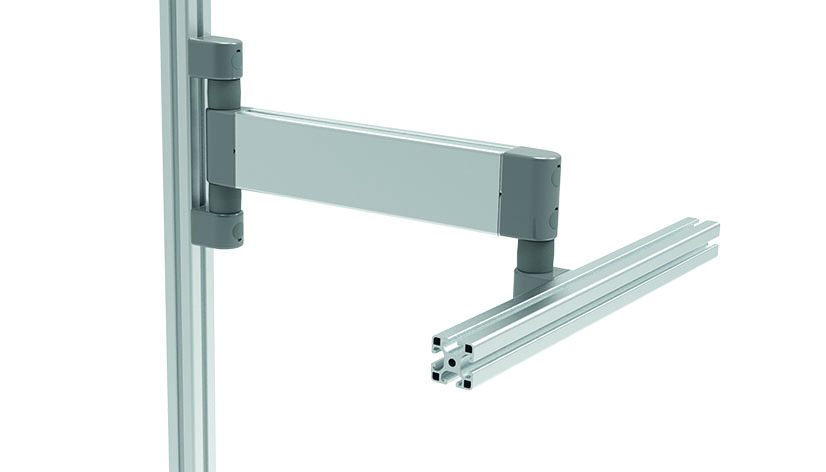

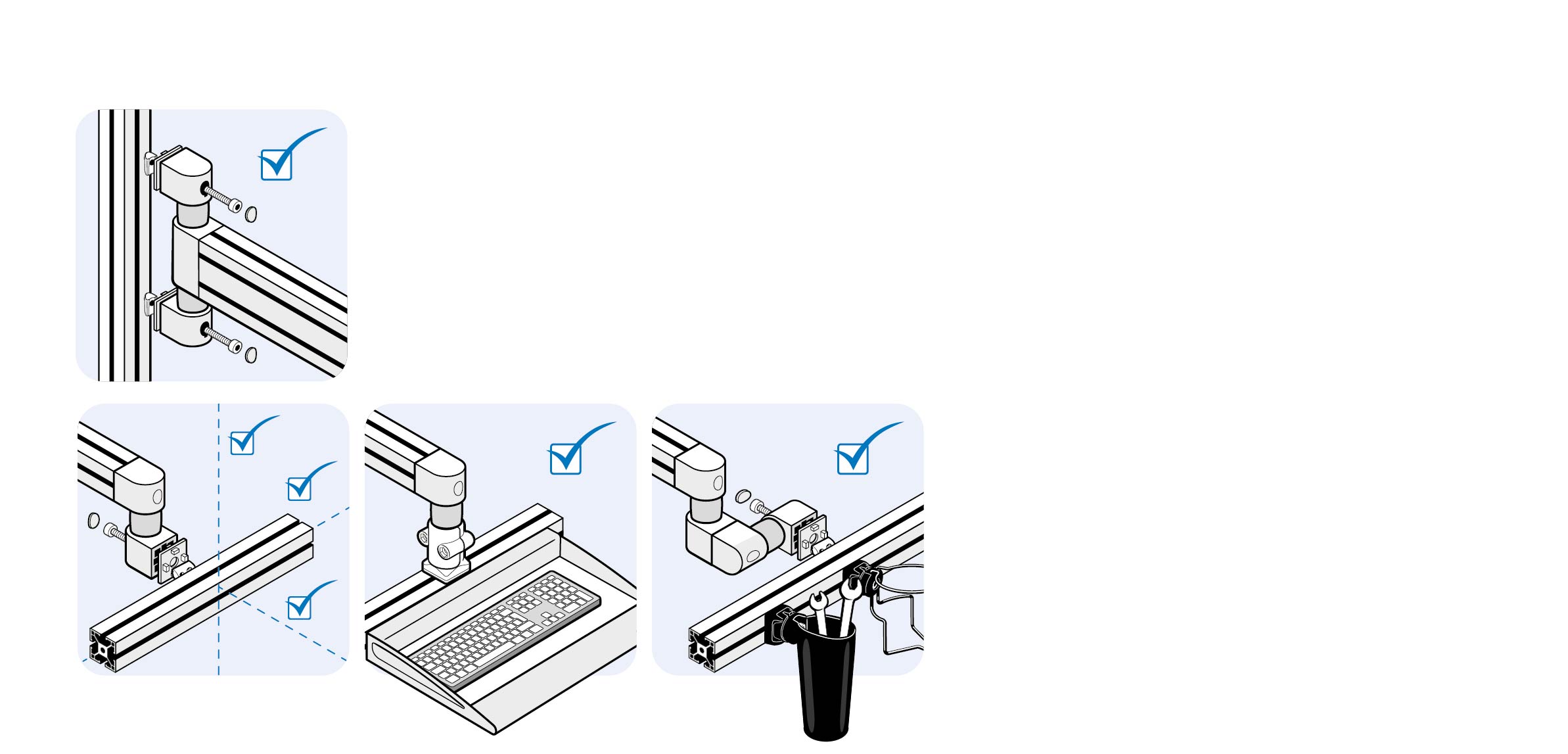

System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

Material:
Arm: Aluminum
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel

Set 1:
1 system arm I80H 370 with friction joint
3 cover caps
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
3 washers 8-FSt,
3 centering plates,
3 T-slot nuts - slot 8 - M8

Set 2:
1 system arm I80H 370 with end friction joint
2 cover cap
2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side),
2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side),
3 washers 8-FSt,
3 centering plates,
3 T-slot nuts - slot 8 - M8

Set 3:
1 system arm I80H 370 with double friction joint
3 cover caps
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
3 washers 8-FSt,
3 centering plates,
3 T-slot nuts - slot 8 - M8

Surface:
Arm: Anodized
Housing: Powder coated
Screws: Zinc plated
Washers: Zinc plated
Centering plates: Powder coated
T-slot nuts: Zinc plated
Customs Tariff Number Export: 76169910
Model: pre-assembled, profile 40 and up
Pack Quantity: 1 piece
Weight (g): 3325.8
pA Number: 148241

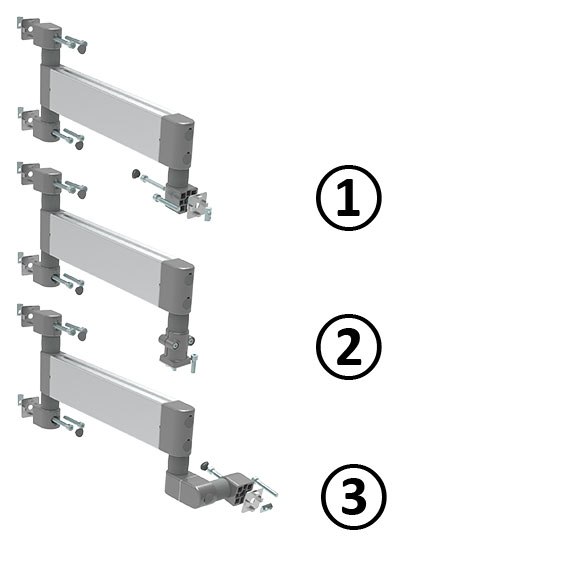

Variants

Product ID Fig. Set Profile Version
6FA80NH370S80N08 Set 2 I With End Friction Joint
6FDG80NH370S80N08 Set 3 I With Double Friction Joint
6FG80NH370S80N08 Set 1 I With Friction Joint
