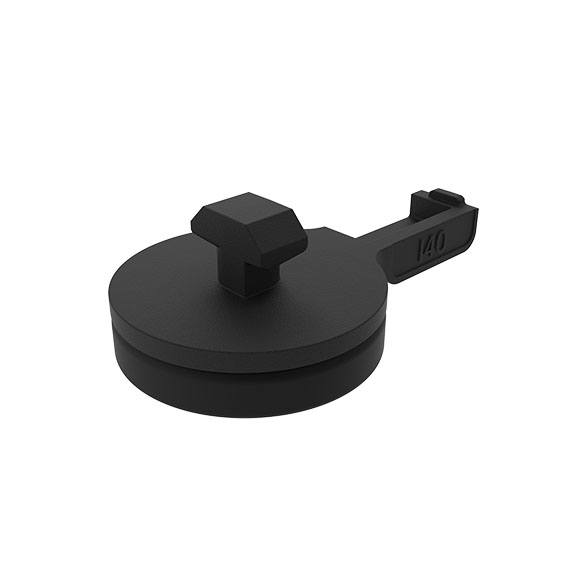

T-slot Foot

Description:
To protect the floor and the aluminum profile, incl. anti-slip-plate, prevents movement of T-Slot foot on slippery surfaces and absorbs some vibration; can be mounted into the slot by a quarter turn;
Can also be used as spacer e.g. for the transport of aluminum profiles and frames, or as buffer stop e.g. for door frames

Material:
Base: Plastic PA, glass ball reinforced
Anti-slip plate: Thermoplastic elastomer, ≈ 70 Shore A

Color:
Black

Fastening:
By turning into the slot

Delivery Countries:
Worldwide

Pack Quantity:	10 pieces
Model:	Plastic PA, with anti-slip plate
Weight (g):	14.3
ERP Number:	143951

Variants

Part #	D (mm)	Profile	L (mm)	Slot N (mm)	Modular Dimension (mm)	A2 (Profile) (mm)
098T020KGN05	20	I	45.0	5	20	1.6 (1.8)
098T020KGN06	20	B	45.0	6	20	1.3 (1.5)
098T030KGN06	30	I	55.0	6	30	2.8 (3.0)
098T030KGN08	30	B	55.0	8	30	2.0 (2.2)
098T040KGN08S01	36	-	61.0	8	40	3.8 (4.0)
098T040KGN08	36	I	61.0	8	40	4.3 (4.5)
098T040KGN10	36	B	61.0	10	40 / 45	5.8 (6.0)
