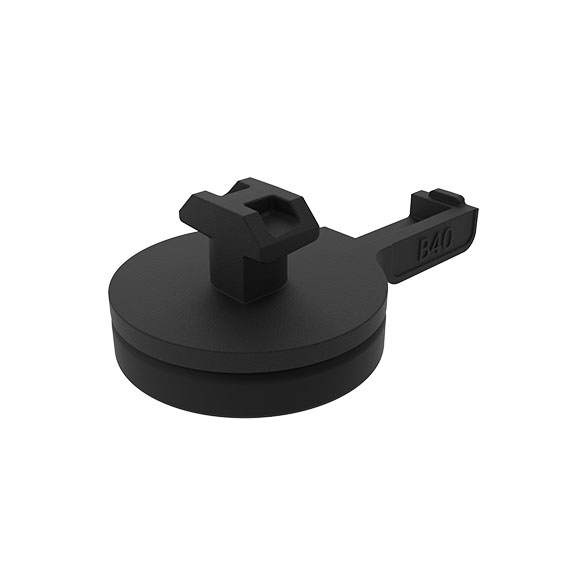

T-slot Foot

Product information "T-slot Foot"

Color:
Black

Delivery Countries:
Worldwide

Description:
To protect the floor and the aluminum profile, incl. anti-slip-plate, prevents movement of T-Slot foot on slippery surfaces and absorbs some vibration; can be mounted into the slot by a quarter turn;
Can also be used as spacer e.g. for the transport of aluminum profiles and frames, or as buffer stop e.g. for door frames

Material:
Base: Plastic PA, glass ball reinforced
Anti-slip plate: Thermoplastic elastomer, ≈ 70 Shore A

Zolltarifnummer:
39269097900
Fastening: By turning into the slot
Model: Plastic PA, with anti-slip plate
Pack Quantity: 10 pieces
Weight (g): 14.3

Variants

Product ID Profile Slot N (mm) D (mm) A2 (Profile) (mm) Grid L (mm)
098T020KGN05 I 5 20 1.6 (1.8) 20 45.0
098T020KGN06 B 6 20 1.3 (1.5) 20 45.0
098T030KGN06 I 6 30 2.8 (3.0) 30 55.0
098T030KGN08 B 8 30 2.0 (2.2) 30 55.0
098T040KGN08 I 8 36 4.3 (4.5) 40 61.0
098T040KGN08S01 8 36 3.8 (4.0) 40 61.0
098T040KGN10 B 10 36 5.8 (6.0) 40 / 45 61.0
