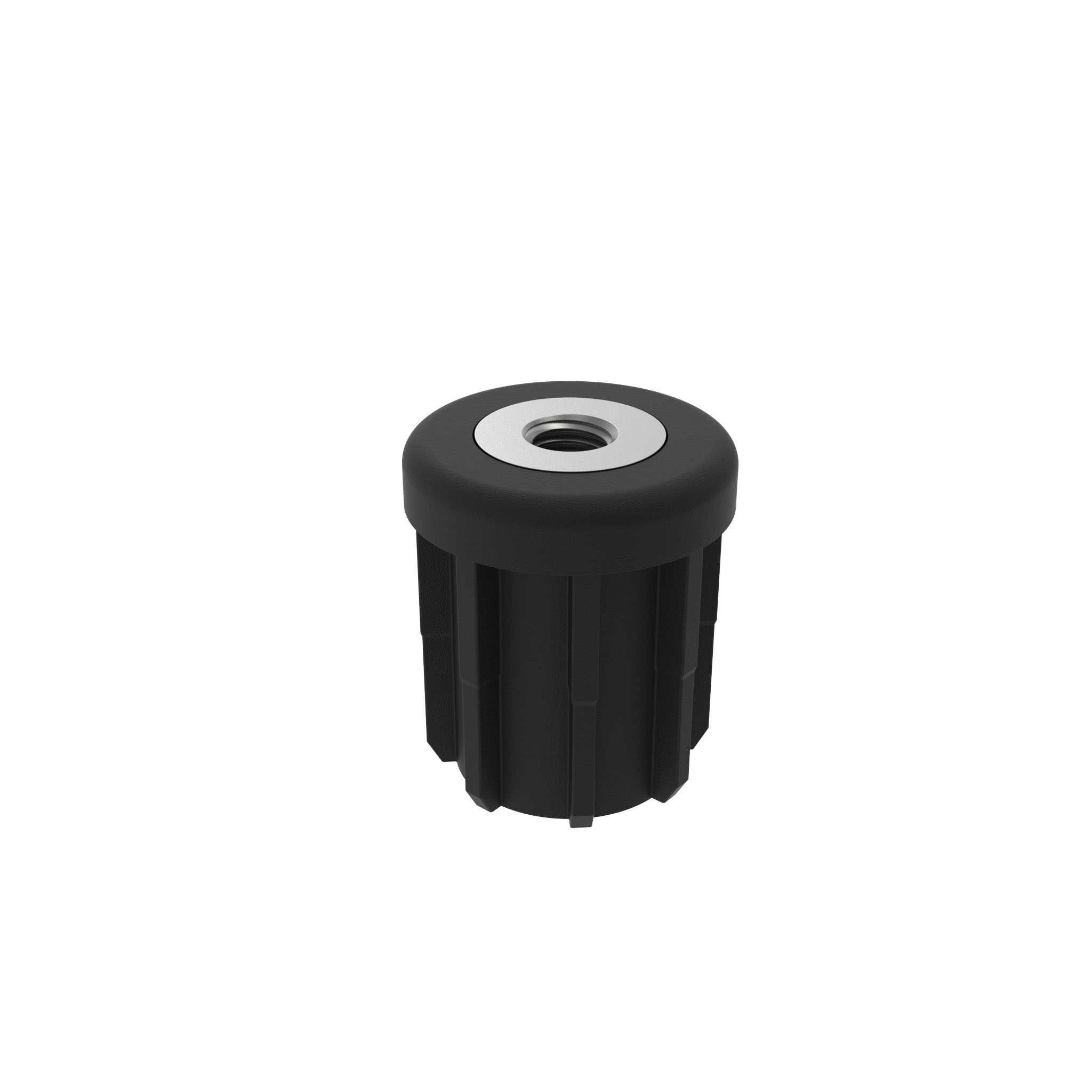

Threaded Bush for Round Tubes 38

Product information "Threaded Bush for Round Tubes 38"

Color:
Black

Delivery Countries:
Worldwide

Description:
To fit leveling feet to round, non-threaded tubes

Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass

Specials:
ESD electrostatical discharging, other sizes, other colors on request
(ECLASS 6.0): 23111190
(ECLASS 7.0): 23111190
(ECLASS 8.0): 23111190
(ECLASS 9.0): 23111190
(ECLASS 10.0): 23111190
(ECLASS 11.0): 23111190
(ECLASS 12.0): 23111190
(ECLASS 13.0): 23111190
Customs Tariff Number Export: 39269097
Model: Plastic PA, with brass threaded insert
Pack Quantity: 10 pieces
Pack Quantity (1): 10
Weight (g): 76.0
Zolltarifnummer: 39269097900
pA Number: 105095

Variants

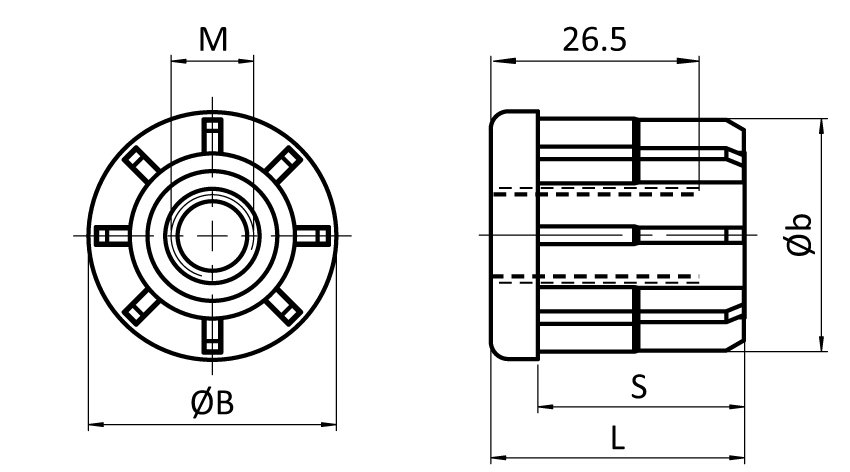

Product ID B (mm) S (mm) b (mm) Round Tube (mm) L (mm) Fmax (N) M
098VR381510 38.0 35 35.5 Ø 38 x 1.5 43 5880 M10
098VR381512 38.0 35 35.5 Ø 38 x 1.5 43 5880 M12
098VR381516 38.0 35 35.5 Ø 38 x 1.5 43 5880 M16
098VR382012 38.0 35 34.5 Ø 38 x 2.0 43 5880 M12

CAD Downloads

Certificates
