Threaded Bushes

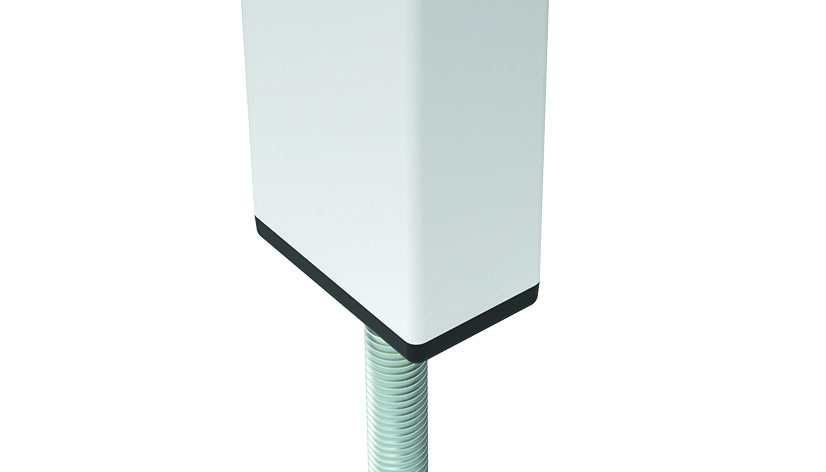

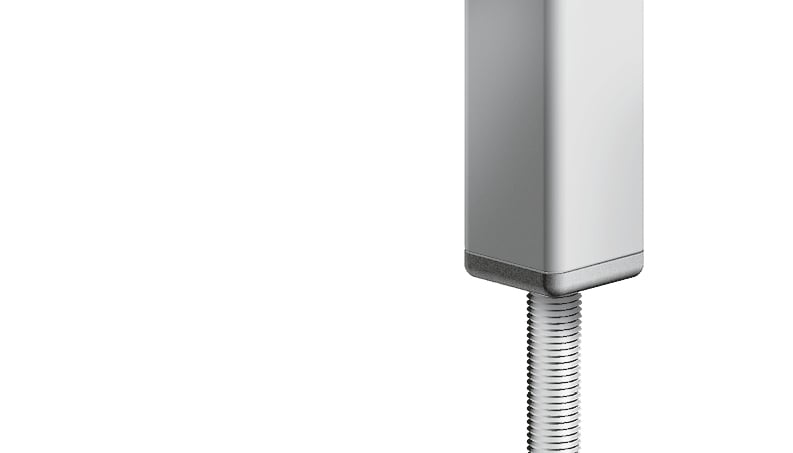

Threaded bushes for square and round tubes from FATH are used to hold leveling feet on the end face of the pipe. The pressed-in threaded sleeve holds the threaded rod; the overhang of the sleeve seals the profile and protects it from dirt, damage and corrosion.

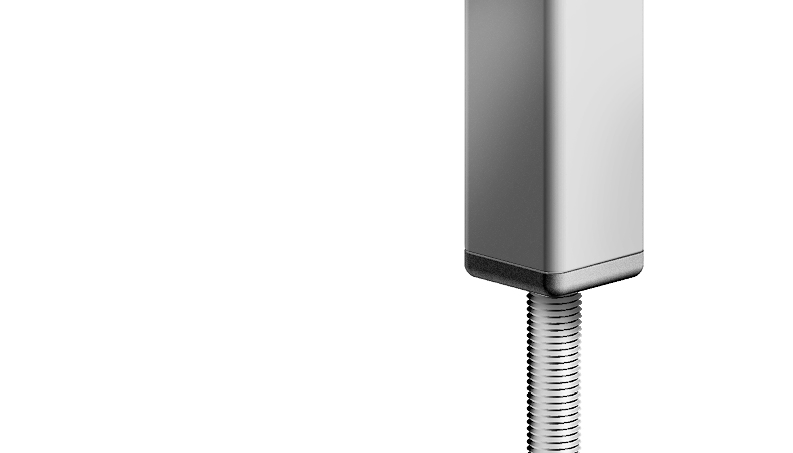

Threaded Bushes for Square Tubes

Threaded Bushes for Square Tubes
Threaded Bushes for Rectangular Tubes

Threaded Bushes for Rectangular Tubes

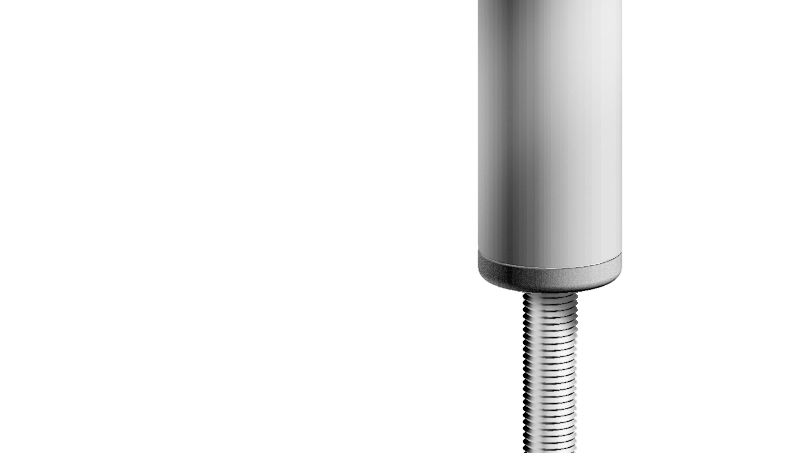

Threaded Bushes for Round Tubes

Threaded Bushes for Round Tubes

Filter products

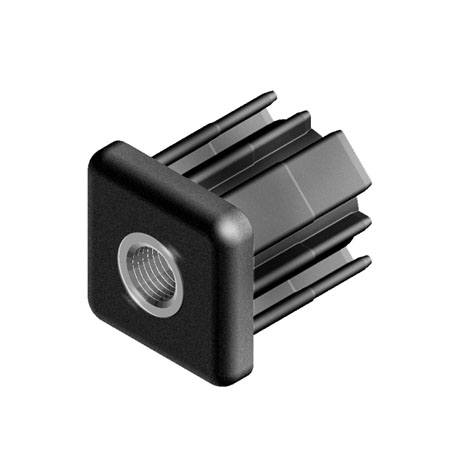

Threaded Bush for Square Tubes 30 x 30 – product image of all versions

Threaded Bush for Square Tubes 30 x 30

Fmax (N): 4900 Version: 30 x 30, R3 B (mm): 30 L (mm): 33 M: M8 S (mm): 27 b (mm): 27.5 Square Tube (mm): 30 x 30 x 1.5

Description:To fit leveling feet to square, non-threaded tubesMaterial:Bush: Plastic PA, glass fiber reinforced Threaded insert: Nickel plated brassColor:BlackSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Threaded Bush for Square Tubes 30 x 30 – product image of all versions

Threaded Bush for Square Tubes 40 x 40

Fmax (N): 7840 Version: 40 x 40, R5 B (mm): 40 L (mm): 43 M: M8 S (mm): 35 b (mm): 37.5 Square Tube (mm): 40 x 40 x 1.5

Description:To fit leveling feet to square, non-threaded tubesMaterial:Bush: Plastic PA, glass fiber reinforced Threaded insert: Nickel plated brassColor:BlackSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Threaded Bush for Square Tubes 30 x 30 – product image of all versions

Threaded Bush for Square Tubes 50 x 50

Fmax (N): 7840 Version: 50 x 50, R5 B (mm): 50 L (mm): 55 M: M10 S (mm): 44 b (mm): 47.5 Square Tube (mm): 50 x 50 x 1.5

Description:To fit leveling feet to square, non-threaded tubesMaterial:Bush: Plastic PA, glass fiber reinforced Threaded insert: Nickel plated brassColor:BlackSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Threaded Bush for Square Tubes 30 x 30 – product image of all versions

Threaded Bush for Square Tubes 60 x 60

Fmax (N): 11770 Version: 60 x 60, R7 B (mm): 60 L (mm): 55 M: M10 S (mm): 45 b (mm): 56.5 Square Tube (mm): 60 x 60 x 2.0

Description:To fit leveling feet to square, non-threaded tubesMaterial:Bush: Plastic PA, glass fiber reinforced Threaded insert: Nickel plated brassColor:BlackSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00

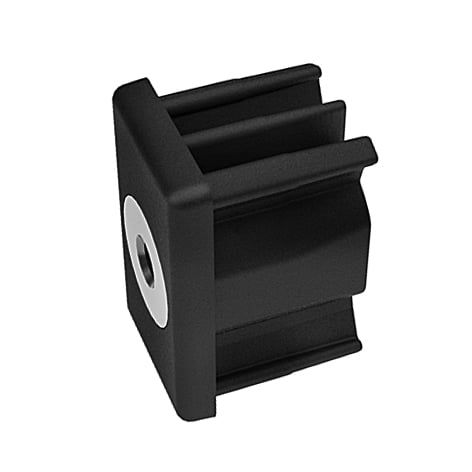

Threaded Bush for Rectangular Tubes 50 x 30 – product image of all versions

Threaded Bush for Rectangular Tubes 50 x 30

Fmax (N): 4900 Version: 50 x 30, R2.5 L (mm): 33 M: M14 S (mm): 27 Square Tube (mm): 50 x 30 x 2.0 b1 (mm): 46.0 b2 (mm): 26.0 B1 (mm): 50 B2 (mm): 30

Description:To fit leveling feet to rectangular tubesMaterial:Bush: Plastic PA, glass fiber reinforced Threaded insert: Nickel plated brassColor:BlackSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00

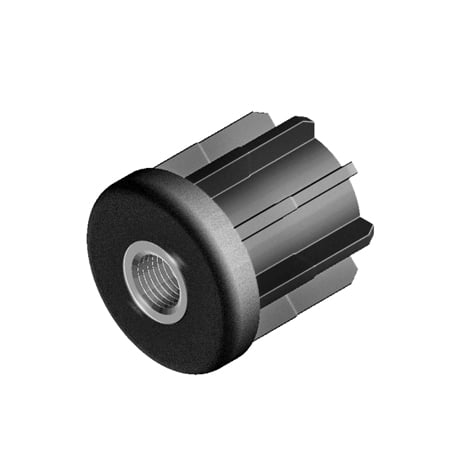

Threaded Bush for Round Tubes 30 – product image of all versions

Threaded Bush for Round Tubes 30

Fmax (N): 4900 B (mm): 30.0 L (mm): 33 M: M8 S (mm): 27 b (mm): 28.5 Round Tube (mm): Ø 30 x 1.0

Description:To fit leveling feet to round, non-threaded tubesMaterial:Bush: Plastic PA, glass fiber reinforced Threaded insert: Nickel plated brassColor:BlackSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Threaded Bush for Round Tubes 38 – product image of all versions

Threaded Bush for Round Tubes 38

Fmax (N): 5880 B (mm): 38.0 L (mm): 43 M: M10 S (mm): 35 b (mm): 35.5 Round Tube (mm): Ø 38 x 1.5

Description:To fit leveling feet to round, non-threaded tubesMaterial:Bush: Plastic PA, glass fiber reinforced Threaded insert: Nickel plated brassColor:BlackSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Threaded Bush for Round Tubes 38 – product image of all versions

Threaded Bush for Round Tubes 42.4

Fmax (N): 7840 B (mm): 42.4 L (mm): 43 M: M10 S (mm): 35 b (mm): 39.9 Round Tube (mm): Ø 42.4 x 1.5

Description:To fit leveling feet to round, non-threaded tubesMaterial:Bush: Plastic PA, glass fiber reinforced Threaded insert: Nickel plated brassColor:BlackSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Threaded Bush for Round Tubes 38 – product image of all versions

Threaded Bush for Round Tubes 48.3

Fmax (N): 9800 B (mm): 48.3 L (mm): 55 M: M12 S (mm): 44 b (mm): 45.8 Round Tube (mm): Ø 48.3 x 1.5

Description:To fit leveling feet to round, non-threaded tubesMaterial:Bush: Plastic PA, glass fiber reinforced Threaded insert: Nickel plated brassColor:BlackSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Threaded Bush for Round Tubes 38 – product image of all versions

Threaded Bush for Round Tubes 50.9

Fmax (N): 9800 B (mm): 50.9 L (mm): 55 M: M12 S (mm): 44 b (mm): 48.8 Round Tube (mm): Ø 50.9 x 1.5

Description:To fit leveling feet to round, non-threaded tubesMaterial:Bush: Plastic PA, glass fiber reinforced Threaded insert: Nickel plated brassColor:BlackSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Threaded Bush for Round Tubes 38 – product image of all versions

Threaded Bush for Round Tubes 60.3

Fmax (N): 9800 B (mm): 60.3 L (mm): 55 M: M12 S (mm): 44 b (mm): 56.8 Round Tube (mm): Ø 60.3 x 2.0

Description:To fit leveling feet to round, non-threaded tubesMaterial:Bush: Plastic PA, glass fiber reinforced Threaded insert: Nickel plated brassColor:BlackSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
