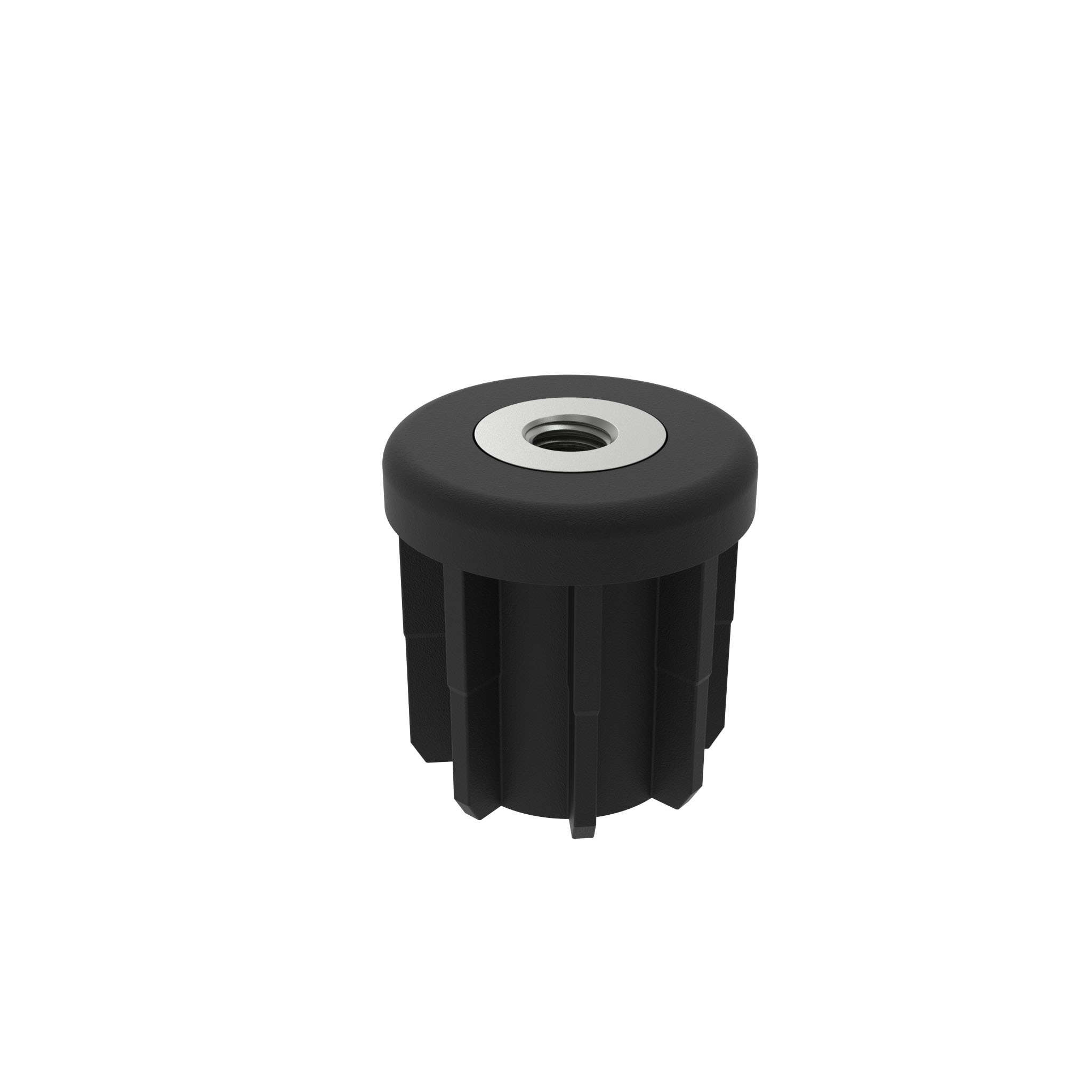

Threaded Bush for Round Tubes 42.4

Product information "Threaded Bush for Round Tubes 42.4"

Color:
Black

Delivery Countries:
Worldwide

Description:

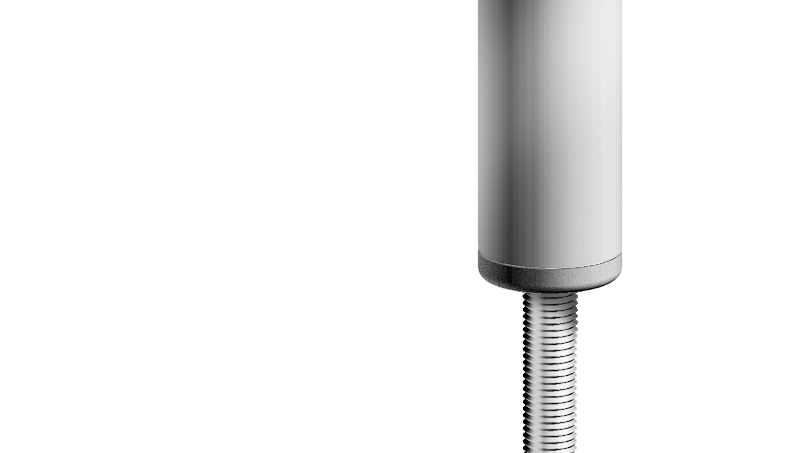

To fit leveling feet to round, non-threaded tubes

Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23111190
(ECLASS 7.0): 23111190
(ECLASS 8.0): 23111190
(ECLASS 9.0): 23111190
(ECLASS 10.0): 23111190
(ECLASS 11.0): 23111190
(ECLASS 12.0): 23111190
(ECLASS 13.0): 23111190
Model: Plastic PA, with brass threaded insert
Pack Quantity: 10 pieces
Pack Quantity (1): 10
Weight (g): 81.0

Variants

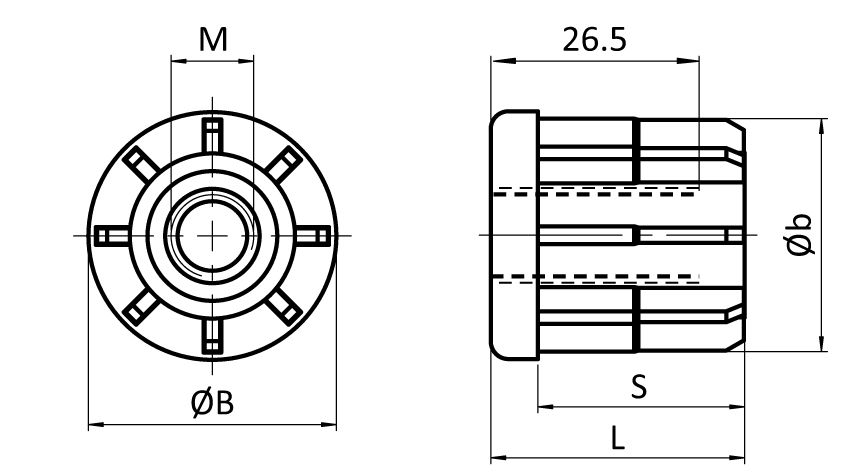

Product ID Round Tube (mm) S (mm) L (mm) b (mm) B (mm) M Fmax (N)
098VR421510 Ø 42.4 x 1.5 35 43 39.9 42.4 M10 7840
098VR421512 Ø 42.4 x 1.5 35 43 39.9 42.4 M12 7840
098VR421516 Ø 42.4 x 1.5 35 43 39.9 42.4 M16 7840
098VR421520 Ø 42.4 x 1.5 35 43 39.9 42.4 M20 7840
098VR422010 Ø 42.4 x 2.0 35 43 38.9 42.4 M10 7840
098VR422510 Ø 42.4 x 2.0 35 43 37.9 42.4 M10 7840
098VR422512 Ø 42.4 x 2.0 35 43 37.9 42.4 M12 7840
