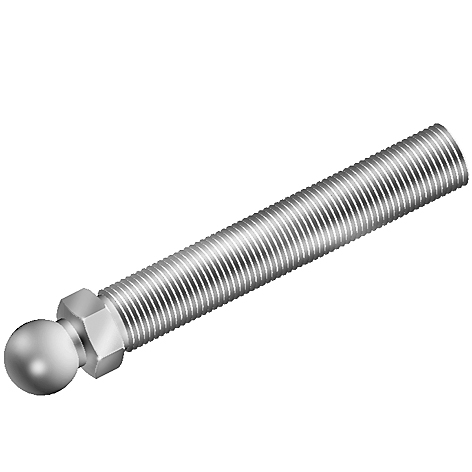

Threaded Rod SS for Swivel Feet, Ball Joint 22

Product information "Threaded Rod SS for Swivel Feet, Ball Joint 22"

Delivery Countries:
Worldwide

Description:
Threaded rod for swiveling leveling feet,
ball joint 22

Material:
Stainless steel SS304

Specials:
Other lengths and sizes on request

Surface:
Plain
Ball Joint: Swiveling range ±20°, V_Swiveling range ±20°
Customs Tariff Number Export: 73181575
Model: Stainless steel
Pack Quantity: 10 pieces
Weight (g): 551.0
Zolltarifnummer: 73181575900
pA Number: 103806

Variants

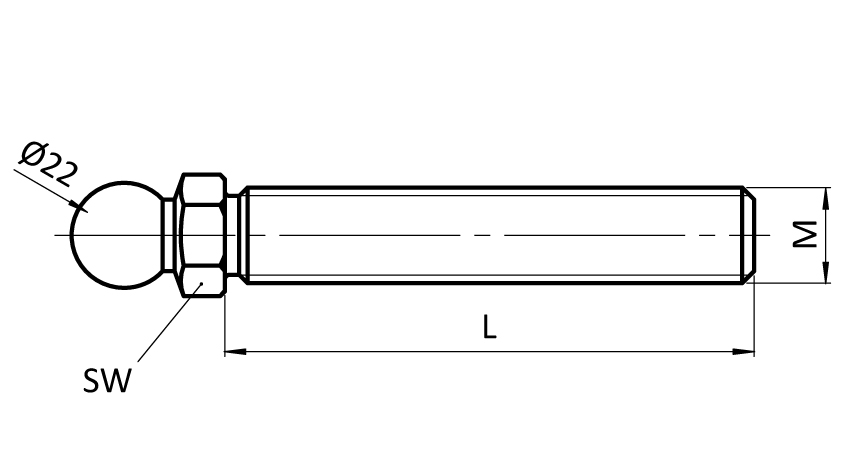

Product ID Material SW (mm) Fmax (N) M x L (mm)
098CM16100E Stainless steel 22 14200 M16 x 100
098CM16125E Stainless steel 22 14200 M16 x 125
098CM16150E Stainless steel 22 14200
098CM20085E Stainless steel 22 23800 M20 x 85
098CM20100E Stainless steel 22 23800
098CM20125E Stainless steel 22 23800 M20 x 125
098CM20150E Stainless steel 22 23800 M20 x 150
098CM20200E Stainless steel 22 23800 M20 x 200
098CM20250E Stainless steel 22 23800 M20 x 250
098CM24100E Stainless steel 24 35400 M24 x 100
098CM24150E Stainless steel 24 35400 M24 x 150
098CM24250E Stainless steel 24 35400 M24 x 250
098CM30100E Stainless steel 24 56600 M30 x 100
098CM30150E Stainless steel 24 56600 M30 x 150
