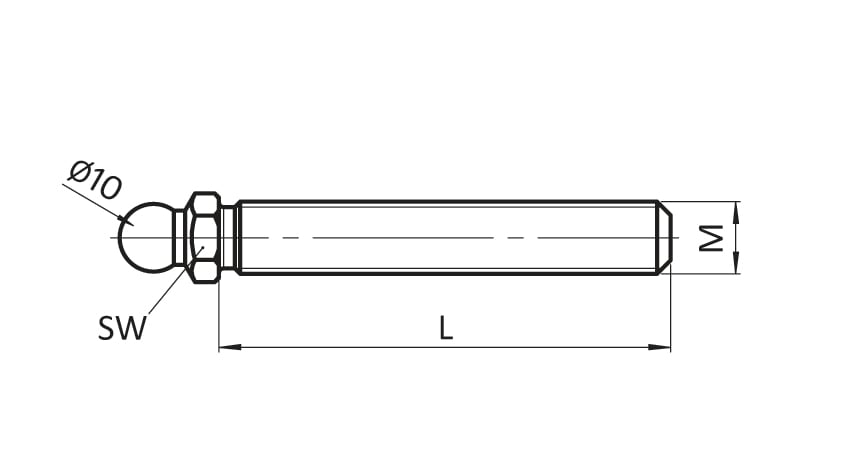

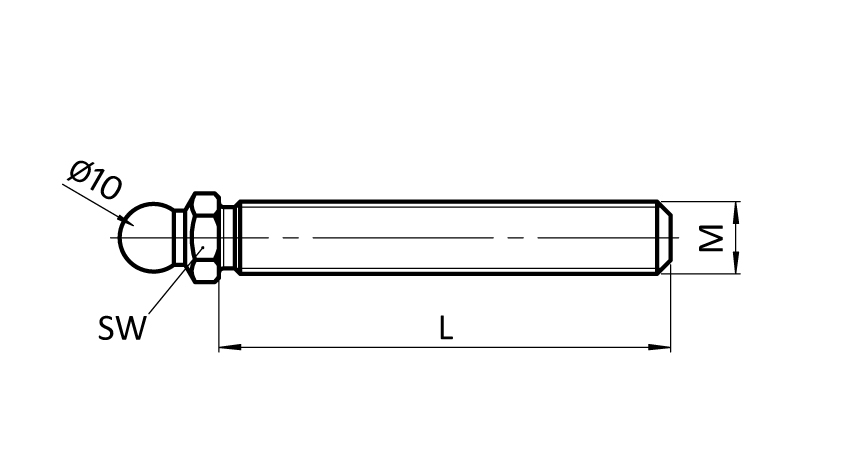

Threaded Rod for Swivel Feet, Ball Joint 10

Product information "Threaded Rod for Swivel Feet, Ball Joint 10"

Delivery Countries:
Worldwide

Description:

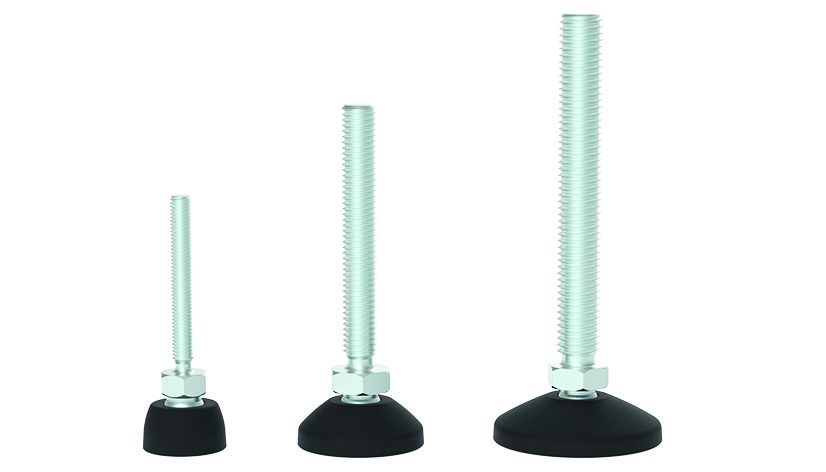

Threaded rod for swiveling levelling feet
Ball joint 10

Material:
Steel

Specials:
Stainless steel, other lengths and other sizes on request

Surface:
Zinc plated
Model: Steel
Pack Quantity: 10 pieces
Customs Tariff Number Export: 73181582
Weight (g): 25.0
Ball Joint: Swiveling range ±10°
ECLASS 6.0: 90900103
ECLASS 7.0: 90900103
ECLASS 8.0: 90900103
ECLASS 9.0: 90900103
ECLASS 10.0: 90900103
ECLASS 11.0: 90900103
ECLASS 12.0: 90900103
ECLASS 13.0: 90900103
ECLASS 14.0: 90900103
ECLASS 15.0: 90900103
ECLASS 16.0: 23010705
ERP Number: 114263
Zolltarifnummer: 73181582900

Variants

Part # Fmax (N) Material SW (mm)
098MM05020M 490 Steel 10
098MM05040M 490 Steel 10
098MM05060M 490 Steel 10
098MM06020M 980 Steel 10
098MM06040M 980 Steel 10
098MM06060M 980 Steel 10
098MM06080M 980 Steel 10
098MM08020M 2450 Steel 13
098MM08040M 2450 Steel 13
098MM08060M 2450 Steel 13
098MM08080M 2450 Steel 13
098MM08100M 2450 Steel 13
098MM10020M 3920 Steel 13
098MM10040M 3920 Steel 13
098MM10060M 3920 Steel 13
098MM10080M 3920 Steel 13
098MM10100M 3920 Steel 13
