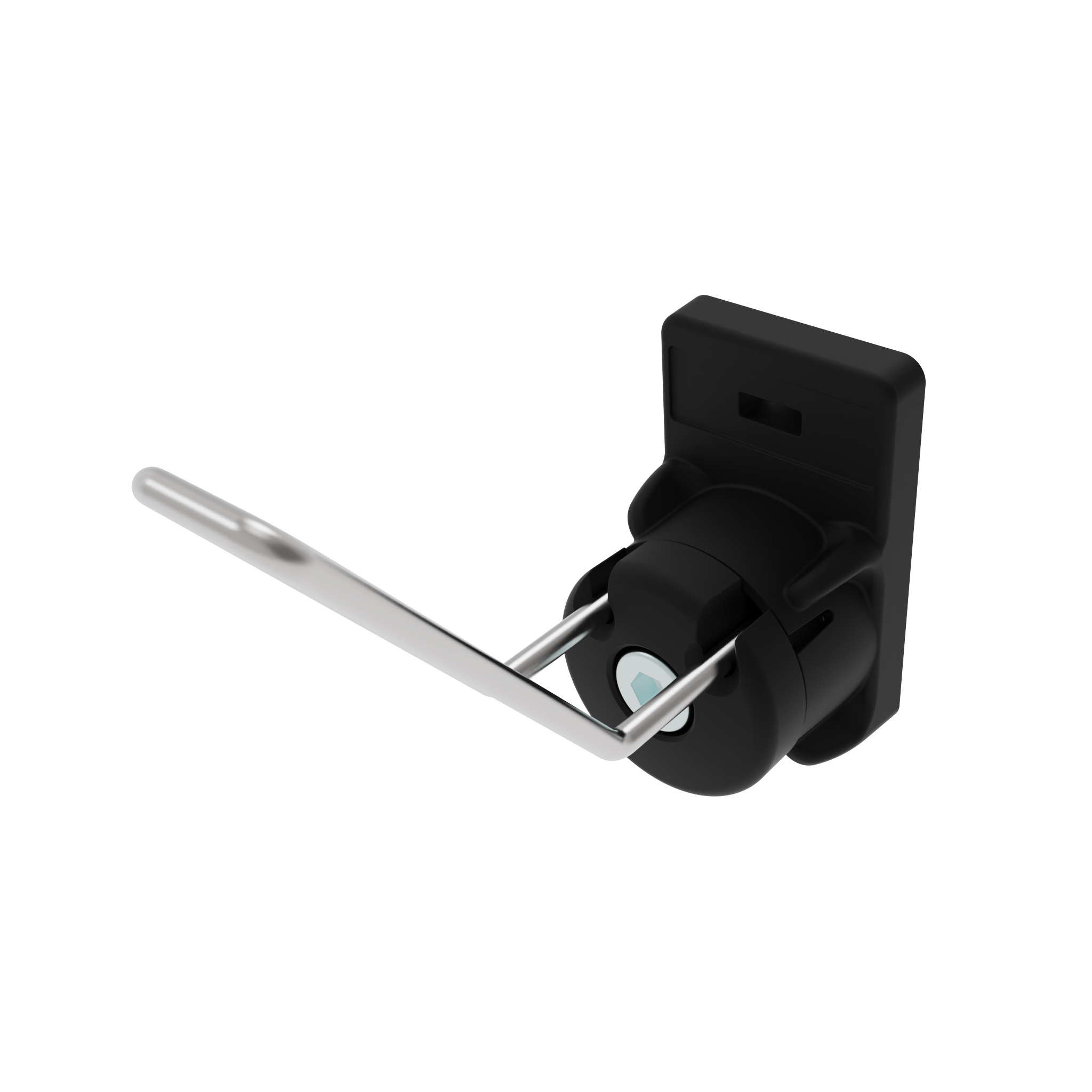

Tool Hook FX 17/57 - 24 for Square Holes 9 x 9 (8.7 x 8.7)
Regular price:
€0.00
Part #:
6TP38A4060ESDS01
Pack Quantity:
1 piece
Product information "Tool Hook FX 17/57 - 24 for Square Holes 9 x 9 (8.7 x 8.7)"
Color:
Rear mounting holder: Black
Front locking holder: Black
Delivery Countries:
Worldwide
Description:

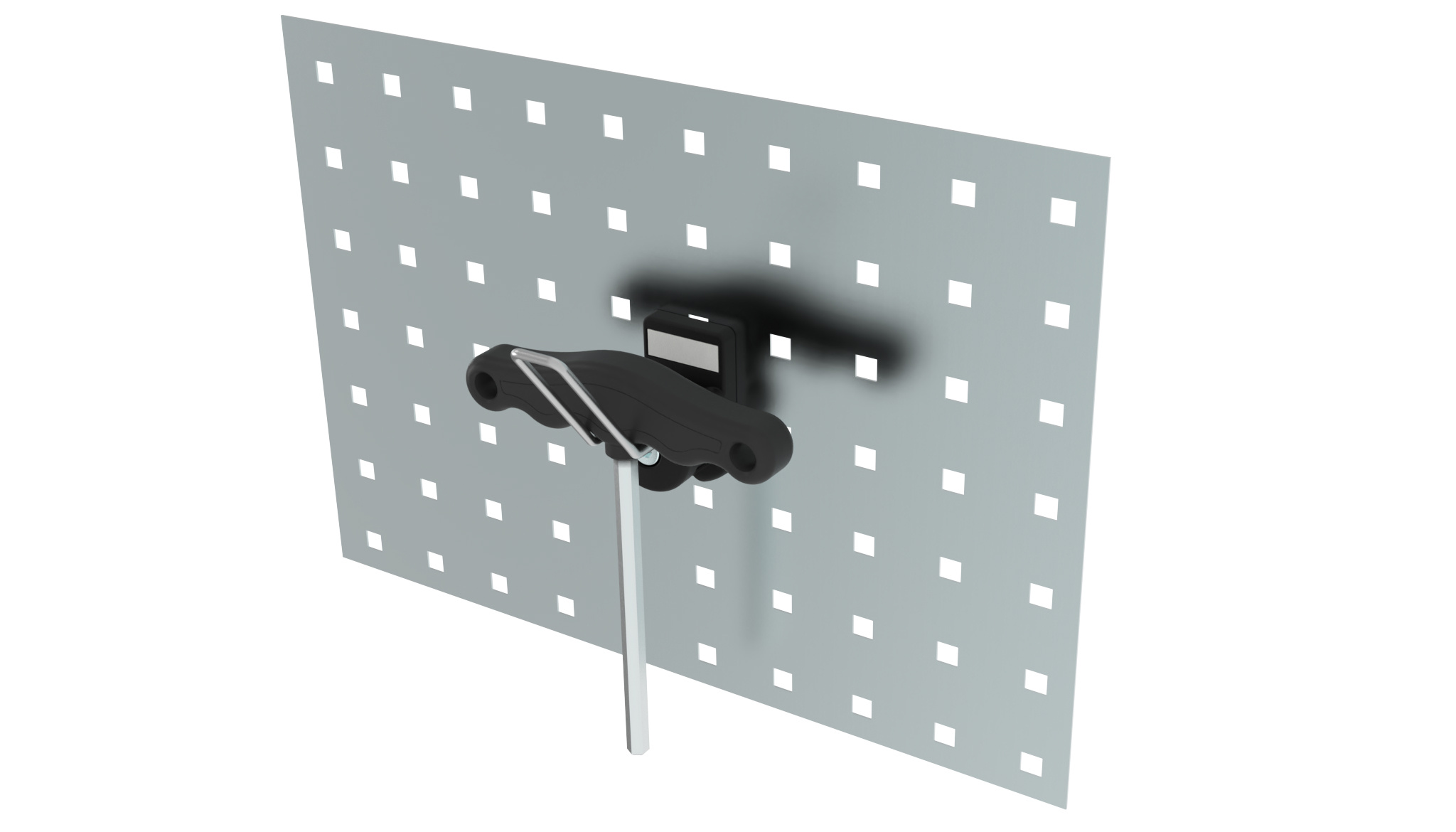

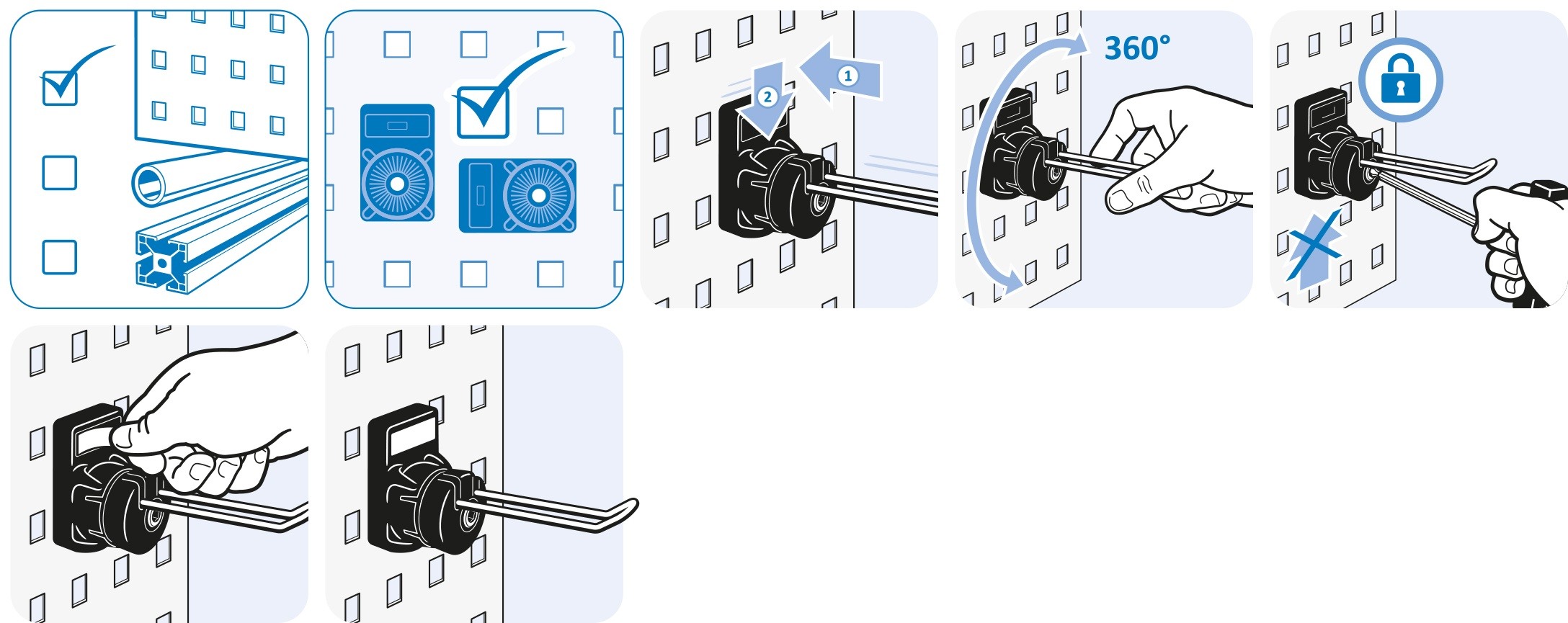

Ready to use tool hook, 360° turnable, for perforated metals up to 1.4 mm thick;
To organize workstations, with labeling area for standard labels
Material:
Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced
Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon
Wire: Stainless steel SS304
Spring: Spring steel SS313
Screw: Steel
Nut: Steel
Specials:
Other colors on request,
For other sheet metal thicknesses on request
Surface:
Screw: Zinc plated
Nut: Zinc plated
Tip:

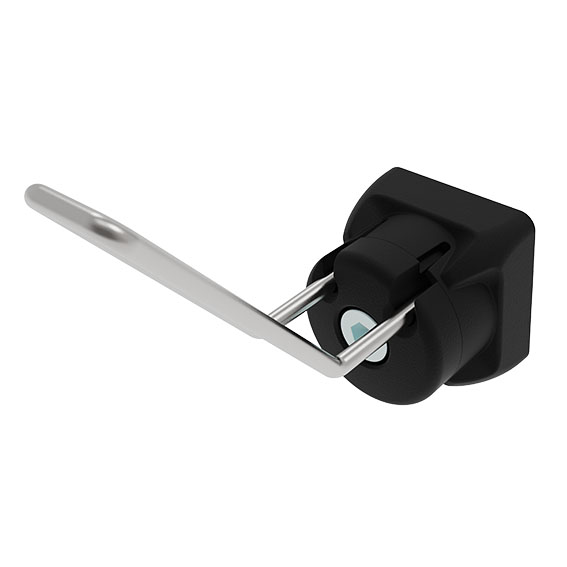

For profiles 40 / 45, slot 8 / 10 see 6TH240NA4060S01
For round tubes D28 / D30 see 6TH2D283A4060EDS1-
Rear mounting holder: Black
Front locking holder: Black
Delivery Countries:
Worldwide
Description:
Ready to use tool hook, 360° turnable, for perforated metals up to 1.4 mm thick;
To organize workstations, with labeling area for standard labels
Material:
Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced
Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon
Wire: Stainless steel SS304
Spring: Spring steel SS313
Screw: Steel
Nut: Steel
Specials:
Other colors on request,
For other sheet metal thicknesses on request
Surface:
Screw: Zinc plated
Nut: Zinc plated
Tip:
For profiles 40 / 45, slot 8 / 10 see 6TH240NA4060S01
For round tubes D28 / D30 see 6TH2D283A4060EDS1-
| Pack Quantity: | 1 piece |
|---|---|
| Model: | Pre-assembled |
| Weight (g): | 81.2 |
| ECLASS 6.0: | 23369290 |
| ECLASS 7.0: | 23369290 |
| ECLASS 8.0: | 23369290 |
| ECLASS 9.0: | 23369290 |
| ECLASS 10.0: | 23369290 |
| ECLASS 11.0: | 23360192 |
| ECLASS 12.0: | 23360192 |
| ECLASS 13.0: | 23360192 |
| Zolltarifnummer: | 83025000000 |
| Customs Tariff Number Export: | 83025000 |
| ERP Number: | 160453 |
