Tool Hook FX 66/27 - 13 for Square Holes 9 x 9 (8.7 x 8.7)

New

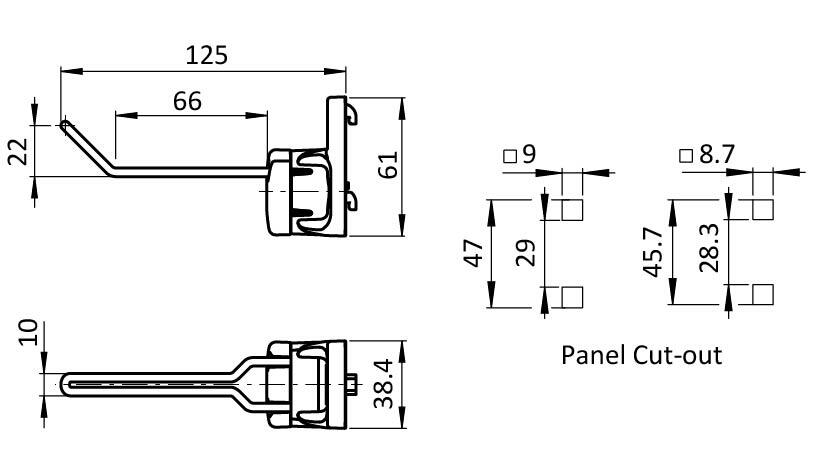

Tool Hook FX 66/27 - 13 for Square Holes 9 x 9 (8.7 x 8.7) – technical drawing

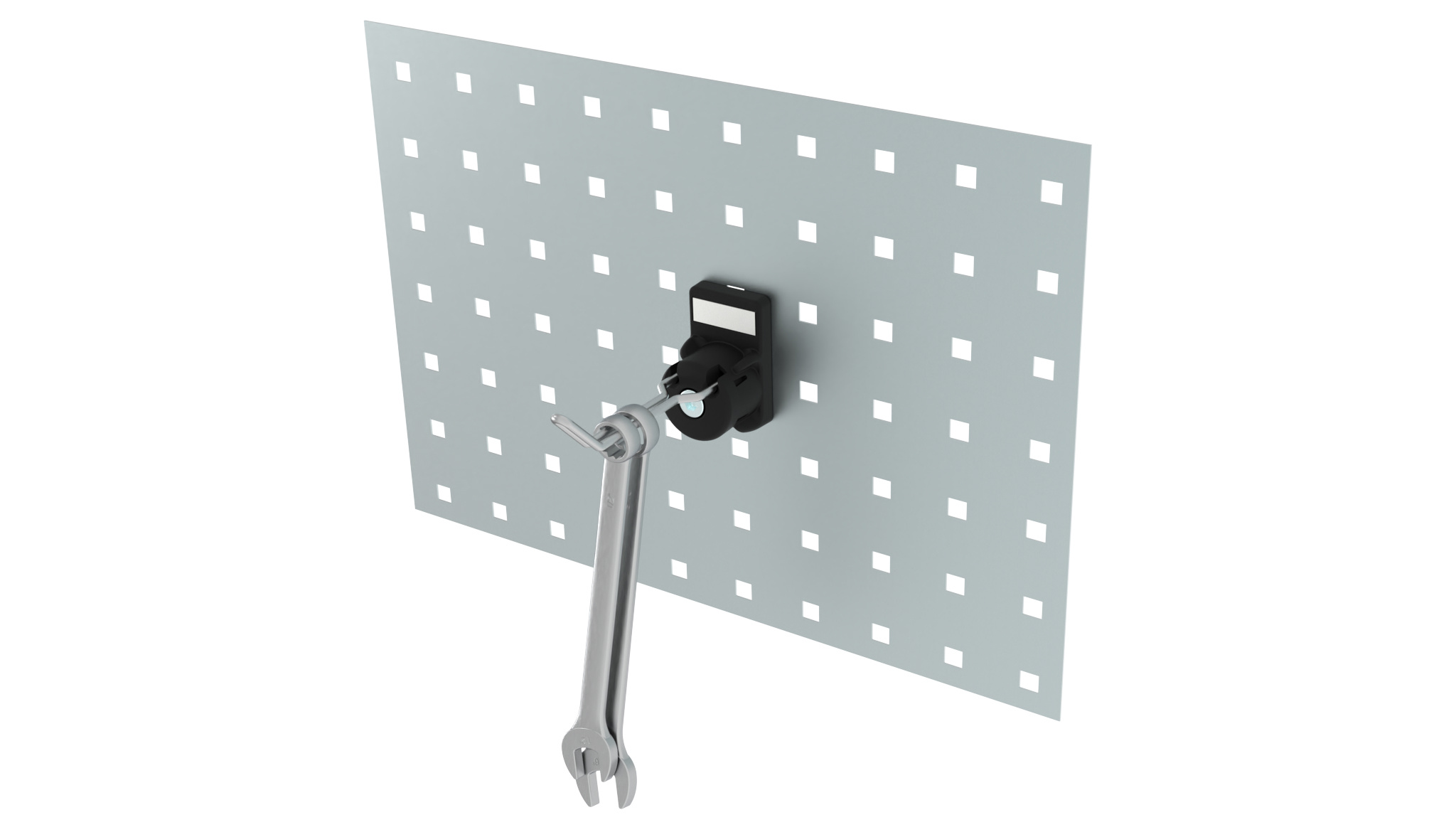

Tool Hook FX 66/27 - 13 for Square Holes 9 x 9 (8.7 x 8.7) – application example

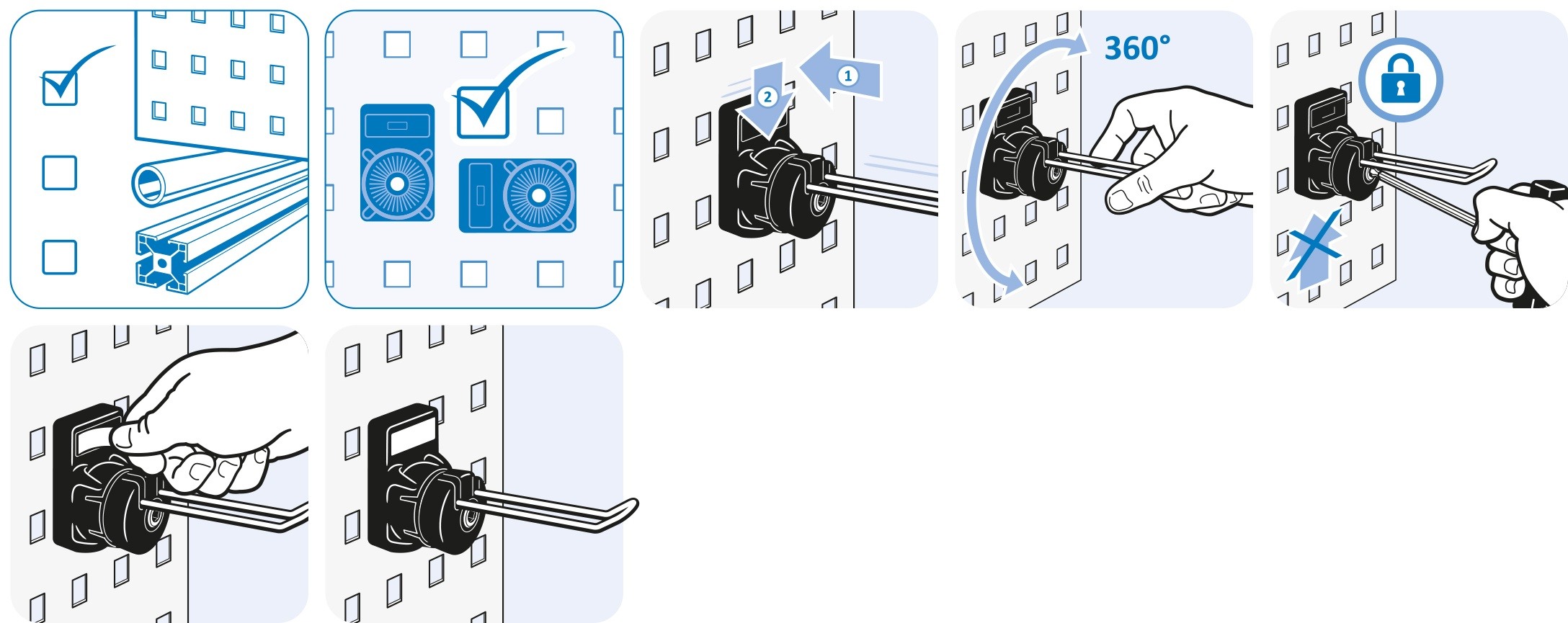

Tool Hook FX 66/27 - 13 for Square Holes 9 x 9 (8.7 x 8.7) – assembly graphic

€0.00

ESD

ESD electrostatical discharging

Color

Black

Part #: 6TP38A9030ESDS01

Pack Quantity: 1 piece

Product information "Tool Hook FX 66/27 - 13 for Square Holes 9 x 9 (8.7 x 8.7)"

Color:
Rear mounting holder: Black
Front locking holder: Black

Delivery Countries:
Worldwide

Description:
Ready to use tool hook, 360° turnable, for perforated metals up to 1.4 mm thick;
To organize workstations, with labeling area for standard labels

Material:
Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced
Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon
Wire: Stainless steel SS304
Spring: Spring steel SS313
Screw: Steel
Nut: Steel

Specials:
Other colors on request,
For other sheet metal thicknesses on request

Surface:
Screw: Zinc plated
Nut: Zinc plated

Tip:
For profiles 40 / 45, slot 8 / 10 see 6TH240NA9030S01
For round tubes D28 / D30 see 6TH2D283A9030EDS1-
