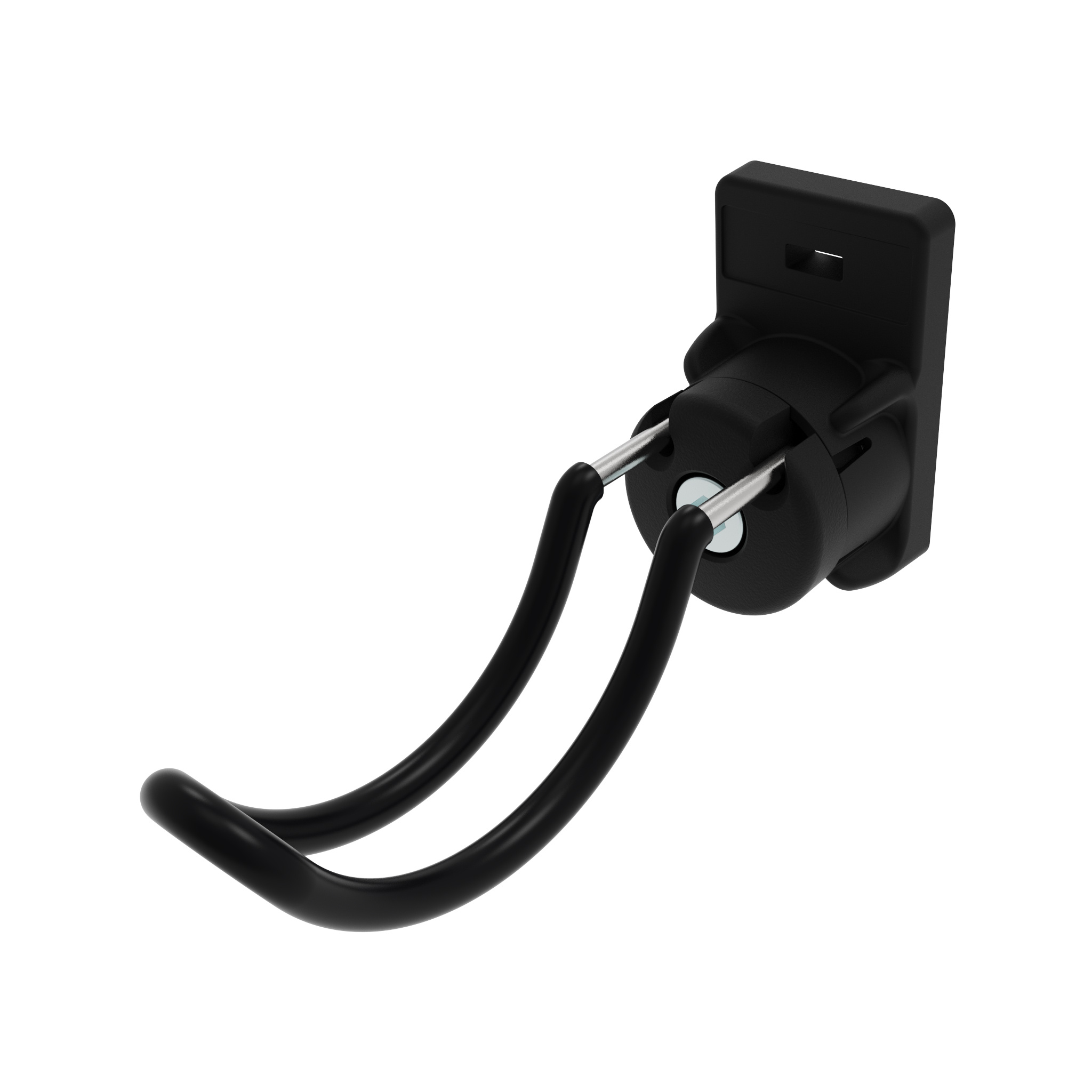

Tool Hook FX R35 - 27, Rubberized for Square Holes 9 x 9 (8.7 x 8.7)

Product information "Tool Hook FX R35 - 27, Rubberized for Square Holes 9 x 9 (8.7 x 8.7)"

Color:
Wire: Black coated
Rear mounting holder: Black
Front locking holder: Black

Delivery Countries:
Worldwide

Description:

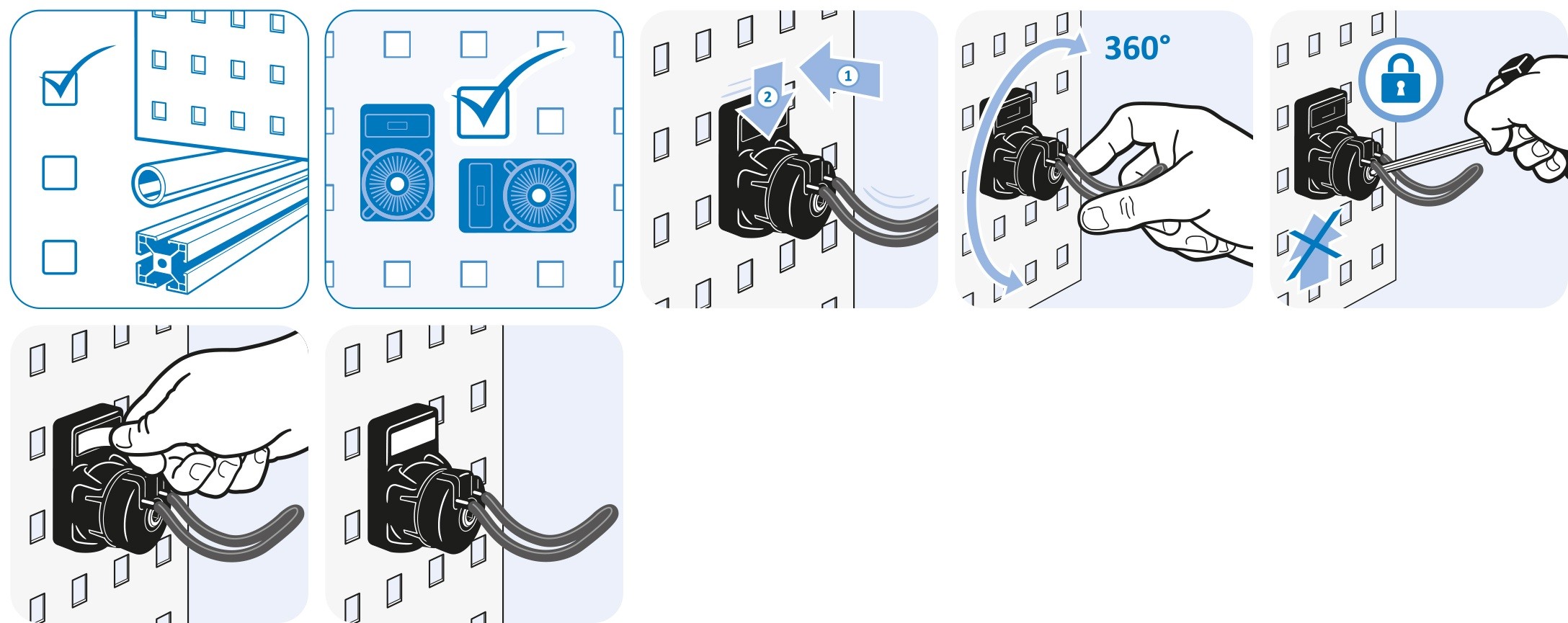

Ready to use tool hook, 360° turnable, for perforated metals up to 1.4 mm thick;
Rubber coated wire to prevent tools from slipping;

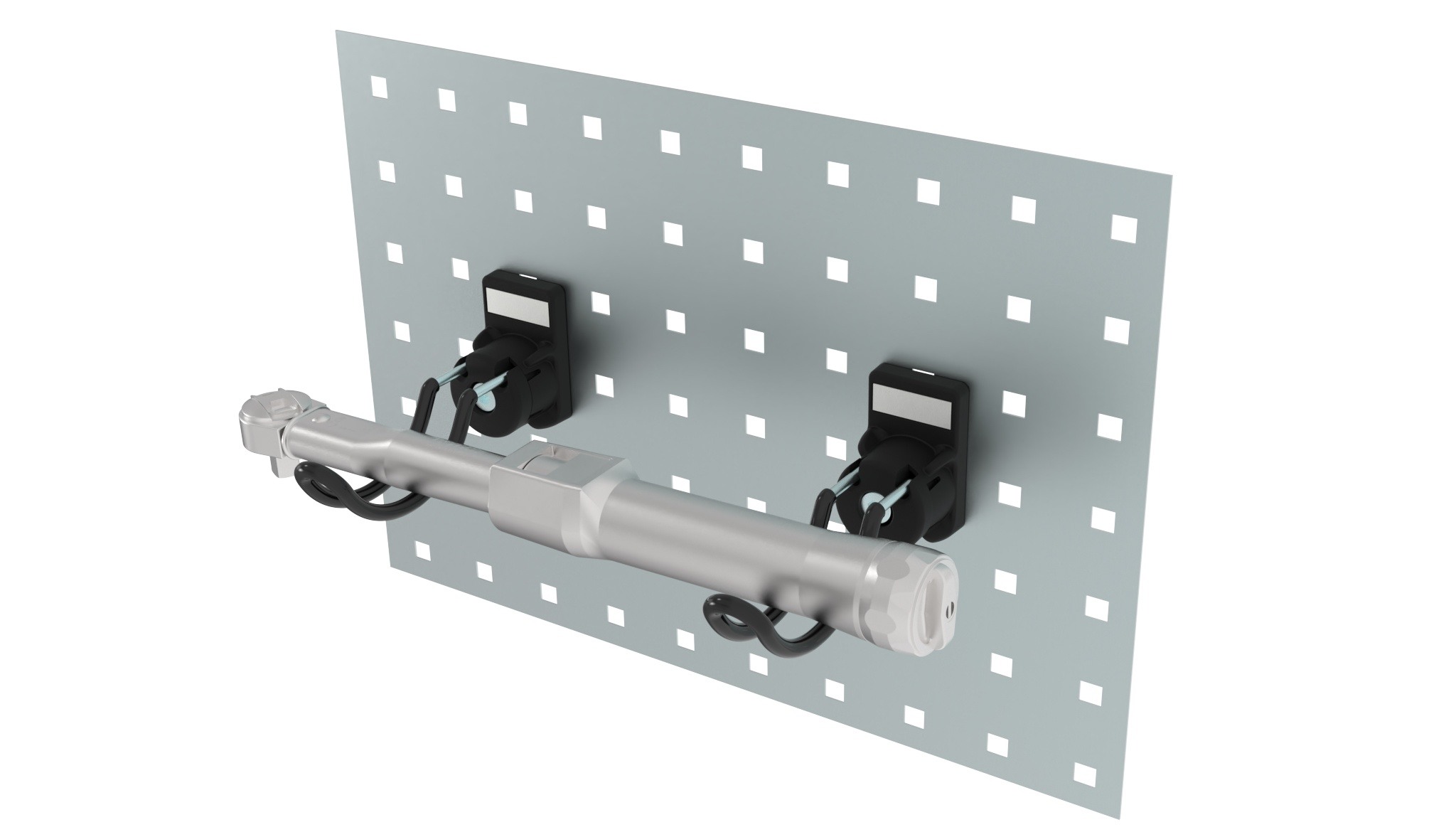

To organize workstations, with labeling area for standard labels

Material:
Rear mounting holder: Plastic PA, carbon fibre reinforced
Front locking holder: Plastic PA, glass ball reinforced
Wire: Stainless steel SS304
Spring: Spring steel SS313
Screw: Steel
Nut: Steel

Specials:
Other colors on request,
For other sheet metal thicknesses on request

Surface:
Wire: PVC coated
Screw: Zinc plated
Nut: Zinc plated

Tip:

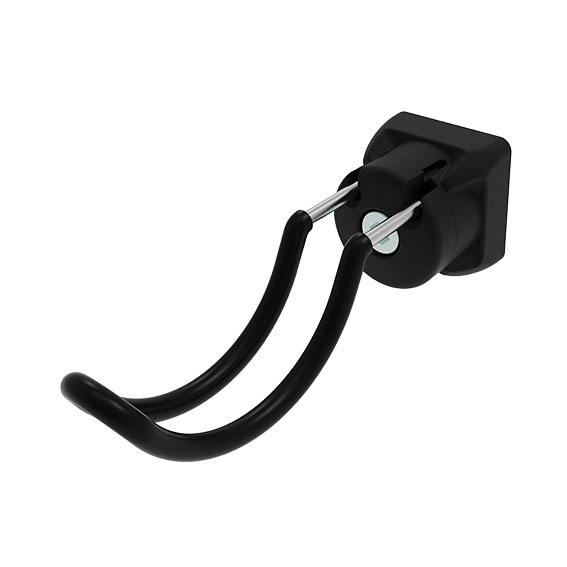

For profiles 40 / 45, slot 8 / 10 see 6TH240NR4091S01

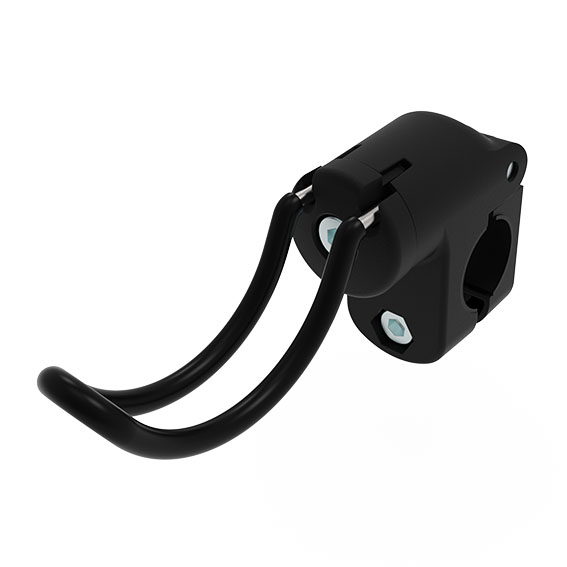

For round tubes D28 / D30 see 6TH2D283R4091S01

Zolltarifnummer:
83025000000
Model: Pre-assembled
Pack Quantity: 1 piece
Weight (g): 88.9

Variants

Product ID Color
6TP38R4091S01 Black
