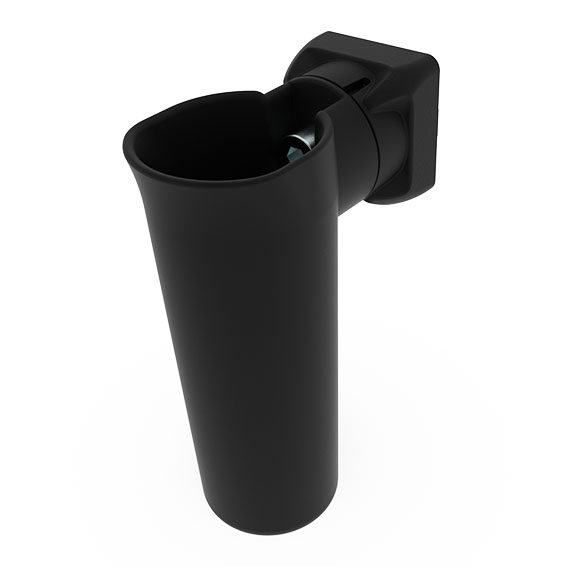

Tool Quiver FX D50 for Profiles 40 / 45, Slot 8 / 10

Product information "Tool Quiver FX D50 for Profiles 40 / 45, Slot 8 / 10"

Color:
Holder: Black
Centering piece: Black

Delivery Countries:
Worldwide

Description:

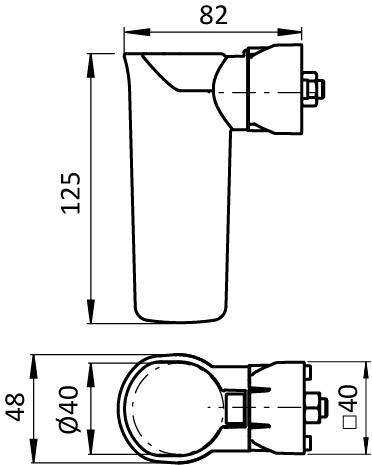

Ready to use tool quiver, outer diameter Ø 50 mm, 360° turnable, for aluminum profiles;

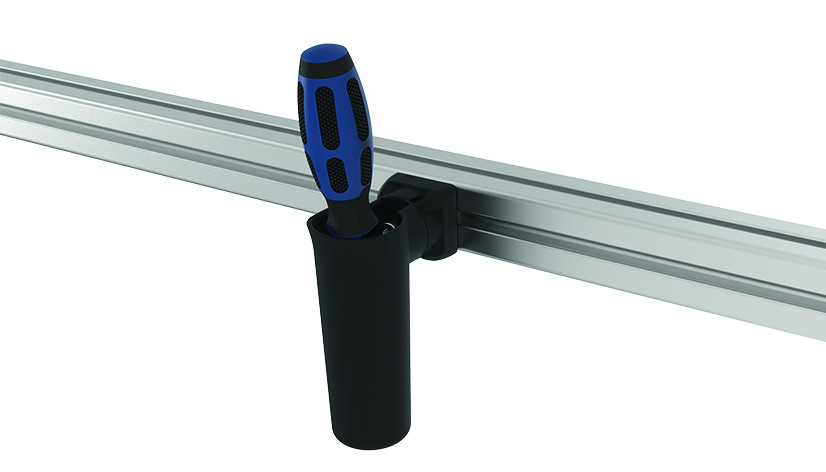

To organize workstations

Material:
Holder ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon
Quiver ESD electrostatical discharging version: Plastic PA, carbon fibre reinforced
Spring: Spring steel SS313
Screw: Steel
Nut: Steel
Centering piece: Plastic PA, glass fibre reinforced

Specials:
Other colors on request

Surface:
Screw: Zinc plated
Nut: Zinc plated

Tip:
For round tubes D28 / D30 see 6TD283Q5040ESDS01

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Model: pre-assembled, profile 40 and up
Pack Quantity: 1 piece
Weight (g): 144.0

Variants

Product ID ESD Color
6T40Q5040ESDS01 ESD electrostatical discharging Black
