Tool Tray PARABOL FX for Square Holes 9 x 9 (8.7 x 8.7)

New

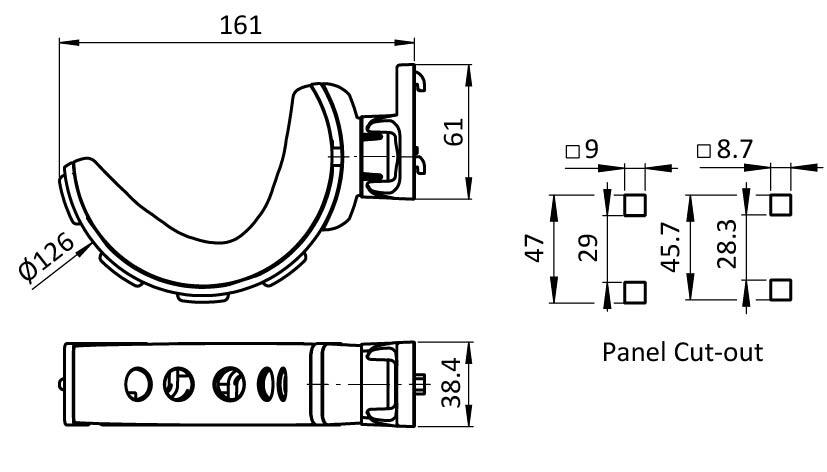

Tool Tray PARABOL FX for Square Holes 9 x 9 (8.7 x 8.7) – technical drawing

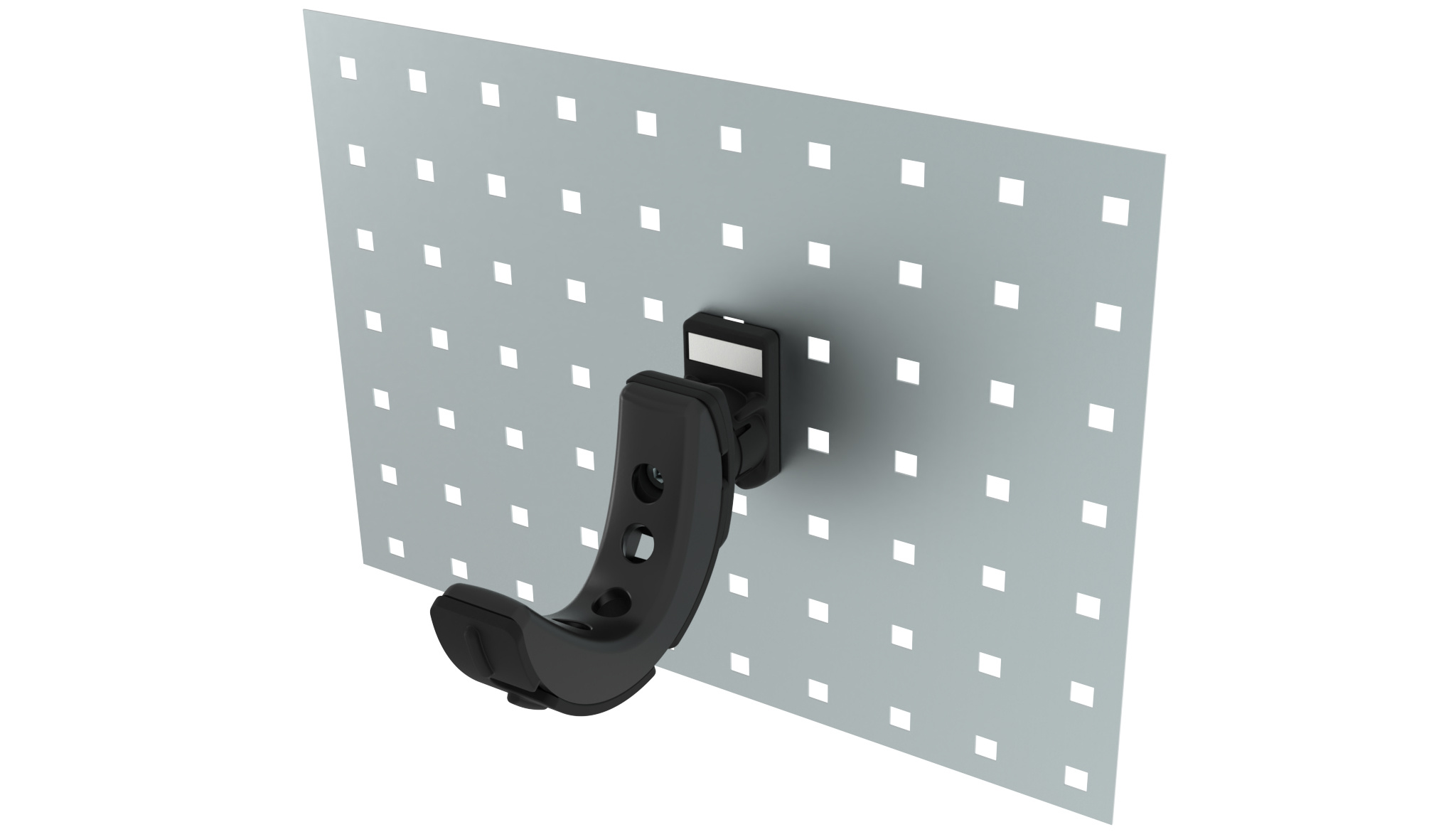

Tool Tray PARABOL FX for Square Holes 9 x 9 (8.7 x 8.7) – application example

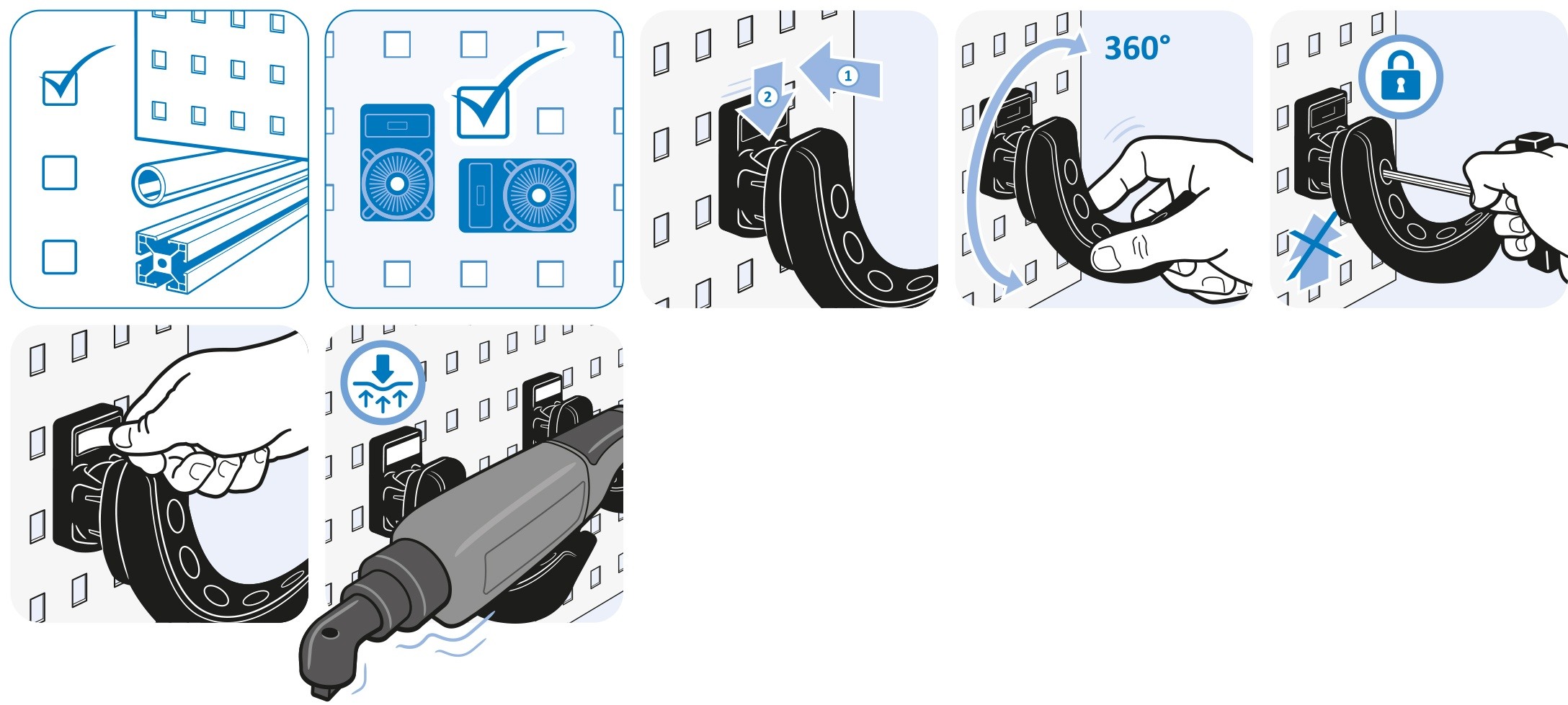

Tool Tray PARABOL FX for Square Holes 9 x 9 (8.7 x 8.7) – assembly graphic

€0.00

ESD

ESD electrostatical discharging

Color

Black

Part #: 6TP38V12591ESDS01

Pack Quantity: 2 pieces

Product information "Tool Tray PARABOL FX for Square Holes 9 x 9 (8.7 x 8.7)"

Color:
Rear mounting holder: Black
Front locking adapter: Black
Tool tray: Black
Tool insert: Black

Delivery Countries:
Worldwide

Description:
Ready to use tool tray, 360° turnable, tilt-adjustable in 5 ways, for perforated metals up to 1.4 mm thick;
Suitable for heavy tools or nutrunners; tool friendly surface;
To organize workstations, with labeling area for standard labels

Material:
Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced
Front locking adapter ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon
Tool tray ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon
Tool insert ESD electrostatical discharging version: Plastic TPE, ≈ 80 Shore A, with carbon
Spring: Spring steel SS313
Screw: Steel
Nut: Steel

Specials:
Other colors on request,
For other sheet metal thicknesses on request

Surface:
Screw: Zinc plated
Nut: Zinc plated

Tip:
For profiles 40 / 45, slot 8 / 10 see 6TM840NV12591S01
For round tubes D28 / D30 see 6TM8D283V12591ESDS01
