Transport and Base Plate ZN 20 x 40, Powder Coated

Product information "Transport and Base Plate ZN 20 x 40, Powder Coated"

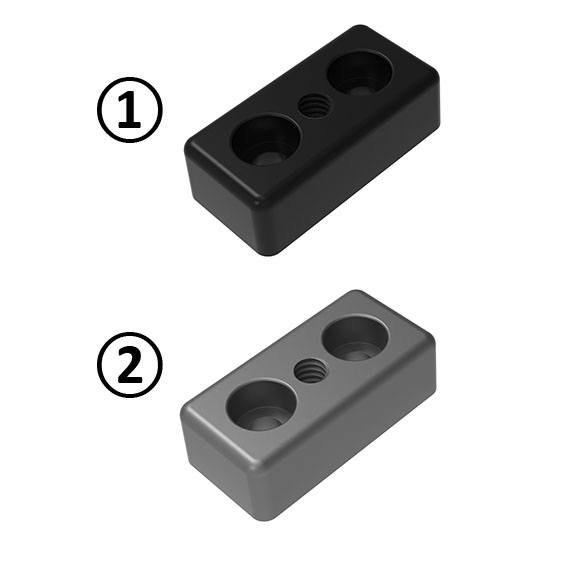

Color:
Black, aluminum color

Delivery Countries:
Worldwide

Description:

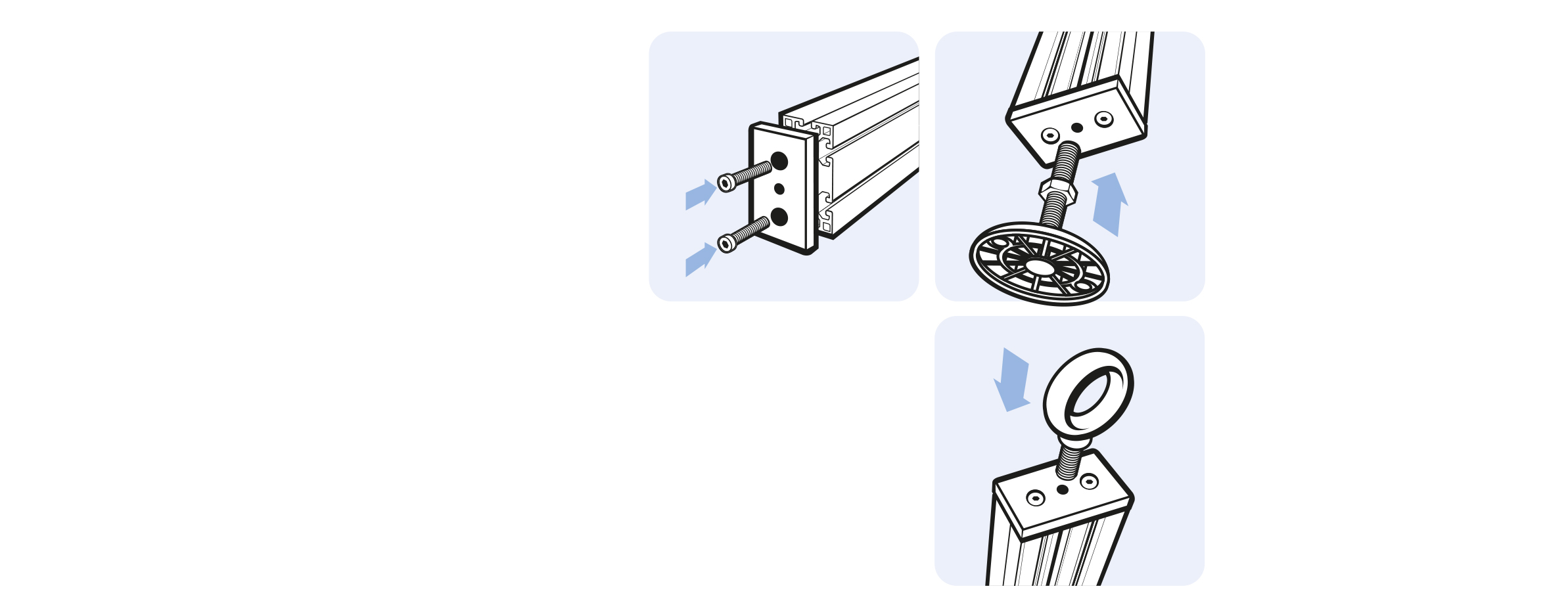

To mount leveling feet, rollers, hooks or similar components; screw joint to the face of the profile

Material:
Zinc die-cast

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Tip:
Plain Transport and Base Plate see 093T20400605R

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Zinc die-cast
Pack Quantity: 10 pieces
Pack Quantity (1): 10
Weight (g): 36.0

Variants

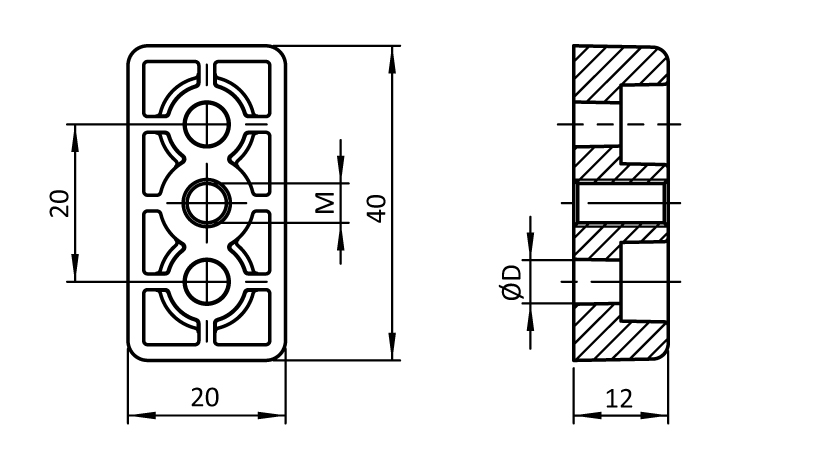

Product ID ØD (mm) Fig. M Color
093T20400605A 5.5 (M5) Alu color
093T20400605S 5.5 (M5) Black
093T20400805A 5.5 (M5) Alu color
093T20400805S 5.5 (M5) M8 Black
