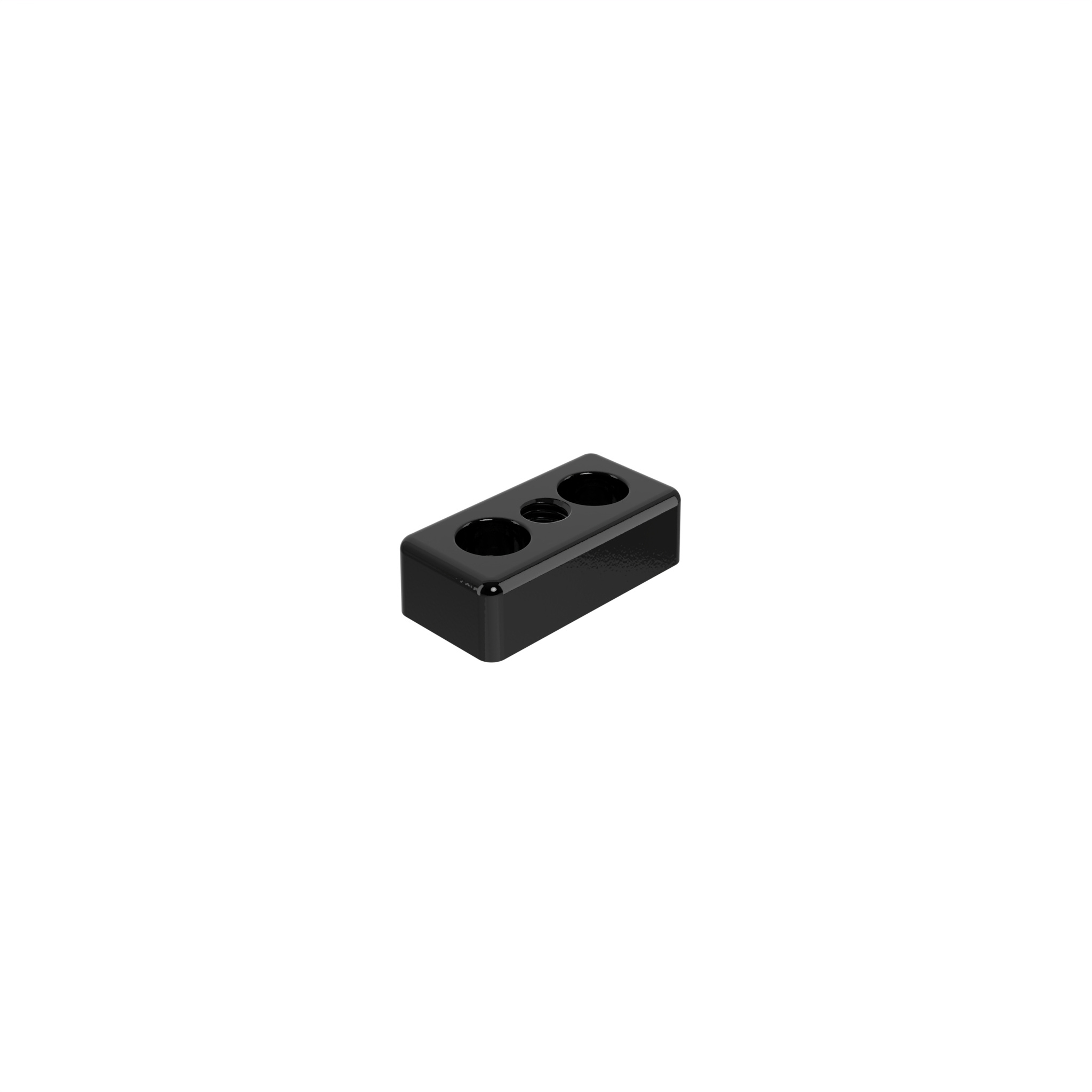

Transport and Base Plate ZN 20 x 40, Powder Coated

€0.00

Fig.

①

②

Color

Alu color

Black

M

M6

M8

ØD (mm)

5.5 (M5)

Part #: 093T20400805S

Pack Quantity: 10 pieces

Description:

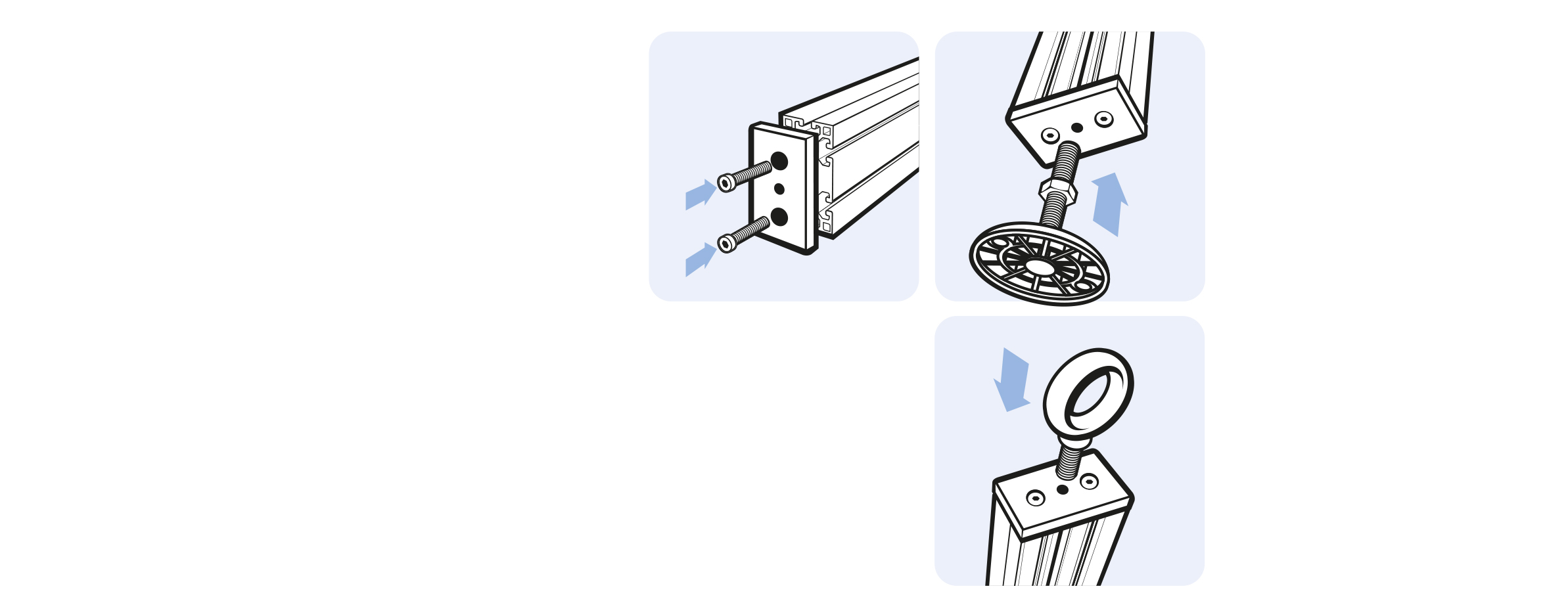

To mount leveling feet, rollers, hooks or similar components; screw joint to the face of the profile

Material:
Zinc die-cast

Surface:
Powder coated

Color:
Black, alu colour

Tip:
Plain Transport and Base Plate see 093T20400605R

Specials:
Other surfaces, other colors on request

Delivery Countries:
Worldwide

Pack Quantity:	10 pieces
Model:	Zinc die-cast
Weight (g):	34.0
ERP Number:	112785

Variants

Part #	Fig.	Color	M	ØD (mm)	Pack Quantity
093T20400605S	①	Black	M6	5.5 (M5)	20 Stück
093T20400805S	①	Black	M8	5.5 (M5)	10 pieces
093T20400605A	②	Alu color	M6	5.5 (M5)	10 pieces
093T20400805A	②	Alu color	M8	5.5 (M5)	10 pieces

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 79070000900
Customs Tariff Number Export: 79070000
