Uni Block 18 CS, Black

Product information "Uni Block 18 CS, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:

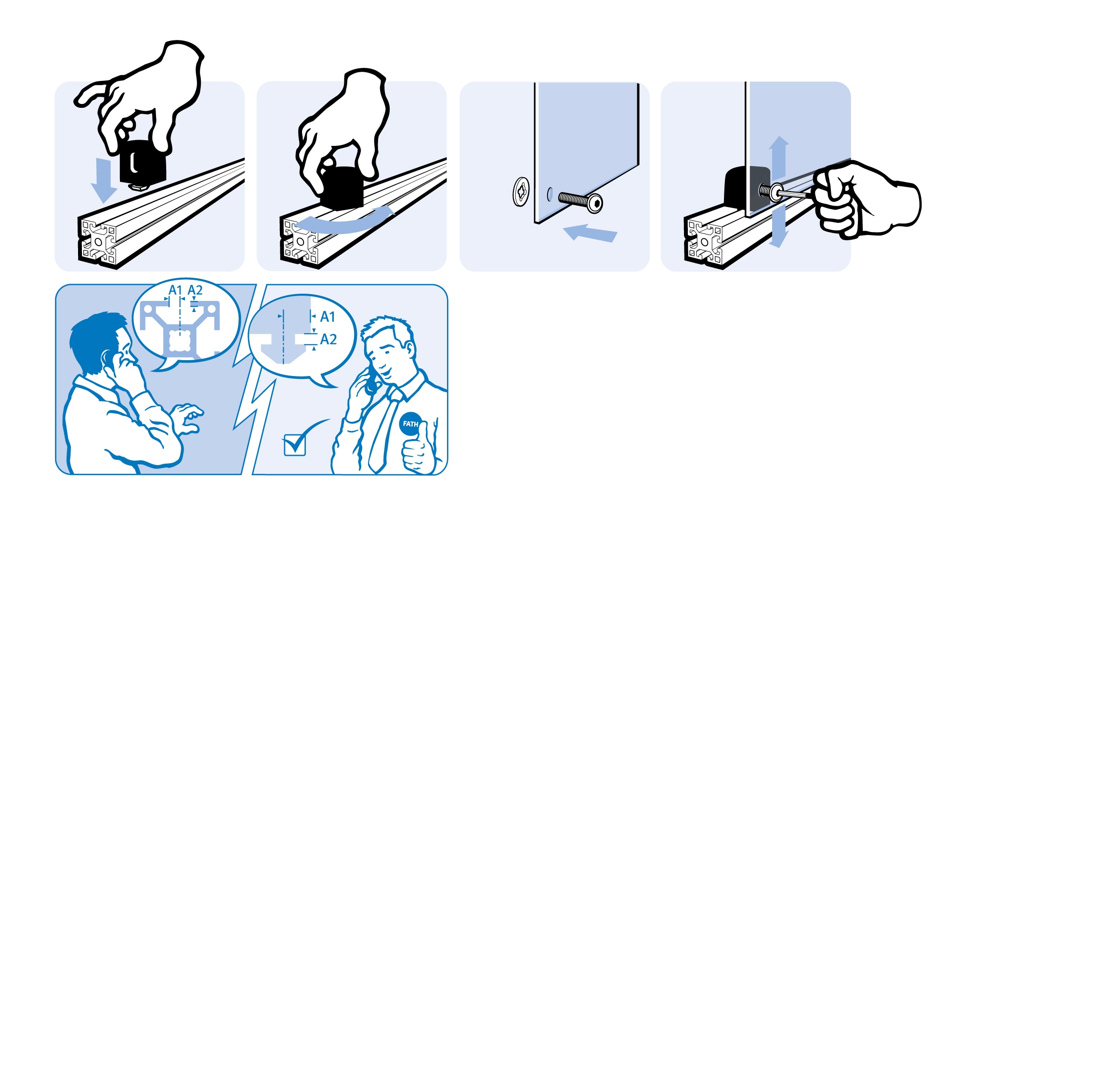

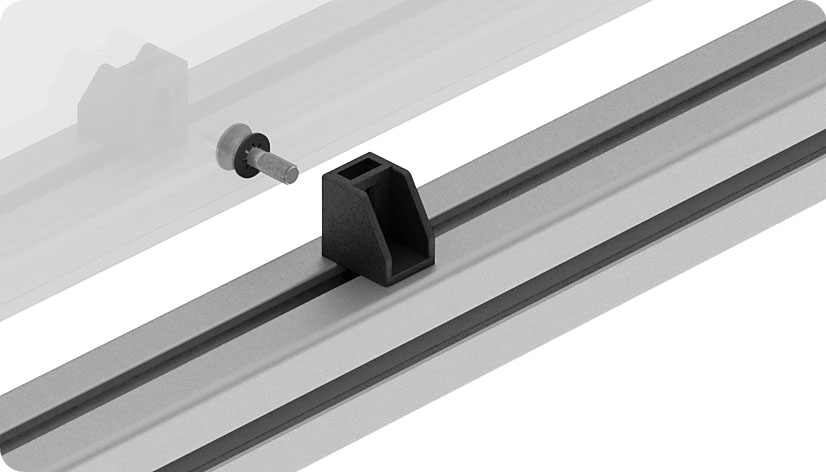

To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Specials:
Customized hammer, other colors on request

Tip:
Compatible Spacer see 094102CS
Pack Quantity: 100 pieces
Model: With screw retainer
Weight (g): 8.5
ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360492
ECLASS 12.0: 23360492
ECLASS 13.0: 23360492
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097
ERP Number: 128821

Variants

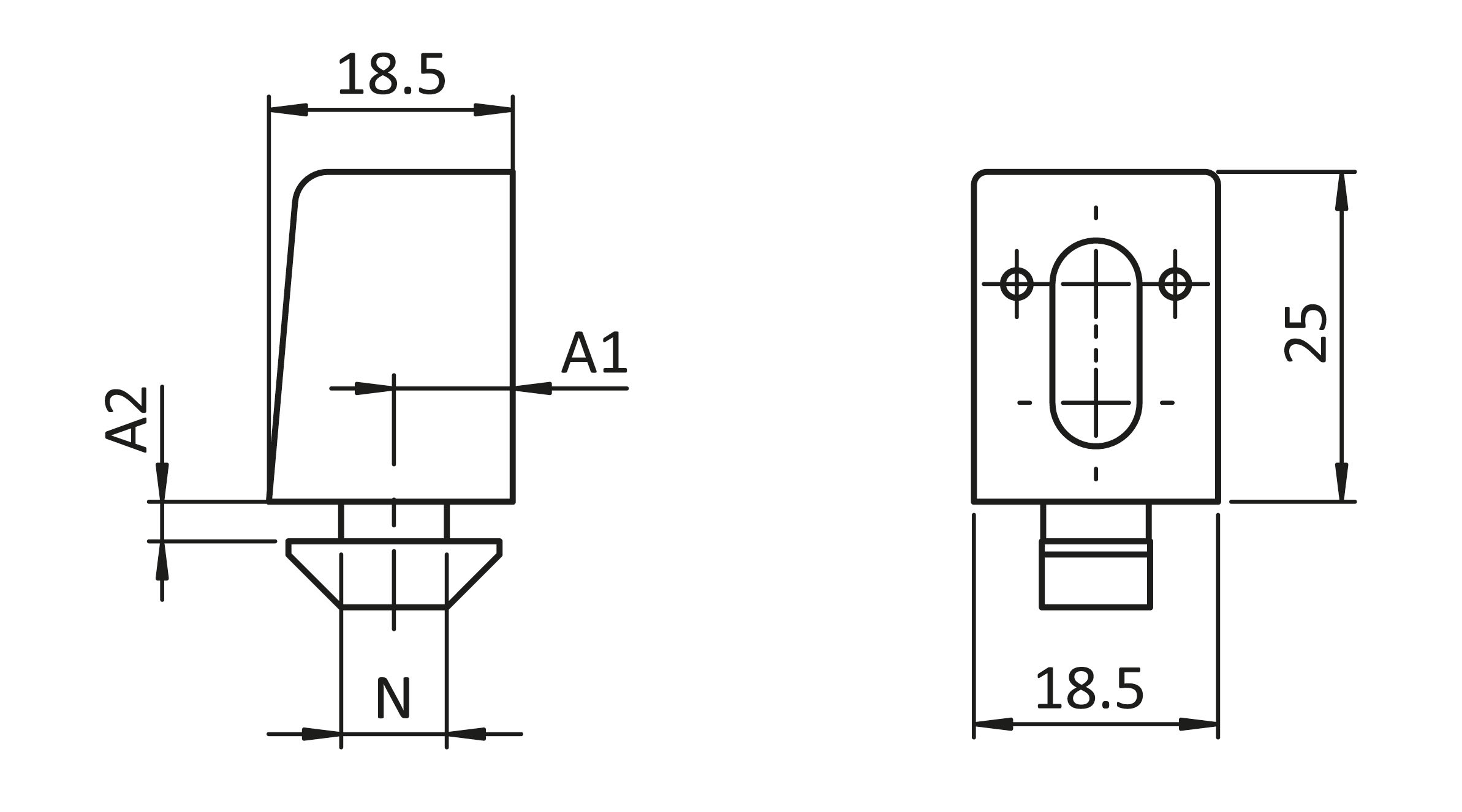

Part # Profile M Slot N (mm) A2 (Profile) (mm) A1 (mm)
094002CSM6 B M6 8 1.9 (2.2) 7.0
094100CSM6 I M6 6 2.7 (3.0) 7.0
