Uni Block 25, Black

Product information "Uni Block 25, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:
To attach panels easily to aluminum profiles

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Specials:
Customized hammer, other colors on request

Tip:
Compatible Spacer see 094102CS

(ECLASS 6.0):	23369290
(ECLASS 7.0):	23369290
(ECLASS 8.0):	23369290
(ECLASS 9.0):	23369290
(ECLASS 10.0):	23369290
(ECLASS 11.0):	23360492
(ECLASS 12.0):	23360492
(ECLASS 13.0):	23360492
Customs Tariff Number Export:	39269097
ERP Number:	123635
Model:	Plastic PA, Slot 8, 10
Pack Quantity:	100 pieces
Weight (g):	9.9
Zolltarifnummer:	39269097900

Variants

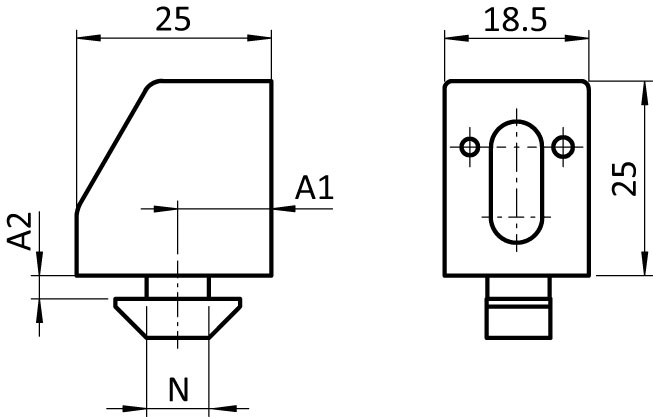

Product ID	Profile	Slot N (mm)	M	A2 (Profile) (mm)	A1 (mm)
094003M4	I	8	M4	4.35 (4.5)	7.9
094003M5	I	8	M5	4.35 (4.5)	7.9
094003M6	I	8	M6	4.35 (4.5)	7.9
094004M4	B	10	M4	5.6 (6.0)	9.5
094004M5	B	10	M5	5.6 (6.0)	9.5
094004M6	B	10	M6	5.6 (6.0)	9.5
094005M4	B	10	M4	6.0 (6.0)	14.0
094005M5	B	10	M5	6.0 (6.0)	14.0
094005M6	B	10	M6	6.0 (6.0)	14.0
094008M4	B	10	M4	5.7 (6.0)	8.5
094008M5	B	10	M5	5.7 (6.0)	8.5
094008M6	B	10	M6	5.7 (6.0)	8.5
094020M4	I	8	M4	4.4 (4.5)	12.0
094020M5	I	8	M5	4.4 (4.5)	12.0
094020M6	I	8	M6	4.4 (4.5)	12.0
094080M4	I	8	M4	4.6 (4.5)	14.0
094080M5	I	8	M5	4.6 (4.5)	14.0
094080M6	I	8	M6	4.6 (4.5)	14.0
