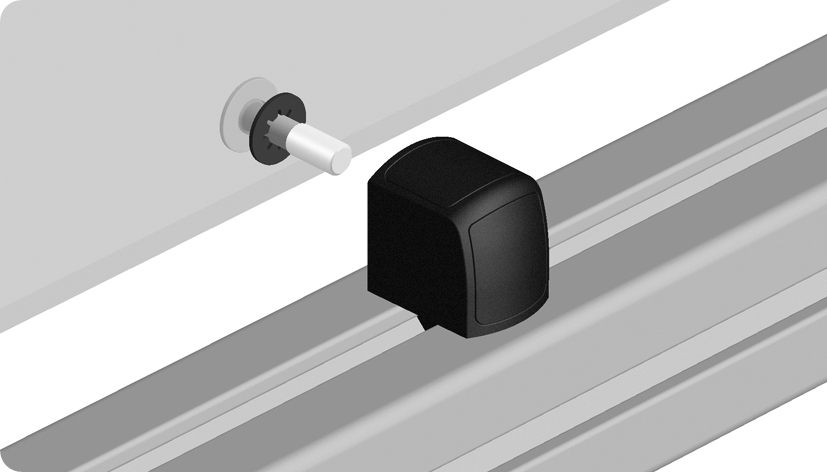

Uni Block 26 CS (Set)

Product information "Uni Block 26 CS (Set)"

Color:
Black

Delivery Countries:
Worldwide

Description:

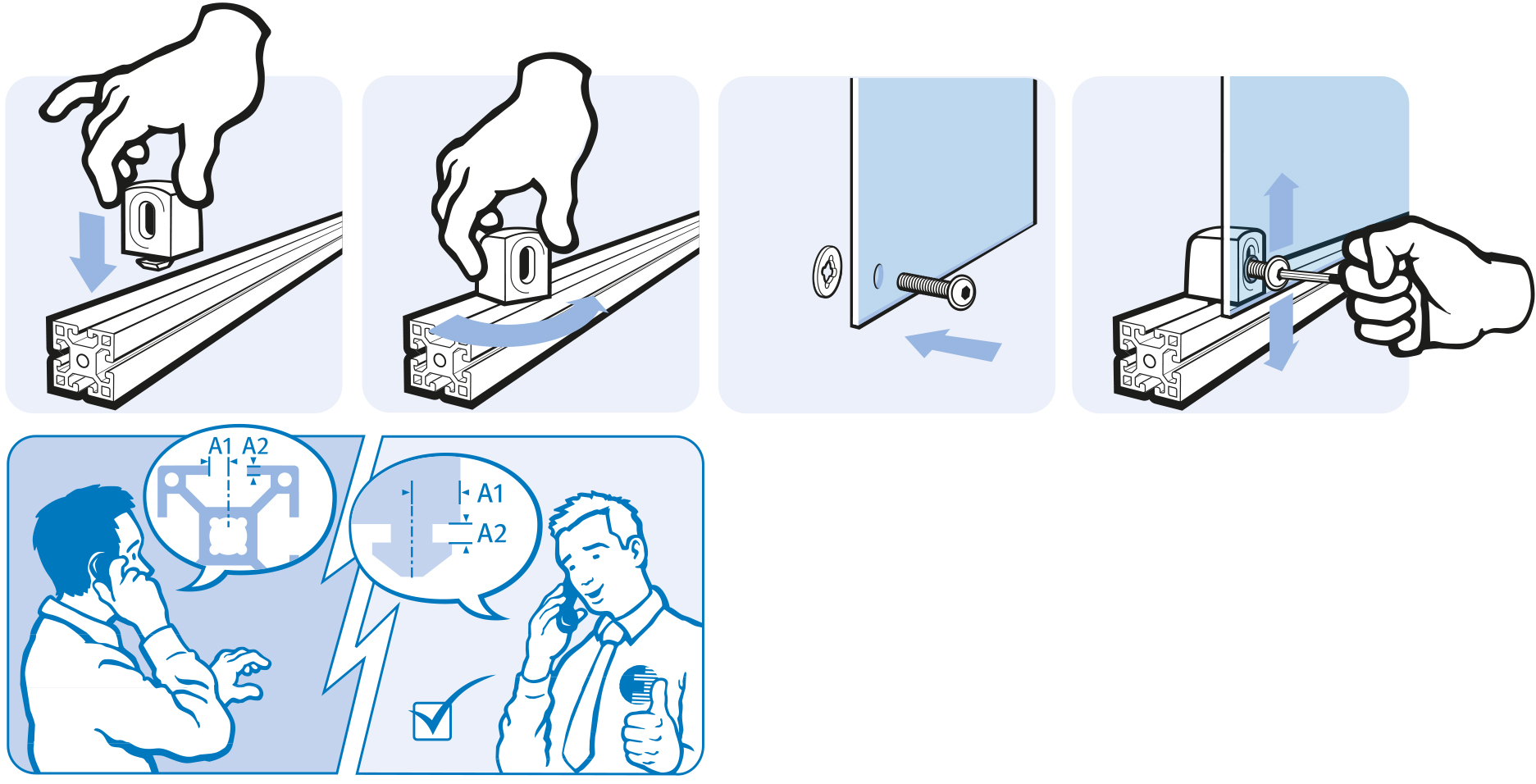

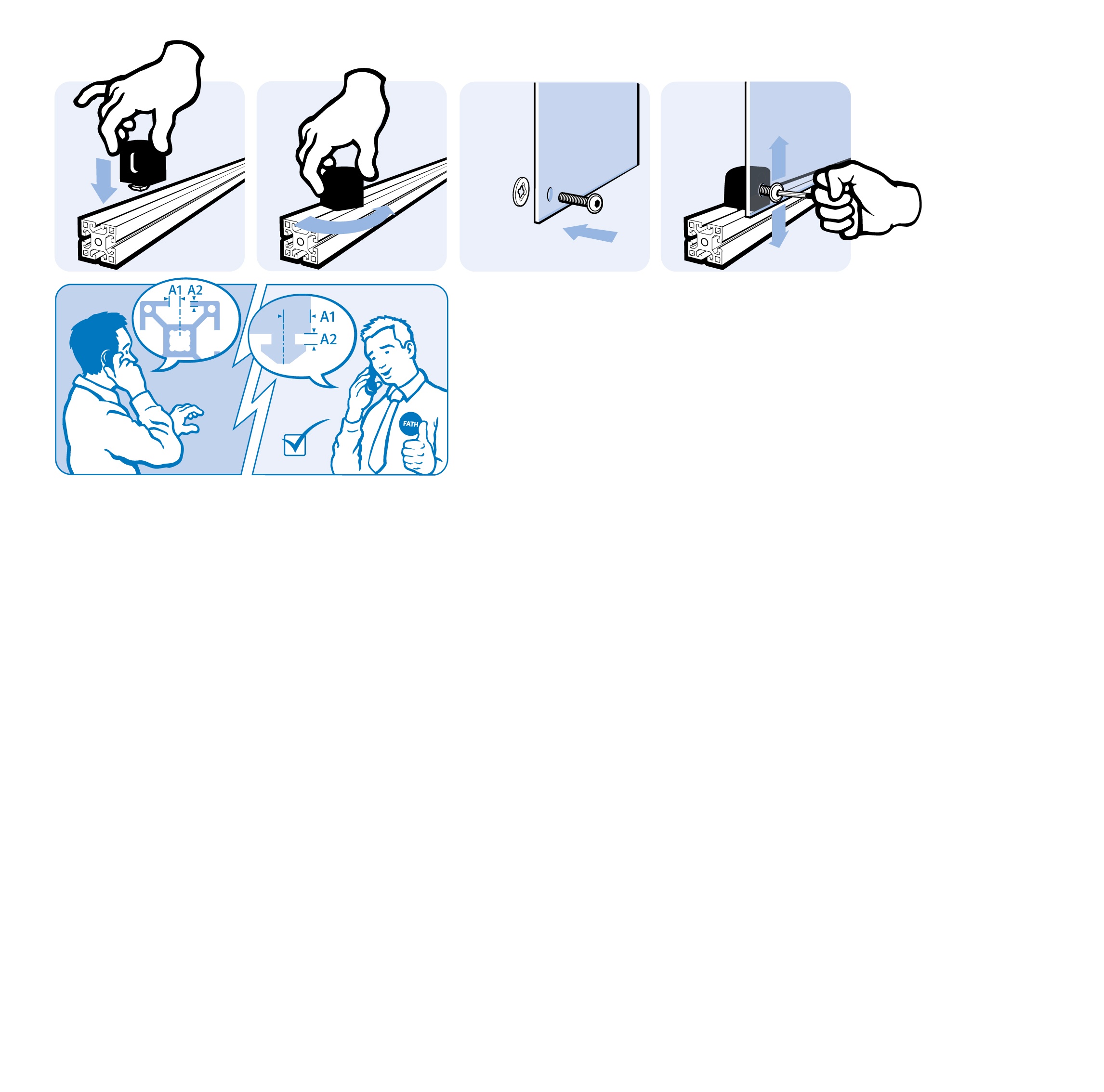

To attach panels with a thickness of 2 - 8 mm safely to aluminum profiles; with screw retainer to comply withMachinery Directive 2006/42/EC

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Specials:
Customized hammer, other colors on request
Pack Quantity: 25 pieces
Model: With screw retainer
Weight (g): 21.0
ERP Number: 120735

Global keywords / tags:

Profile Type Profile Type B
Slot Size Slot 10

Variants

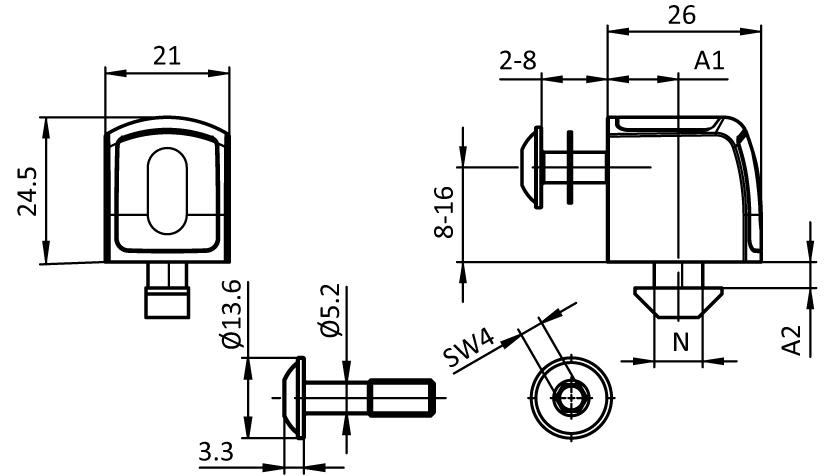

Part # Profile Slot N (mm) A2 (Profile) (mm) A1 (mm)
B 10 6.3 (6.0) 14.0
I 8 4.4 (4.5) 12.0

CAD Downloads

Classifications

ECLASS 6.0
23369290
ECLASS 7.0
23369290
ECLASS 8.0
23369290
ECLASS 9.0
23369290
ECLASS 10.0
23369290
ECLASS 11.0
23360492
ECLASS 12.0
23360492
ECLASS 13.0
23360492
Zolltarifnummer
39269097900
Customs Tariff Number Export
39269097

Certificates
