Uni Block 26 CS (Set)

Product information "Uni Block 26 CS (Set)"

Color:
Black

Delivery Countries:
Worldwide

Description:

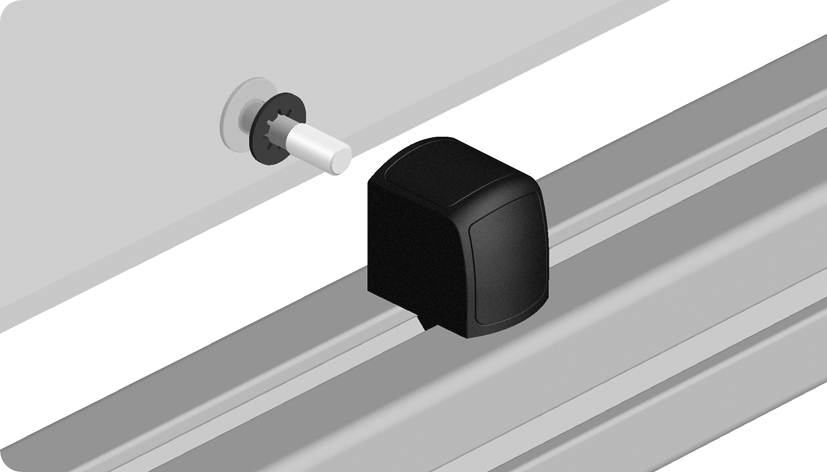

To attach panels with a thickness of 2 - 8 mm safely to aluminum profiles; with screw retainer to comply withMachinery Directive 2006/42/EC

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Specials:
Customized hammer, other colors on request

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Model: With screw retainer
Pack Quantity: 100 pieces
Weight (g): 20.0

Variants

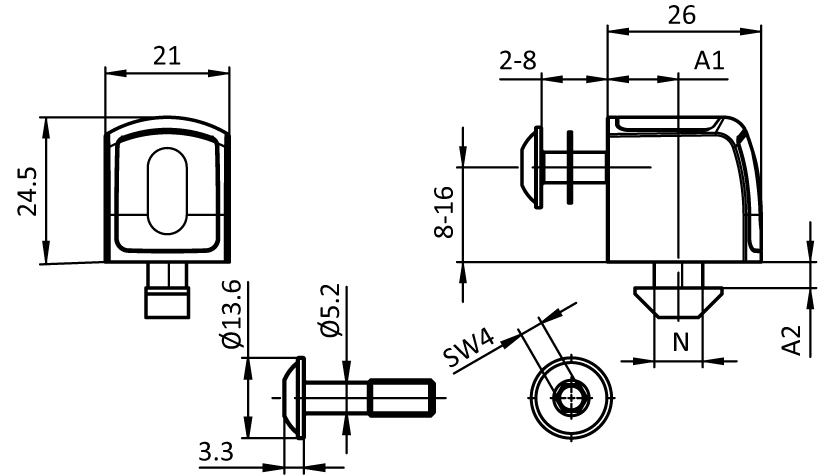

Product ID Profile Slot N (mm) A1 (mm) A2 (Profile) (mm)
094605CSS02 B 10 14.0 6.3 (6.0)
094620CSS02 I 8 12.0 4.4 (4.5)
