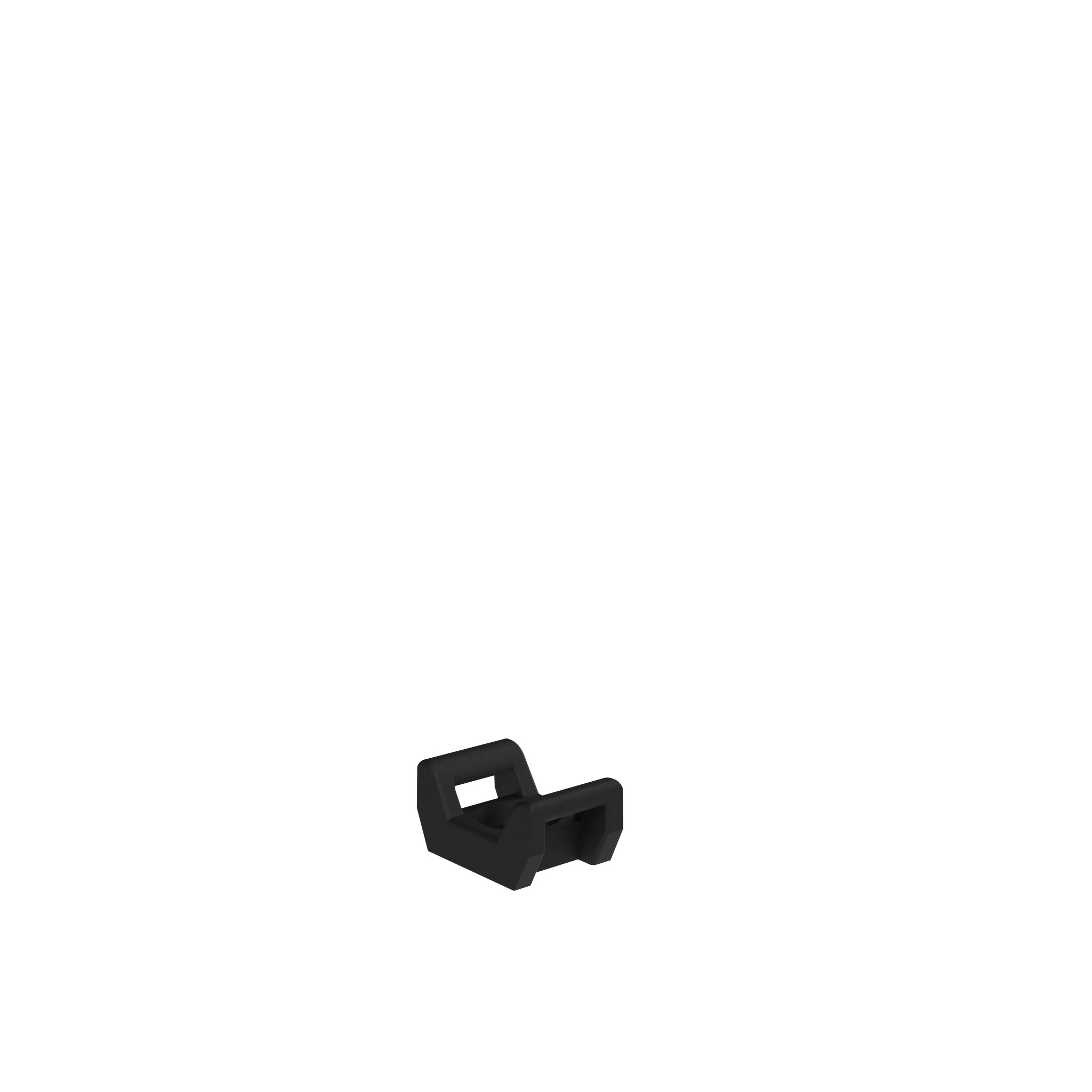

Universal Cable Binding Block
€0.00

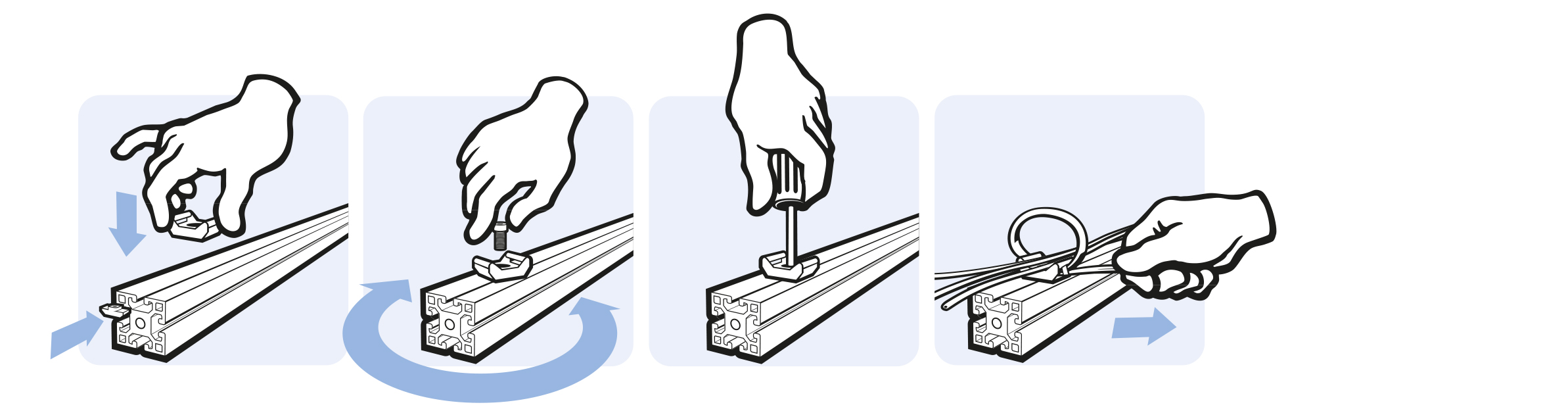

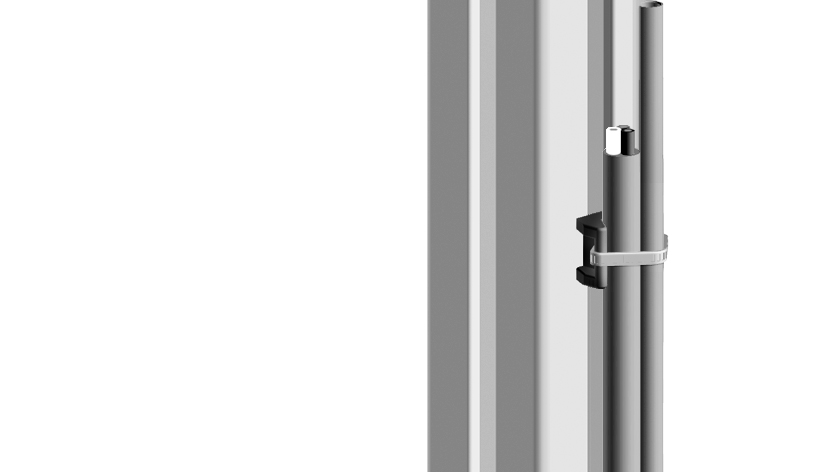

To fix cables to aluminum profiles; to be mounted with a hammer nut
Plastic PA, glass fiber reinforced
Color:
Black
Tip:
Compatible Hammer Nuts see 096H06410, 096H06410E, 096H08415, 096H08415S20
Specials:
Other colors on request
Delivery Countries:
Worldwide
| Pack Quantity: | 100 pieces |
|---|---|
| Model: | Plastic PA, slot 5-12 |
| Weight (g): | 1.6 |
| ERP Number: | 100406 |
Product Portraits
Classifications
- ECLASS 6.0
- 27140701
- ECLASS 7.0
- 27140701
- ECLASS 8.0
- 27140701
- ECLASS 9.0
- 27140701
- ECLASS 10.0
- 27140701
- ECLASS 11.0
- 27140701
- ECLASS 12.0
- 27140701
- ECLASS 13.0
- 27140701
- Zolltarifnummer
- 39269097900
- Customs Tariff Number Export
- 39269097
Certificates
Matching accessories
Description:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connectionMaterial:Steel / stainless steel SS304Surface:Zinc plated / plainSpecials:Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestDelivery Countries:Worldwide
Description:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connectionMaterial:Steel / stainless steel SS304Surface:Zinc plated / plainSpecials:Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestDelivery Countries:Worldwide
Description:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connectionMaterial:Steel / stainless steel SS304Surface:Zinc plated / plainSpecials:Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestDelivery Countries:Worldwide / North America
Description:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connection; with turning help: plastic thread locking dotMaterial:SteelSurface:Zinc platedDelivery Countries:Worldwide
