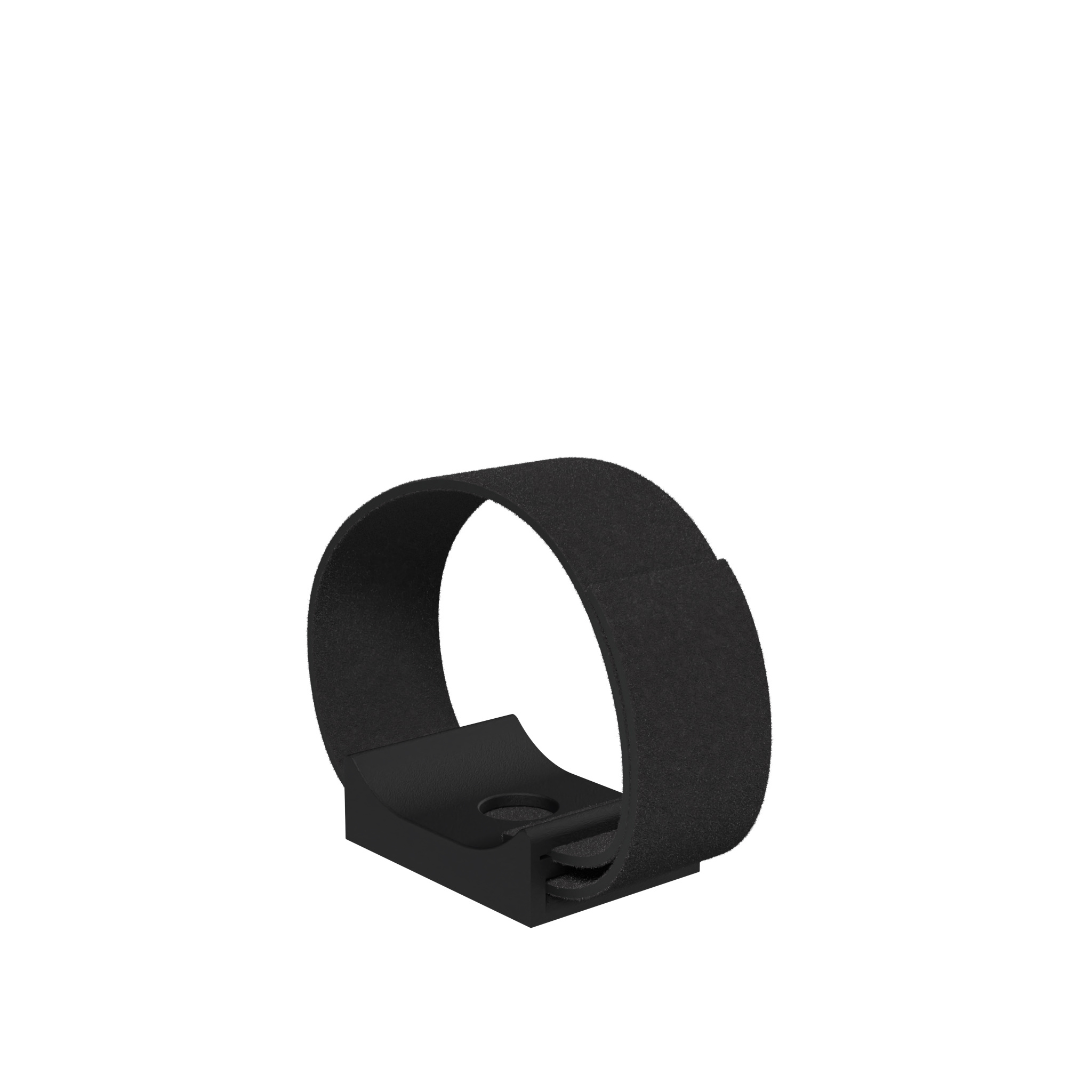

Universal Hook-and-loop Block

Product information "Universal Hook-and-loop Block"

Color:
Cable binding block: Black
Hook-and-loop strap: Black

Delivery Countries:
Worldwide

Description:

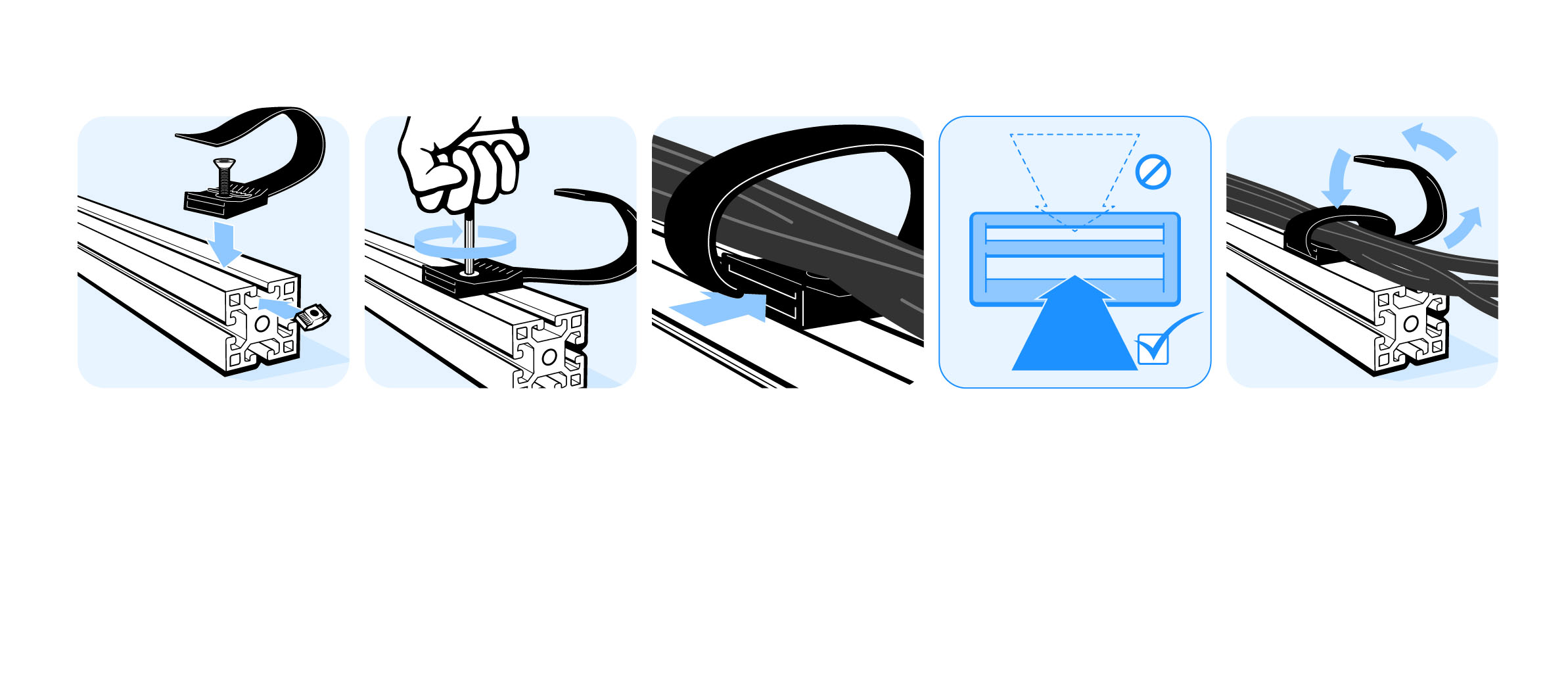

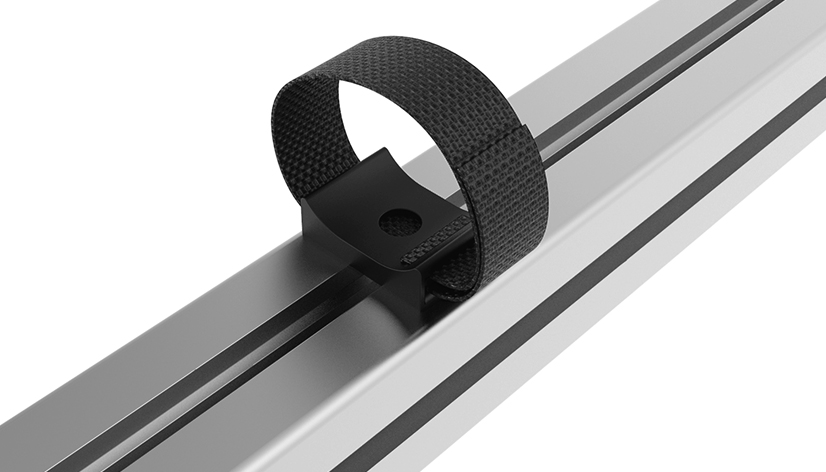

To fix cables to aluminum profiles; to be mounted with a hammer nut

Material:
Cable binding block: Plastic PA, glass fiber reinforced
Hook-and-loop strap: Plastic PP (UL94-V2)

Tip:
Compatible Hammer Nuts see 096H0610 et seq.

Zolltarifnummer:
39269097900
(ECLASS 6.0): 27140701
(ECLASS 7.0): 27140701
(ECLASS 8.0): 27140701
(ECLASS 9.0): 27140701
(ECLASS 10.0): 27140701
(ECLASS 11.0): 27140701
(ECLASS 12.0): 27140701
(ECLASS 13.0): 27140701
Fastening: From the front, using M4 or M5 countersunk screws
Model: Plastic PA, slot 5-12
Pack Quantity: 10 pieces
Weight (g): 8.6

Variants

Product ID
093815M45S01

CAD Downloads

Certificates
