Variable Holding Bracket XST D30
Regular price:
€0.00
Part #:
062MYFD30MS01
Pack Quantity:
10 pieces
Description:

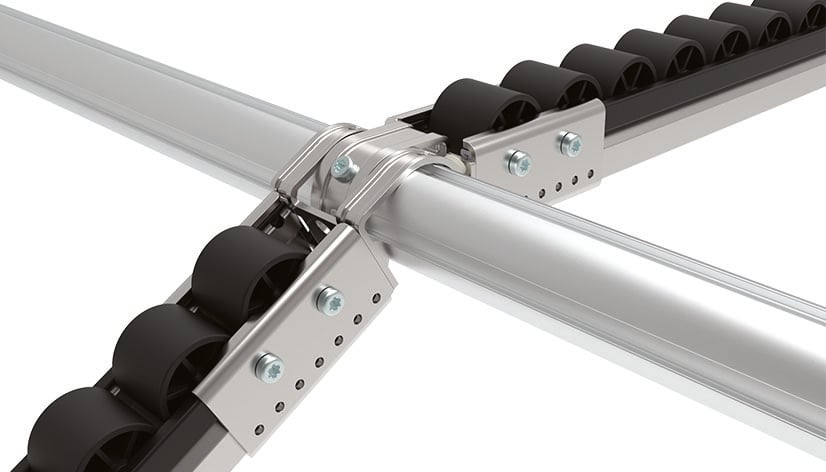

Transition between roller track profiles with varying inclination, to mount roller track profiles XST and guiding rails XST central at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping out
Transition between roller track profiles with varying inclination, to mount roller track profiles XST and guiding rails XST central at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping out
Material:
Steel
Surface:
Zinc plated
Fastening:
with 5 or 6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
Specials:
Other surfaces, other colors on request
Delivery Countries:
Worldwide
Steel
Surface:
Zinc plated
Fastening:
with 5 or 6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
Specials:
Other surfaces, other colors on request
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | For roller tracks XST |
| Weight (g): | 150.0 |
| ERP Number: | 146912 |
Product Portraits
Classifications
- ECLASS 6.0
- 36120490
- ECLASS 7.0
- 36120490
- ECLASS 8.0
- 36120490
- ECLASS 9.0
- 36120490
- ECLASS 10.0
- 36120490
- ECLASS 11.0
- 36120492
- ECLASS 12.0
- 36120492
- ECLASS 13.0
- 36120492
- Zolltarifnummer
- 73269098900
- Customs Tariff Number Export
- 73269098
Certificates
