Zinc Connection Angle 20

Description:
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap

Material:
Angle: Zinc die-cast
Assembly set: Steel

Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated

Color:
Angle: Alu color

Assembly Set:
1 cover cap - plastic PA - black,
2 T-slot nuts - slot 5 - M5,
2 screws DIN 6912 - M5 x 8

Tip:
Compatible Cover Cap see 093WA201

Specials:
Other surfaces, other colors on request

Delivery Countries:
Worldwide

Pack Quantity:	10 pieces
Model:	Zinc die-cast
Weight (g):	13.6
ERP Number:	100921

Variants

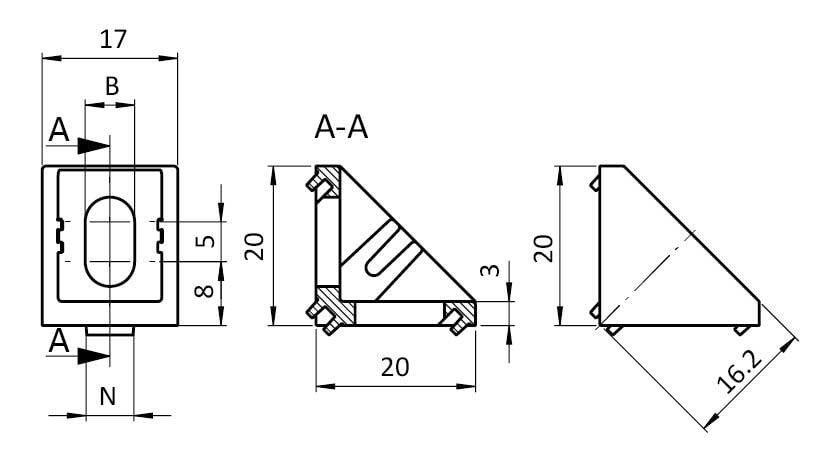

Part #	Version	Profile	B (mm)	Surface	Color	Slot N (mm)	Pack Quantity
093W201R	-	-	6.2	Plain	-	-	1 piece
093W201N05R	-	-	5.5	Plain	-	5	1 piece
093W201N06R	-	-	6.2	Plain	-	6	1 piece
093W201	-	-	6.2	Powder coated	Alu color	-	10 pieces
093W201N05	-	-	5.5	Powder coated	Alu color	5	10 pieces
093W201N06	-	-	6.2	Powder coated	Alu color	6	10 pieces
093W201N05S01	incl. assembly set	I	5.5	Powder coated	Alu color	5	10 pieces

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 79070000900
Customs Tariff Number Export: 79070000

Certificates

Tags

Profile Type	Profile Type I
Slot Size	Slot size 5
Modular Dimension	Modular Dimension 20
Profile Form	T-slot Profiles

Matching accessories

Cover Cap for Zinc Connection Angle 20

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:BlackTip:Compatible Zinc Connection Angle see 093W201RSpecials:Other colors on requestDelivery Countries:Worldwide
