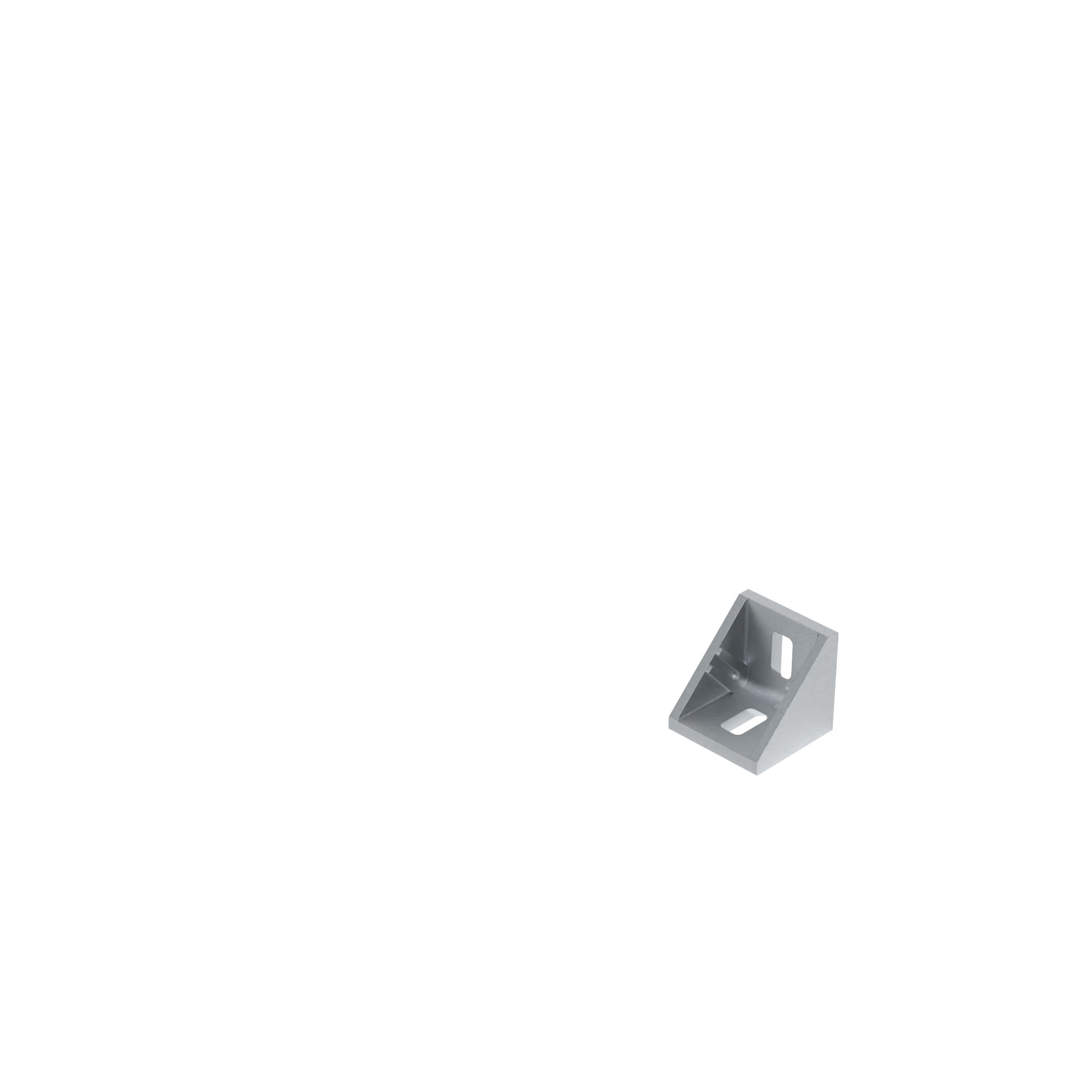

Zinc Connection Angle 30

Product information "Zinc Connection Angle 30"

Assembly Set:
1 Cover cap - Plastic PA - black,
2 T-slot nuts - slot 6 - M6,
2 Screws ISO 7380 - M6 x 12

Color:
Angle: Alu color
Cover cap: Black

Delivery Countries:
Worldwide

Description:
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap

Material:
Angle: Zinc die-cast
Cover cap: Plastic PA, glass fiber reinforced
Assembly set: Steel

Specials:
Other surfaces, other colors on request

Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated

Tip:
Compatible Cover Cap see 093WA301

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Zinc die-cast
Pack Quantity: 10 pieces / 10 set
Pack Quantity (1): 1
Weight (g): 39.4

Variants

Product ID Version Profile Color Surface Slot N (mm)
093W301 Alu color Powder coated
093W301N06 Alu color Powder coated 6
093W301N06R Plain 6
093W301N06S01 incl. assembly set I Alu color Powder coated 6
093W301N08 Alu color Powder coated 8
093W301N08R Plain 8
093W301R Plain
