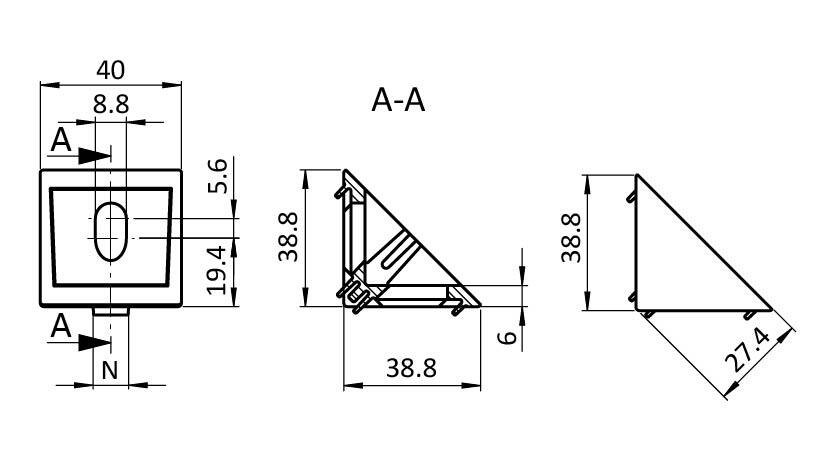

Zinc Connection Angle 40 flat

Description:

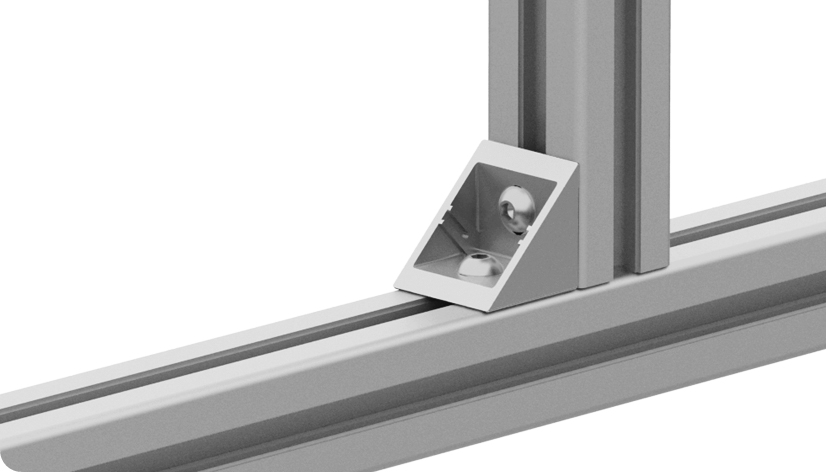

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap

Material:
Angle: Zinc die-cast
Cover cap: Plastic PA, glass fiber reinforced
Assembly set: Steel

Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated

Color:
Angle: - / alu color
Cover cap: Black

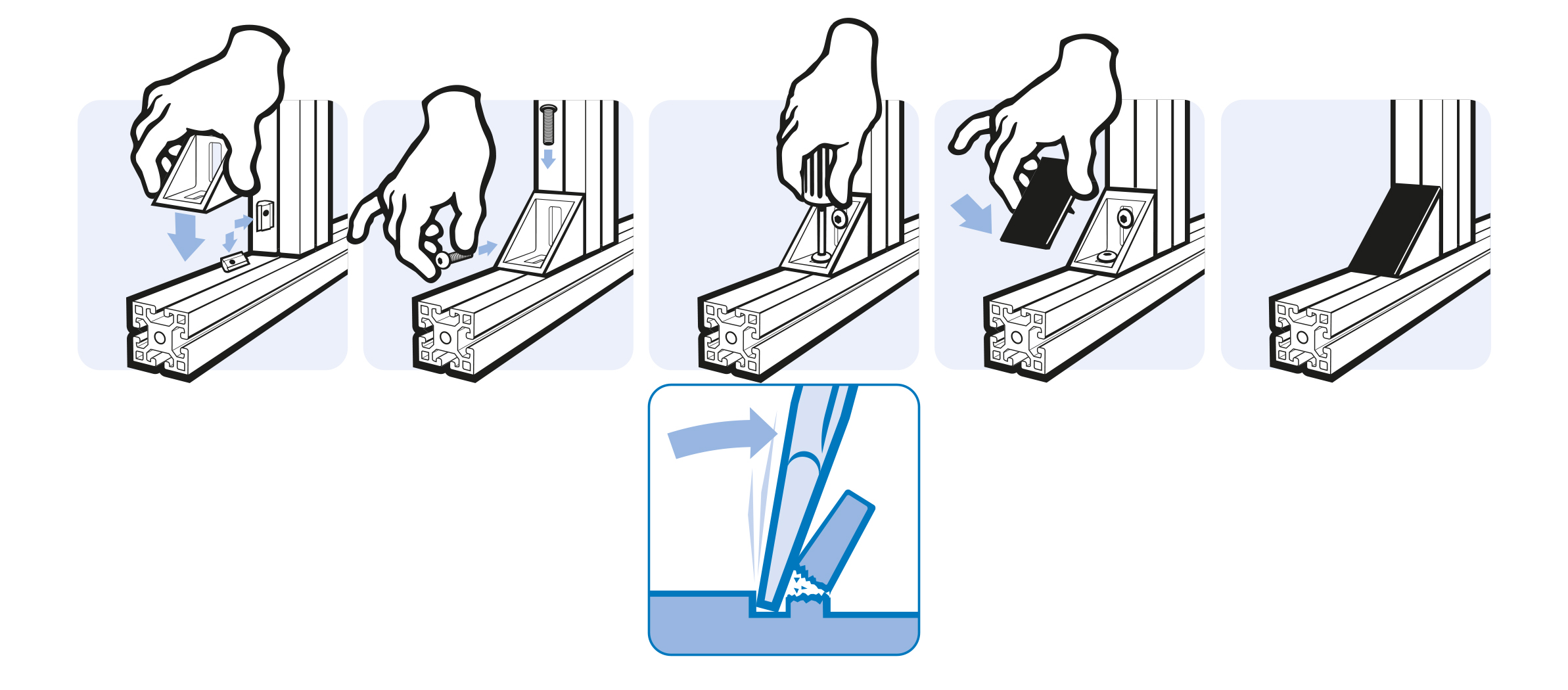

Assembly Set:
1 Cover cap - Plastic PA - black,
2 T-slot nuts - slot 8 - M8,
2 Screws DIN EN ISO 7380 (DIN 34805) - M8 x 16

Tip:
Compatible Cover Cap see 093WA401

Specials:
Other surfaces, other colors on request

Delivery Countries:
Worldwide

Pack Quantity:	10 pieces
Model:	Zinc die-cast
Weight (g):	90.0
ERP Number:	100964

Variants

Part #	Version	Profile	Surface	Color	Slot N (mm)	Pack Quantity
093W401R	-	-	Plain	-	-	1 piece
093W401N08R	-	-	Plain	-	8	100 pieces
093W401N10R	-	-	Plain	-	10	1 piece
093W401	-	-	Powder coated	Alu color	-	10 pieces
093W401N08	-	-	Powder coated	Alu color	8	10 pieces
093W401N10	-	-	Powder coated	Alu color	10	10 pieces
093W401N08S03	incl. assembly set	I	Powder coated	Alu color	8	10 pieces

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 79070000900
Customs Tariff Number Export: 79070000

Certificates

Tags

Profile Type	Profile Type B
Slot Size	Slot size 10
Profile Form	T-slot Profiles
