Zinc Connection Angle 80 flat
Part #:
093W803N10R
Product information "Zinc Connection Angle 80 flat"
Color:
Angle: Alu color
Delivery Countries:
Worldwide
Description:

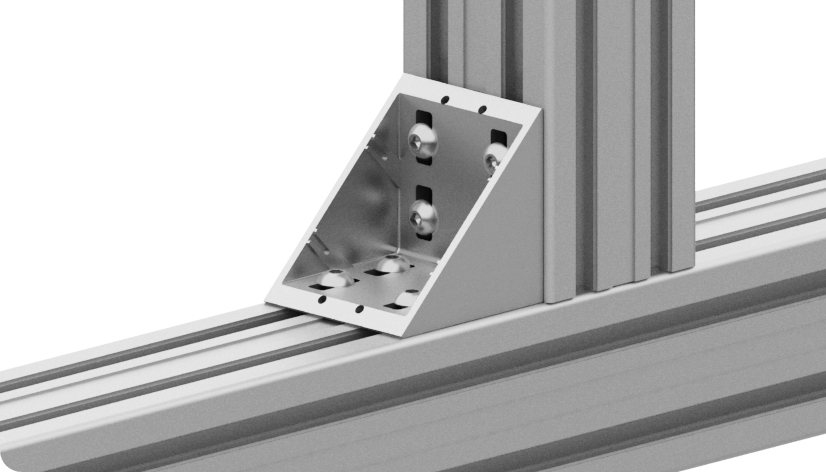

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Material:
Angle: Zinc die-cast
Assembly set: Steel
Specials:
Other surfaces, other colors on request
Surface:
Angle: Plain / Powder coated
Tip:
Compatible Cover Cap see 093WA803
Angle: Alu color
Delivery Countries:
Worldwide
Description:
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Material:
Angle: Zinc die-cast
Assembly set: Steel
Specials:
Other surfaces, other colors on request
Surface:
Angle: Plain / Powder coated
Tip:
Compatible Cover Cap see 093WA803
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Customs Tariff Number Export: | 79070000 |
| Model: | Zinc die-cast |
| Pack Quantity: | 10 pieces |
| Pack Quantity (1): | 1 |
| Weight (g): | 412.5 |
| Zolltarifnummer: | 79070000900 |
| pA Number: | 101021 |
Certificates
