Zinc Die-Cast Hinge 40 EH with Locking Lever
Regular price:
€0.00
Part #:
095300FN10
Pack Quantity:
10 pieces
Product information "Zinc Die-Cast Hinge 40 EH with Locking Lever"
Color:
Black
Delivery Countries:
Worldwide
Description:

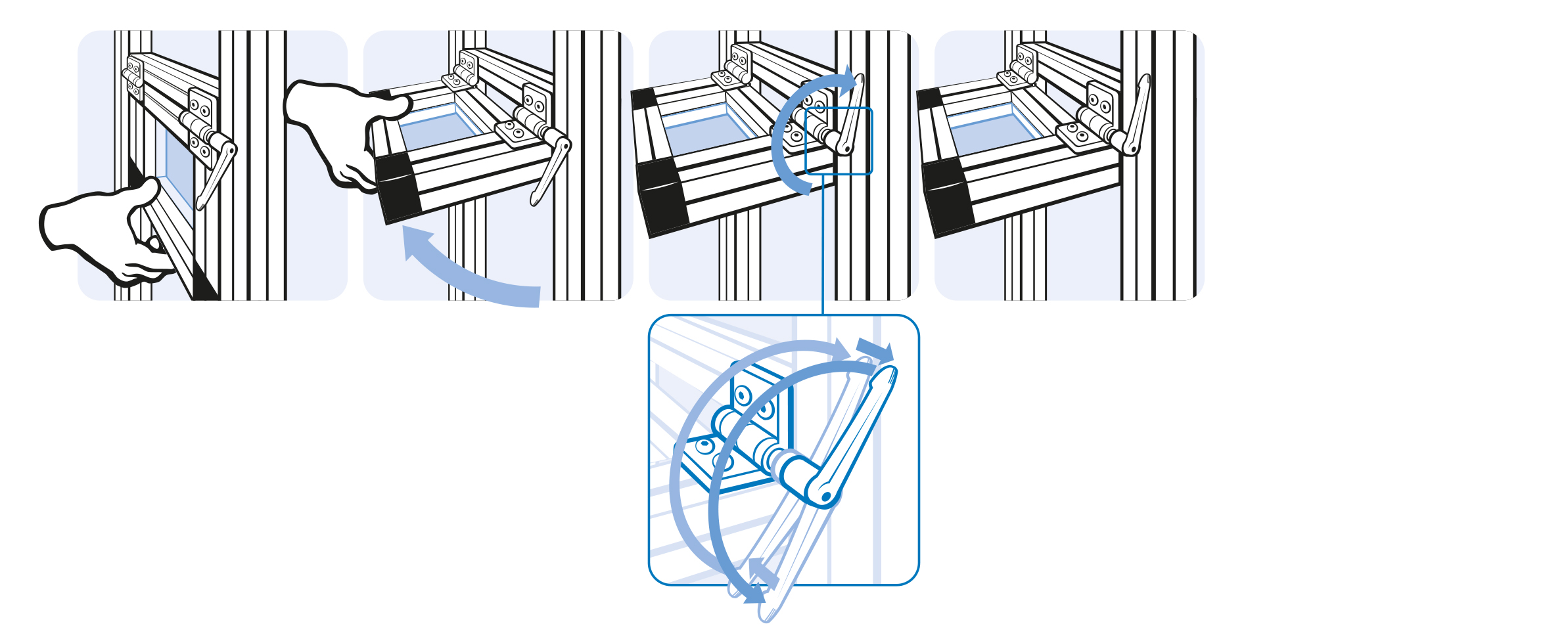

For panels and aluminum profiles, can be locked in any position
Fastening:
From the front, using M8 screws
Material:
Wings: Zinc die-cast
KIPP locking lever: Plastic PA, glass fiber reinforced
Mechanism: Steel, black zinc plated (RoHS conform)
Specials:
Other surfaces, other colors on request
Surface:
Powder coated
Black
Delivery Countries:
Worldwide
Description:
For panels and aluminum profiles, can be locked in any position
Fastening:
From the front, using M8 screws
Material:
Wings: Zinc die-cast
KIPP locking lever: Plastic PA, glass fiber reinforced
Mechanism: Steel, black zinc plated (RoHS conform)
Specials:
Other surfaces, other colors on request
Surface:
Powder coated
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Non-detachable |
| Weight (g): | 197.0 |
| ECLASS 6.0: | 23219090 |
| ECLASS 7.0: | 23219090 |
| ECLASS 8.0: | 23219090 |
| ECLASS 9.0: | 23219090 |
| ECLASS 10.0: | 23219090 |
| ECLASS 11.0: | 23219090 |
| ECLASS 12.0: | 23219090 |
| ECLASS 13.0: | 23219090 |
| Zolltarifnummer: | 83021000900 |
| Customs Tariff Number Export: | 83021000 |
| ERP Number: | 101572 |
