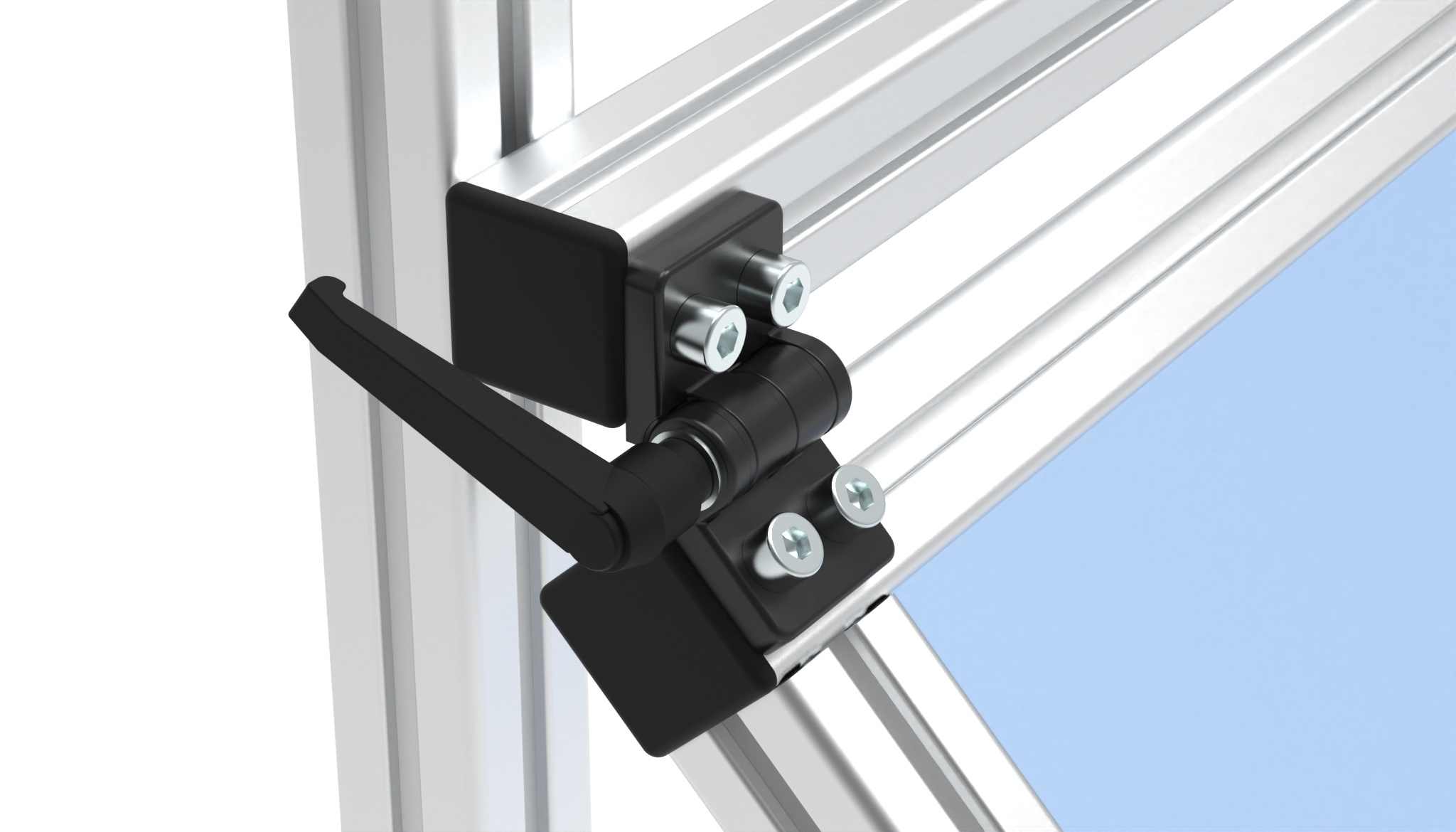

Zinc Die-Cast Hinge with Locking Lever
Part #:
095ZF4045F00S
Product information "Zinc Die-Cast Hinge with Locking Lever"
Color:
Hinge: Black
KIPP locking lever: Black
Delivery Countries:
Worldwide
Description:

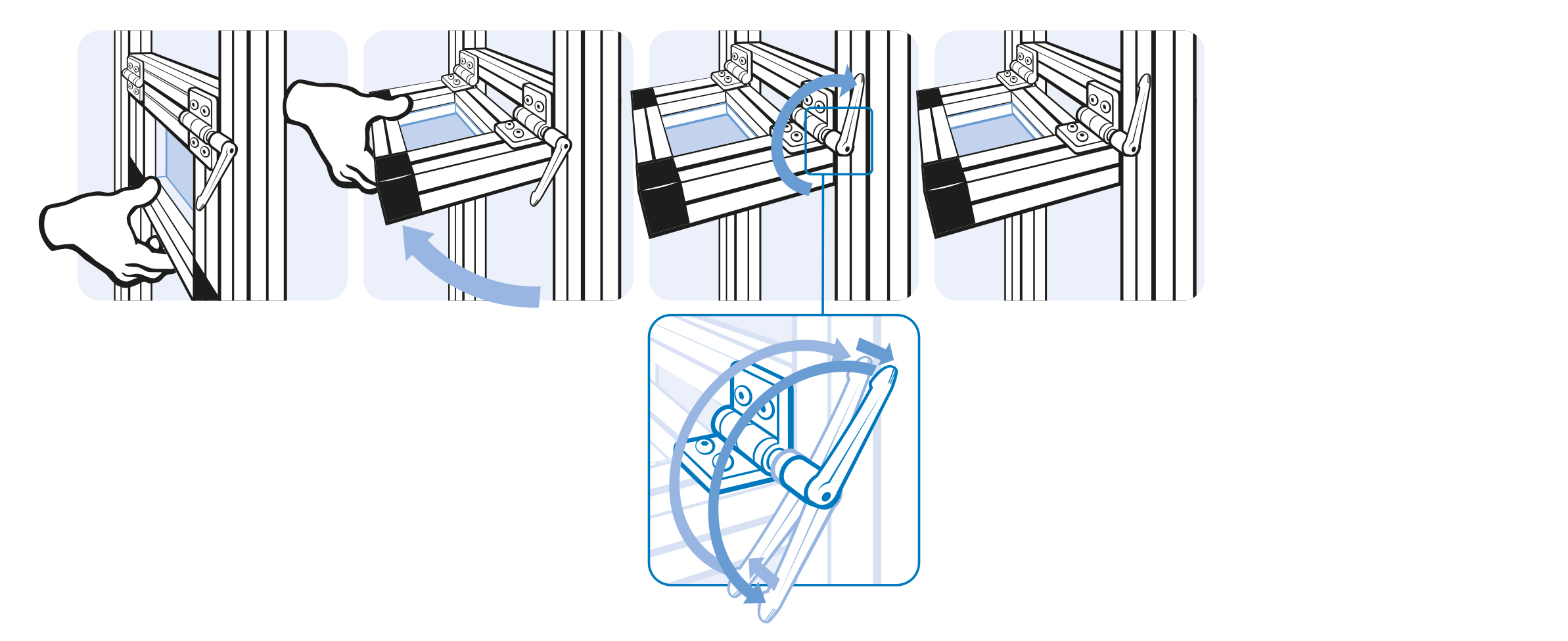

To hinge panels or aluminum profiles; can be locked at any position
Material:
Hinge: Zinc die-cast
KIPP locking lever: Plastic PA
Mechanism: Steel
Specials:
Other surfaces, other colors on request
Surface:
Hinge: Powder coated
Mechanism: Zinc plated (RoHS conform)
Hinge: Black
KIPP locking lever: Black
Delivery Countries:
Worldwide
Description:
To hinge panels or aluminum profiles; can be locked at any position
Material:
Hinge: Zinc die-cast
KIPP locking lever: Plastic PA
Mechanism: Steel
Specials:
Other surfaces, other colors on request
Surface:
Hinge: Powder coated
Mechanism: Zinc plated (RoHS conform)
| (ECLASS 6.0): | 23219090 |
|---|---|
| (ECLASS 7.0): | 23219090 |
| (ECLASS 8.0): | 23219090 |
| (ECLASS 9.0): | 23219090 |
| (ECLASS 10.0): | 23219090 |
| (ECLASS 11.0): | 23219090 |
| (ECLASS 12.0): | 23219090 |
| (ECLASS 13.0): | 23219090 |
| Customs Tariff Number Export: | 83021000 |
| ERP Number: | 102255 |

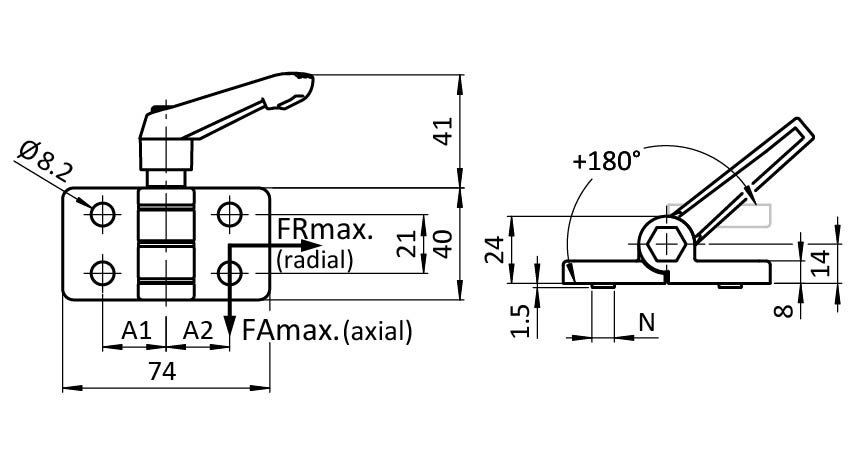

| Fastening: | From the front, using M8 screws |
| Model: | Zinc die-cast, non-detachable |
| Pack Quantity: | 10 pieces |
| Weight (g): | 211.0 |
| Zolltarifnummer: | 83021000900 |
