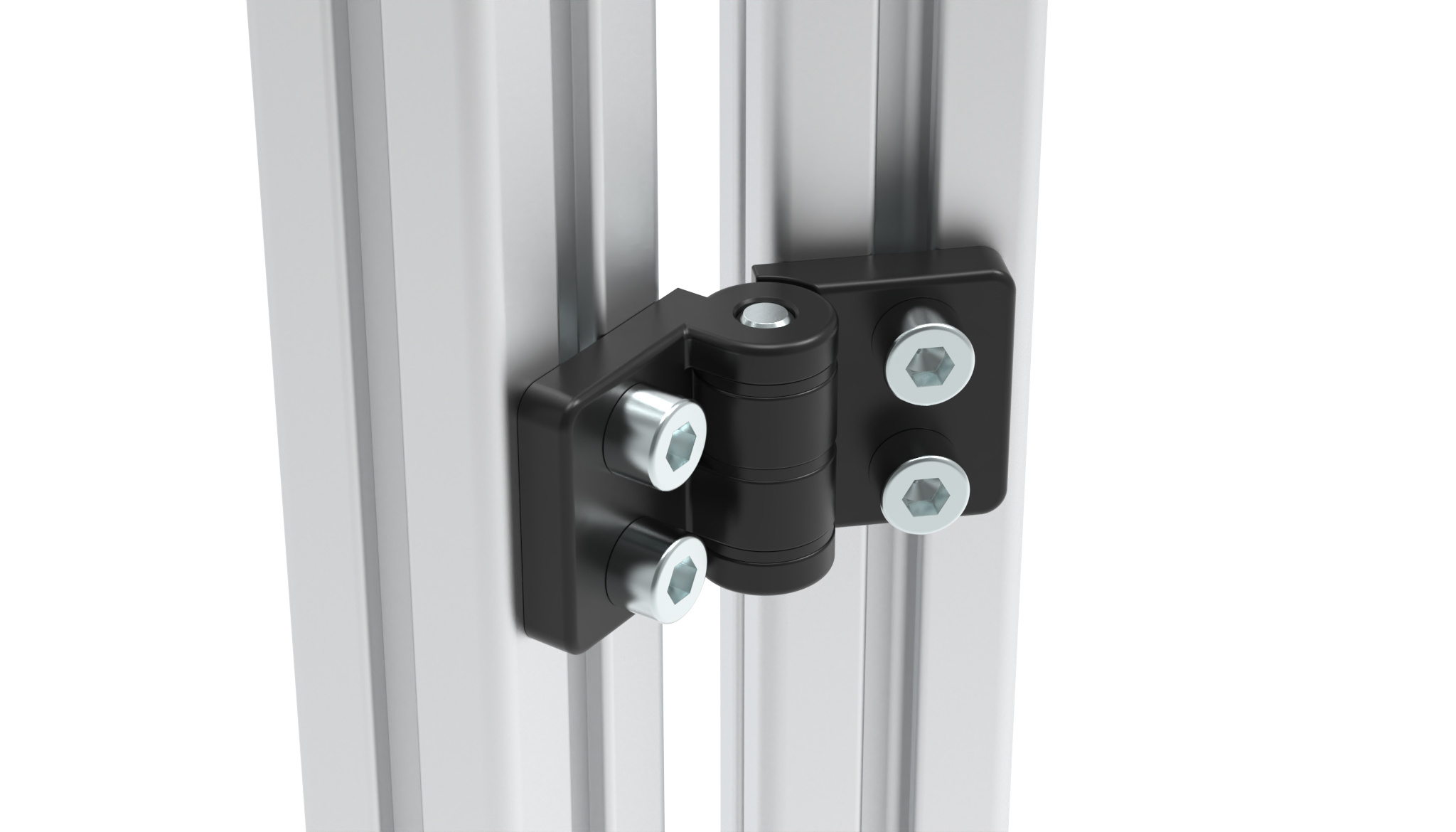

Zinc Die-Cast Hinge

Product information "Zinc Die-Cast Hinge"

Color:
Black

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles

Fastening:

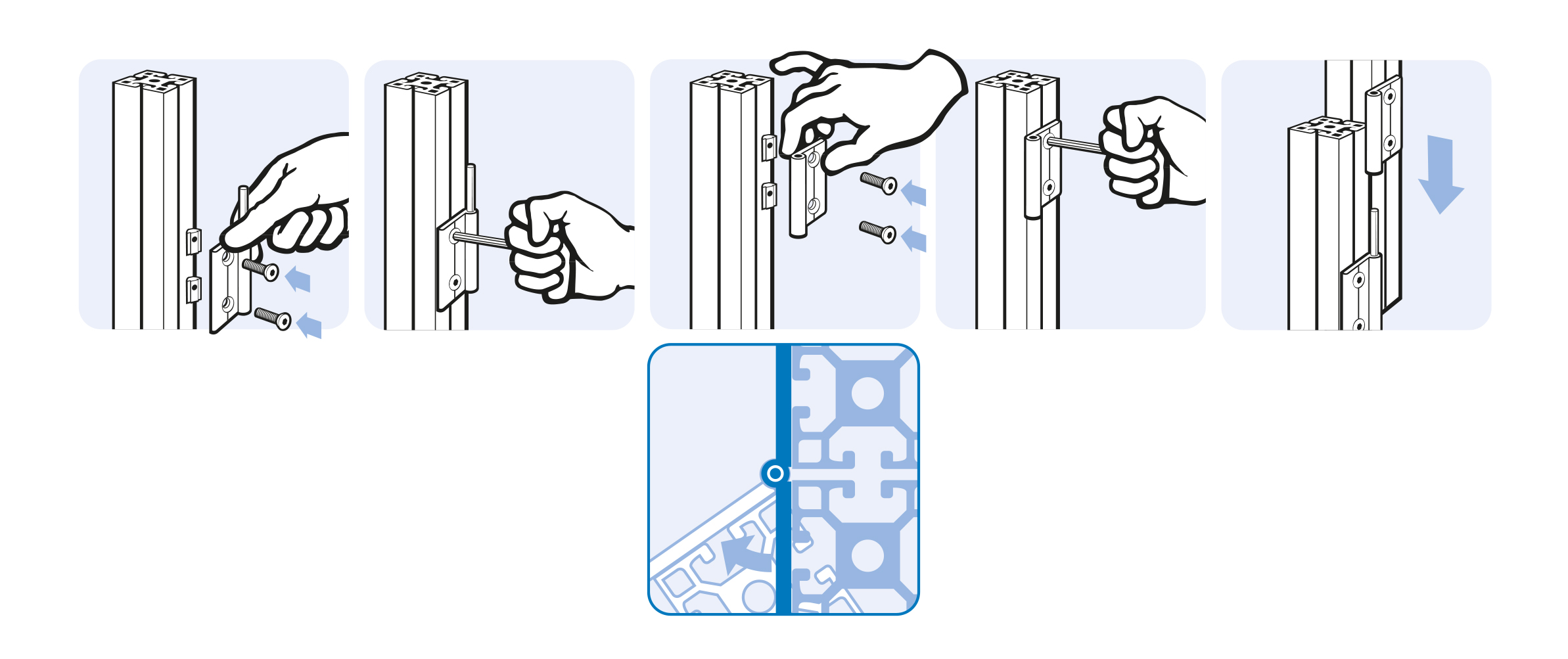

From the front, using M8 screws

Material:
Wings: Zinc die-cast
Axle: Stainless steel

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Pack Quantity:	10 pieces
Model:	Non-detachable
Weight (g):	189.0
ERP Number:	102244

Global keywords / tags:

Profile Type	Profile Type B
Slot Size	Slot 10

Variants

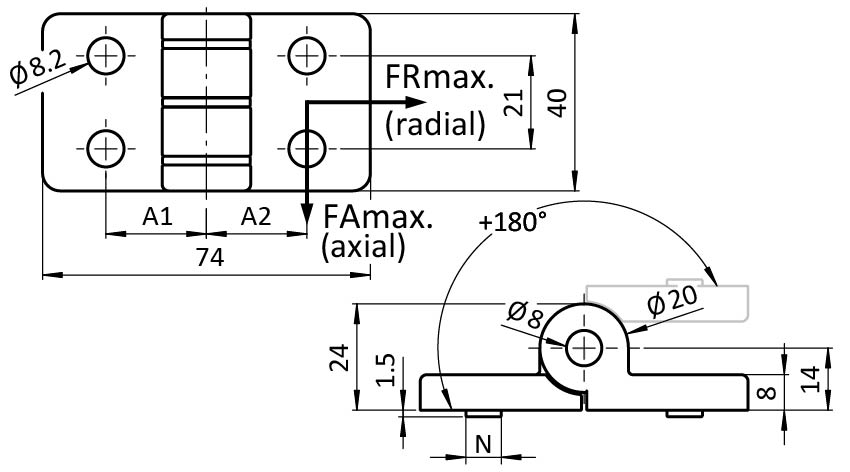

Part #	Slot N (mm)	Combination	FAmax (N)	FRmax (N)	A1 (mm)	A2 (mm)
095Z4040F00S	-	40 / 40	650	1500	22.5	22.5
095Z4040F08S	8	40 / 40	650	1500	22.5	22.5
095Z4040F10S	10	40 / 40	650	1500	22.5	22.5
095Z4045F10S	10	40 / 45	650	1500	22.5	25.0
095Z4545F00S	-	45 / 45	650	1500	25.0	25.0
095Z4545F08S	8	45 / 45	650	1500	25.0	25.0
095Z4545F10S	10	45 / 45	650	1500	25.0	25.0
