FATH Combi hinges, made from plastics, stainless steel, and die-cast aluminum, form a visually homogeneous family within which you can freely combine all the different hinge leaves 25, 30, 35, 40, 45, 50 and 60, to your application.

To Product Portrait

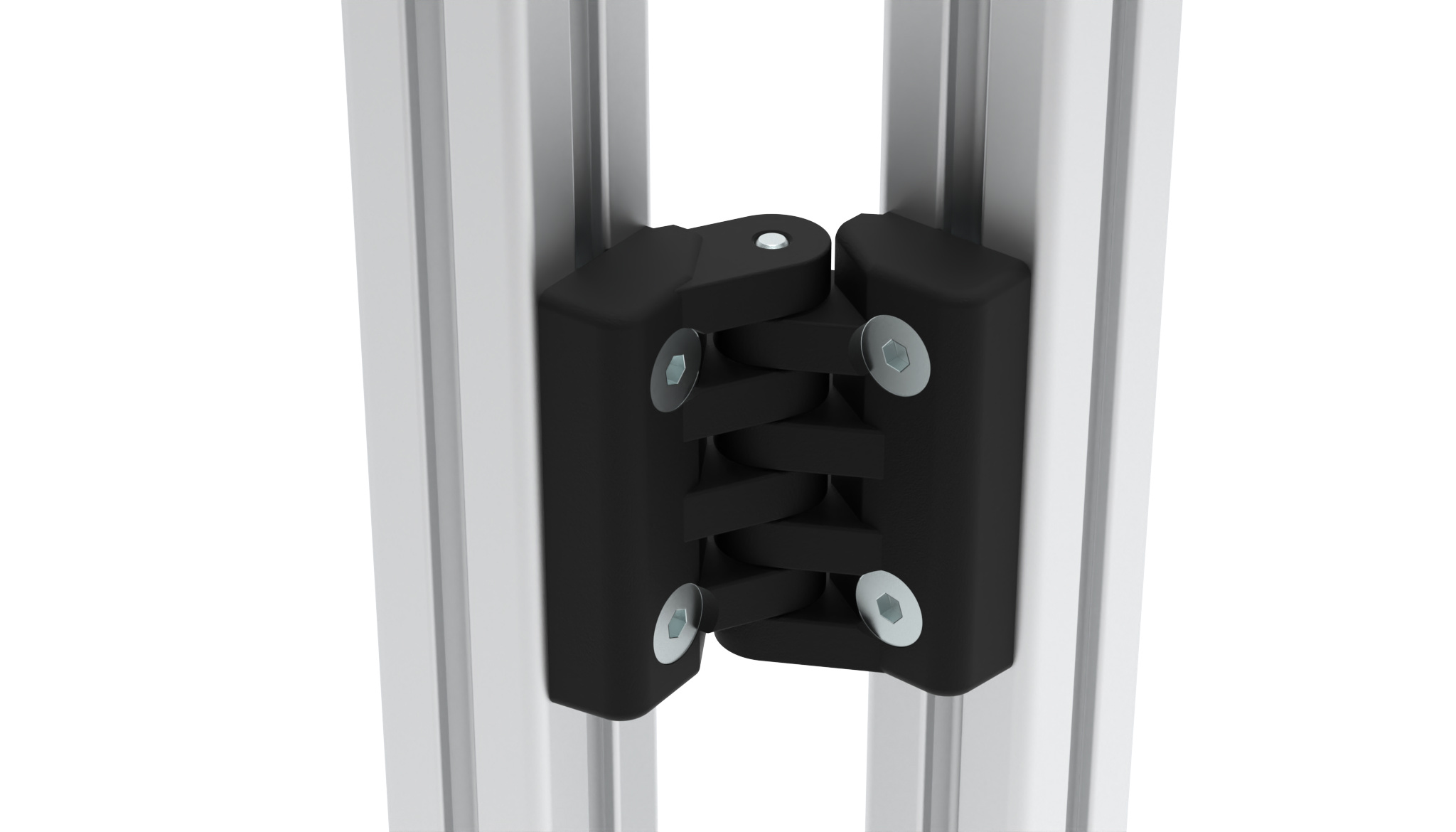

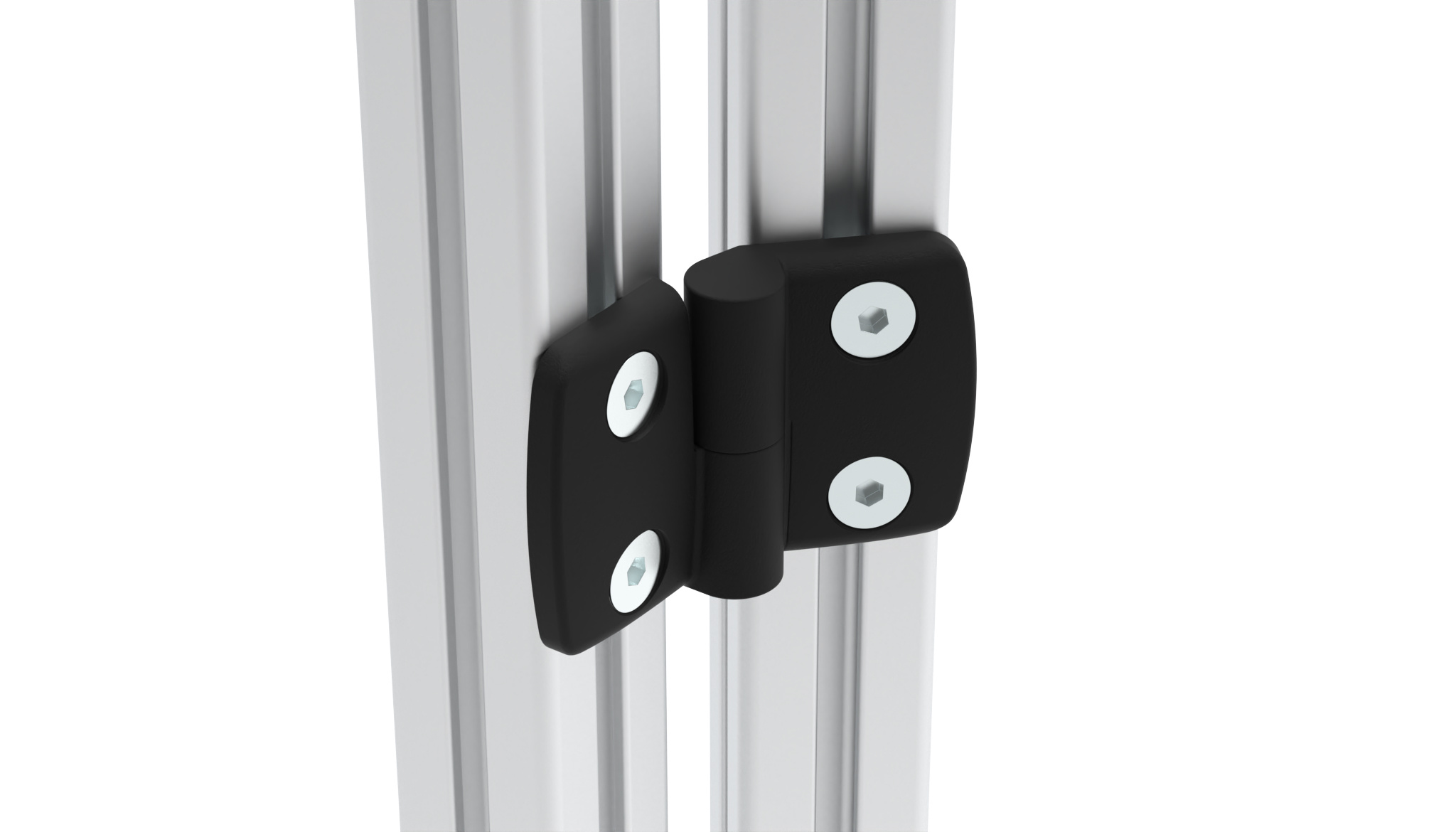

Plastic Hinges

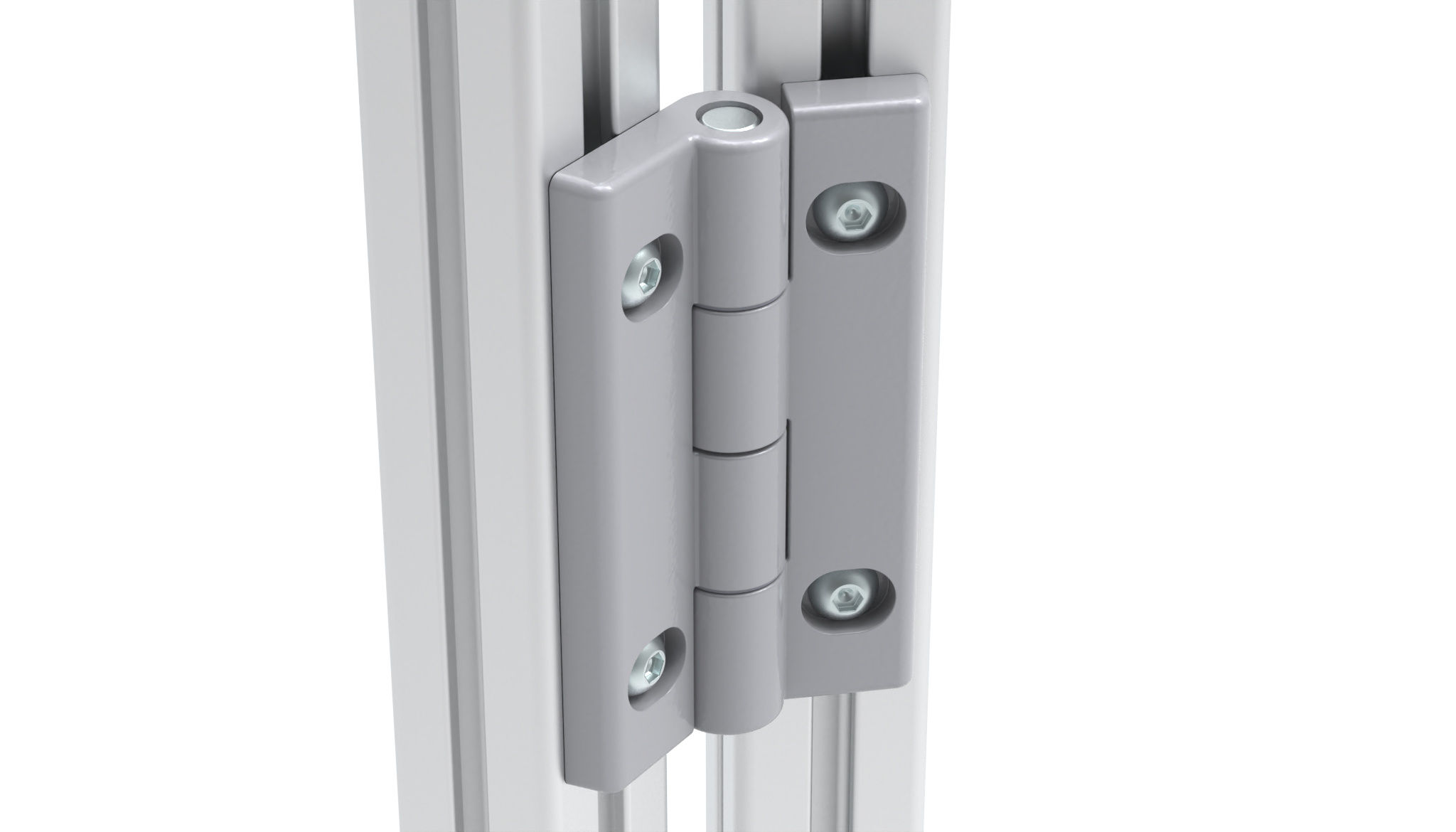

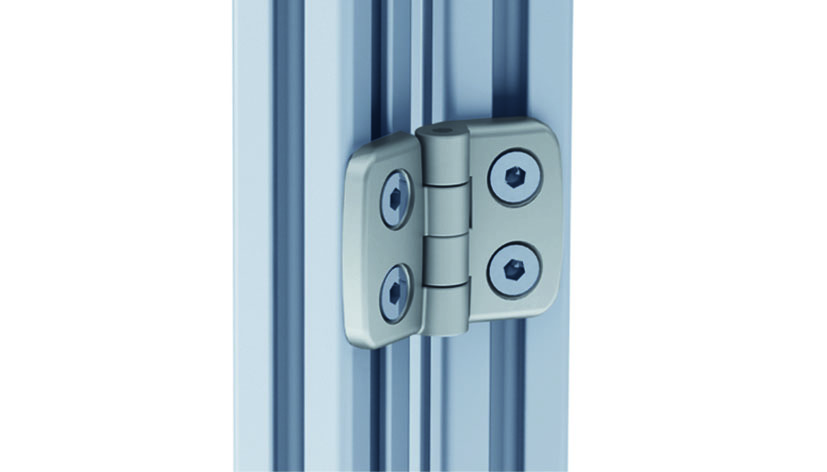

Aluminum Die-cast Hinges

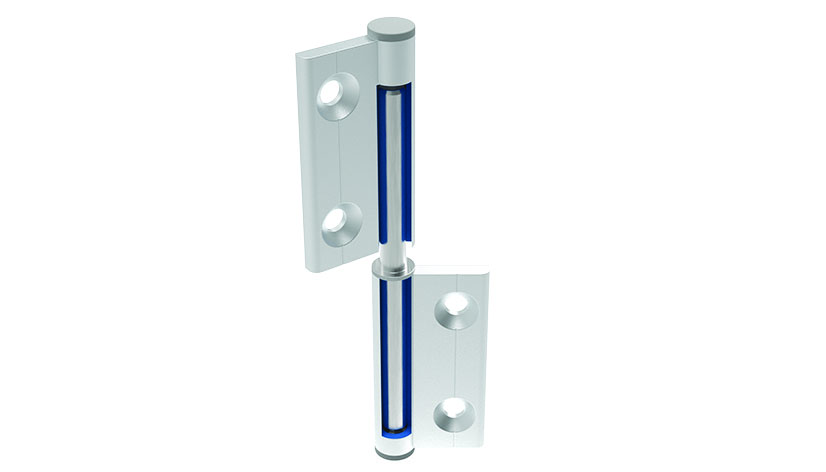

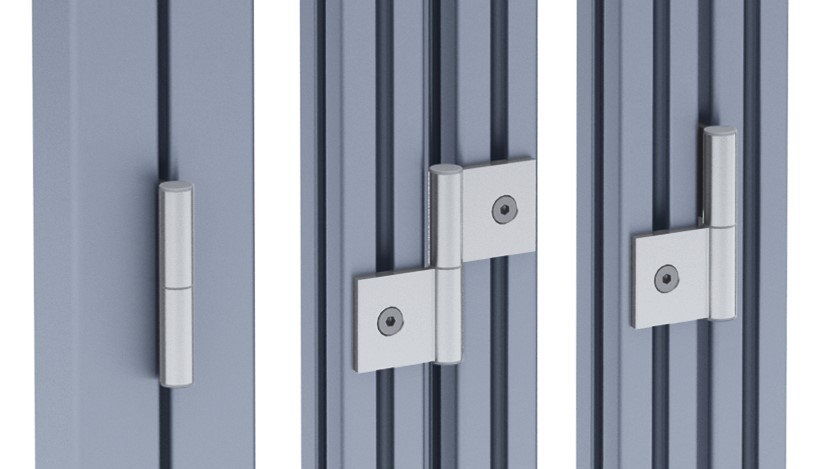

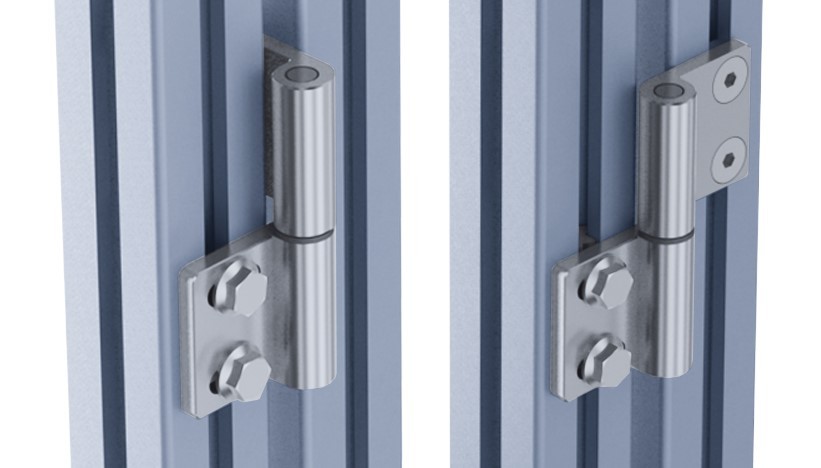

Aluminum Hinges

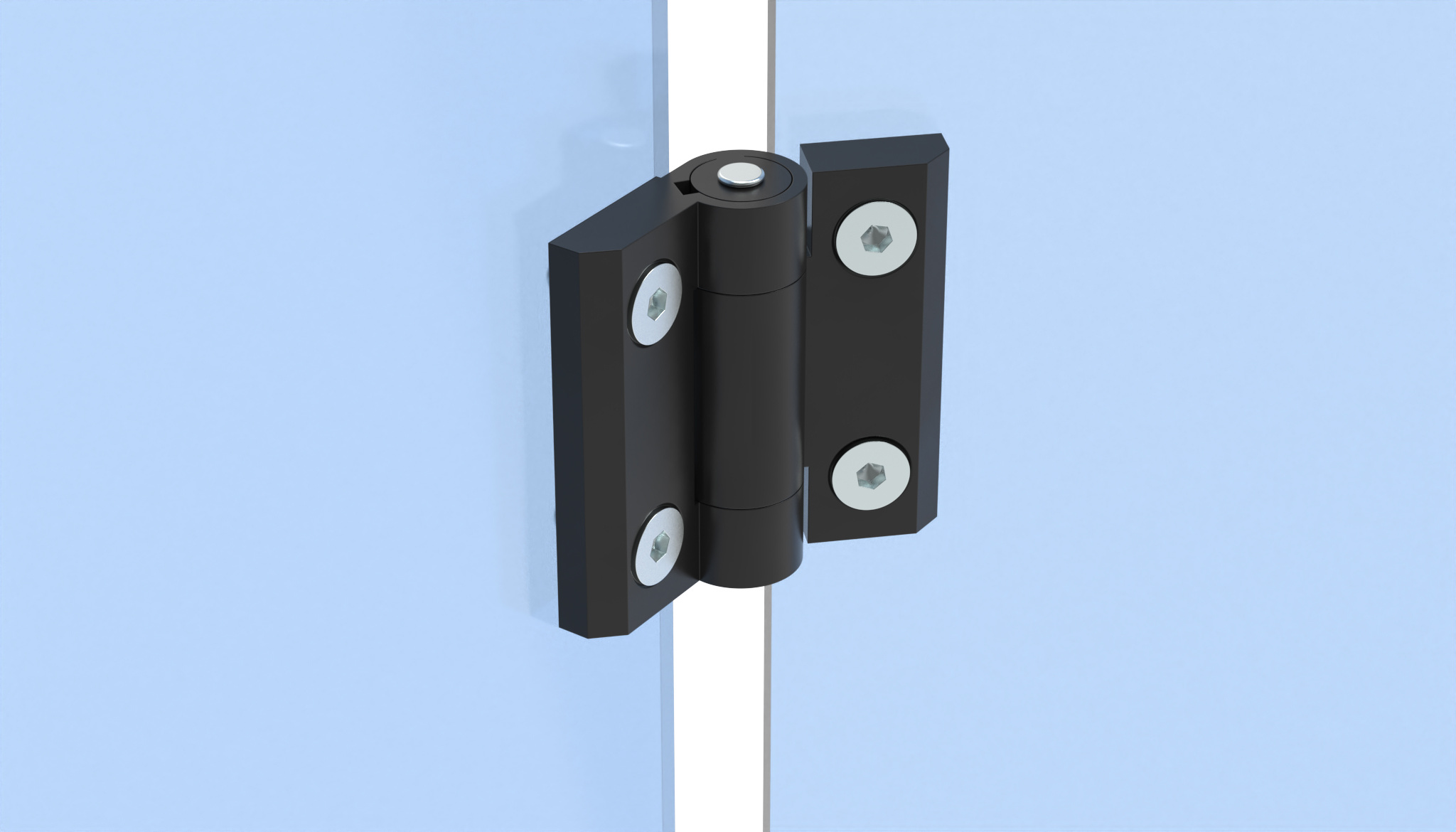

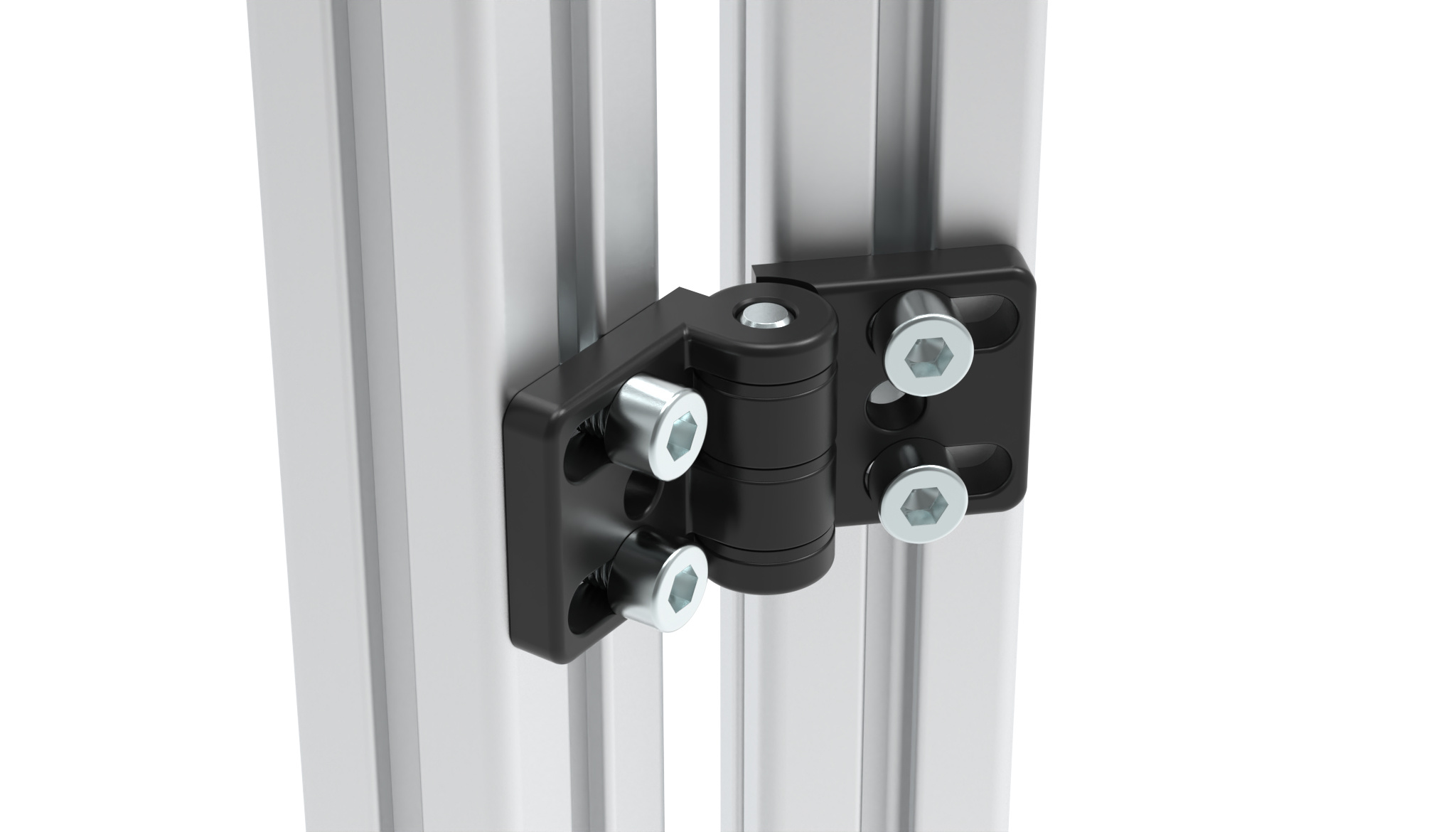

Zinc Die-Cast Hinges

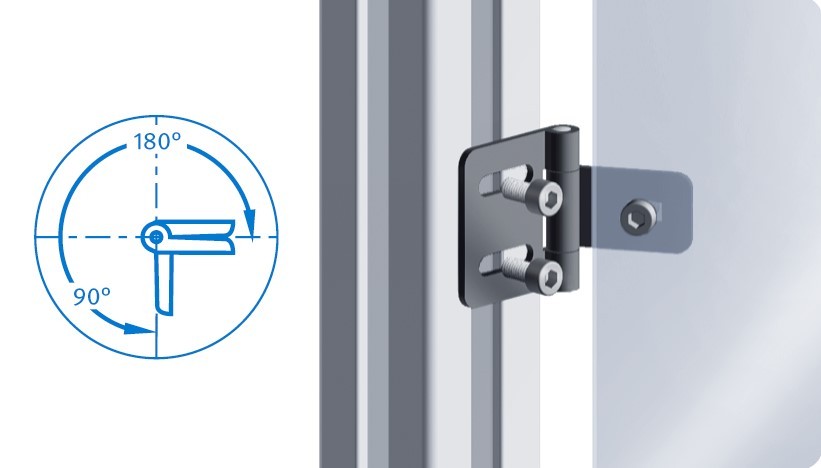

Steel Hinges

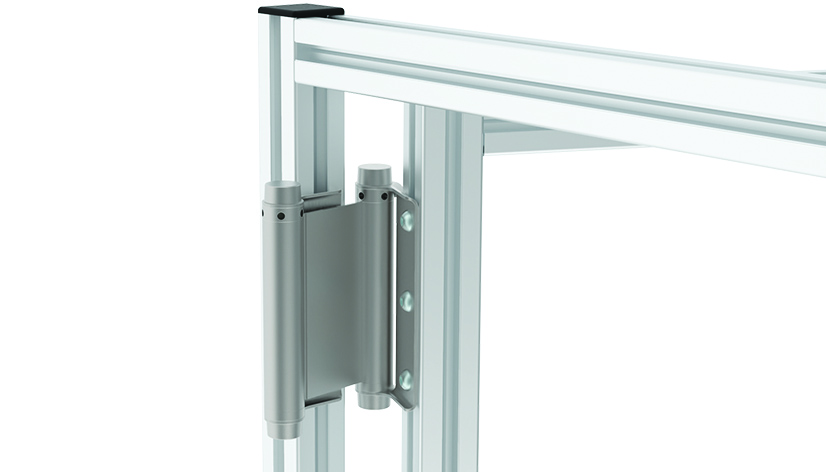

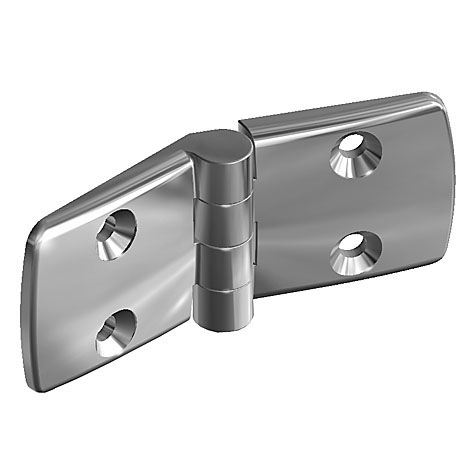

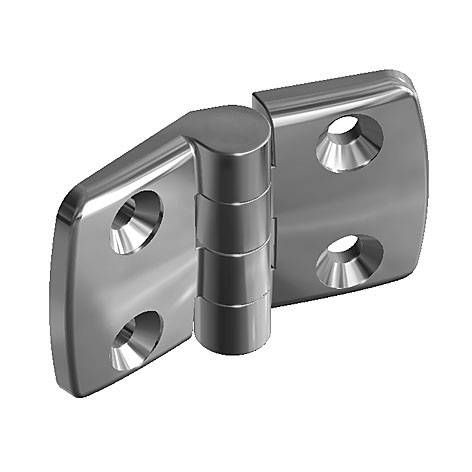

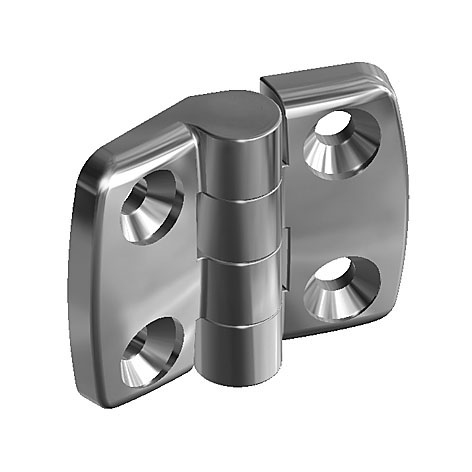

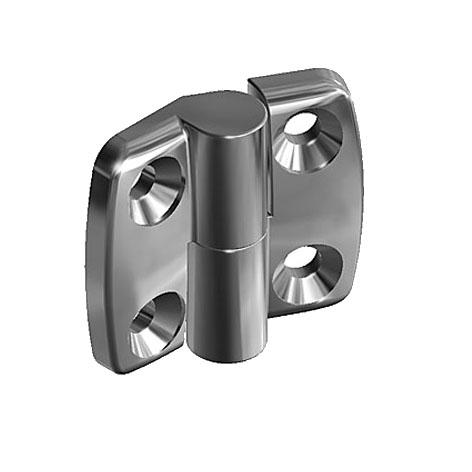

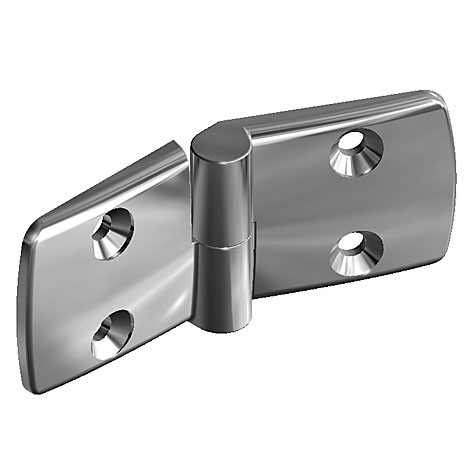

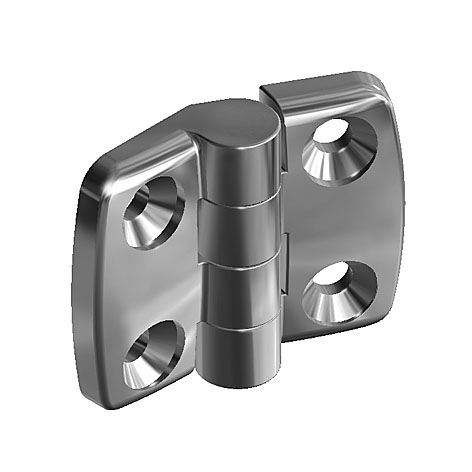

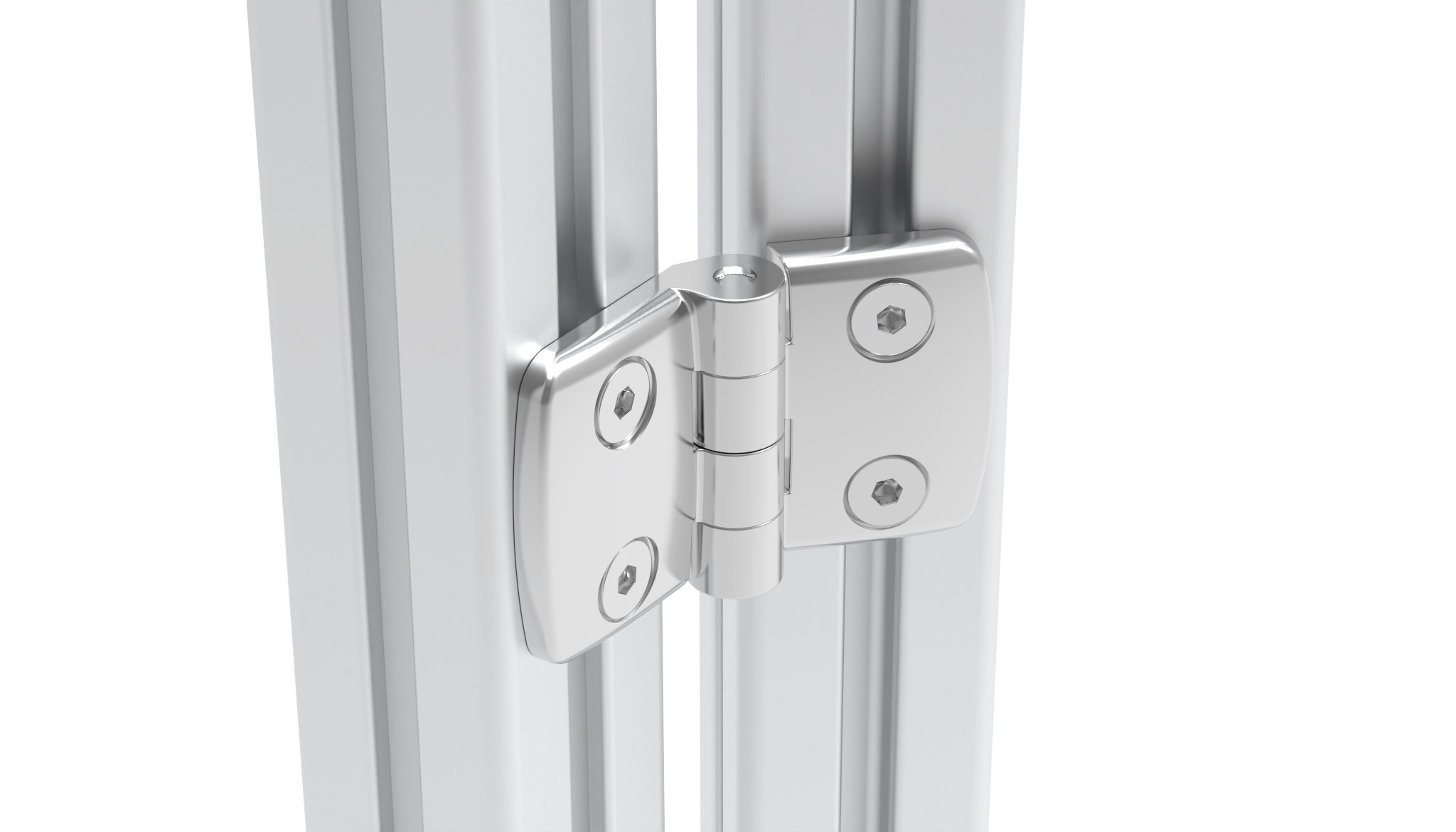

Stainless Steel Hinges

Filtro

10.5
12.9
14.5
15.2
17.5
19.5
19.25
20.2
21.1
22.7
25.0
25.2
27.0
29.5
30.2
34.5
35.0
45.0
50.0

11.5
12.0
15.0
17.5
20.0
21.5
22.5
25.0
27.5
32.5
43.0

11.5
12.0
15.0
17.5
20.0
21.5
22.5
25.0
27.5
32.5
43.0

18.0
22.0
23.4
27.7
28.0
32.0
35.8
37.7
40.1
42.0
42.7
47.0
47.7
52.0
57.7
58.0
62.0
68.0
78.0

19.0
20.0
26.0
27.5
29.5
30.0
36.0
38.5
39.0
40.0
42.5
43.5
45.0
48.5
56.5
57.5
60.0

19.0
20.0
26.0
27.5
29.5
30.0
36.0
38.5
39.0
40.0
42.5
43.5
45.0
48.5
56.5
57.5
60.0

Ø 5.3
Ø 6.4

20 / 20
25 / 25
25 / 30
25 / 35
25 / 40
25 / 45
25 / 50
25 / 60
30 / 25
30 / 30
30 / 35
30 / 40
30 / 45
30 / 50
30 / 60
35 / 25
35 / 30
35 / 35
35 / 40
35 / 45
35 / 50
35 / 60
38 - 1.5" / 38 - 1.5"
40 / 25
40 / 30
40 / 35
40 / 40
40 / 45
40 / 50
40 / 60
45 / 25
45 / 30
45 / 35
45 / 40
45 / 45
45 / 50
45 / 60
50 / 25
50 / 30
50 / 35
50 / 40
50 / 45
50 / 50
50 / 60
60 / 25
60 / 30
60 / 35
60 / 40
60 / 45
60 / 50
60 / 60

-
130.0
150
150.0
175
215
225
250
260
280
300
320
320.0
325
350
380
400
425
450
550
560
575
600
625
650
675
710
900
1000
1200
1400
1520

-
75
275
300
325
350
390.0
400
410
450
550
575
600
625
650
750
850
900
1000
1200
1500
1600.0
1800
2000
2200
2850

-
5
6
6 / 8
8
8 / 10
10
12
14

-
20
25
30
38
40
45
50
60
60 / 60
Con conjunto de montaje 1
Con conjunto de montaje 2
L: Izquierda
Mano derecha, despegar
Mano izquierda, despegar
No desmontable
R: Derecha
Solo ajustable horizontalmente
Solo ajustable verticalmente
ajustable en dos direcciones
incl. conjunto de montaje

Mínimo €

–

Máximo €

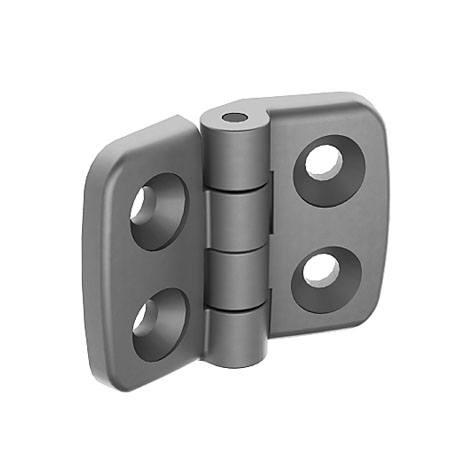

Aluminum Die-Cast Combi Hinge 20, Non-detachable, Alu color

Combinación: 20 / 20 | FAmax (N): 215 | FRmax (N): 275 | Version: No desmontable

Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profilesMaterial:Wings: Aluminum die-cast Pin: Stainless steelSurface:Wings: Powder coated Pin: Plain

0,00 €*

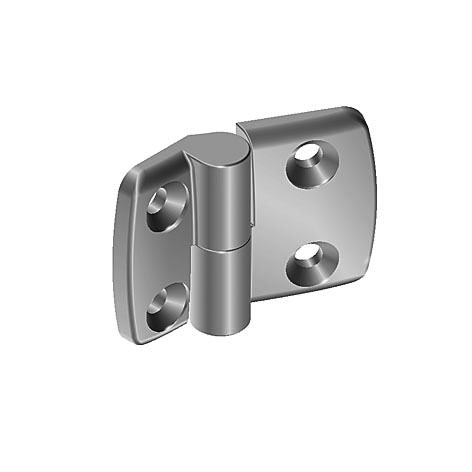

Aluminum Die-cast Combi Hinge 25, Detachable, Alu Color

A1 (mm): 15.0 | A2 (mm): 15.0 | B1 (mm): 26.0 | B2 (mm): 26.0 | Combinación: 25 / 25 | FAmax (N): 250 | FRmax (N): 410 | Version: R: Derecha

Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05

0,00 €*

Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color

A1 (mm): 15.0 | A2 (mm): 17.5 | B1 (mm): 26.0 | B2 (mm): 29.5 | Combinación: 25 / 30 | FAmax (N): 225 | FRmax (N): 325 | Version: No desmontable

0,00 €*

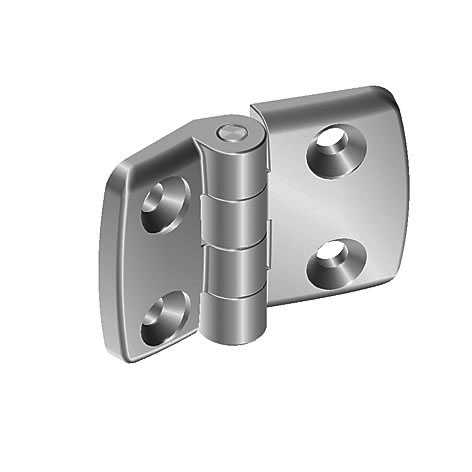

Aluminum Die-cast Combi Hinge 30, Detachable, Alu Color

A1 (mm): 17.5 | A2 (mm): 17.5 | B1 (mm): 29.5 | B2 (mm): 29.5 | Combinación: 30 / 30 | FAmax (N): 280 | FRmax (N): 450 | Version: R: Derecha

0,00 €*

Aluminum Die-cast Combi Hinge 30, Non-detachable, Alu Color

A1 (mm): 17.5 | A2 (mm): 27.5 | B1 (mm): 29.5 | B2 (mm): 48.5 | Combinación: 30 / 50 | FAmax (N): 250 | FRmax (N): 400 | Version: No desmontable

0,00 €*

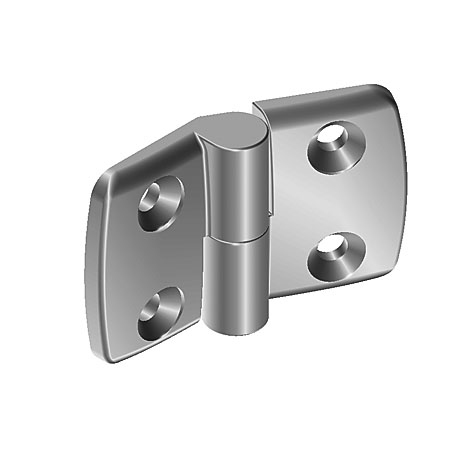

Aluminum Die-cast Combi Hinge 35, Detachable, Alu Color

A1 (mm): 20.0 | A2 (mm): 20.0 | B1 (mm): 36.0 | B2 (mm): 36.0 | Combinación: 35 / 35 | FAmax (N): 250 | FRmax (N): - | Version: L: Izquierda

0,00 €*

Aluminum Die-cast Combi Hinge 35, Non-detachable, Alu Color

A1 (mm): 20.0 | A2 (mm): 22.5 | B1 (mm): 36.0 | B2 (mm): 38.5 | Combinación: 35 / 40 | FAmax (N): 250 | FRmax (N): 400 | Version: No desmontable

0,00 €*

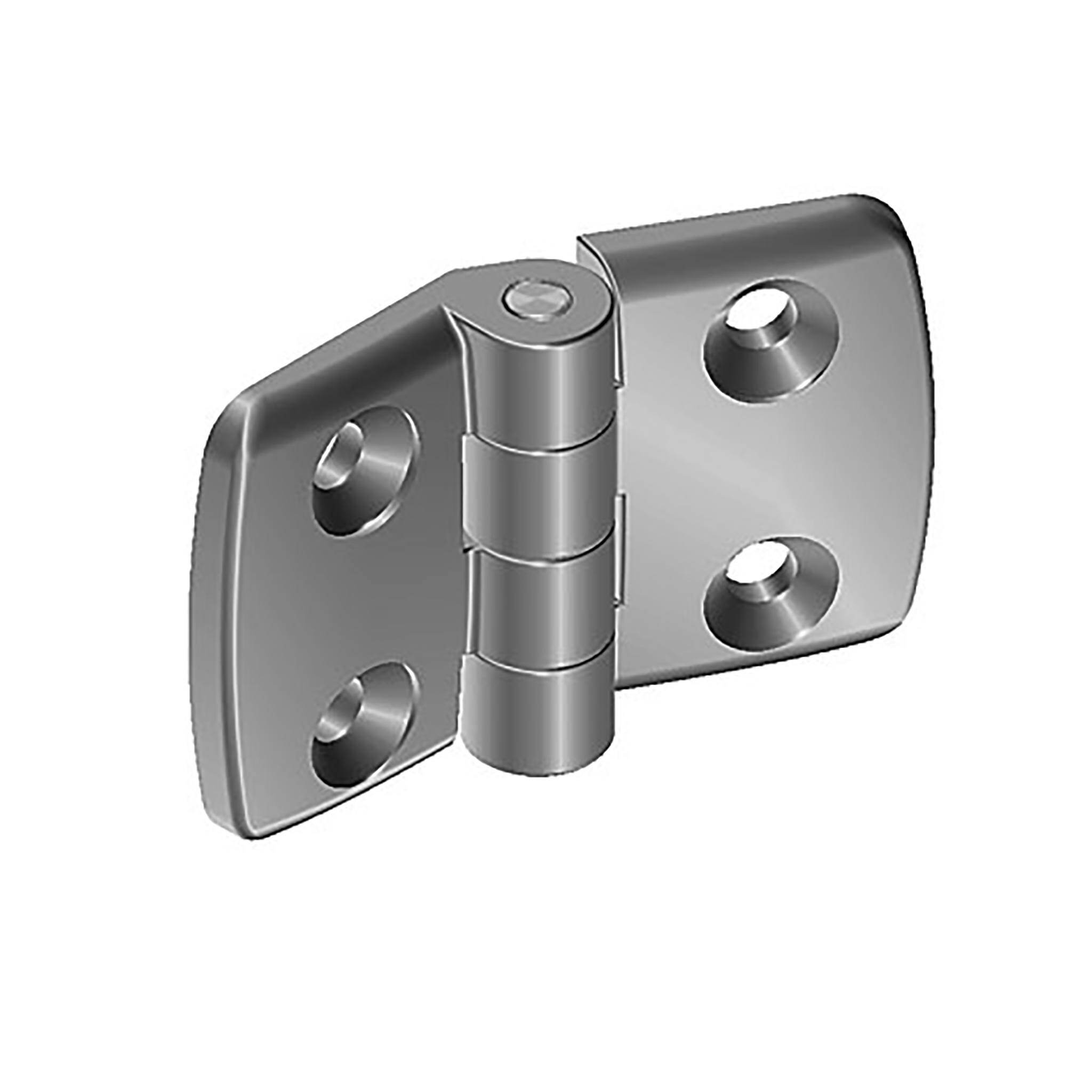

Aluminum Die-cast Combi Hinge 38 - 1.5", Non-detachable, Alu Color

A1 (mm): 21.5 | A2 (mm): 21.5 | B1 (mm): 38.5 | B2 (mm): 38.5 | Combinación: 38 - 1.5" / 38 - 1.5" | FAmax (N): 250 | FRmax (N): 400

Color:Wing: Alu colorPaíses de Entrega:NorteaméricaDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Aluminum die-cast Pin: Stainless steelSurface:Wings: Powder coated Pin: Plain

0,00 €*

Aluminum Die-cast Combi Hinge 40, Detachable, Alu Color

A1 (mm): 15.0 | A2 (mm): 22.5 | B1 (mm): 26.0 | B2 (mm): 38.5 | Combinación: 40 / 25 | FAmax (N): 250 | FRmax (N): 410 | Version: R: Derecha

0,00 €*

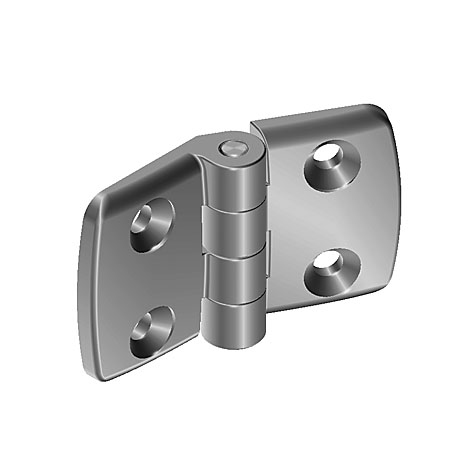

Aluminum Die-cast Combi Hinge 40, Non-detachable, Alu Color

A1 (mm): 22.5 | A2 (mm): 32.5 | B1 (mm): 38.5 | B2 (mm): 57.5 | Combinación: 40 / 60 | FAmax (N): - | FRmax (N): 400 | Version: No desmontable

0,00 €*

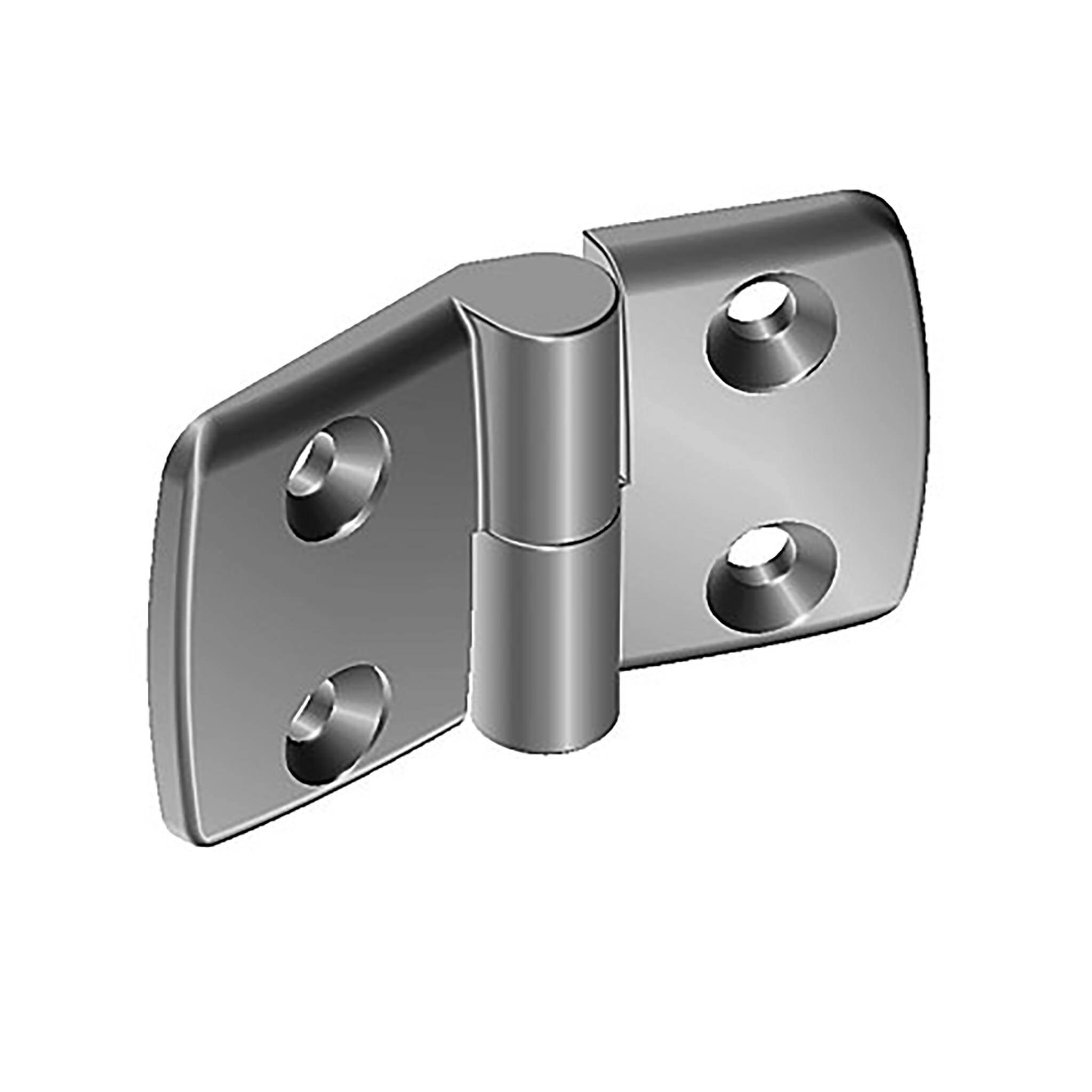

Aluminum Die-cast Combi Hinge 45, Detachable, Alu Color

A1 (mm): 25.0 | A2 (mm): 17.5 | B1 (mm): 43.5 | B2 (mm): 29.5 | Combinación: 45 / 30 | FAmax (N): 280 | FRmax (N): 450 | Version: L: Izquierda

0,00 €*

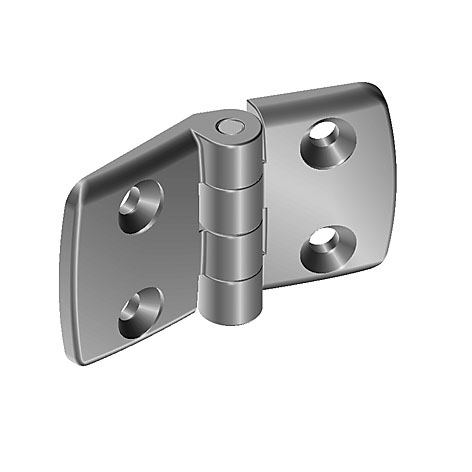

Aluminum Die-cast Combi Hinge 45, Non-detachable, Alu Color

A1 (mm): 25.0 | A2 (mm): 27.5 | B1 (mm): 43.5 | B2 (mm): 48.5 | Combinación: 45 / 50 | FAmax (N): 250 | FRmax (N): 400 | Version: No desmontable

0,00 €*

Aluminum Die-cast Combi Hinge 50, Detachable, Alu Color

A1 (mm): 27.5 | A2 (mm): 17.5 | B1 (mm): 48.5 | B2 (mm): 29.5 | Combinación: 50 / 30 | FAmax (N): 280 | FRmax (N): 450 | Version: L: Izquierda

0,00 €*

Aluminum Die-cast Combi Hinge 50, Non-detachable, Alu Color

A1 (mm): 27.5 | A2 (mm): 27.5 | B1 (mm): 48.5 | B2 (mm): 48.5 | Combinación: 50 / 50 | FAmax (N): 250 | FRmax (N): 400 | Version: No desmontable

0,00 €*

Aluminum Die-cast Combi Hinge 60, Detachable, Alu Color

A1 (mm): 25.0 | A2 (mm): 32.5 | B1 (mm): 43.5 | B2 (mm): 57.5 | Combinación: 60 / 45 | FAmax (N): - | FRmax (N): 550 | Version: R: Derecha

0,00 €*

Aluminum Die-cast Combi Hinge 60, Non-detachable, Alu Color

A1 (mm): 32.5 | A2 (mm): 32.5 | B1 (mm): 57.5 | B2 (mm): 57.5 | Combinación: 60 / 60 | FRmax (N): 400 | Version: No desmontable

0,00 €*

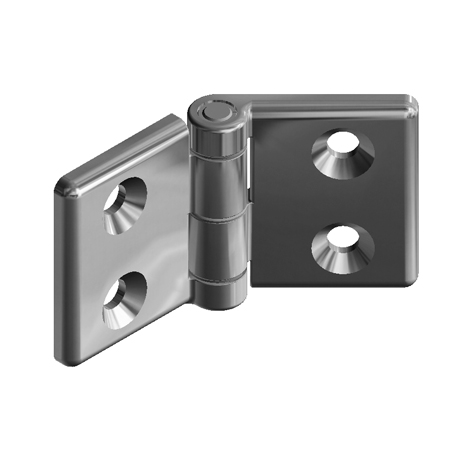

Aluminum Die-cast Hinge 45

A1 (mm): 25.0 | A2 (mm): 25.0 | B1 (mm): 40.0 | B2 (mm): 40.0 | FRmax (N): 350

Países de Entrega:En todo el mundoDescription:To hinge panels or aluminum profilesMaterial:Wings: Aluminum die-cast Pin: Stainless steelEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Niquelado

0,00 €*

Aluminum Hinge 40 Light

A1 (mm): 43.0 | A2 (mm): 43.0 | B1 (mm): 27.5 | B2 (mm): 27.5 | Profile: I | Ranura N (mm): 8 | Version: incl. conjunto de montaje

Assembly Set:2 countersunk screws DIN 7991 - M6 x 14, 2 self-aligning T-Slot nuts M6 - slot 8Color:Cover cap: White aluminum ≈ RAL 9006Países de Entrega:En todo el mundoDescription:For panels and aluminum profiles; left or right side assemblyMaterial:Wings: Aluminum Bolt: Stainless steel Cover cap: Plastic TPESurface:Wings: Anodized Bolt: Plain

0,00 €*

Bolt for Concealed and External Hinge Components

Países de Entrega:En todo el mundoDescription:To assemble hingesMaterial:Acero inoxidableSuperficie:LisoTip:Compatible Concealed Hinge Components see 095AI20 Compatible External Hinge Components see 095AH20

0,00 €*

Centering Bolt for Aluminum Die-Cast Combi Hinge

Ranura N (mm): 8

Color:NegroPaíses de Entrega:En todo el mundoDescription:For aluminum die-cast combi hinges, each wing with a hole for centering boltsMaterial:Plástico PA, reforzado con fibra de vidrioTip:Compatible Aluminum Die-cast Combi Hinge see 095A2525L et sq.

0,00 €*

Concealed Hinge Component

A (mm): 17.5 | B (mm): 28.0 | C (mm): Ø 6.4 | FAmax (N): 150 | Version: 25

Países de Entrega:En todo el mundoDescription:For panels and aluminum profiles, for individual assembly of concealed hingesMaterial:AluminioSuperficie:AnodizadoTip:Compatible Axle for Hinge Component see 095AIR01 Compatible Cover Cap for Hinge Component see 095AIA

0,00 €*

Cover Cap for Concealed and External Hinge Components

Color:Color aluminioPaíses de Entrega:En todo el mundoDescription:To cover HingesMaterial:Plástico PA, reforzado con fibra de vidrioSuperficie:RecubiertoTip:Compatible Concealed Hinge Components see 095AI20 Compatible External Hinge Components see 095AH20

0,00 €*

External Hinge Component

A (mm): 30.2 | B (mm): 57.7 | C (mm): Ø 6.4 | FAmax (N): 150 | Version: 60

Países de Entrega:En todo el mundoDescription:For panels and aluminum profiles, for individual assembly of semi-concealed hingesMaterial:AluminioSuperficie:AnodizadoTip:Compatible Axle for Hinge Component see 095AIR01 Compatible Cover Cap for Hinge Component see 095AIA

0,00 €*

Heavy Aluminum Hinge (Set)

Profile: B

Países de Entrega:En todo el mundoDescription:Loadable detachable hinge; adjustable for the compensation of distance tolerancesMaterial:Wings: Aluminum die-cast Pin: Stainless steelSet:1 heavy aluminum hinge, 2 T-slot nuts, slot 10 - M8 – self-aligning, 2 hexagon screws DIN 6921 - M8 x 16, 2 countersunk screws DIN 7991 - M8 x 12, 2 T-slot nuts, slot 8 - M8 – self-aligningSuperficie:Anodizado

0,00 €*
