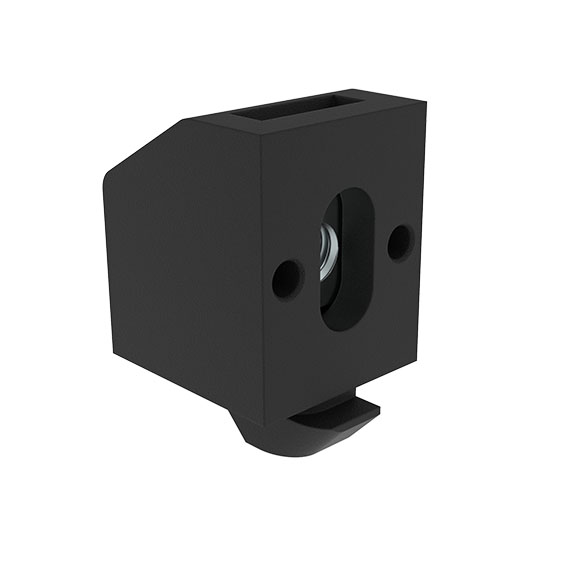

Uni Block 14, Black

A1 (mm): 4.0 A2 (Profile) (mm): 1.6 (1.8) M: M4 Profile: I Ranura N (mm): 5

Color:NegroPaíses de Entrega:En todo el mundoDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094901

0,00 €

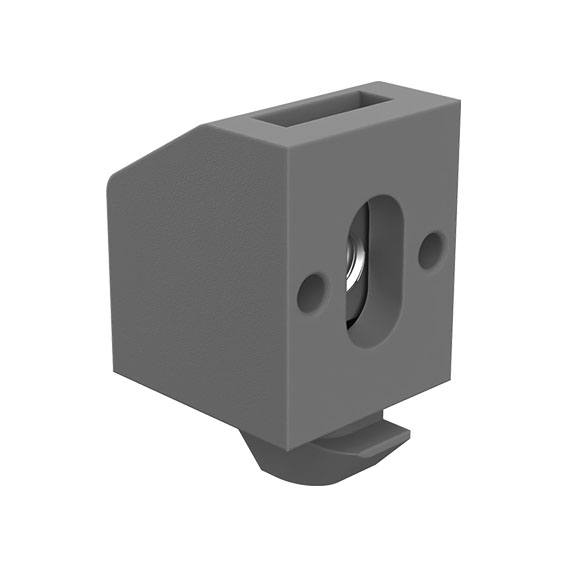

Uni Block 14, Gray

A1 (mm): 4.0 A2 (Profile) (mm): 1.6 (1.8) M: M4 Profile: I Ranura N (mm): 5

Color:Gris ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094901S03

0,00 €

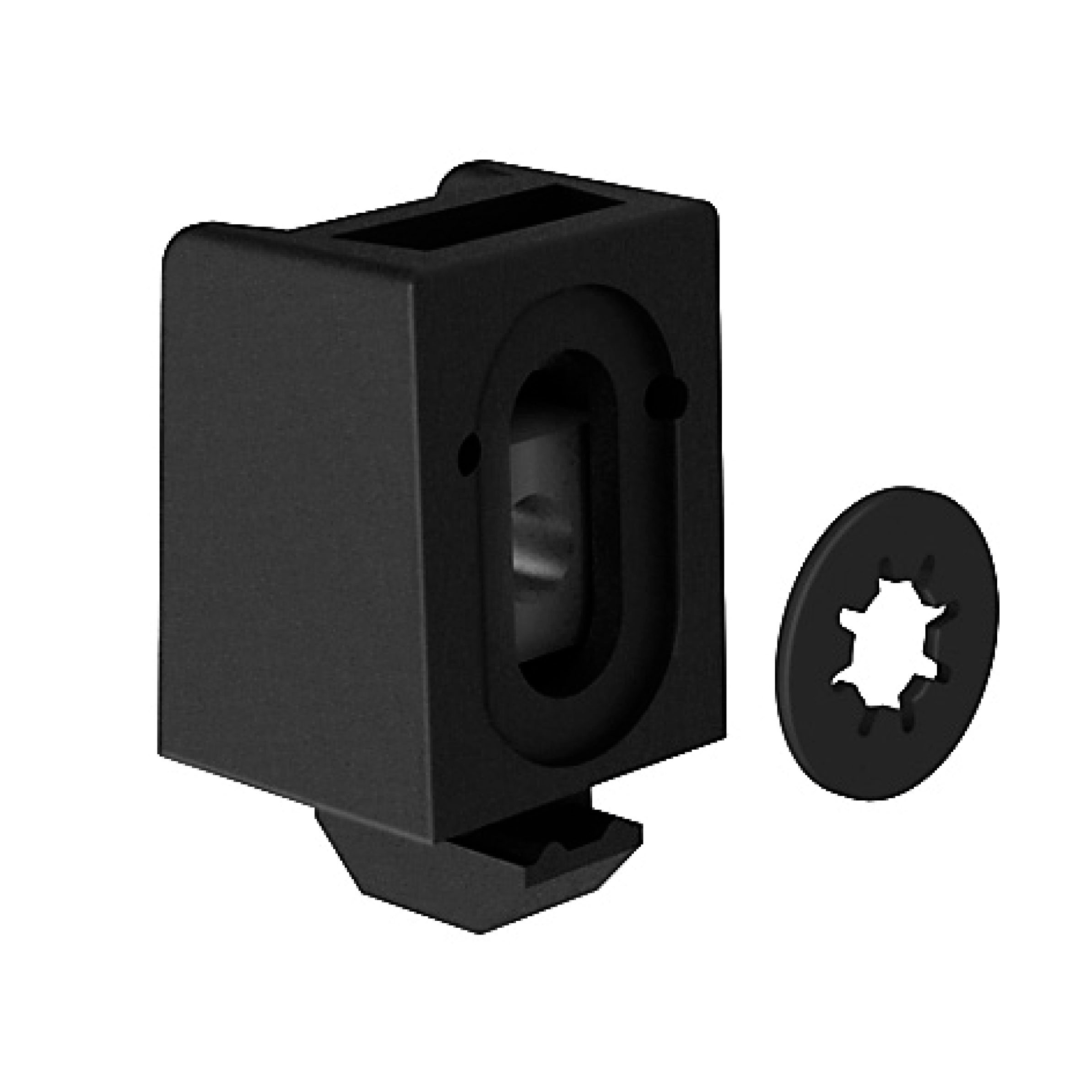

Uni Block 18 CS, Black

A1 (mm): 7.0 A2 (Profile) (mm): 2.7 (3.0) M: M6 Profile: I Ranura N (mm): 6

Color:NegroPaíses de Entrega:En todo el mundoDescription:To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/ECMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102CS

0,00 €

Uni Block 18 CS, Gray

A1 (mm): 7.0 A2 (Profile) (mm): 1.9 (2.2) Color: Gris ≈ RAL 7004 M: M6 Profile: B Ranura N (mm): 8

Color:PA, grisPaíses de Entrega:En todo el mundoDescription:To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/ECMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102CSS03

0,00 €

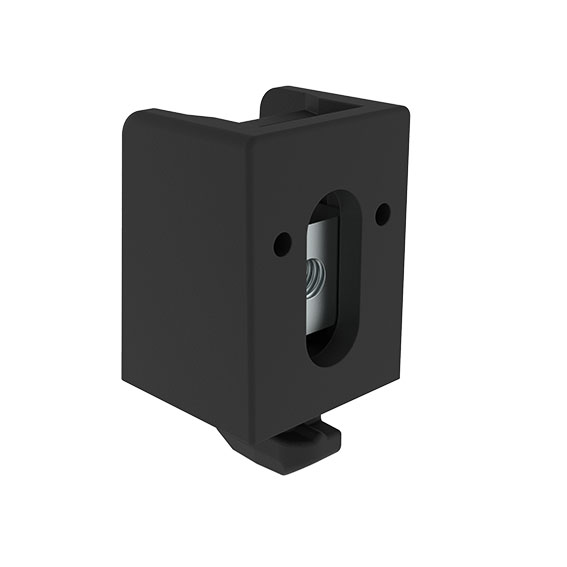

Uni Block 18, Black

A1 (mm): 7.0 A2 (Profile) (mm): 1.9 (2.2) M: M6 Profile: B Ranura N (mm): 8

0,00 €

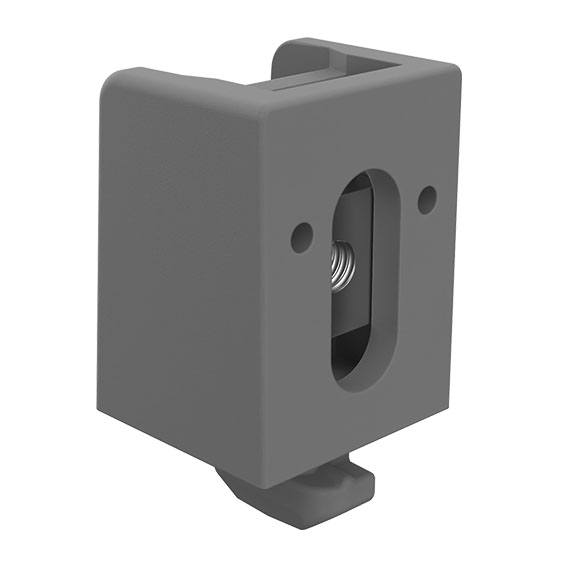

Uni Block 18, Gray

A1 (mm): 7.0 A2 (Profile) (mm): 2.7 (3.0) Color: Gris ≈ RAL 7042 M: M5 Profile: I Ranura N (mm): 6

Color:PA, grisPaíses de Entrega:En todo el mundoDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102S10

0,00 €

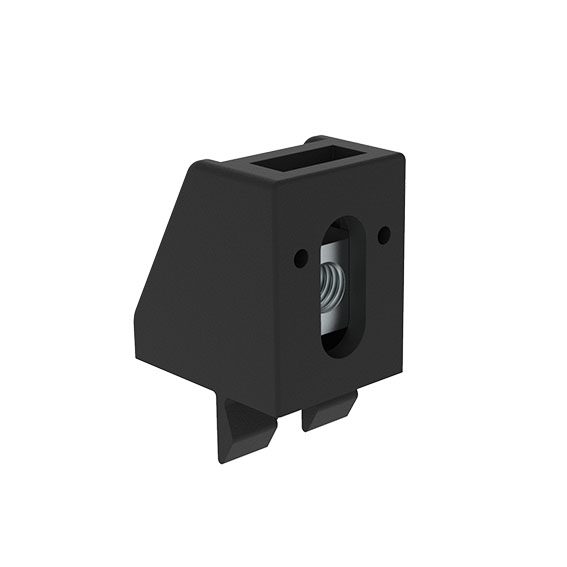

Uni Block 25 Clip

A1 (mm): 12.0 A2 (Profile) (mm): 4.4 (4.5) M: M6 Profile: I Ranura N (mm): 8

Color:NegroPaíses de Entrega:En todo el mundoDescription:To attach panels simply to aluminum profiles; the clip feature makes it possible to pre-mount the block to the panelMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelEspeciales:Clips personalizados, otros colores bajo pedidoTip:Compatible Spacer see 094102CS

0,00 €

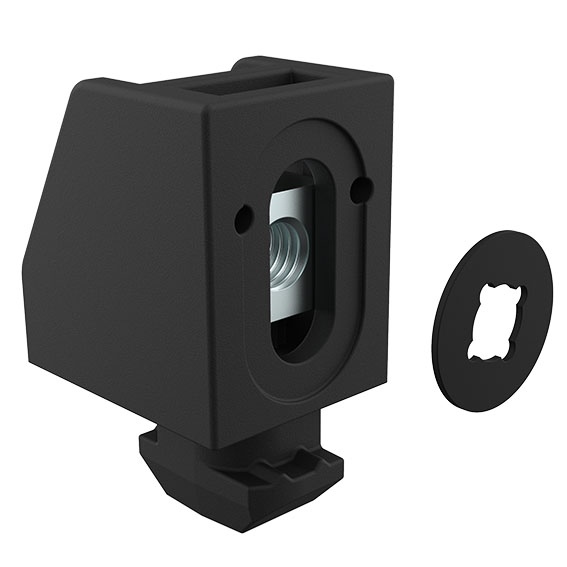

Uni Block 25 CS, Black

A1 (mm): 12.0 A2 (Profile) (mm): 4.4 (4.5) M: M6 Profile: I Ranura N (mm): 8

0,00 €

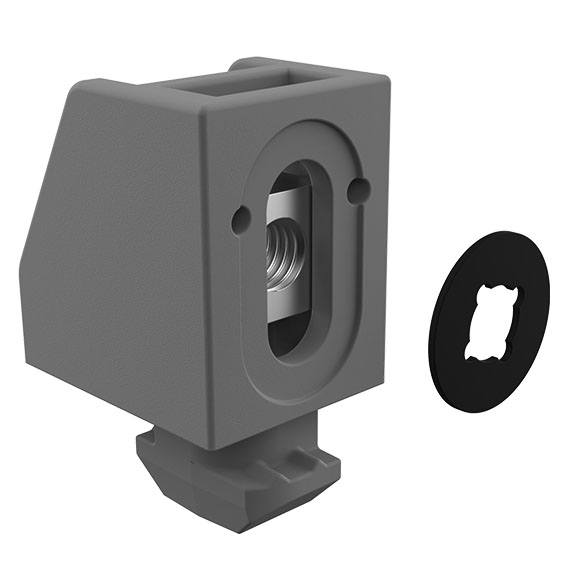

Uni Block 25 CS, Gray

A1 (mm): 14.0 A2 (Profile) (mm): 4.6 (4.5) Color: Gris ≈ RAL 7042 M: M6 Profile: I Ranura N (mm): 8

0,00 €

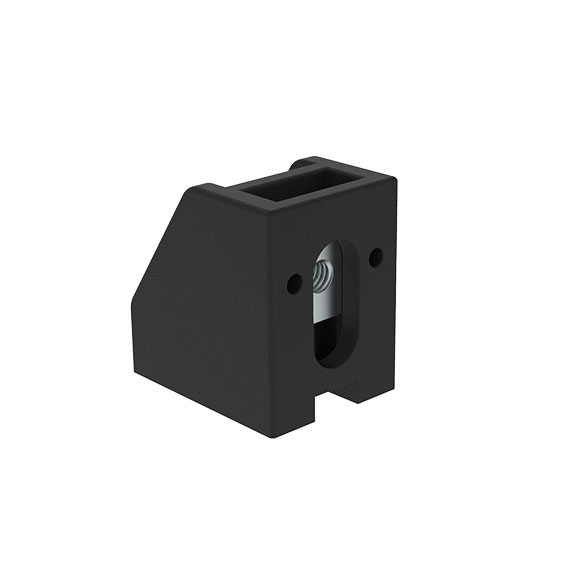

Uni Block 25 EH

M: M5

Color:NegroPaíses de Entrega:En todo el mundoDescription:To join panels and aluminum profiles of various dimensionsMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelEspeciales:Descarga electrostática ESD, otros tamaños, otros colores bajo pedidoTip:Compatible Spacer see 094102CS

0,00 €

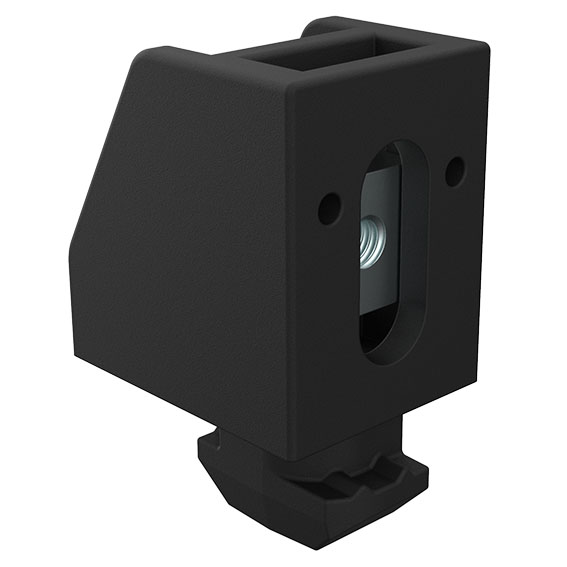

Uni Block 25, Black

A1 (mm): 14.0 A2 (Profile) (mm): 4.6 (4.5) M: M5 Material: - Profile: I Ranura N (mm): 8

0,00 €

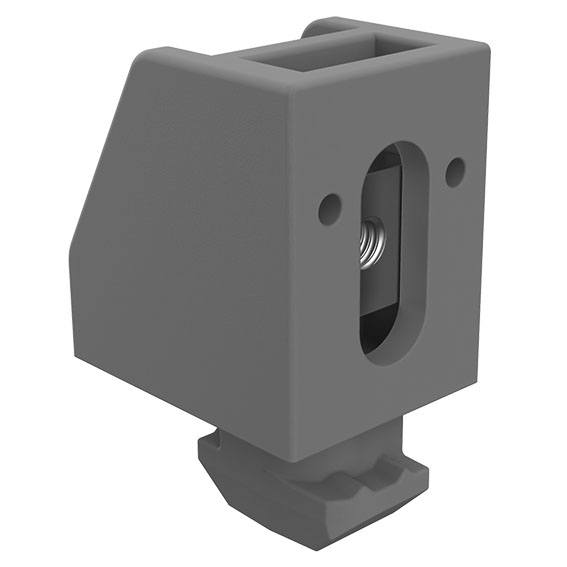

Uni Block 25, Gray

A1 (mm): 14.0 A2 (Profile) (mm): 4.6 (4.5) Color: Gris ≈ RAL 7042 M: M6 Profile: I Ranura N (mm): 8

0,00 €

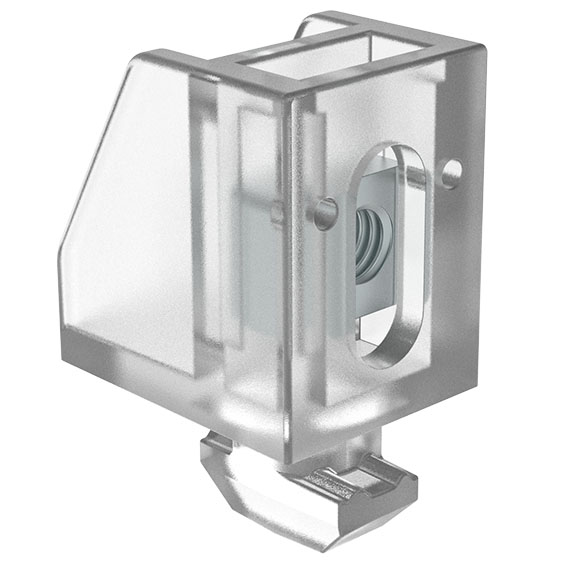

Uni Block 25, transparent colorless

A1 (mm): 14.0 A2 (Profile) (mm): 6.0 (6.0) M: M6 Profile: B Ranura N (mm): 10

Color:Transparente (incoloro)Países de Entrega:En todo el mundoDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PC Nut: Zinc plated steelEspeciales:Martillo personalizado bajo pedidoTip:Compatible Spacer see 094102CSG

0,00 €

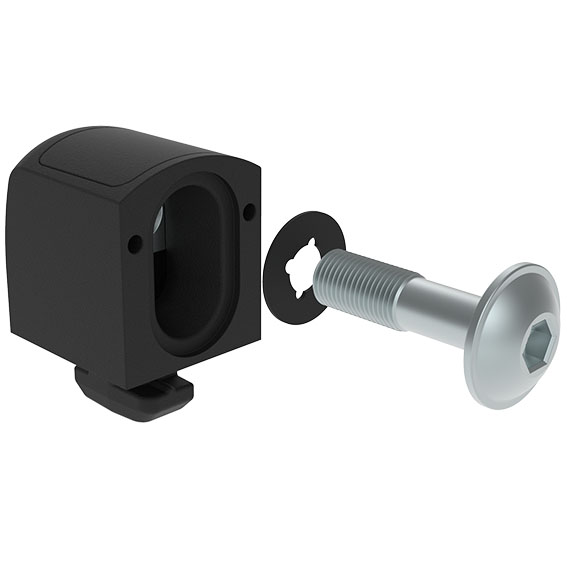

Uni Block 26 CS (Set)

A1 (mm): 14.0 A2 (Profile) (mm): 6.3 (6.0) Profile: B Ranura N (mm): 10

Color:NegroPaíses de Entrega:En todo el mundoDescription:To attach panels with a thickness of 2 - 8 mm safely to aluminum profiles; with screw retainer to comply withMachinery Directive 2006/42/ECMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on request

0,00 €

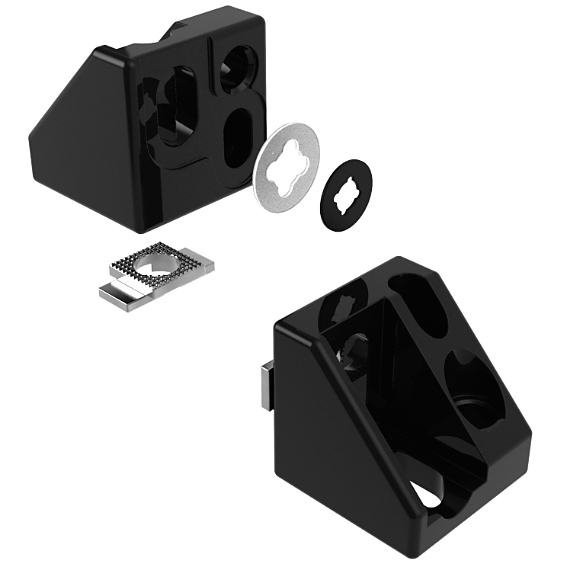

Uni Block ZN 40 CS

A1 max. (mm): 22.0 A1 min. (mm): 7.9 H (mm): 4.0 M: M6 Ranura N (mm): 10

Color:NegroPaíses de Entrega:En todo el mundoDescription:To attach panels to aluminum profiles; especially for high load bearing (up to 2000 N) on the panels; with screw retainer to comply with Machinery Directive 2006/42/ECMaterial:Zinc fundido a presiónSurface:Zinc plated (RoHS compliant)

0,00 €

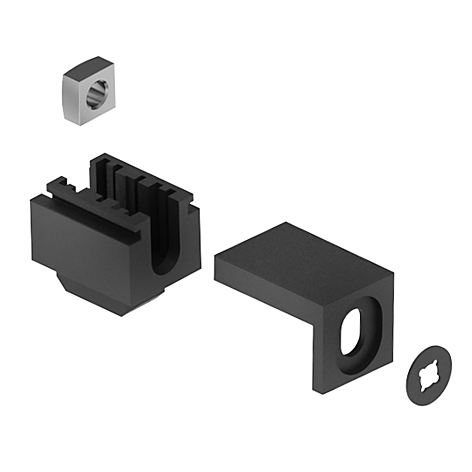

Vario Block 18 CS

A1 (mm): 9.5 / 12* / 12.5 / 15* A2 (Profile) (mm): 2.2 (2.2) M: M5 Profile: B Ranura N (mm): 8

Color:Bloque: NegroPaíses de Entrega:En todo el mundoDescription:To attach panels simply to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/ECMaterial:Block: Plastic PA, glass fiber reinforced Nut: SteelEspeciales:Otros colores bajo pedidoSurface:Nut: Zinc platedTip:*A1 size with spacer!

0,00 €

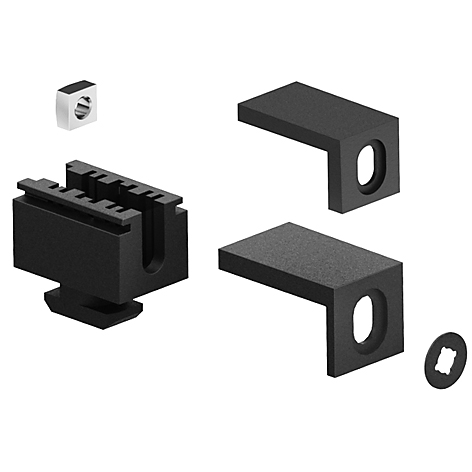

Vario Block 25 CS

A1 (mm): - A2 (Profile) (mm): 6.0 (6.0) M: M5 Profile: B Ranura N (mm): 10

0,00 €

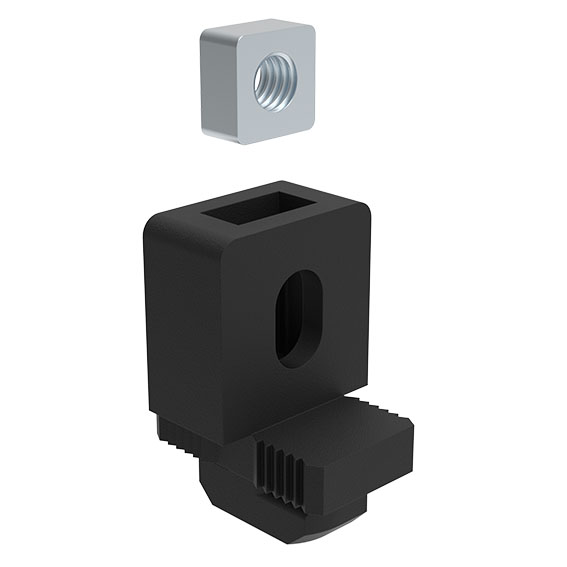

Vario Clamping Block 18

A1 (mm): 2.5 / 8.5 A2 (Profile) (mm): 2.2 (2.2) M: M6 Profile: B Ranura N (mm): 8

Color:Bloque: NegroPaíses de Entrega:En todo el mundoDescription:To attach panels safely to aluminum profiles; optional screwless mounting with clip clampMaterial:Block: Plastic PA, glass fiber reinforced Nut: SteelEspeciales:Otros colores bajo pedidoSurface:Nut: Zinc platedTip:Compatible Clip clamp see 09452RA20

0,00 €

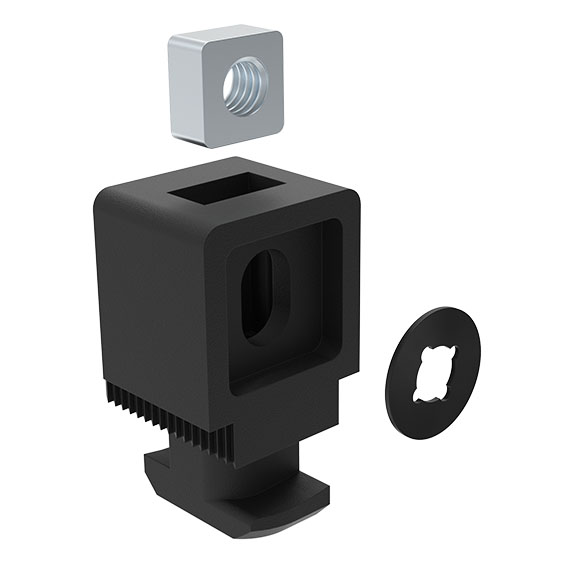

Vario Clamping Block 25 CS

A1 (mm): 8.5 A2 (Profile) (mm): 5.8 (6.0) M: M6 Profile: B Ranura N (mm): 10

Color:Bloque: NegroPaíses de Entrega:En todo el mundoDescription:To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC; optional screwless mounting with clip clampMaterial:Block: Plastic PA, glass fiber reinforced Nut: SteelEspeciales:Otros colores bajo pedidoSurface:Nut: Zinc platedTip:Compatible Clip clamp see 09452RA20

0,00 €
