Conduit Profile PVC

A2 (Profile) (mm): 4.2 (4.5) Color: Gris ≈ RAL 7042 Profile: I Ranura N (mm): 8

Color:PA, grisPaíses de Entrega:En todo el mundoDescription:To lay cables and hoses along the profile slot, reclosableMaterial:Plástico PVCEspeciales:Otros colores bajo pedidoConsejo:Observación: ¡Está realizando el pedido en metros!

0,00 €

Conector abrazadera para perfil 30 (Juego)

Profile: I Ranura N (mm): 6

Color:Clamp profile connector: Alu colorPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles and to attach a frame element to a frame structure by means of a suitable mounting; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and lockedMaterial:Clamp profile connector: Zinc die-cast Screws: SteelSet:1 clamp profile connector, 2 screws DIN EN ISO 7380 (DIN 34805) - M6 x 16Surface:Clamp profile connector: Powder coated Screws: Zinc platedTip:Compatible Mounting for Clamp Profile Connector 30 (Set) see 093XWWC301N06

0,00 €

Conector abrazadera para perfil 40 (Juego)

Profile: I Ranura N (mm): 8

Color:Clamp profile connector: Alu colorPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles and to attach a frame element to a frame structure by means of a suitable mounting; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and lockedMaterial:Clamp profile connector: Zinc die-cast Screws: SteelSet:1 clamp profile connector, 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 20Surface:Clamp profile connector: Powder coated Screws: Zinc platedTip:Compatible Mounting for Clamp Profile Connector 40 (Set) see 093XWWC401N08

0,00 €

Connecting Element for FIFO Monorail Rail 40 and 55 (Set)

Países de Entrega:En todo el mundoDescription:For parallel connection of two FIFO Monorail rails, as spacer for aligning the track; To be screwed on infeed caps with enclosed screwsMaterial:Acero inoxidableSet:2 connecting elements 8 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Superficie:LisoTip:Compatible FIFO Monorail Rail 40 see 02082PO.1200 Compatible FIFO Monorail Rail 55 see 02082PO55.1200 Compatible Infeed cap for FIFO Monorail Rail 40 (Set) see 02082CCS02 Compatible Infeed cap for FIFO Monorail Rail 55 (Set) see 02082CC55

0,00 €

Connecting Element for Guiding Rail FIFO (Set)

Países de Entrega:En todo el mundoDescription:For parallel connection of two guiding rails FIFO, as spacer for aligning the track; To be screwed on infeed caps with enclosed screwsMaterial:Acero inoxidableSet:2 connecting elements 8 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16Superficie:LisoTip:Compatible Guiding Rail FIFO see 02082P.1200 Compatible Infeed Cap for Guiding Rail FIFO (set) see 02082CCS01

0,00 €

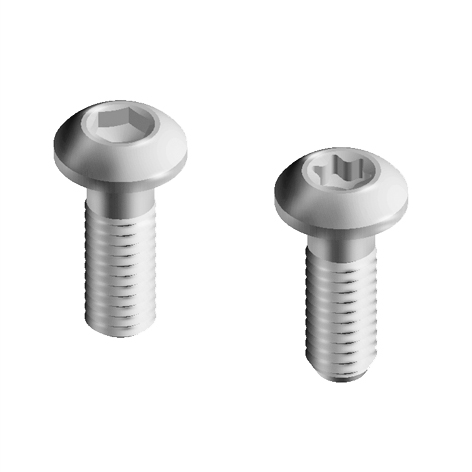

Connecting Screw B

Assembly: Casquillo hexalobular T50 Profile: B Size M x L (mm): M12 x 30

Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AceroSuperficie:Galvanizado

0,00 €

Connecting Strip 140 I, Slot 8 (Set)

L (mm): 140.0 M: M8 Profile: I Ranura N (mm): 8

Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSet:1 connecting strip 140 - slot 8 4 screws DIN EN ISO 4027 (DIN 914) - M8 x 10Superficie:Galvanizado

0,00 €

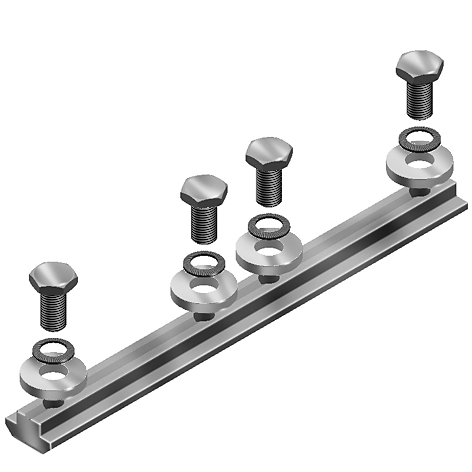

Connecting Strip 180 B, Slot 10 (Set)

A1 (mm): 28.0 A2 (mm): 158.0 L (mm): 180.0 M: M8 Profile: B Ranura N (mm): 10

Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSet:1 connecting strip 180, slot 10, 4 screws DIN EN ISO 4017 (DIN 933) - M8 x 16, 4 washers 8-FSt, 4 washers DIN 7349 - 8.4Superficie:Galvanizado

0,00 €

Connecting Strip 180 B, Slot 8

A1 (mm): 80.0 A2 (mm): 160.0 Fig.: ① L (mm): 180.0 M: M6 Profile: B Ranura N (mm): 8 Version: -

Assembly Set:4 screws DIN EN ISO 4762 (DIN 912) - M6 x 12, 4 washers DIN 7349 - 6.4Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSuperficie:Galvanizado

0,00 €

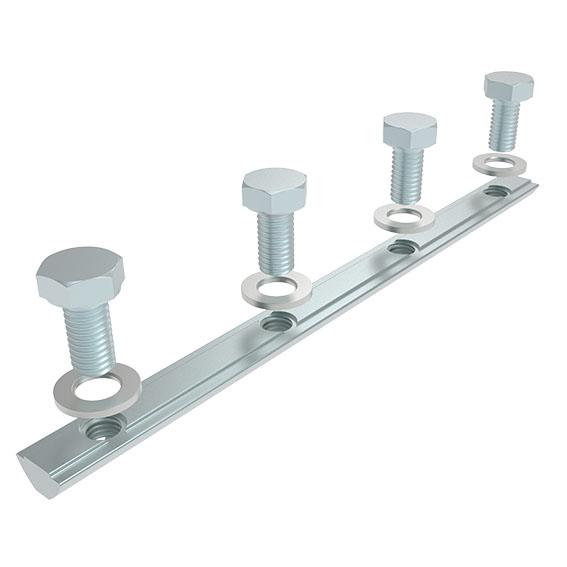

Connecting Strip 180 I, Slot 8

A1 (mm): 50.0 A2 (mm): 150.0 L (mm): 180.0 M: M8 Profile: I Ranura N (mm): 8 Version: -

Assembly Set:4 screws DIN EN ISO 4017 (DIN 933) - M8 x 16 4 washers DIN EN ISO 7089 (DIN 125)Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSuperficie:Galvanizado

0,00 €

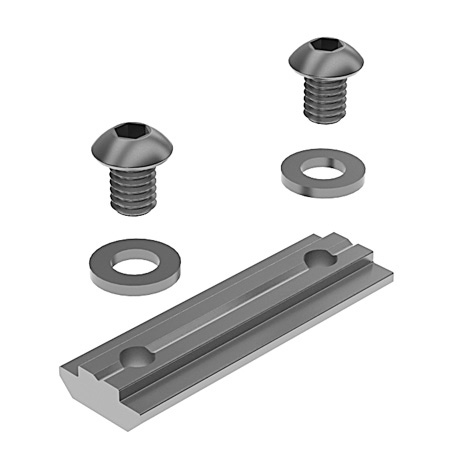

Connecting Strip 50 B, Slot 8

A (mm): 36.0 Juego: Conjunto 2 L (mm): 50.0 M: M6 Profile: B Ranura N (mm): 8

Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSet 1:1 connecting strip 50, slot 8, 2 screws DIN EN ISO 7380 (34805) - M6 x 8, 2 washers DIN EN ISO 7089 (DIN 125)Set 2:2 connecting strip 50, slot 8, 2 hexagon socket set screws DIN EN ISO 4026 (DIN 913) - M6 x 10Superficie:Galvanizado

0,00 €

Connection Angle AL 2 Hole, 1 Slot Version

B (mm): 38.1 (1.5") C (mm): 19.0 (0.75") H (mm): 6.0 L (mm): 38.1 (1.5") Version: 38.1 - 1.5" ØD (mm): 9.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:Anodizado

0,00 €

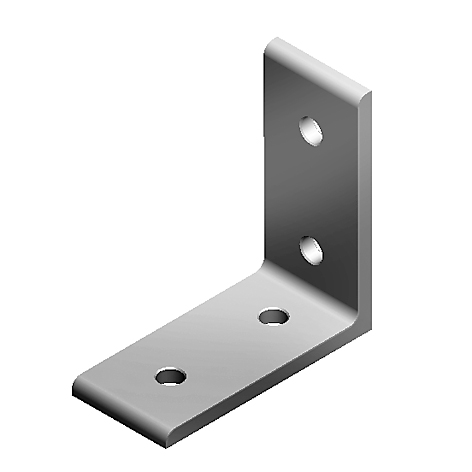

Connection Angle AL 4 Hole, 1 Slot Version

A (mm): 40.0 B (mm): 36.0 C (mm): 20.0 H (mm): 6.0 L (mm): 80.0 Version: 40 / 80 ØD (mm): 9.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:Anodizado

0,00 €

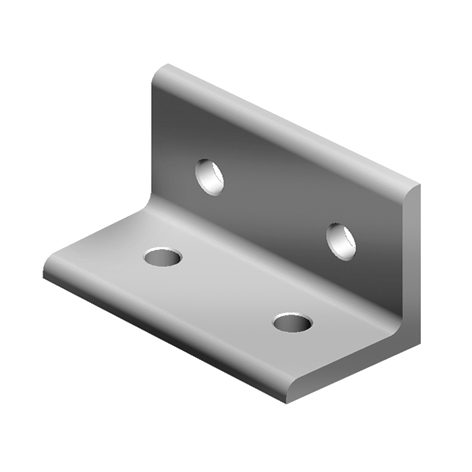

Connection Angle AL 4 Hole, 2 Slots Version

A (mm): 40.0 B (mm): 76.0 C (mm): 20.0 H (mm): 6.0 L (mm): 40.0 Version: 80 / 40 ØD (mm): 9.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:Anodizado

0,00 €

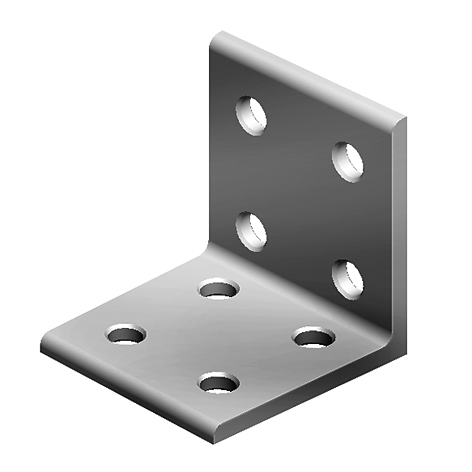

Connection Angle AL 8 Hole, 2 Slots Version

A (mm): 30.0 B (mm): 57.0 C (mm): 15.0 H (mm): 5.0 L (mm): 60.0 Version: 60 / 60 ØD (mm): 7.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:Anodizado

0,00 €

Connection Cable GST15i5 for Module F Line

Color: Negro L (mm): 4000.0

Color:NegroPaíses de Entrega:En todo el mundoDescription:5 wire cable to connect LED lamps with remote dimmer and power strips Module F LineMaterial:Cable insulation: Plastic PVC Plugs: Plastic PATip:Compatible Power Strip see 6SBEU24DU.370 Compatible LED Lamp see 6SL0040I953Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

0,00 €

Connection Cable GST18i3 for Module F Line

L (mm): 2000.0

Color:NegroPaíses de Entrega:En todo el mundoDescription:3 wire cable to connect LED lamps and power strips Module F LineMaterial:Cable insulation: Plastic PVC Plugs: Plastic PATip:Compatible Power Strip see 6SBEU14UI.370 Compatible LED Lamp see 6SL1040DI.953Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

0,00 €

Connection Coupling GST15i5 for Module F Line (Set)

Color:Connection coupling: BlackPaíses de Entrega:En todo el mundoDescription:5 pole coupling piece to directly connect LED lamps and power strips Module F LineMaterial:Connection coupling: Plastic PA Connector T-slot nut: SteelSet:1 connection coupling 1 connector T-slot nut 4 grub screws M8 x 10 mmSurface:Connector T-slot nut: Zinc-platedTip:Compatible Power Strip see 6SBEU24DI.370 Compatible LED Lamp see 6SL0040RI.476Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

0,00 €

Connection Coupling GST18i3 for Module F Line (Set)

Color:Connection coupling: BlackPaíses de Entrega:En todo el mundoDescription:3 pole coupling piece to directly connect LED lamps and power strips Module F LineMaterial:Connection coupling: Plastic PA Connector T-slot nut: SteelSet:1 connection coupling 1 connector T-slot nut 4 grub screws M8 x 10 mmSurface:Connector T-slot nut: Zinc-platedTip:Compatible Power Strip see 6SBEU04I.264 Compatible LED Lamp see 6SL1040DI.476Tip 2:Please note: Usage of connection coupling only in combination with connector T-slot nut permitted Max. chaining of 6 modules, 8 m or 3500 watts for Module F Line

0,00 €

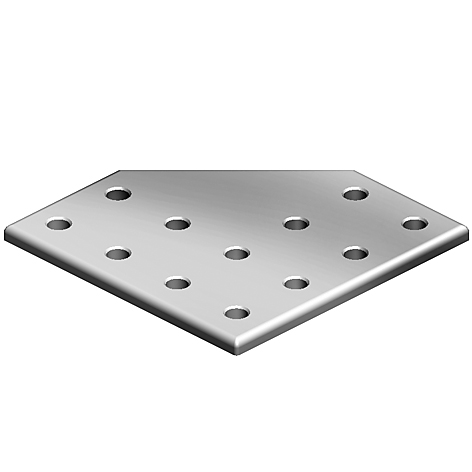

Connection Plate AL L 12 Hole, 2 Slots Version

A (mm): 30.0 H (mm): 5.0 L (mm): 118.5 Version: 120 / 120 ØD (mm): 7.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

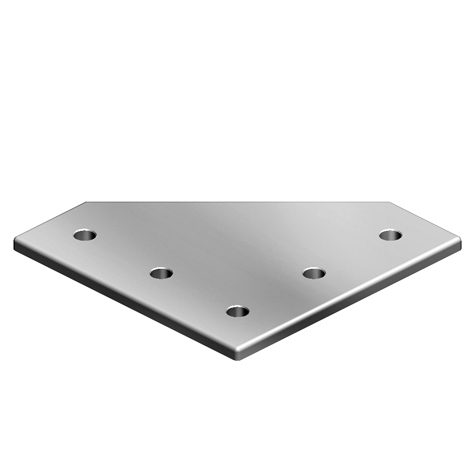

Connection Plate AL L 5 Hole, 1 Slot Version

A (mm): 30.0 H (mm): 5.0 L (mm): 88.5 Version: 90 / 90 ØD (mm): 7.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

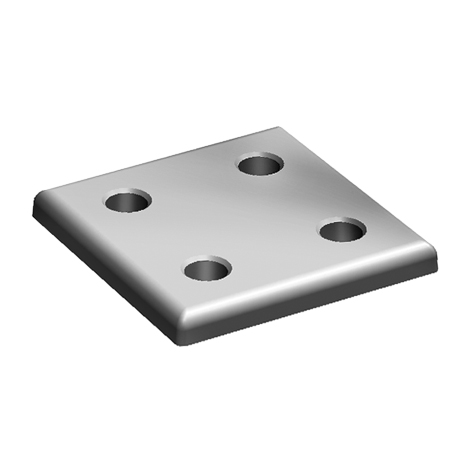

Connection Plate AL Quadrangular 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") H (mm): 6.0 L (mm): 72.0 (2.8") Version: 76.2 / 76.2 - 3" / 3" ØD (mm): 9.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

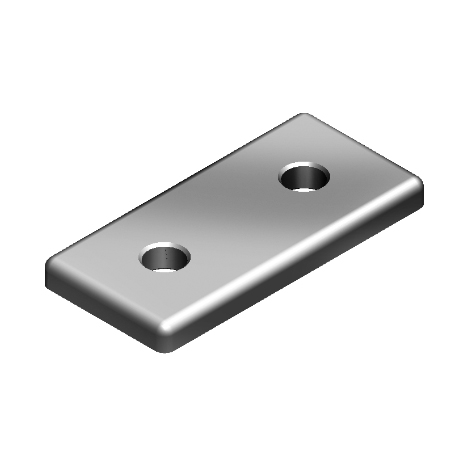

Connection Plate AL Rectangular 2 Hole, 1 Slot Version

A (mm): 30.0 B (mm): 27.0 H (mm): 5.0 L (mm): 57.0 Version: 30 / 60 ØD (mm): 7.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

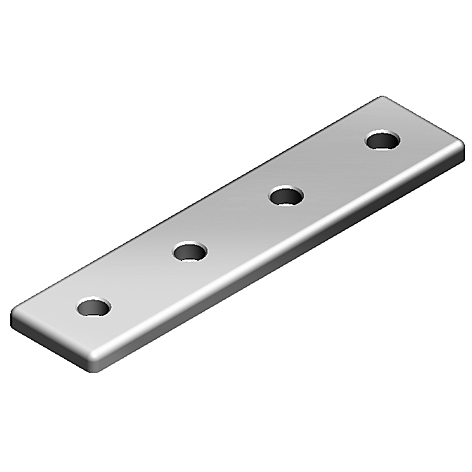

Connection Plate AL Rectangular 4 Hole, 1 Slot Version

A (mm): 20.0 B (mm): 18.0 H (mm): 4.0 L (mm): 78.0 Version: 20 / 80 ØD (mm): 5.5

Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €
