Product Portrait


LIFT CASTERS

FATH Lifting Casters: Be flexible and fast with the plug-and-work solution

Flexibility is one of the important features of modern manufacturing facilities. Setting up and leveling a machine or installation into a relatively permanent position for years to come is not necessarily common practice any longer.

It is with this scenario in mind that FATH Components has developed its Lift Caster unit as a “Plug-and-Work” solution which has been conceptualized as a mounting for machinery and facilities with a maximum lifting load of 500 kg per unit. The extra flat unit is composed of a Blickle swiveling roller that is screwed on to an aluminum mounting. The rolling mounts of these swiveling rollers are bedded into the die-cast aluminum chassis using a Teflon strip. The helix threading translates rotation of the lift into vertical movement. An Ergoswiss hydraulic cylinder drives the rotation.

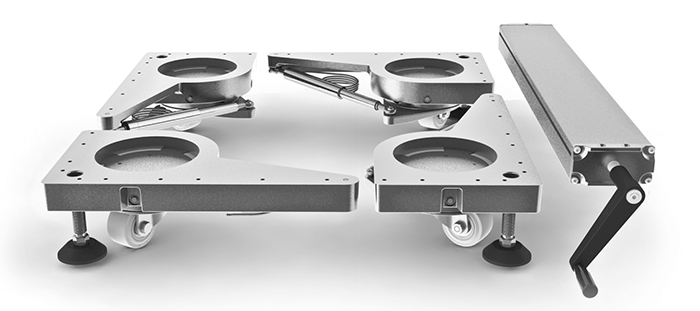

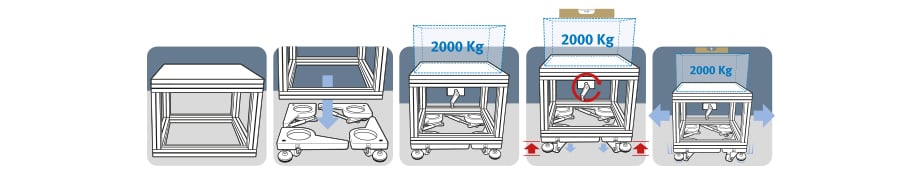

The Lift Caster is delivered as a set containing four lifting units including the leveling feet, a manual hydraulic pump and the necessary hydraulic piping. The lifting units are simply screwed on to the structure that is to be moved. Just by turning a crank, any machine or installation using this equipment can be lifted by the integrated leveling feet and easily pushed along any normal industrial floor. The lifting motion is conducted evenly so that nothing tilts or becomes unleveled.

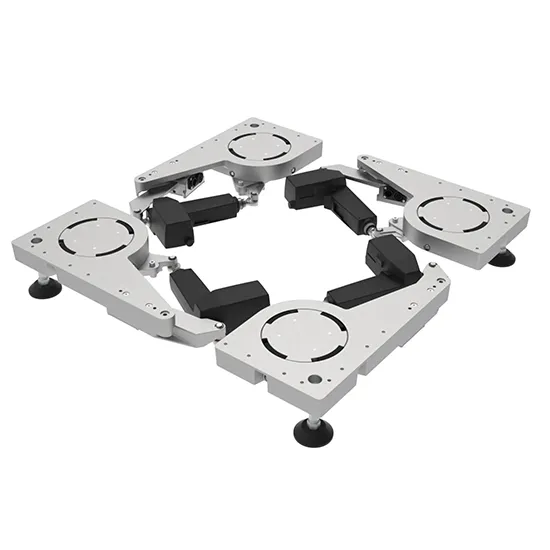

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • Fast and flexible placement of machines and structures
  • Strictly synchronous lifting movement of all units
  • To move heavy, sensitive machines
  • Keeps the machine horizontal balanced
  • Compact lifting system
  • Ready to install set

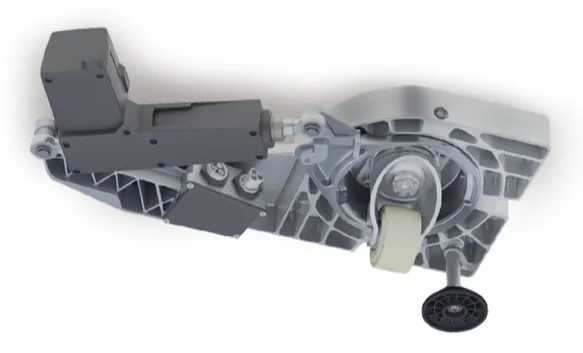

Lift Caster hydraulic or electric

The lifting system from FATH for fast and flexible placement of plants, fixtures or assembly tables is available with 2 different drives. With the hydraulic drive, the set consists of 4 lifting units incl. drive unit and hydraulic piping. The transmission ratio of cylinder / lifting unit is 10:1. The electric FATH Lift Caster is available both individually and in a set of 4. The electric drive is operated with a voltage of 24 V and has a Wieland RST20i2 electrical connector.

Thanks to the robust die-cast aluminum housing, a Lift Caster set of 4 lifting units has a load capacity of up to 2 tons when placed centrally. The lifting mechanism with Teflon bearings enables smooth lifting, and rollers with ball bearings enable easy movement.

FLEXIBILITY, FIXED - WITH FATH SWIVEL AND FIXED CASTORS WITH LIFTING Foot

Discover our swivel and fixed castors with Blickle castors made in Germany in combination with FATH Lifting Feet and FATH Leveling Feet - for flexible workstations that are frequently repositioned.


See variants

VERSIONS

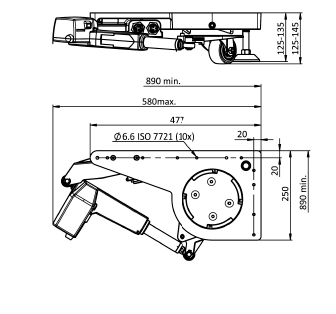

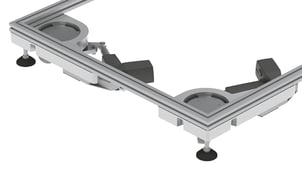

Lift Caster with electric drive

Lift caster system for a fast and flexible placing of plants or assembling tables; with electrical drive – 24 V, electrical connection plud Neutrik NAC3FX W TOP + NAC3MX W TOP

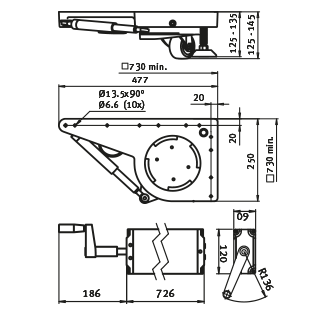

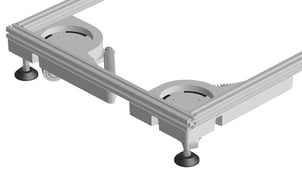

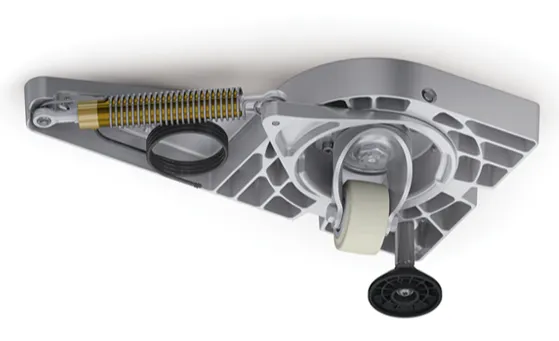

Lift Caster with hydraulic drive

Lift caster system for a fast and flexible placing of plant or assembly tables; with hydraulic driveInstallation set containing 4 lifting units, including drive train and piping

Skip product gallery
Hydraulic Lift Caster (Set)
Fmax (N): *19600 | Max. Load per Lifting Unit (kg): 500 | Profile: I / B
Delivery Countries:WorldwideDescription:Lift castor system for a fast and flexible placing of plants or assembling tables; gear transmission ratio: 10:1Material:Housing: Aluminum die-cast with PTFE bearing Roller: Plastic PA with ball bearing Roller housing: Zinc plated steelSet:4 lifting units 1 hydraulic drive unit 4 hydraulic pipes at each 3 m, pre-filledSpecials:Other sets on requestTip:* Positioned centeredZolltarifnummer:84254200000

€0.00*
Electric Lift Caster
Fmax (N): *4900 | Max. Load per Lifting Unit (kg): - | Profile: I / B | Version: -
Delivery Countries:WorldwideDescription:Lift castor system for a fast and flexible placing of plants or assembls tables; with electrical drive - 24 V, electrical connection plug Neutrik NAC3FX W TOP + NAC3MX W TOPMaterial:Housing: Aluminum die-cast with PTFE bearing Roller: Plastic PA with ball bearing Roller housing: Zinc plated steelSet:4 lifting units with electrical drivesTip:* Positioned centeredZolltarifnummer:84254900000

€0.00*
Electric Lift Caster
Fmax (N): *19600 | Max. Load per Lifting Unit (kg): 500 | Profile: I / B | Version: Set
Delivery Countries:WorldwideDescription:Lift castor system for a fast and flexible placing of plants or assembls tables; with electrical drive - 24 V, electrical connection plug Neutrik NAC3FX W TOP + NAC3MX W TOPMaterial:Housing: Aluminum die-cast with PTFE bearing Roller: Plastic PA with ball bearing Roller housing: Zinc plated steelSet:4 lifting units with electrical drivesTip:* Positioned centeredZolltarifnummer:84254900000

€0.00*
