Alu Connection Angle 30 x 60

Product information "Alu Connection Angle 30 x 60"

Assembly Set:
4 hammer nuts - slot 8 - M6,
4 screws DIN 7984 - M6 x 14

Color:
Angle: Alu color

Delivery Countries:
Worldwide

Description:

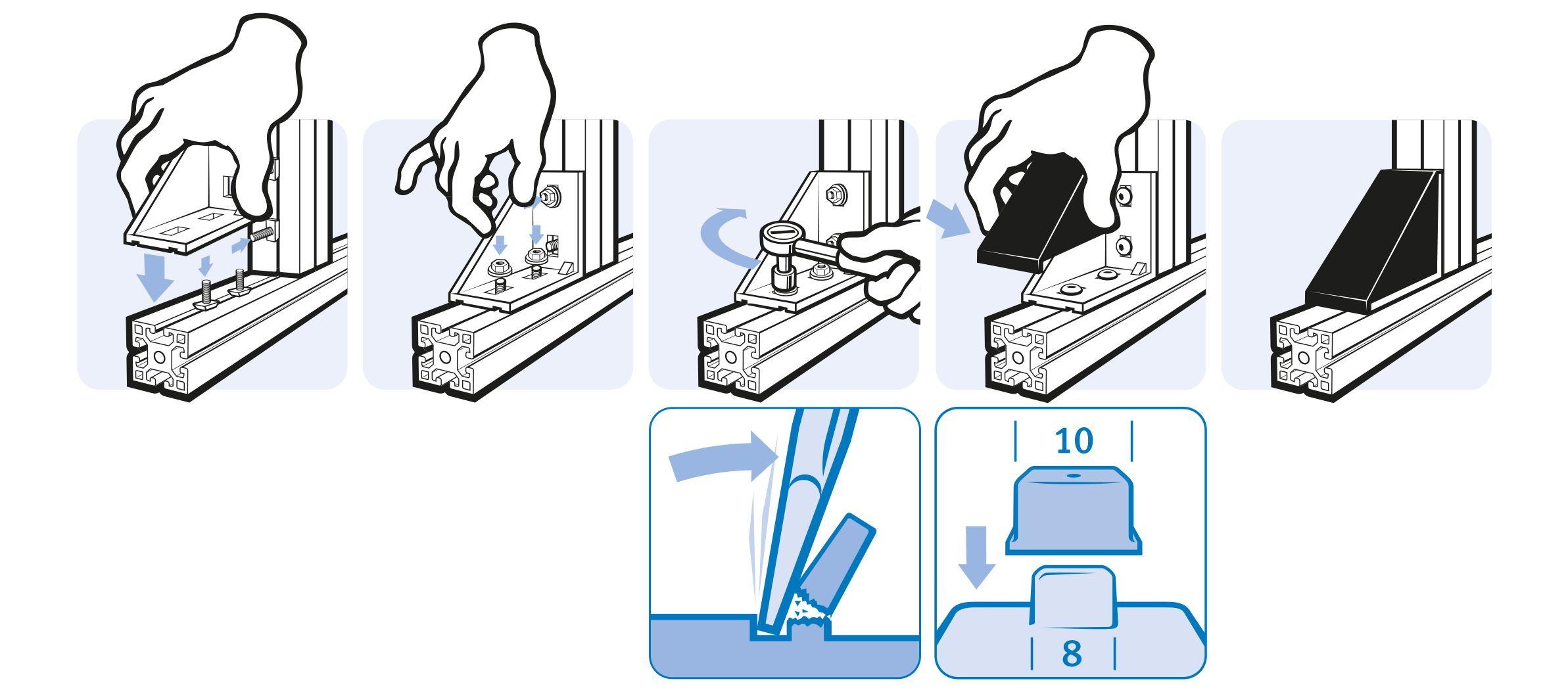

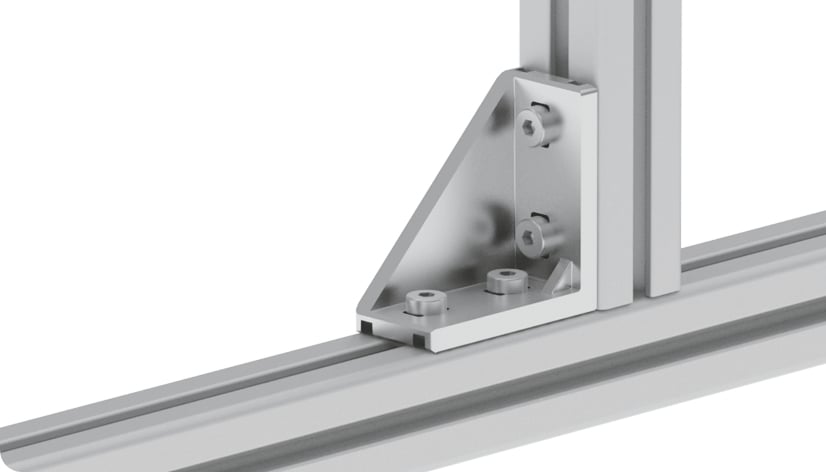

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap

Material:
Angle: Aluminum die-cast
Assembly set: Steel

Specials:
Other surfaces, other colors on request

Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated

Tip:
Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
Compatible Cover Cap see 093WA302

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Aluminum die-cast, profile 30 and up
Pack Quantity: 10 pieces / 10 set
Weight (g): 58.5

Variants

Product ID Surface Color Version Profile Slot N (mm)
093W302 Plain
093W302N06 Plain 6
093W302N08 Plain 8
093W302N08S01 Plain incl. assembly set B 8
093W302N08S04 Powder coated Alu color 8
093W302N08S05 Powder coated Alu color incl. assembly set B 8
