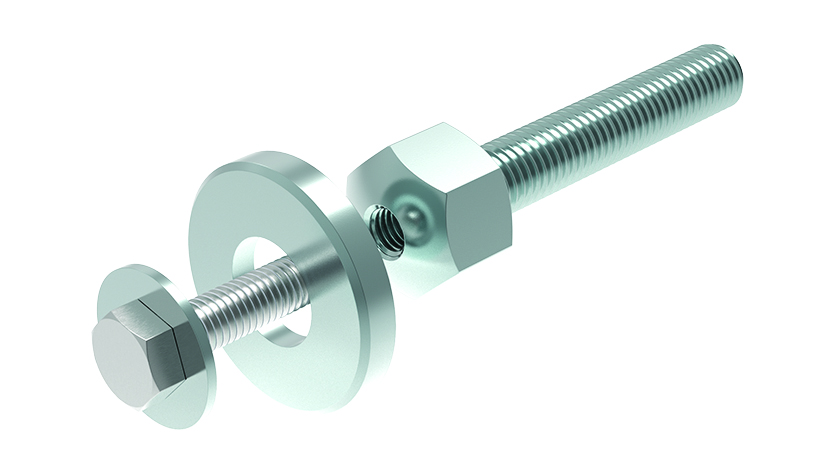

Assembly Set for Heavy-duty Pivot Feet

Product information "Assembly Set for Heavy-duty Pivot Feet"

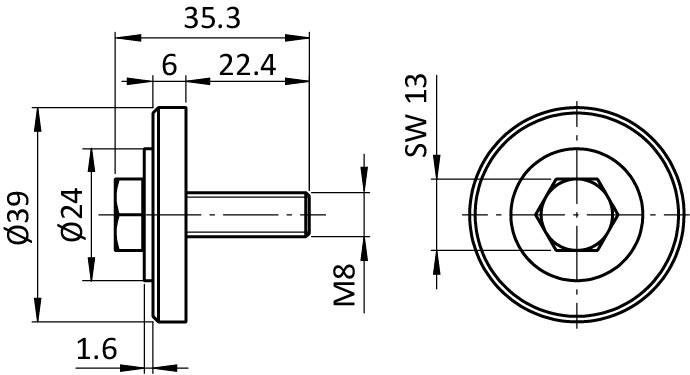

Assembly Set 1:
1 screw DIN 933 (ISO 4017) – M8 x 30 stainless steel, with polyamide thread locking dot,
1 washer DIN 9021 – 8.4 mm steel, zinc plated,
1 shaped washer – steel, zinc plated

Assembly Set 2:
1 screw DIN 933 (ISO 4017) – M8 x 30 stainless steel, with polyamide thread locking dot,
1 washer DIN 9021 – 8.4 stainless steel,
1 shaped washer – stainless steel

Delivery Countries:
Worldwide

Description:
To assemble heavy-duty pivot feet

Material:
Steel / stainless steel

Surface:
Zinc plated / plain

Tip:
Compatible threaded rod ST metric for pivot feet see 098AM12066M,
Compatible threaded rod SS metric for pivot feet see 098AM12066E,
Compatible threaded rod ST UNC for pivot feet see 098AU1/2-3M,
Compatible threaded rod SS UNC for pivot feet see 098AU1/2-3E

Zolltarifnummer:
73181575900
Model: Steel / stainless steel
Pack Quantity: 100 set
Weight (g): 60.5

Variants

Product ID Material
098XAKE Stainless steel
098XAKM Steel
