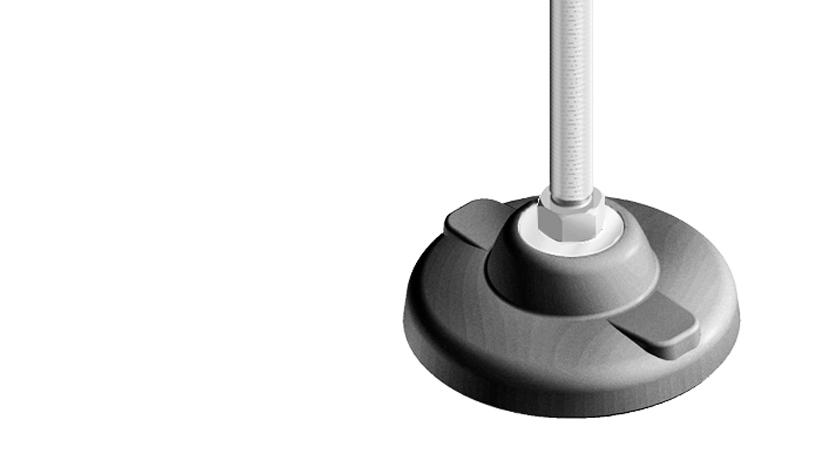

Bases, Pivot Feet

Bases, Pivot Feet
Floor Mounting, Pivot Feet

Floor Mounting, Pivot Feet
Threaded Rods, Pivot Feet

Threaded Rods, Pivot Feet

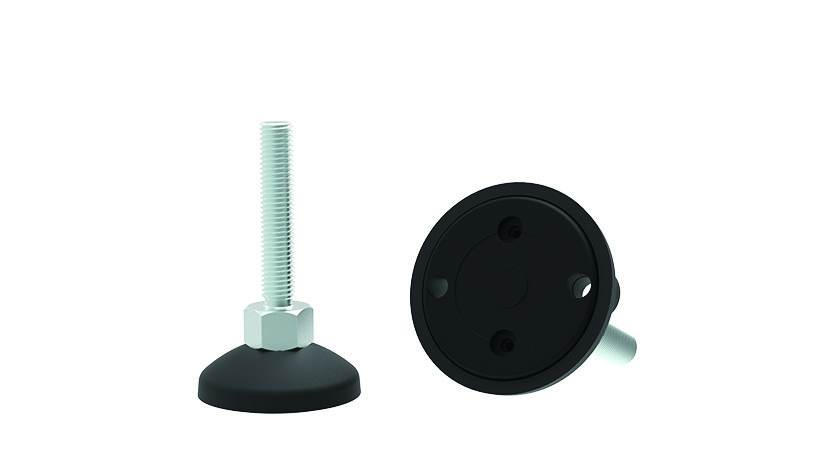

Anti-slip Plates, Pivot Feet

Anti-slip Plates, Pivot Feet

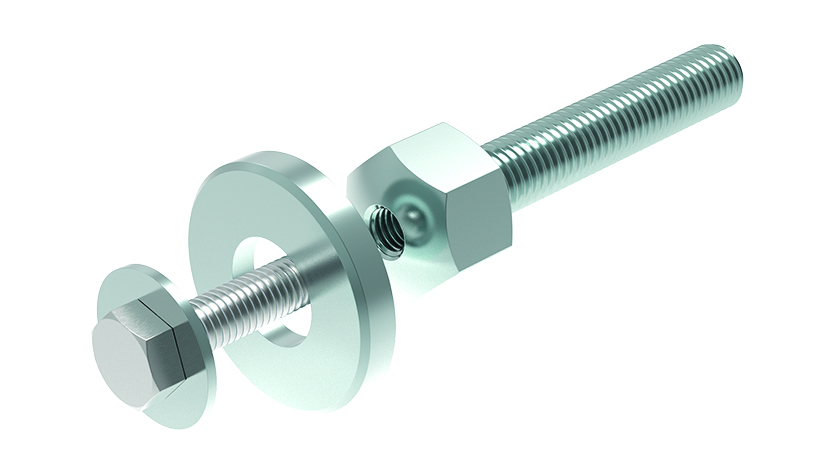

Accessories for Pivot Feet

Accessories for Pivot Feet

Filter products

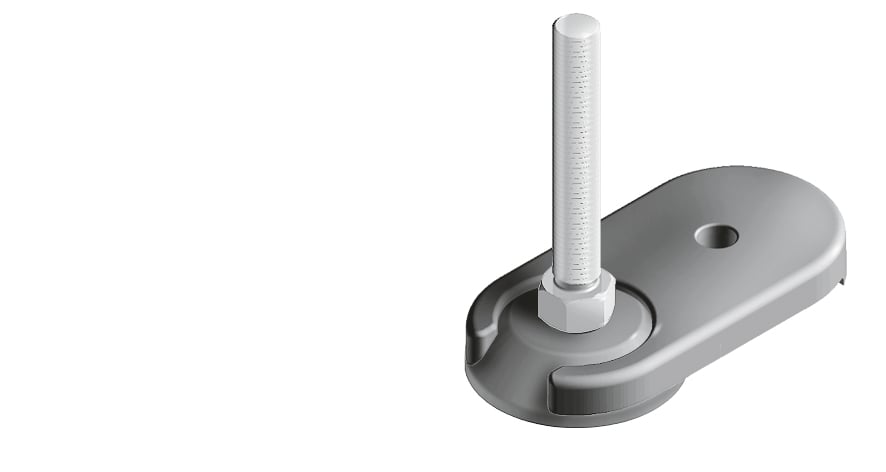

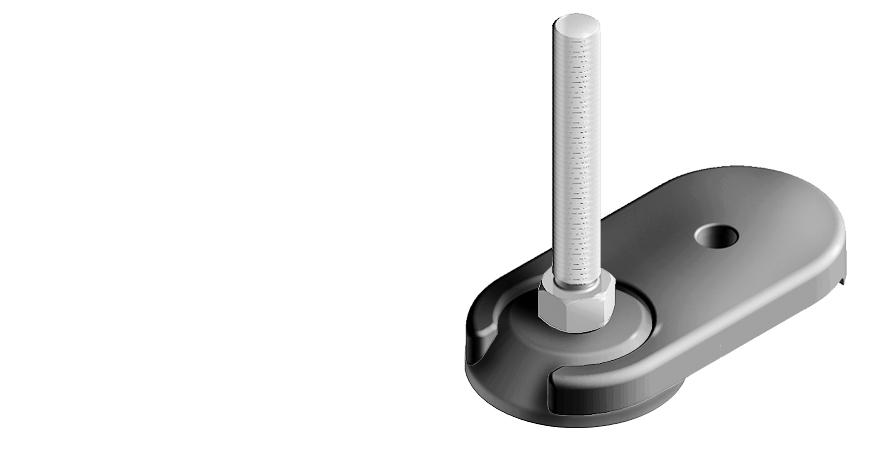

Floor Mounting for Base of Trapezoid Foot – product image of all versions

Floor Mounting for Base of Trapezoid Foot

D (mm): 12.0 for Base: 60 H (mm): 18.0 Profile: I A (mm): 50.0 B (mm): 56.0 C (mm): 38.0 L (mm): 110.0

Description:To securely fix the trapezoid leveling foot to the floor - can be mounted afterwardMaterial:Zinc die-castSurface:Powder coatedColor:BlackTip:Compatible Trapezoid Base see 098DI060ZS and 098AI060ZSDelivery Countries:Worldwide

€0.00

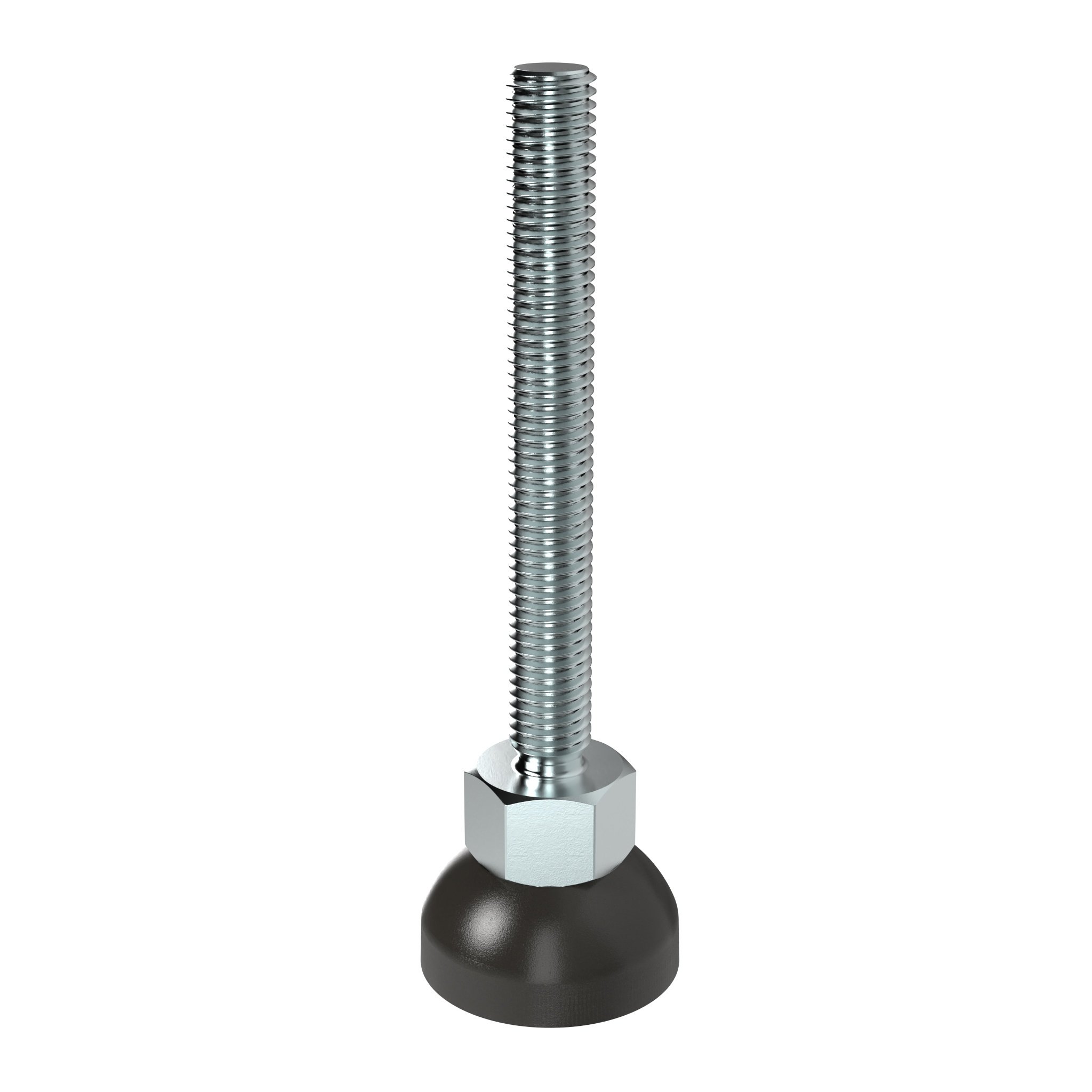

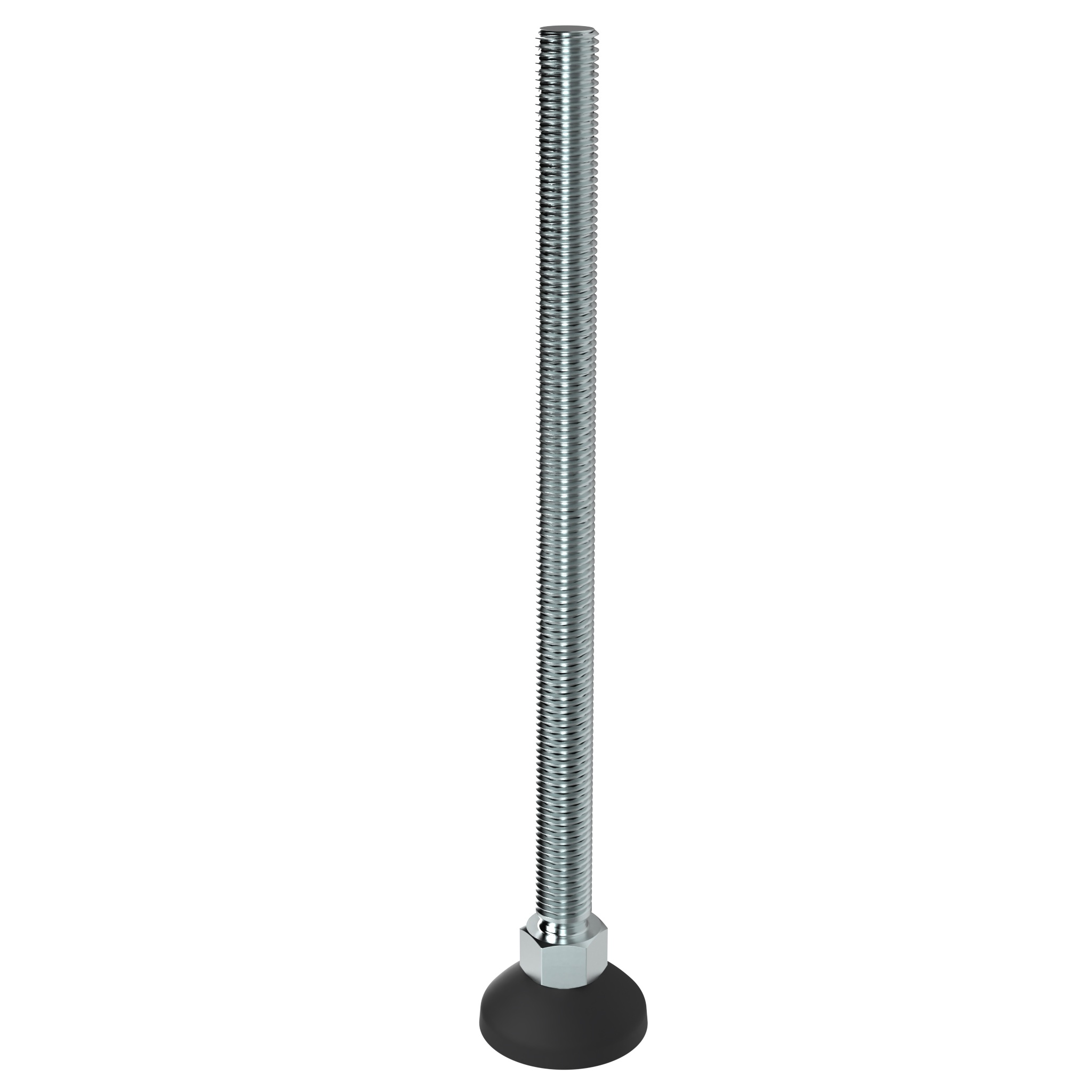

Pivot Foot, PA / ST – product image

Pivot Foot, PA / ST

Base: 50 Fmax (N): 11770 SW (mm): 22 D (mm): 49 F (mm): 31 M x L (mm): M16 x 250 Version: without anti-slip plate

Description:A leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSurface:Threaded rod: Zinc platedColor:Base: BlackTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00

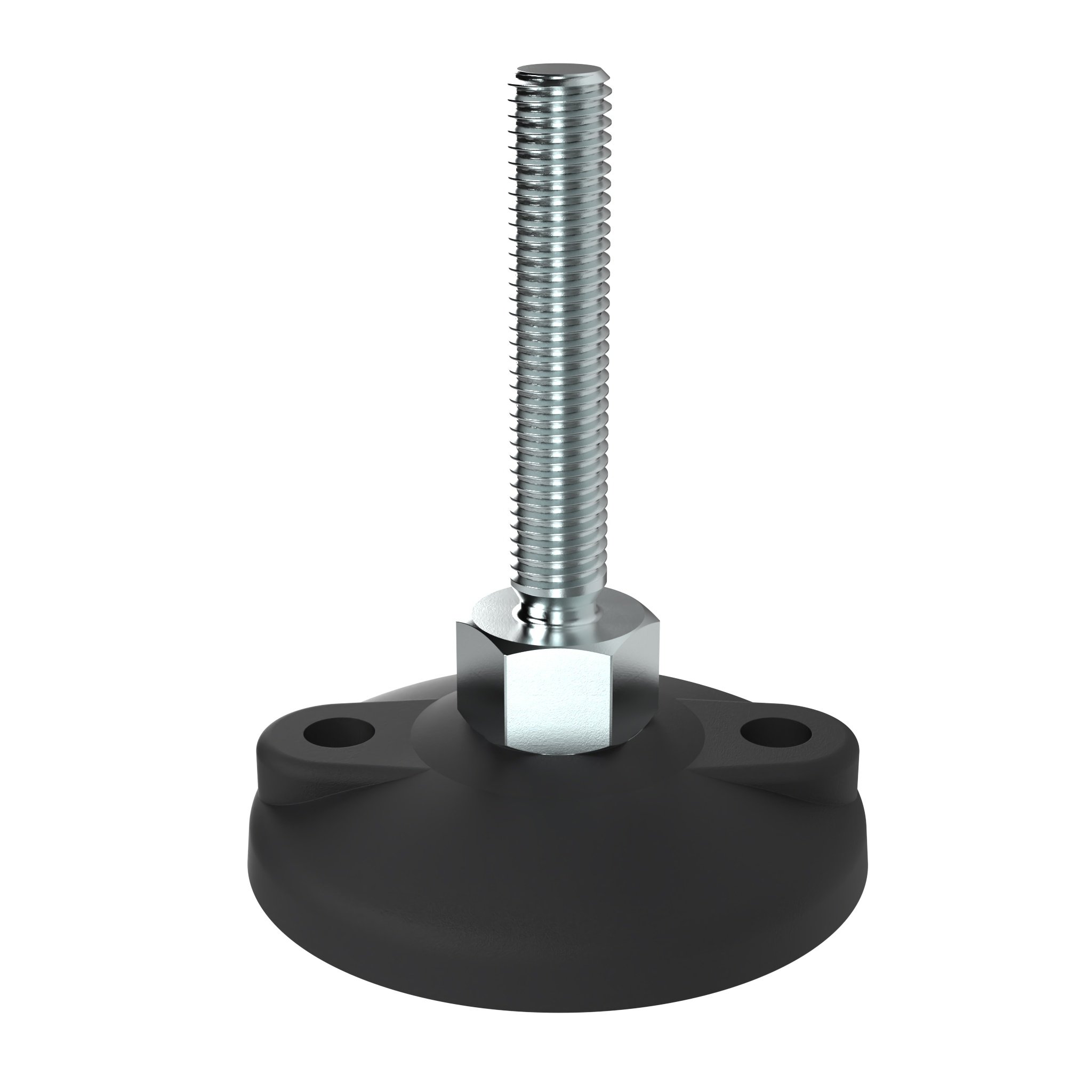

Pivot Foot, PA / ST - BDH – product image of all versions

Pivot Foot, PA / ST - BDH

Base: 80 Fmax (N): 7550 SW (mm): 22 D (mm): 79 F (mm): 31 M x L (mm): M12 x 66 Version: without anti-slip plate LK (mm): 55

Description:A leveling foot which can be fixed to the floorMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSurface:Threaded rod: Zinc platedColor:Base: BlackTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq., *Bolt-down holes closedSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00

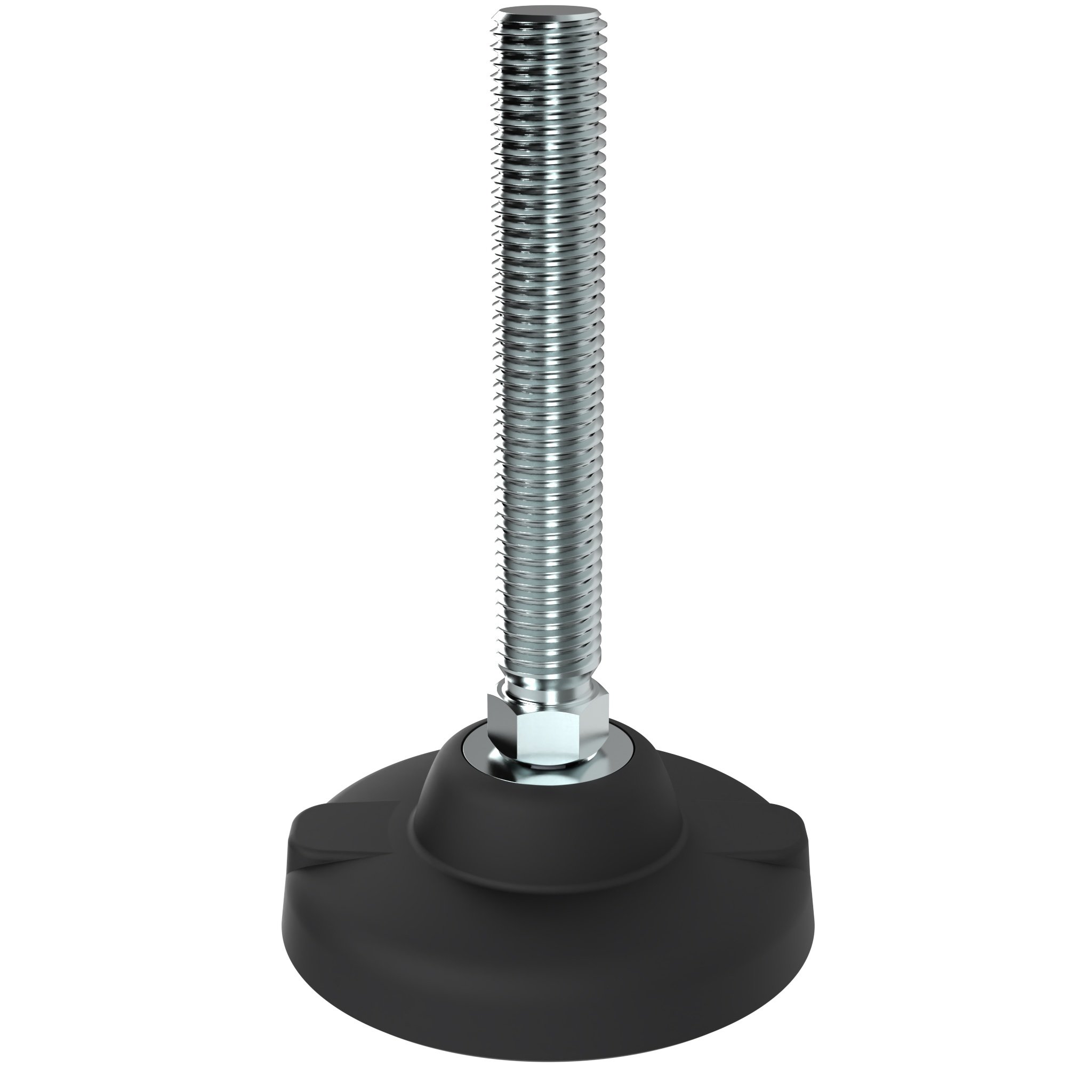

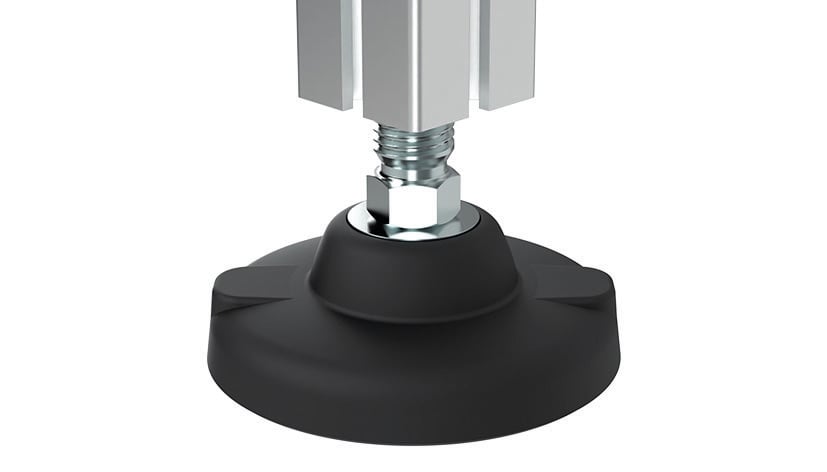

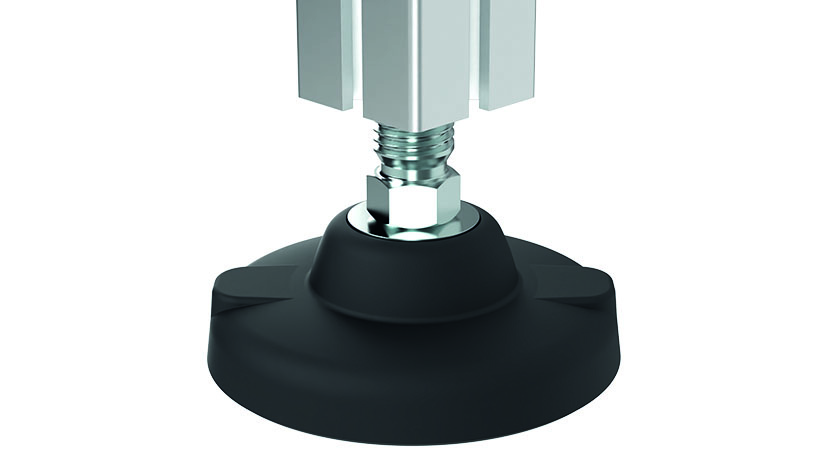

Heavy-duty Pivot Foot, PA / ST - BDH – product image of all versions

Heavy-duty Pivot Foot, PA / ST - BDH

Base: 125 Fmax (N): 17650 SW (mm): 24 D (mm): 125 F (mm): 57.5 M x L (mm): M24 x 150 Version: without anti-slip plate LK (mm): 96 H (mm): 44 d (mm): 13.4 h (mm): 24

Description:A heavy-duty leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSurface:Threaded rod: Zinc platedColor:Base: BlackTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG125B et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00

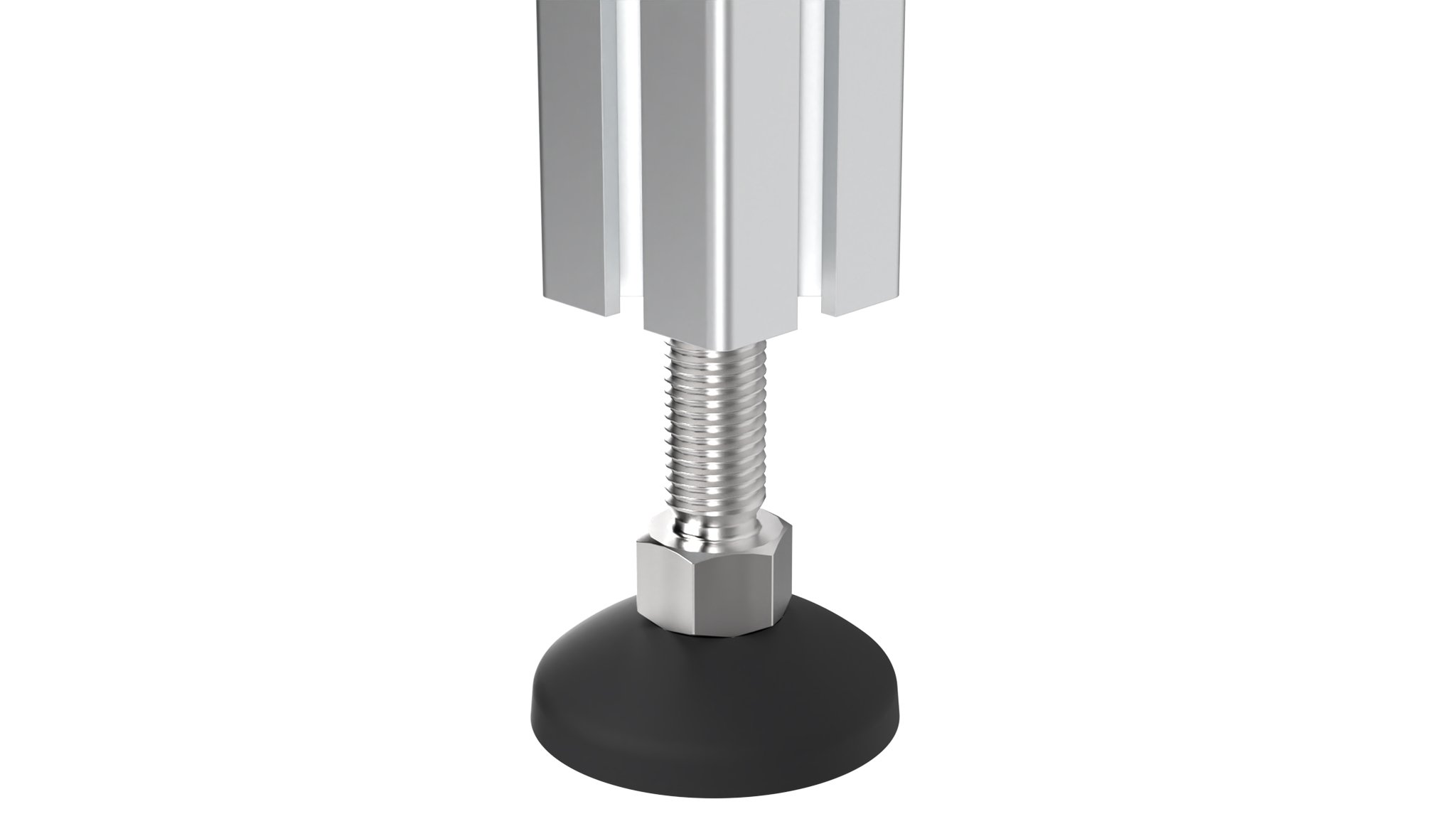

Pivot Foot, PA / SS – product image

Pivot Foot, PA / SS

Base: 60 Fmax (N): 11770 SW (mm): 22 D (mm): 59 F (mm): 31 M x L (mm): M16 x 150 Version: without anti-slip plate

Description:A leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: Stainless steelSurface:Threaded rod: PlainColor:Base: BlackTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00
Pivot Foot, ZN / ST – product image of all versions

Pivot Foot, ZN / ST

Base: 40 Fmax (N): 7550 SW (mm): 22 D (mm): 39 F (mm): 31 M x L (mm): M12 x 100 Version: without anti-slip plate Feature: Anti-slip plate not possible

Description:A leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Zinc die-cast Threaded rod: SteelSurface:Base: Powder coated Threaded rod: Zinc platedColor:Base: BlackTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00

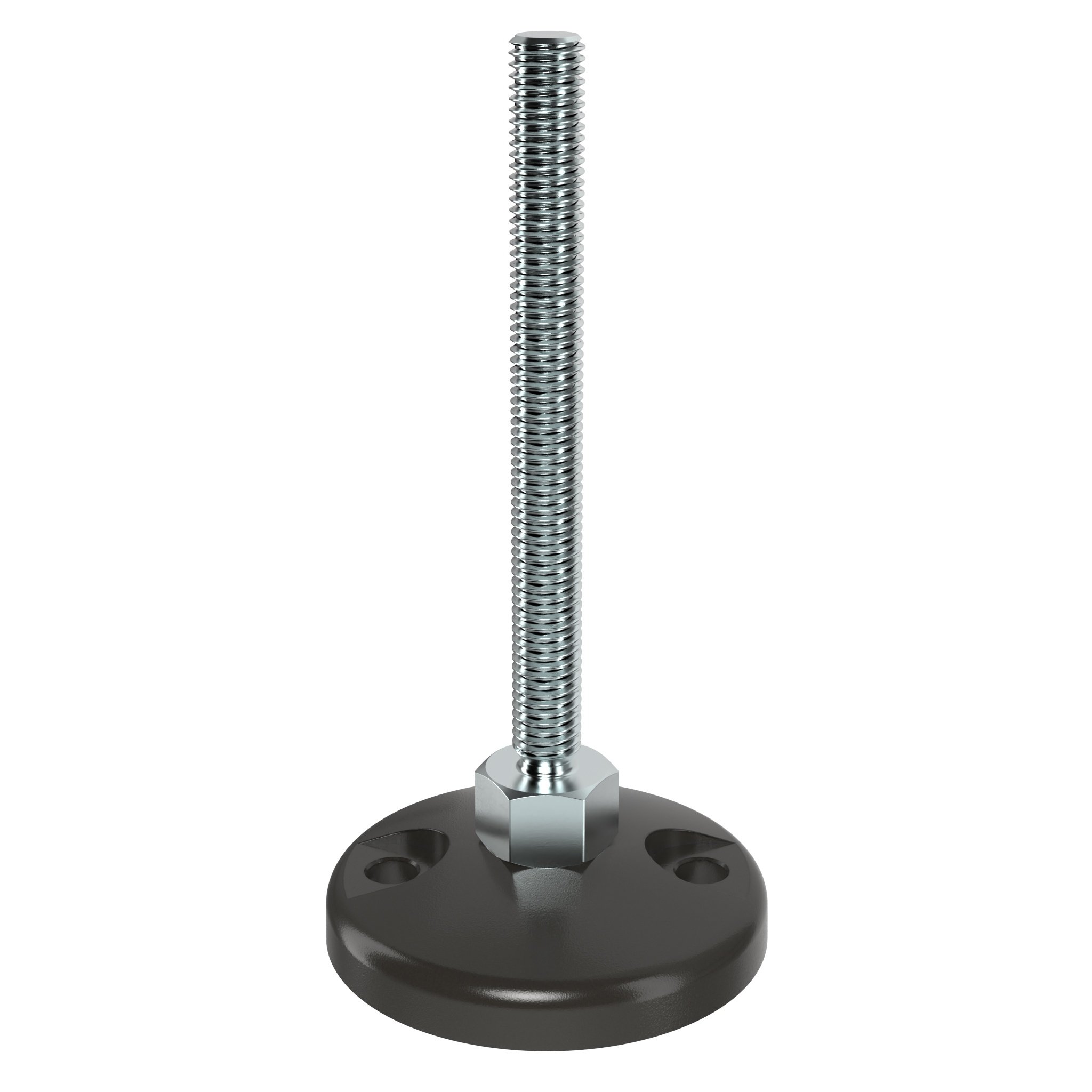

Pivot Foot, ZN / ST - BDH – product image

Pivot Foot, ZN / ST - BDH

Base: 100 Fmax (N): 34300 SW (mm): 24 D (mm): 99 F (mm): 31 M x L (mm): M24 x 150 Version: without anti-slip plate LK (mm): 74

Description:A leveling foot which can be fixed to the floorMaterial:Base: Zinc die-cast Threaded rod: SteelSurface:Base: Powder coated Threaded rod: Zinc platedColor:Base: BlackTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00

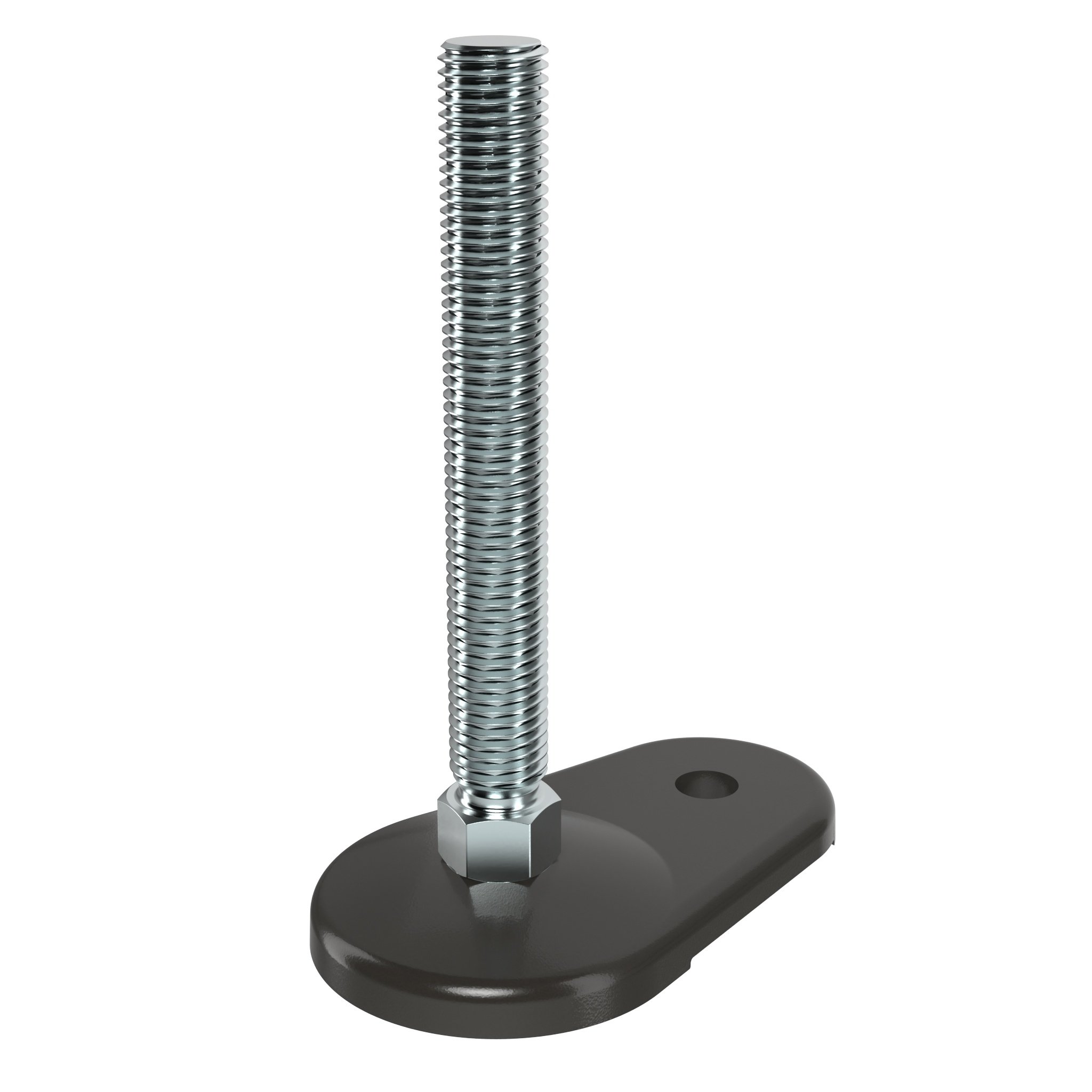

Extended Pivot Foot, ZN / ST – product image

Extended Pivot Foot, ZN / ST

Base: 80 Fmax (N): 23800 SW (mm): 22 D (mm): 79 F (mm): 31 M x L (mm): M20 x 150 Version: without anti-slip plate

Description:Extended leveling foot which can be fixed to the floorMaterial:Base: Zinc die-cast Threaded rod: SteelSurface:Base: Powder coated Threaded rod: Zinc platedColor:Base: BlackTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00

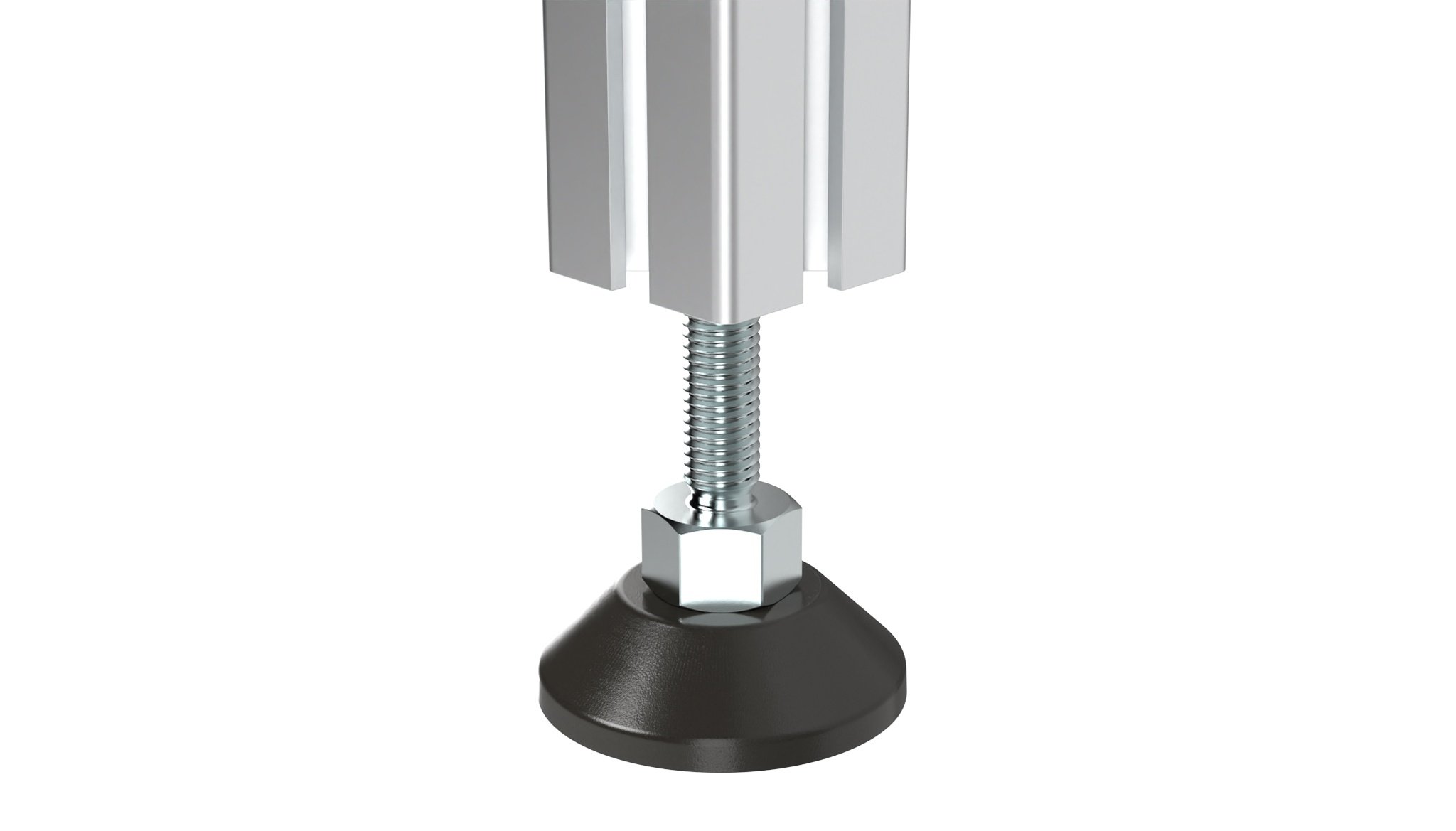

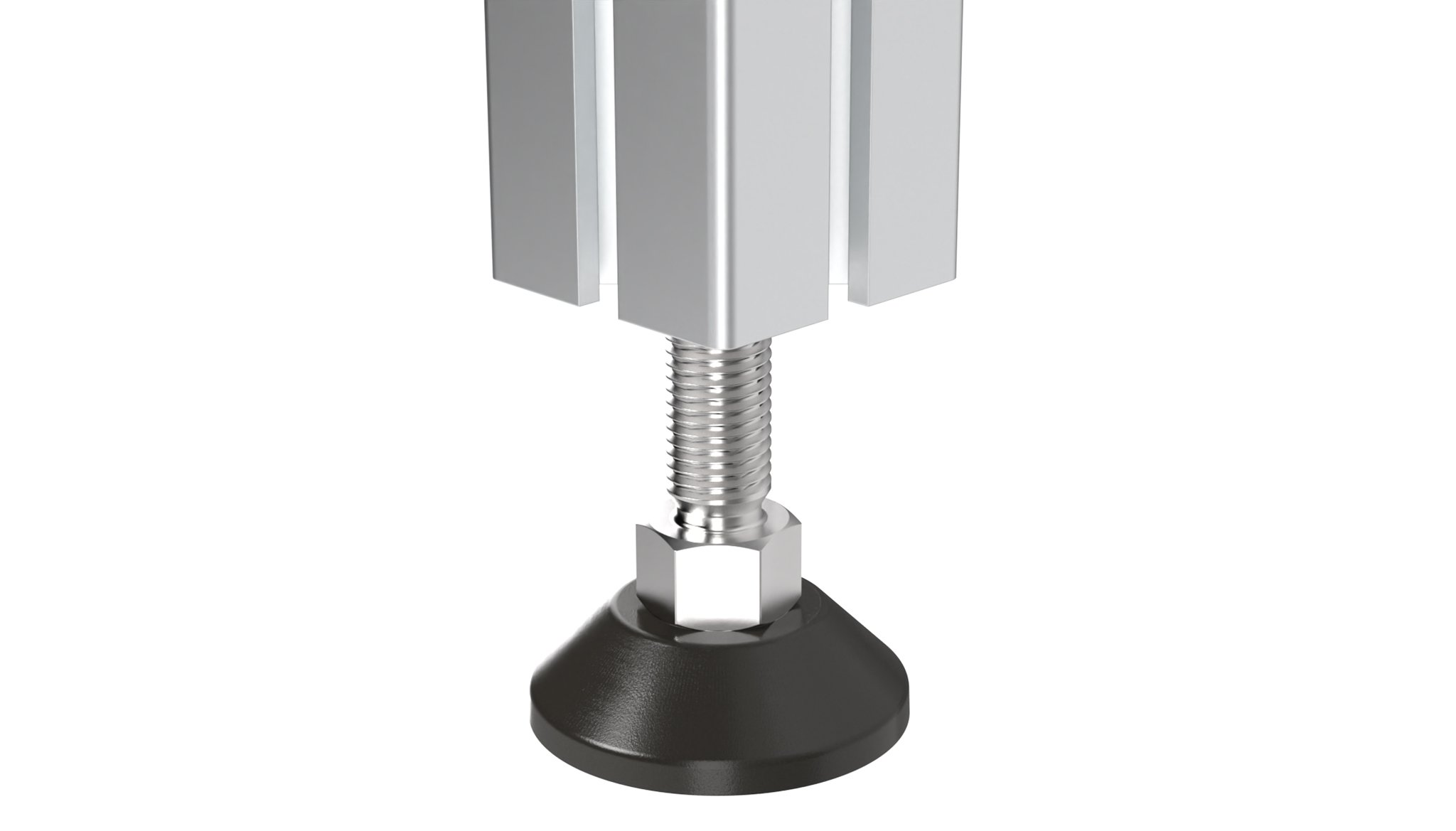

Trapezoid Pivot Foot, ZN / ST – product image of all versions

Trapezoid Pivot Foot, ZN / ST

Base: 60 Fmax (N): 7550 SW (mm): 22 D (mm): 59 F (mm): 31 M x L (mm): M12 x 66 Version: without anti-slip plate H (mm): 18

Description:A leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Zinc die-cast Threaded rod: SteelSurface:Base: Powder coated Threaded rod: Zinc platedColor:Base: BlackTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00
Trapezoid Pivot Foot, ZN / SS – product image

Trapezoid Pivot Foot, ZN / SS

Base: 60 Fmax (N): 14200 SW (mm): 22 D (mm): 59 F (mm): 31 M x L (mm): M16 x 150 Version: without anti-slip plate H (mm): 18

Description:A leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Zinc die-cast Threaded rod: Stainless steelSurface:Base: Powder coated Threaded rod: PlainColor:Base: BlackTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00

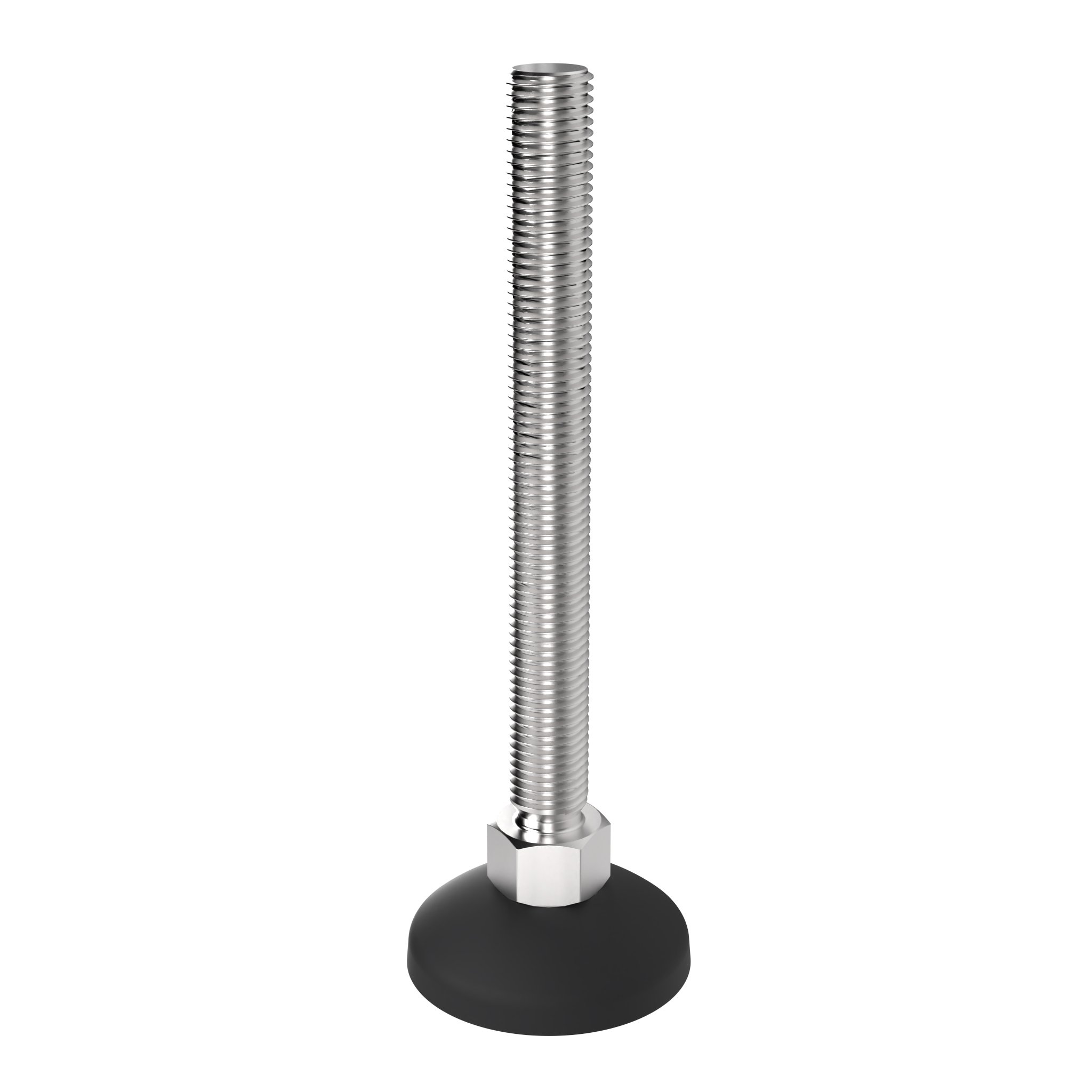

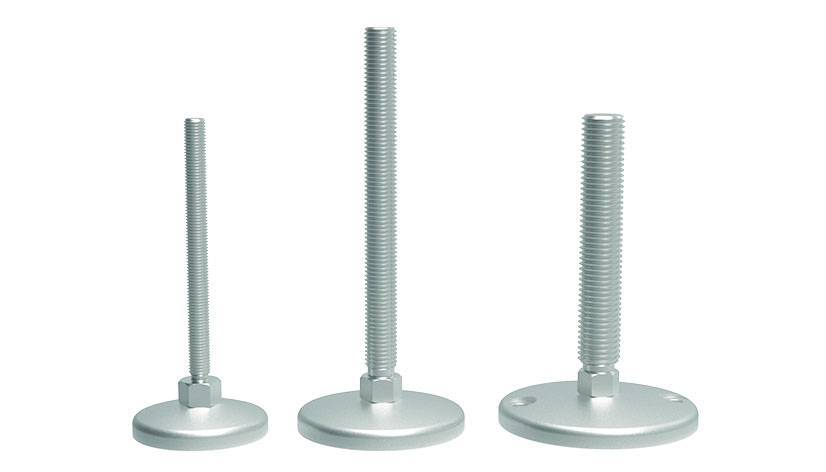

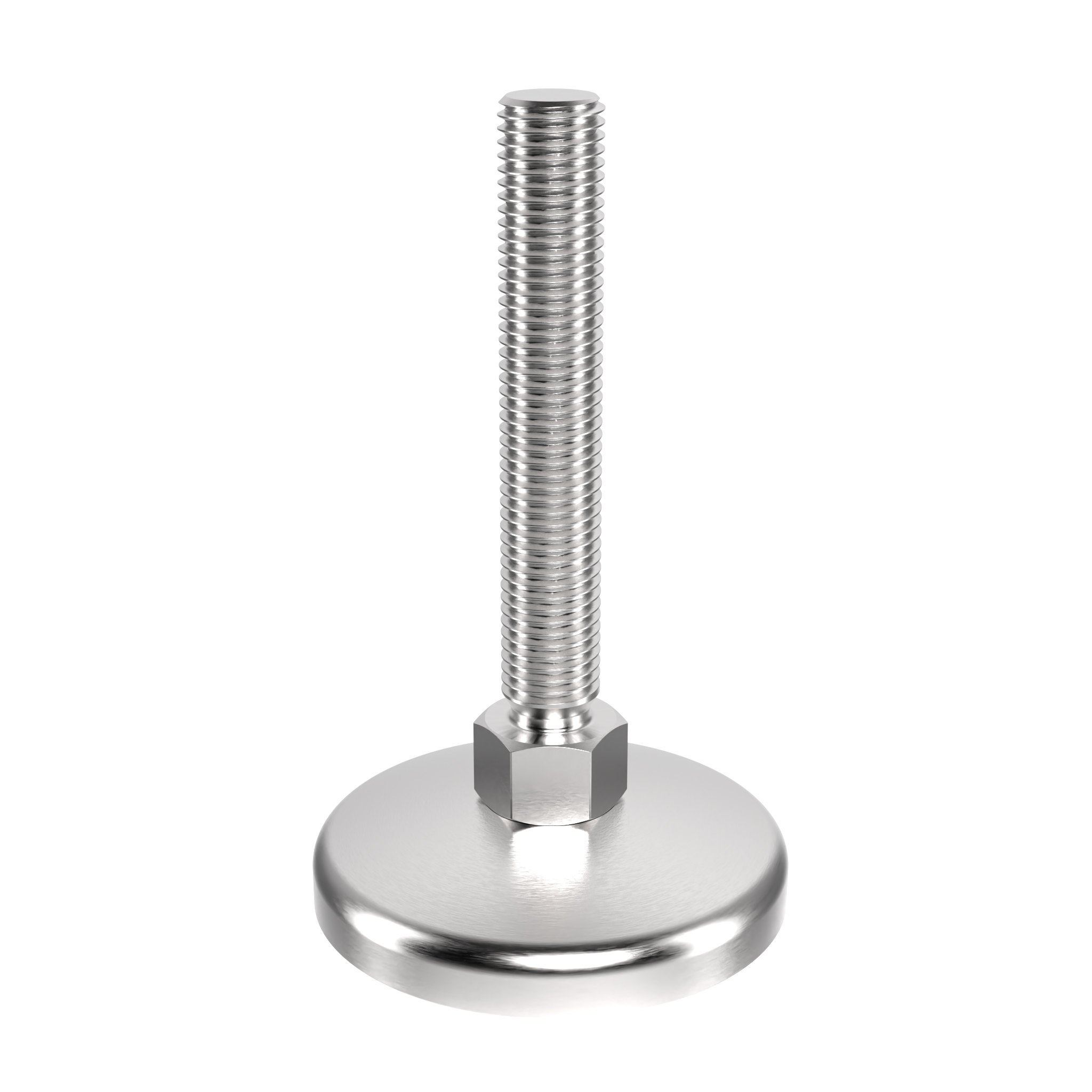

Pivot Foot, SS / SS – product image

Pivot Foot, SS / SS

Base: 80 Fmax (N): 14200 SW (mm): 22 D (mm): 79 F (mm): 31 M x L (mm): M16 x 100 Version: without anti-slip plate

Description:A leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Stainless steel Threaded rod: Stainless steelSurface:Base: Plain Threaded rod: Plain Tip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00

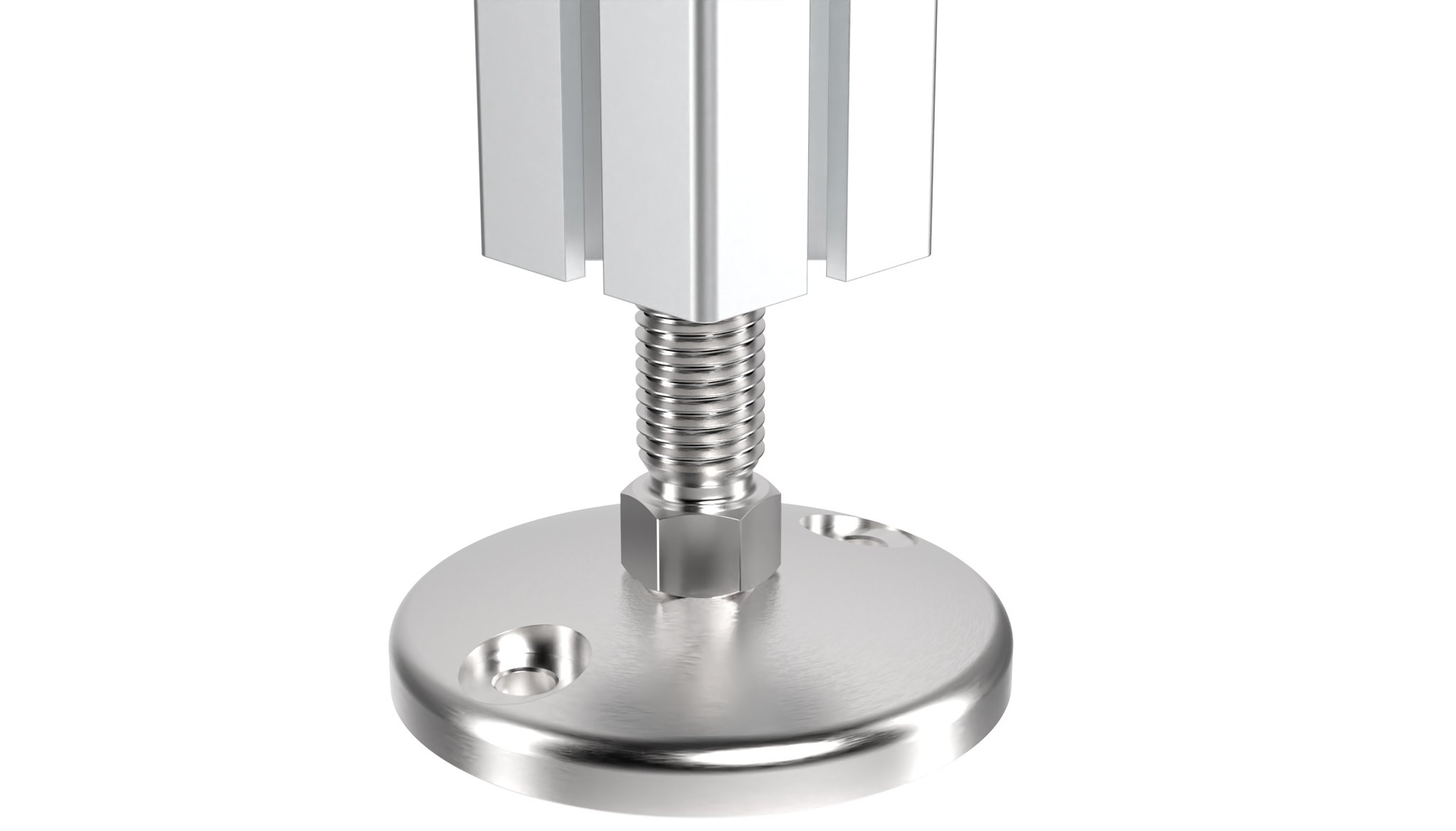

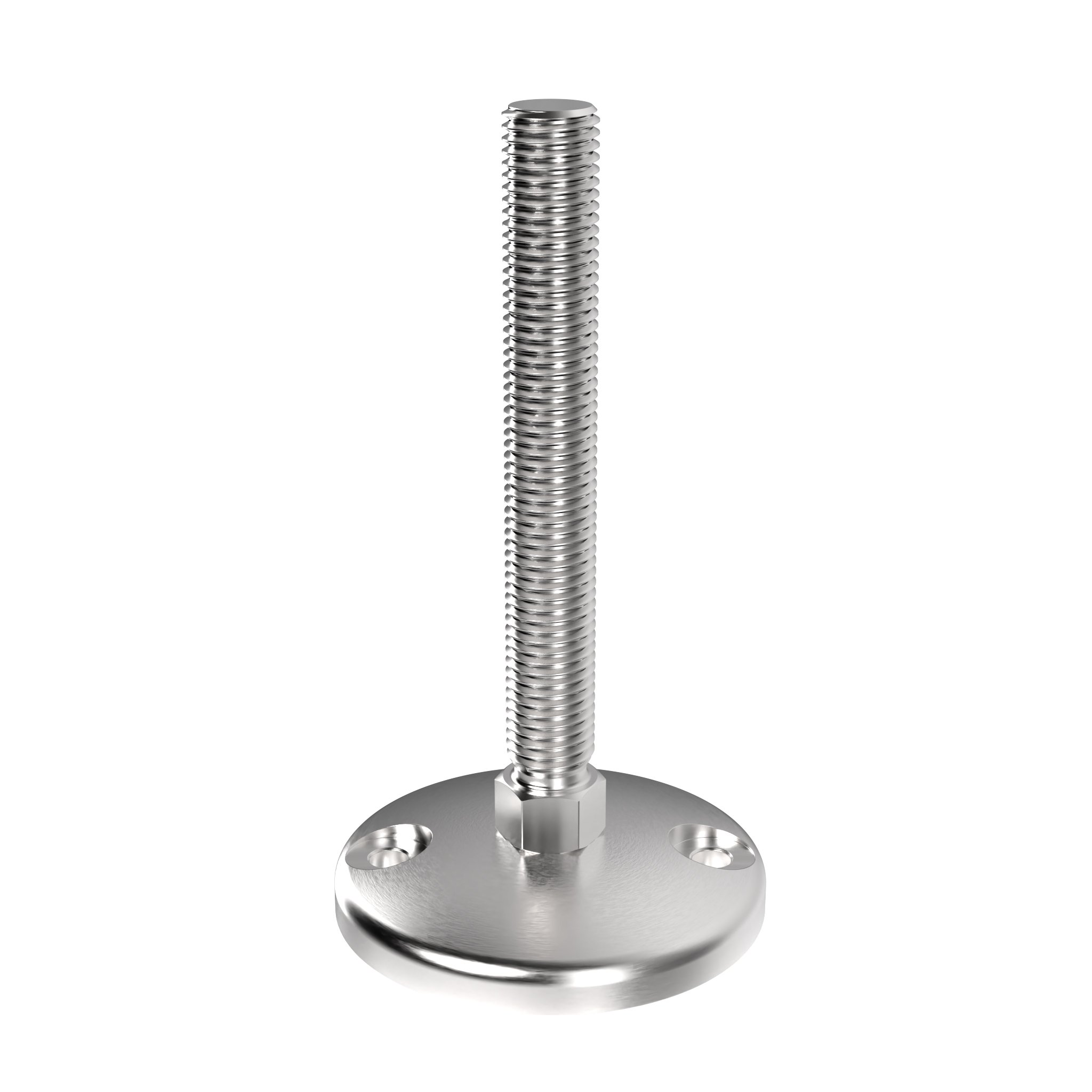

Pivot Foot, SS / SS - BDH – product image

Pivot Foot, SS / SS - BDH

Base: 100 Fmax (N): 23800 SW (mm): 22 D (mm): 99 F (mm): 31 M x L (mm): M20 x 150 Version: without anti-slip plate LK (mm): 74

Description:A leveling foot which can be fixed to the floorMaterial:Base: Stainless steel Threaded rod: Stainless steelSurface:Base: Plain Threaded rod: Plain Tip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00

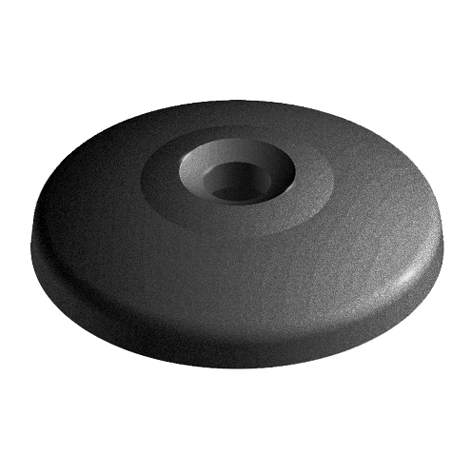

Base PA for Pivot Feet – product image of all versions

Base PA for Pivot Feet

Base: 50 Fmax (N): 11770 D (mm): 49 Version: without anti-slip plate

Description:A leveling foot for strong positioning on slightly uneven floorsMaterial:Plastic PA, glass ball reinforcedColor:BlackTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050Specials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestDelivery Countries:Worldwide

€0.00
Base PA BDH for Pivot Feet – product image of all versions

Base PA BDH for Pivot Feet

Base: 80 Fmax (N): 11770 D (mm): 79 Version: without anti-slip plate LK (mm): 55

Description:A leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedColor:BlackTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050; *Bolt-down holes closedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestDelivery Countries:Worldwide

€0.00

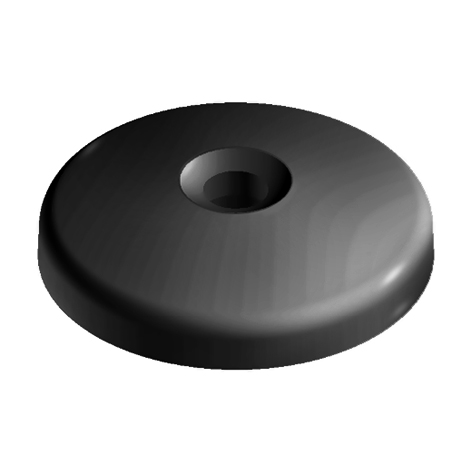

Base ZN for Pivot Feet – product image of all versions

Base ZN for Pivot Feet

Base: 40 Fmax (N): 19600 D (mm): 39 Version: without anti-slip plate

Description:A leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc die-castSurface:Powder coatedColor:BlackTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050Specials:Other surfaces, other sizes, other colors, bolt-on or glued anti-slip plate on request; As factory assembled leveling foot on requestDelivery Countries:Worldwide

€0.00
Base ZN BDH for Pivot Feet – product image of all versions

Base ZN BDH for Pivot Feet

Base: 60 Fmax (N): 29400 D (mm): 59 Version: without anti-slip plate LK (mm): 40

Description:A leveling foot which can be fixed to the floorMaterial:Zinc die-castSurface:Powder coatedColor:BlackTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050Specials:Other surfaces, other sizes, other colors, bolt-on or glued anti-slip plate on request; As factory assembled leveling foot on requestDelivery Countries:Worldwide

€0.00

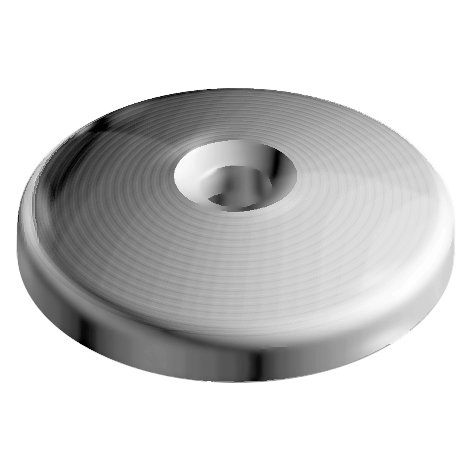

Base SS for Pivot Feet – product image of all versions

Base SS for Pivot Feet

Base: 60 Fmax (N): 44100 D (mm): 59 Version: without anti-slip plate

Description:A leveling foot for strong positioning on slightly uneven floorsMaterial:Stainless steel SS303Surface:PlainTip:Compatible Threaded Rod see 098AM12066E, Compatible Nut see 4DIN439BM5E et sq., Compatible Anti-Slip Plate 098AG050Specials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestDelivery Countries:Worldwide

€0.00

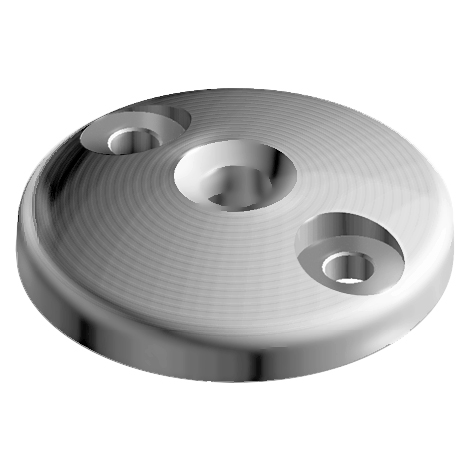

Base SS BDH for Pivot Feet – product image of all versions

Base SS BDH for Pivot Feet

Base: 80 Fmax (N): 29400 D (mm): 79 Version: without anti-slip plate LK (mm): 55

Description:A leveling foot which can be fixed to the floorMaterial:Stainless steel SS303Surface:PlainTip:Compatible Threaded Rod see 098AM12066E, Compatible Nut see 4DIN439BM5E et sq., Compatible Anti-Slip Plate 098AG050Specials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestDelivery Countries:Worldwide

€0.00
Trapezoid Base for Pivot Feet, Black – product image of all versions

Trapezoid Base for Pivot Feet, Black

Base: 60 Fmax (N): 24500 D (mm): 59 F (mm): 31.0 Version: without anti-slip plate H (mm): 18

Description:A leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc die-castSurface:Powder coatedColor:BlackTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050Specials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestDelivery Countries:Worldwide

€0.00
Trapezoid Base for Pivot Feet, Gray – product image of all versions

Trapezoid Base for Pivot Feet, Gray

Base: 60 Fmax (N): 24500 D (mm): 59 F (mm): 31.0 H (mm): 18

Description:A leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc die-castSurface:Powder coatedColor:White aluminum ≈ RAL 9006Tip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050Specials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestDelivery Countries:Worldwide

€0.00

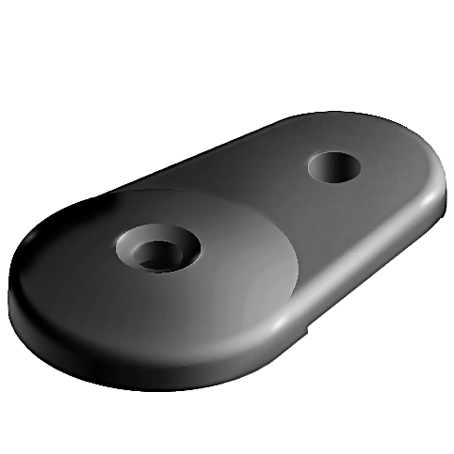

Extended Base 80 ZN for Pivot Feet – product image of all versions

Extended Base 80 ZN for Pivot Feet

Base: 80 Fmax (N): 34300 Version: without anti-slip plate

Description:Extended leveling foot which can be fixed to the floorMaterial:Zinc die-castSurface:Powder coatedColor:BlackTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050Specials:Other surfaces, other sizes, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestDelivery Countries:Worldwide

€0.00
Base PA BDH for Heavy-duty Pivot Feet – product image of all versions

Base PA BDH for Heavy-duty Pivot Feet

Base: 125 Fmax (N): 17650 D (mm): 125 F (mm): 57.5 Version: without anti-slip plate LK (mm): 96 H (mm): 44 d (mm): 13.4 h (mm): 24

Description:A heavy-duty leveling foot for strong positioning on slightly uneven floorsMaterial:Plastic PA, glass ball reinforcedColor:BlackTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip Plate 098AG125BSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestDelivery Countries:Worldwide

€0.00

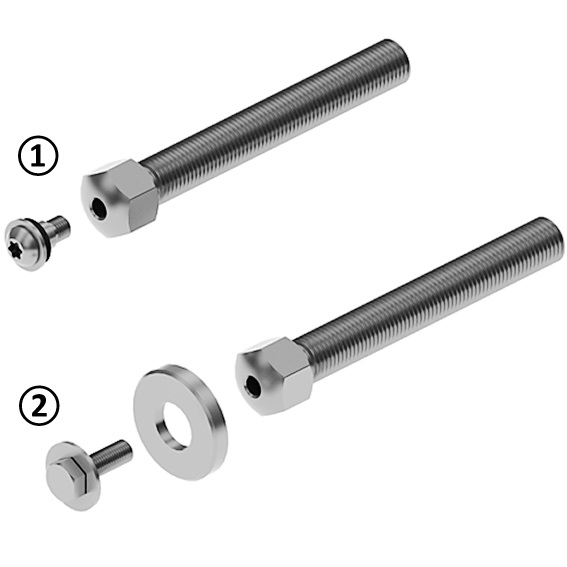

Threaded Rod ST Metric for Pivot Feet – product image of all versions

Threaded Rod ST Metric for Pivot Feet

Fmax (N): 7550 SW (mm): 22 M x L (mm): M12 x 66 Material: Steel

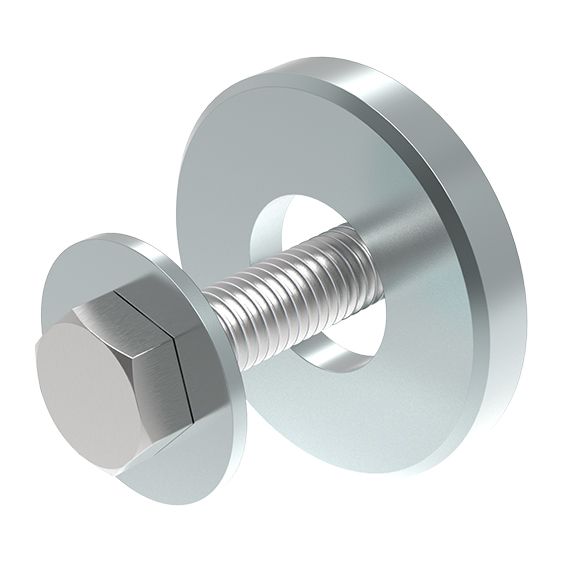

Description:Threaded rod for pivot leveling feetMaterial:SteelSurface:Zinc platedTip:*1. For pivot feet: Assembly set 098XAMS03 included *2. For heavy-duty pivot feet: Assembly set 098XAKM includedSpecials:Other lengths and sizes on requestDelivery Countries:Worldwide

€0.00
Threaded Rod SS Metric for Pivot Feet – product image of all versions

Threaded Rod SS Metric for Pivot Feet

Fmax (N): 7550 SW (mm): 22 M x L (mm): M12 x 66 Material: Stainless steel

Description:Threaded rod for pivot leveling feetMaterial:Stainless steel SS303Surface:PlainTip:*1. For pivot feet: Assembly set 098XAES03 included *2. For heavy-duty pivot feet: Assembly set or 098XAKE includedSpecials:Other lengths and sizes on requestDelivery Countries:Worldwide

€0.00
