Pivot Foot, SS / SS

Product information "Pivot Foot, SS / SS"

Delivery Countries:
Worldwide

Description:

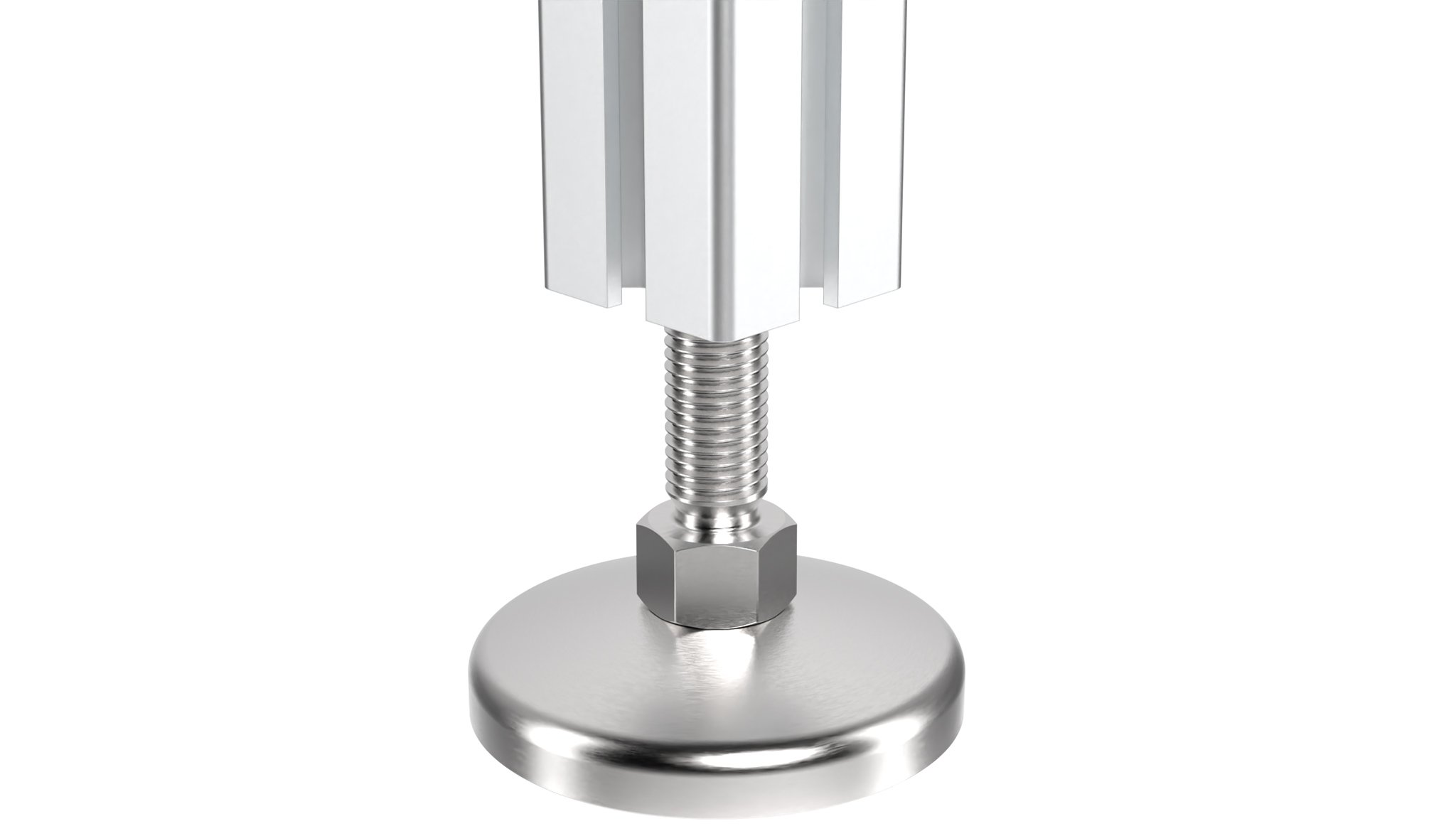

A leveling foot for strong positioning on slightly uneven floors

Material:
Base: Stainless steel
Threaded rod: Stainless steel

Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request

Surface:
Base: Plain
Threaded rod: Plain

Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098AG050 et sq.

Zolltarifnummer:
73269098900
Model: Stainless steel, without bolt-down holes
Pack Quantity: 1 piece
Screw Joint: Swiveling range ±4°
Weight (g): 543.4

Variants

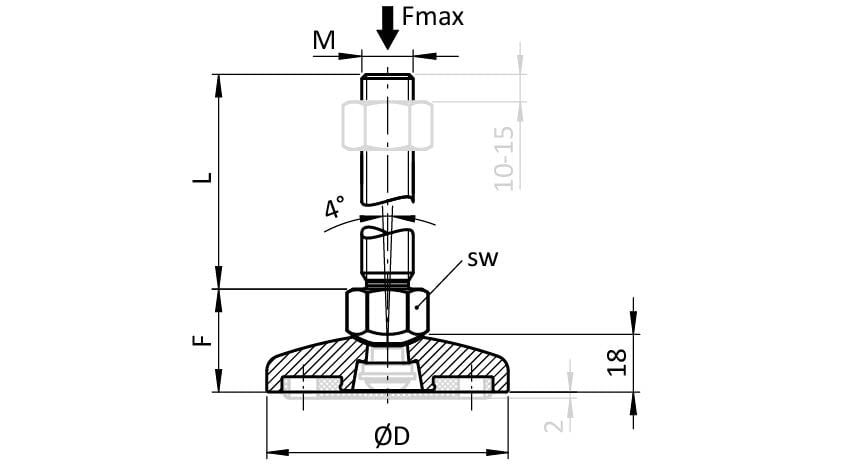

Product ID Version D (mm) F (mm) SW (mm) Base M x L (mm) Fmax (N)
9A080E16100E without anti-slip plate 79 31 22 80 M16 x 100 14200
