Trapezoid Pivot Foot, ZN / SS

Product information "Trapezoid Pivot Foot, ZN / SS"

Color:
Base: Black

Delivery Countries:
Worldwide

Description:
A leveling foot for strong positioning on slightly uneven floors

Material:
Base: Zinc die-cast
Threaded rod: Stainless steel

Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Stainless steel, other lengths and other sizes on request

Surface:
Base: Powder coated
Threaded rod: Plain

Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098AG050 et sq.

Zolltarifnummer:
73269098900
Model: Zinc die-cast / stainless steel, without bolt-down holes
Pack Quantity: 1 piece
Screw Joint: Swiveling range ±4°
Weight (g): 365.0

Variants

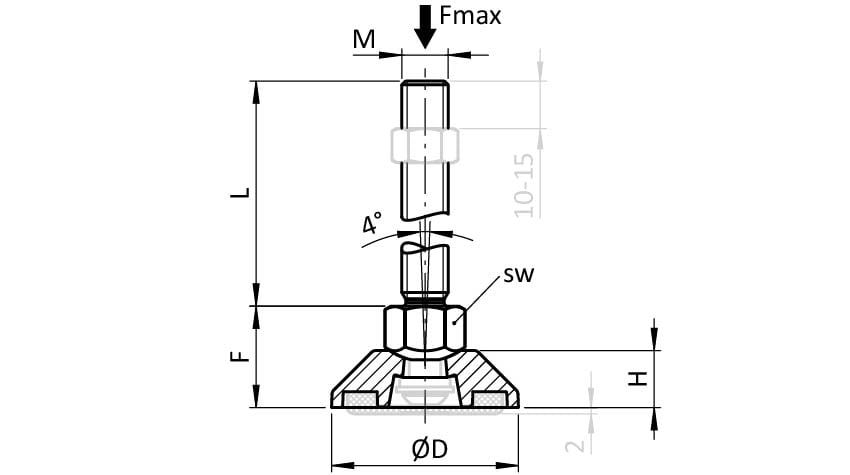

Product ID Version Base F (mm) SW (mm) M x L (mm) Fmax (N) D (mm) H (mm)
9AI060ZS16150E without anti-slip plate 60 31 22 M16 x 150 14200 59 18
