Base PA BDH for Heavy-duty Pivot Feet

Product information "Base PA BDH for Heavy-duty Pivot Feet"

Color:
Black

Delivery Countries:
Worldwide

Description:

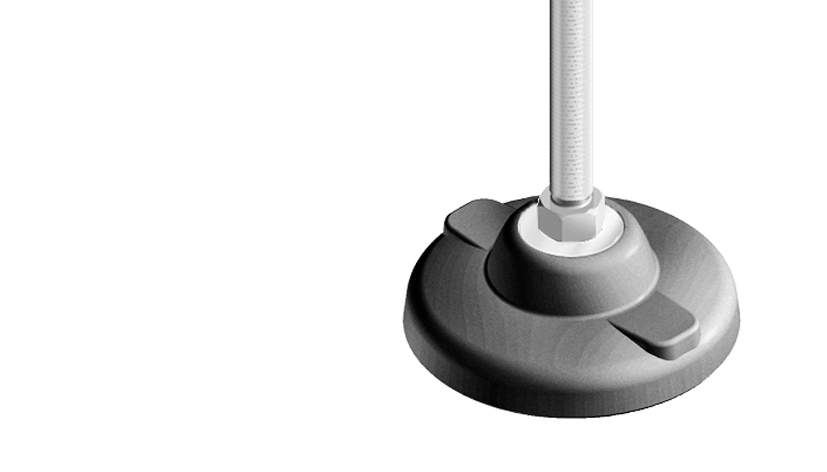

A heavy-duty leveling foot for strong positioning on slightly uneven floors

Material:
Plastic PA, glass ball reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;

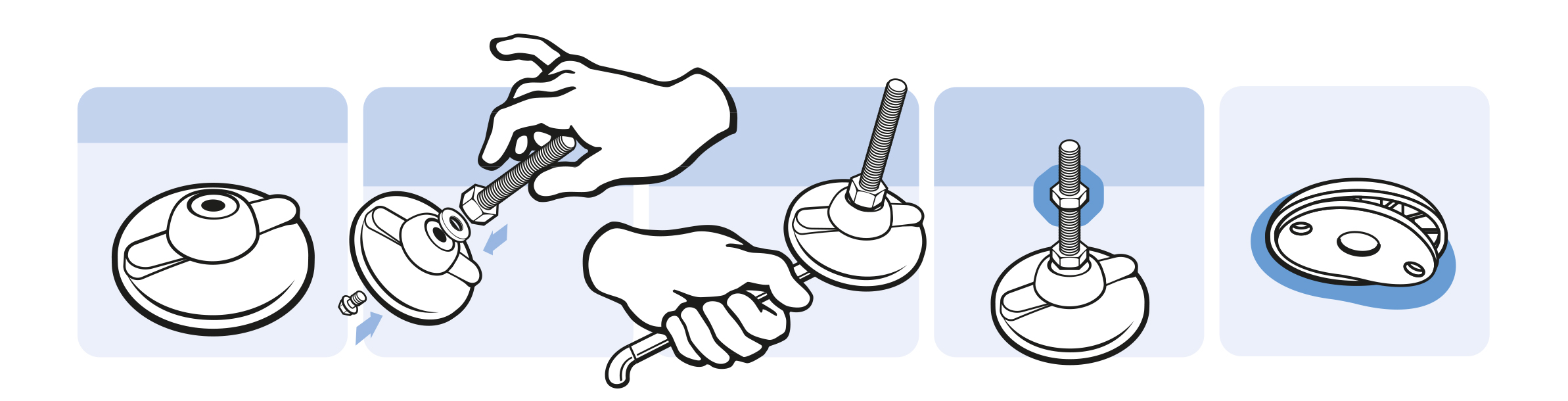

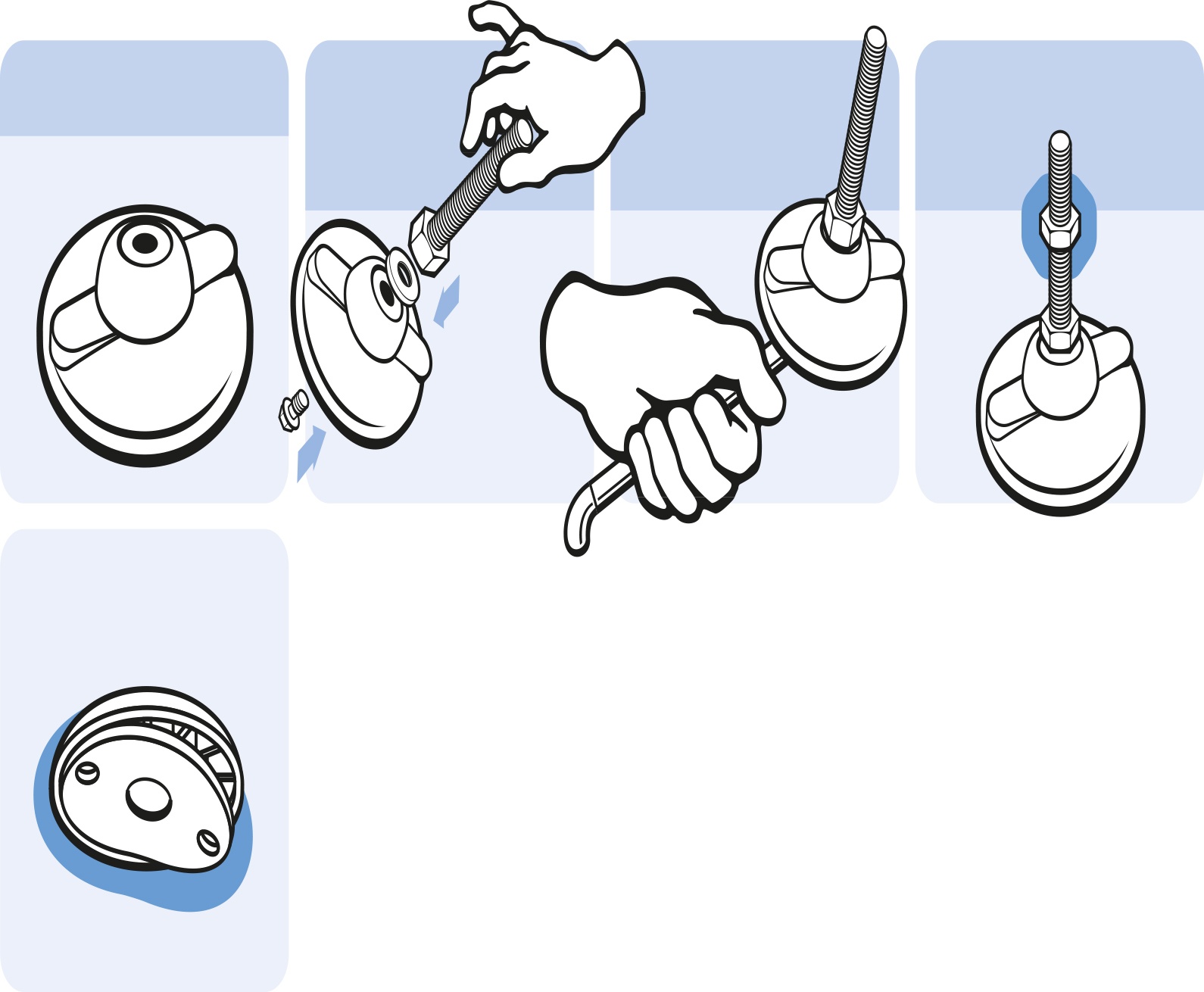

as factory assembled leveling foot on request

Tip:
Compatible Threaded Rod see 098AM12066M,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-slip Plate 098AG125B

Zolltarifnummer:
39269097900
Model: Plastic PA, with bolt-down holes
Pack Quantity: 1 piece
Weight (g): 234.0

Variants

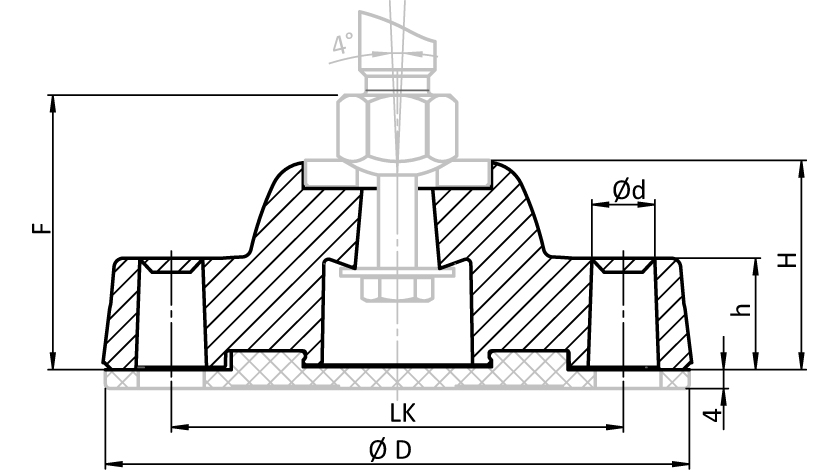

Product ID LK (mm) H (mm) F (mm) Fmax (N) Version D (mm) d (mm) h (mm) Base
098AK125KBZ 96 44 57.5 17650 without anti-slip plate 125 13.4 24 125
098AK125KBZG 96 44 57.5 17650 with anti-slip plate 125 13.4 24 125
098AK175KBZ 135 45 58.5 24500 without anti-slip plate 175 17.0 22 175
098AK175KBZG 135 45 58.5 24500 with anti-slip plate 175 17.0 22 175
