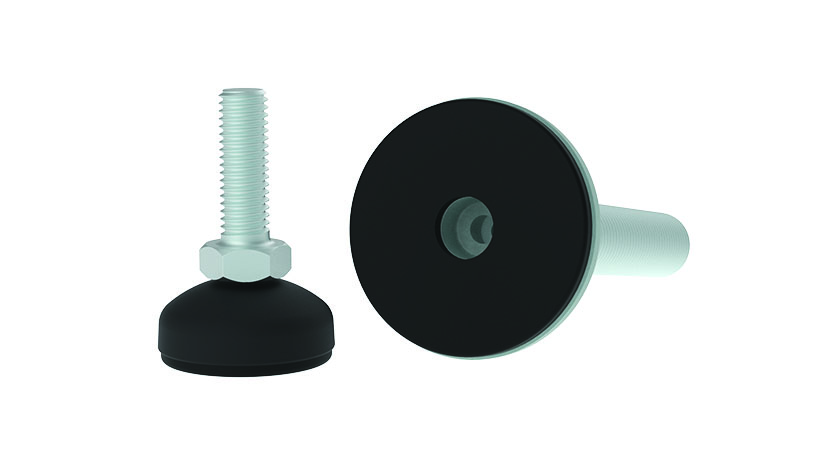

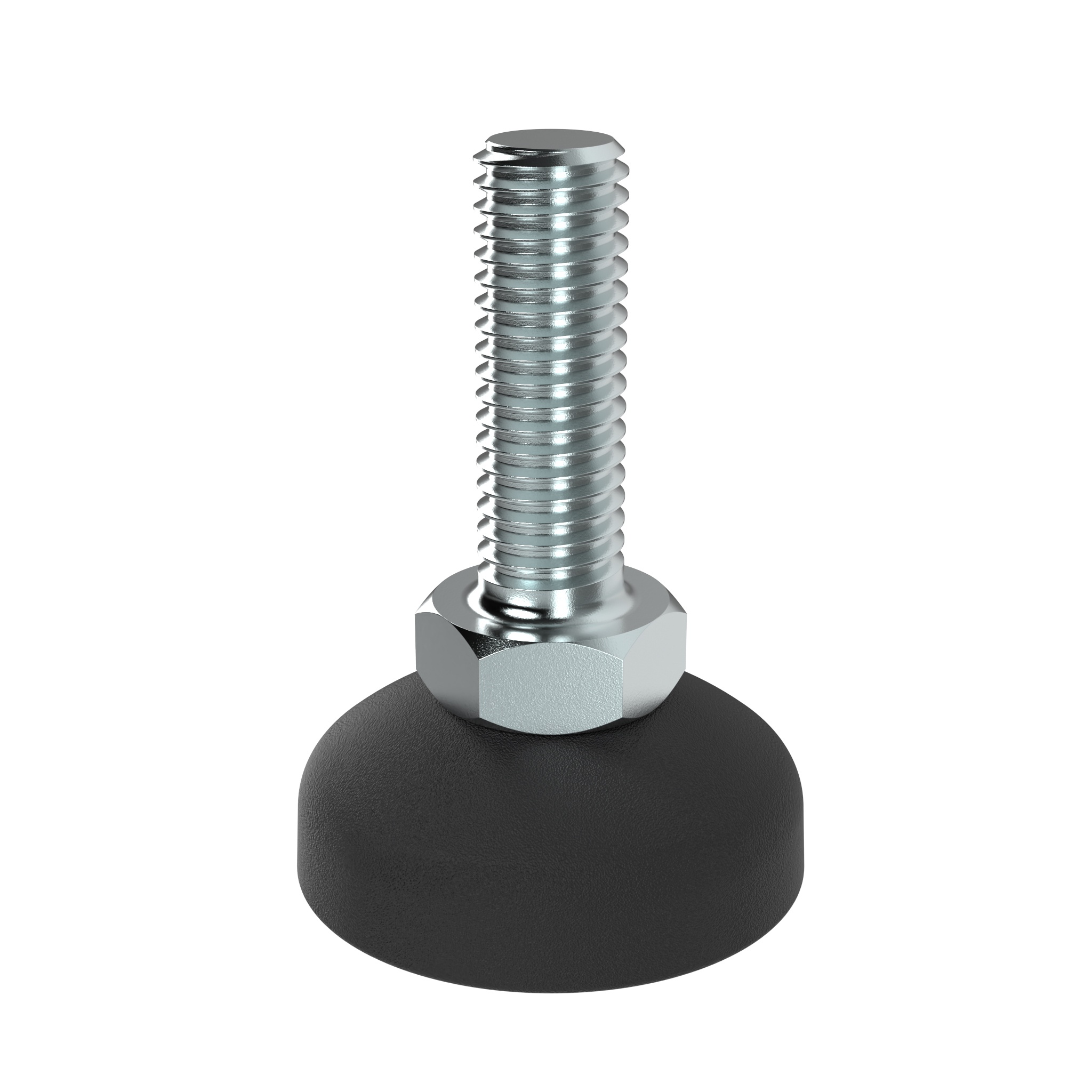

ECO Foot, PA / ST

Base: 30 Fmax (N): 3430 SW (mm): 13 D (mm): 29 F (mm): 16.0 M x L (mm): M8 x 25 Version: without anti-slip plate H (mm): 11.5 h (mm): 2.0 K (mm): 5.3

Description:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSurface:Threaded rod: Zinc platedColor:Base: BlackTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00

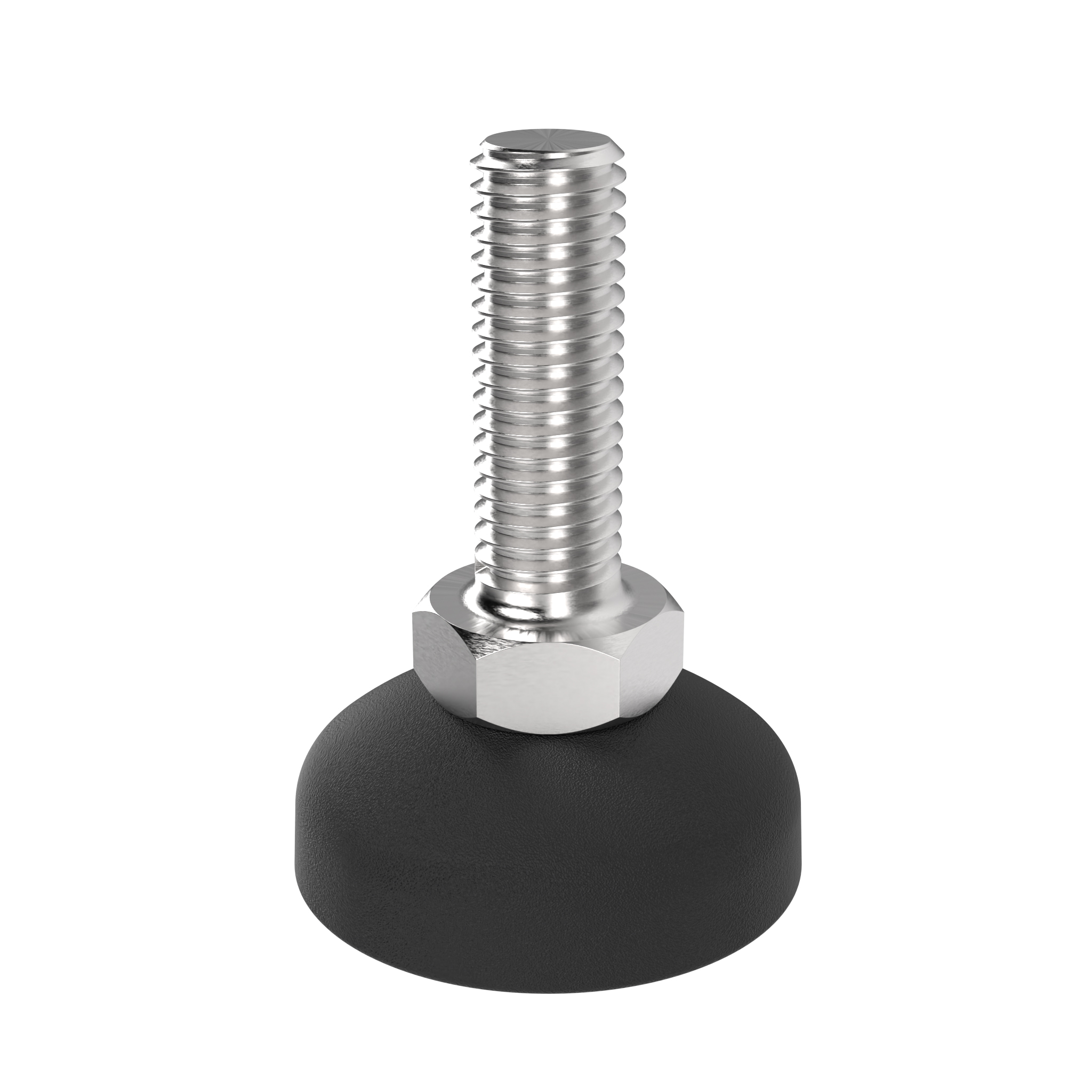

ECO Foot, PA / SS

Base: 30 Fmax (N): 3430 SW (mm): 13 D (mm): 29 F (mm): 16.0 M x L (mm): M8 x 25 Version: without anti-slip plate H (mm): 11.5 h (mm): 2.0 K (mm): 5.3

Description:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: Stainless steelSurface:Threaded rod: PlainColor:Base: BlackTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00

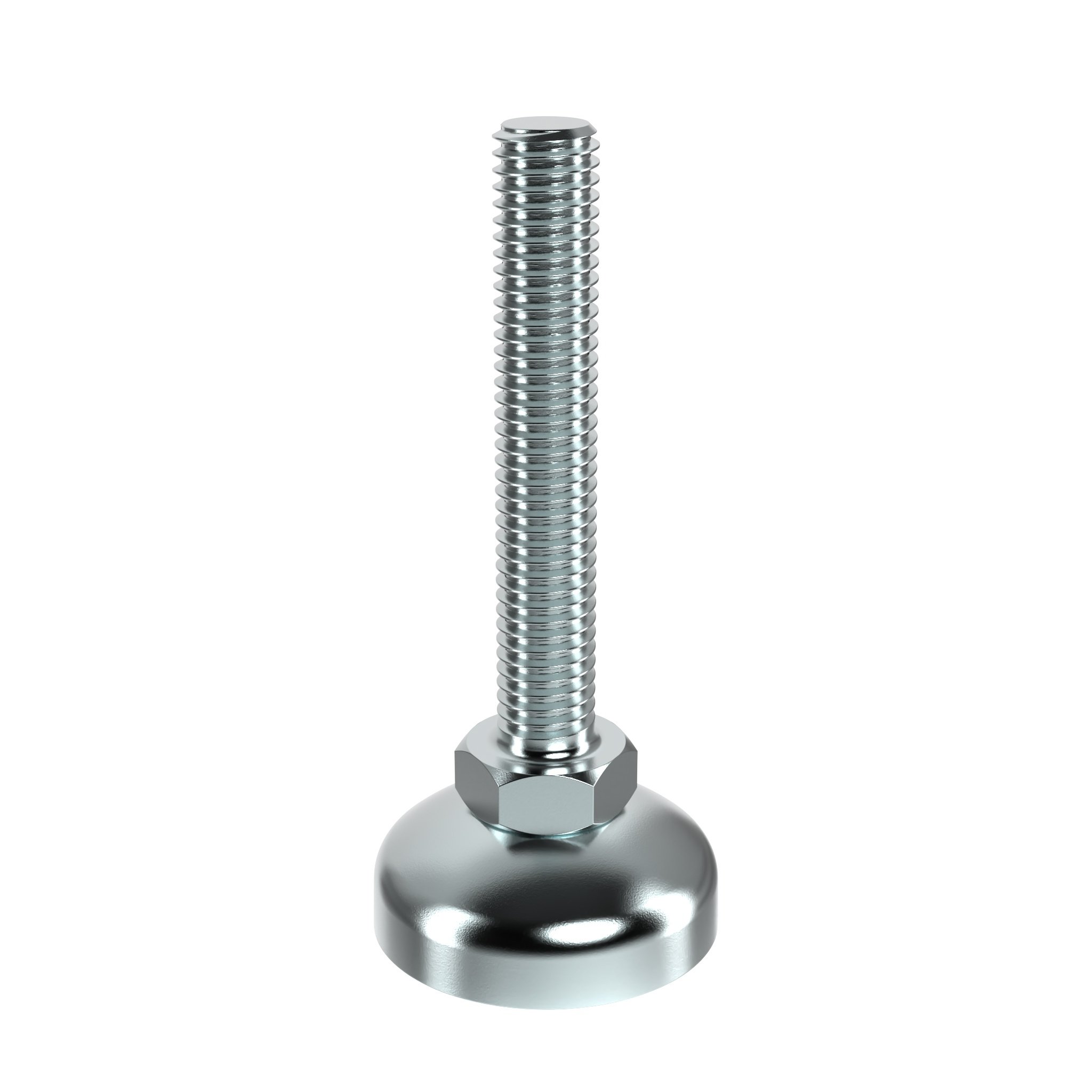

ECO Foot, ZN / ST

Base: 30 Fmax (N): 3430 SW (mm): 13 D (mm): 29 F (mm): 16.0 M x L (mm): M8 x 50 Version: without anti-slip plate H (mm): 11.5 h (mm): 2.0 K (mm): 5.3 Surface: Zinc plated Color: -

Description:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Zinc die-cast Threaded rod: SteelSurface:Base: Powder coated / zinc plated Threaded rod: Zinc platedColor:Base: BlackTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00

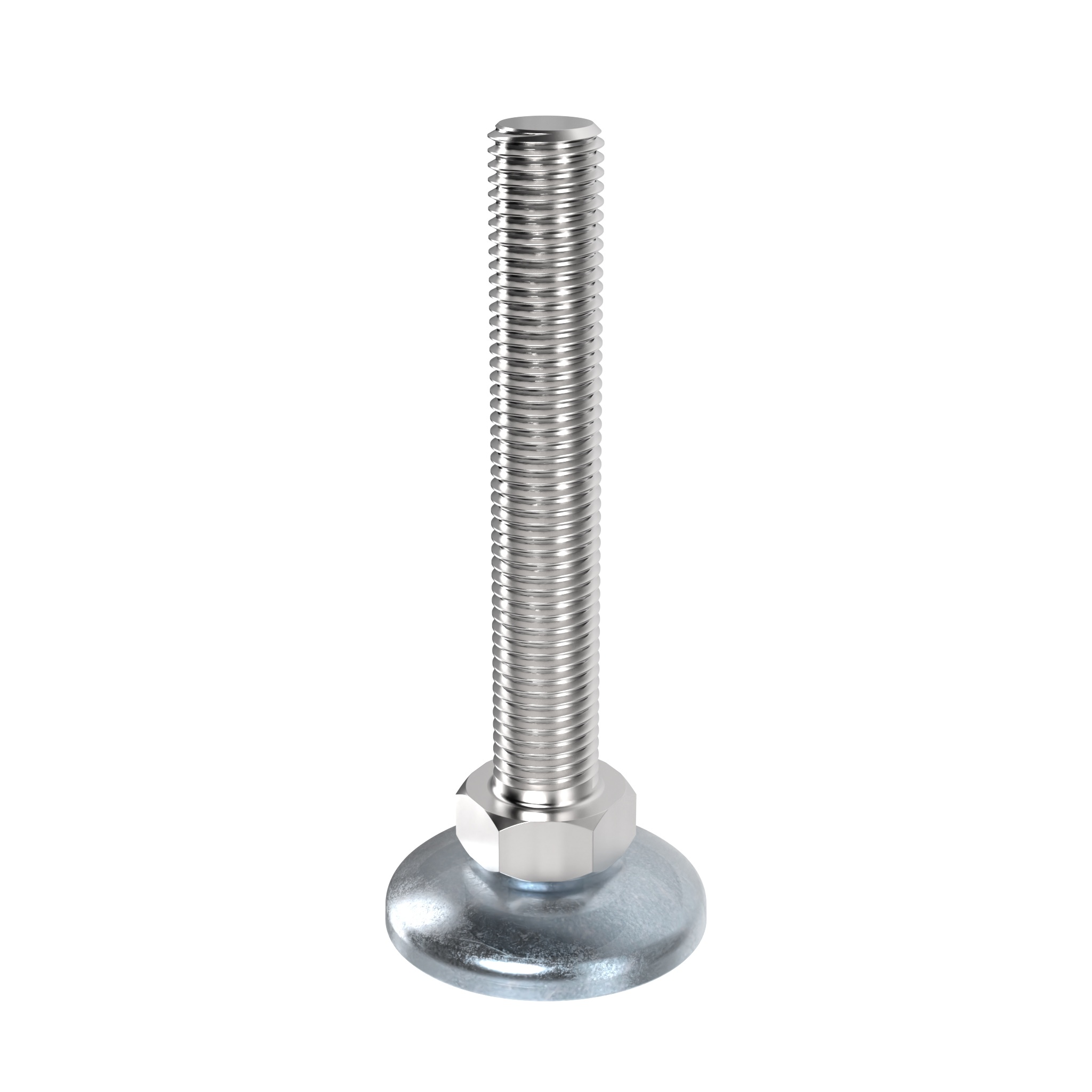

ECO Foot, ZN / SS

Base: 50 Fmax (N): 14200 SW (mm): 24 D (mm): 50 F (mm): 23.8 M x L (mm): M16 x 100 Version: without anti-slip plate H (mm): 15.3 h (mm): 3.0 K (mm): 10.0

Description:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Zinc die-cast Threaded rod: Stainless steelSurface:Base: Zinc plated Threaded rod: PlainTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00

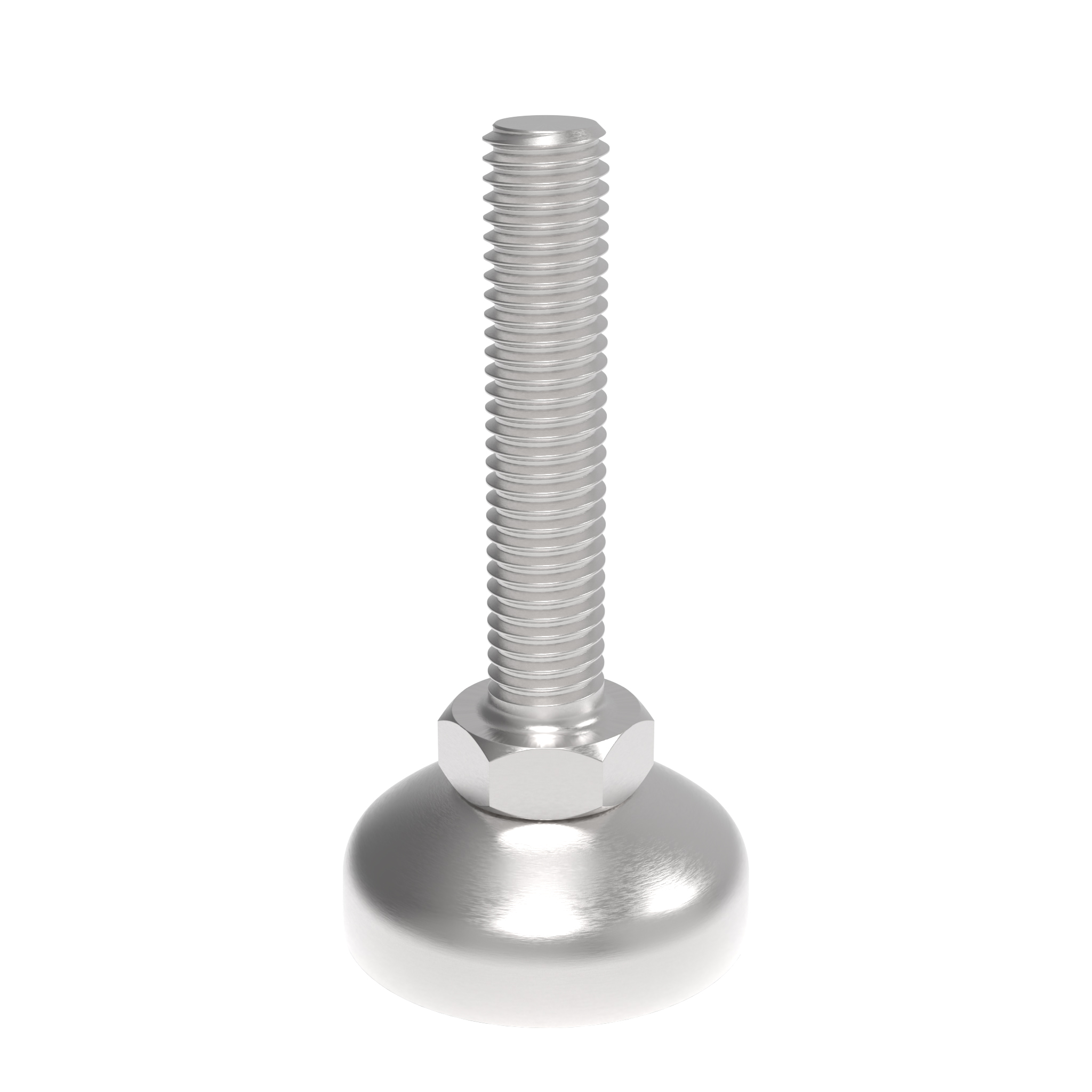

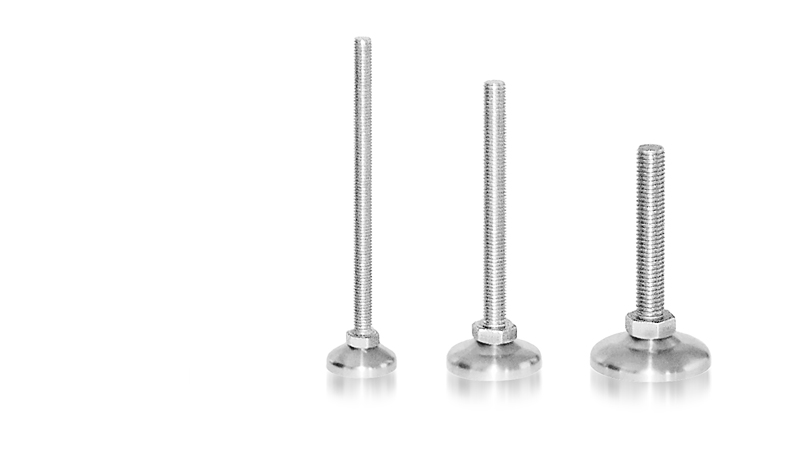

ECO Foot, SS / SS

Base: 30 Fmax (N): 3430 SW (mm): 13 D (mm): 29 F (mm): 16.0 M x L (mm): M8 x 40 Version: without anti-slip plate H (mm): 11.5 h (mm): 2.0 K (mm): 5.3

Description:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Stainless steel Threaded rod: Stainless steelSurface:Base: Plain Threaded rod: Plain Tip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestDelivery Countries:Worldwide

€0.00

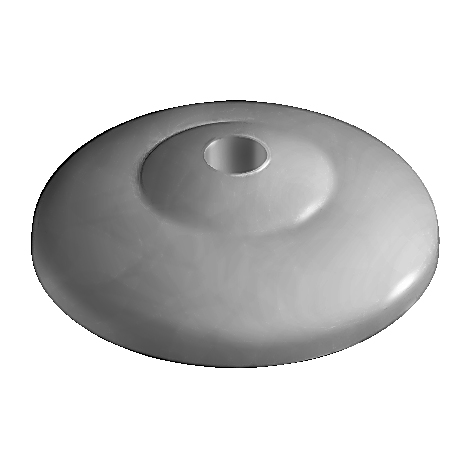

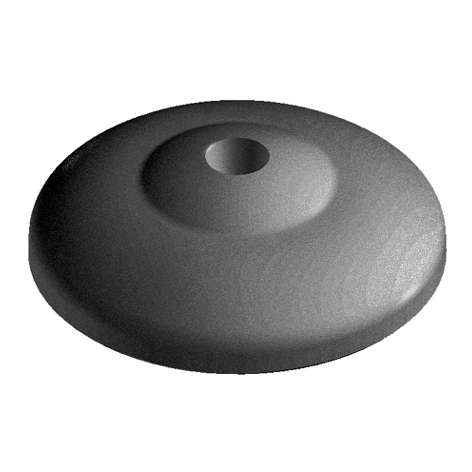

Base PA for ECO Feet

Base: 30 Fmax (N): 14700 D (mm): 29 Version: without anti-slip plate H (mm): 11.5 F1 (mm): 16.0 F2 (mm): 16.5 F3 (mm): 17.5 h (mm): 2.0 F4 (mm): 20.0

Description:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Plastic PA, glass ball reinforcedColor:BlackTip:Compatible Threaded Rod see 098EM08025M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip-Plate see 098EG030; (ECO feet are provided factory assembled)Specials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on requestDelivery Countries:Worldwide

€0.00

Base ZN for ECO Feet

Base: 30 Fmax (N): 15690 D (mm): 29 Version: without anti-slip plate H (mm): 11.5 F1 (mm): 16.0 F2 (mm): 16.5 F3 (mm): 17.5 h (mm): 2.0 Surface: Zinc plated Color: - F4 (mm): 20.0

Description:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc die-castSurface:Powder coated / zinc platedColor:Black, -Tip:Compatible Threaded Rod see 098EM08025M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip-Plate see 098EG030; (ECO feet are provided factory assembled)Specials:Other surfaces, other sizes, other colors, glued anti-slip plate on requestDelivery Countries:Worldwide

€0.00

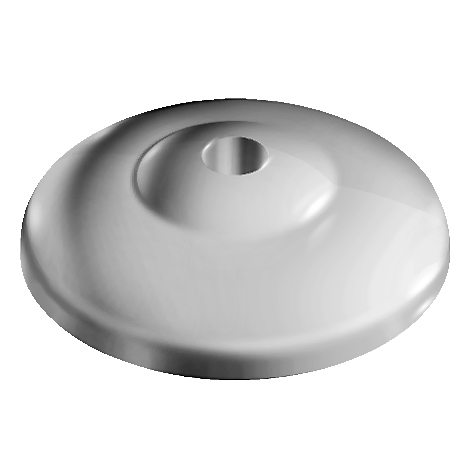

Base SS for ECO Feet

Base: 30 Fmax (N): 21580 D (mm): 29 Version: without anti-slip plate H (mm): 11.5 F1 (mm): 16.0 F2 (mm): 16.5 F3 (mm): 17.5 h (mm): 2.0 F4 (mm): 20.0

Description:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Stainless steel SS316Surface:PlainTip:Compatible Threaded Rod see 098EM08025E, Compatible Nut see 4DIN439BM5E et sq., Compatible Anti-Slip-Plate see 098EG030; (ECO feet are provided factory assembled)Specials:Other sizes, glued anti-slip plate on requestDelivery Countries:Worldwide

€0.00

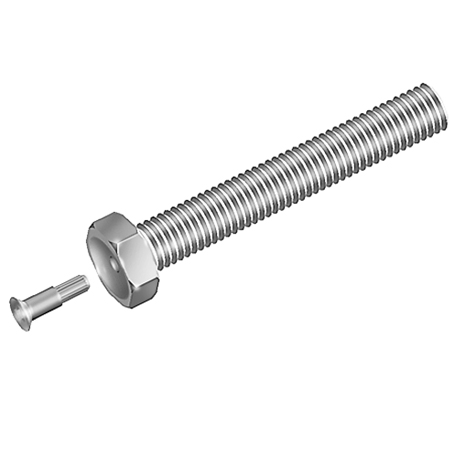

Threaded Rod ST for ECO-Feet

Fmax (N): 3430 SW (mm): 13 M x L (mm): M8 x 25 Material: Steel K (mm): 5.3

Description:Threaded Rod for ECO FeetMaterial:SteelSurface:Zinc platedTip:Mounting pin 098XEE included (ECO feet are provided factory assembled)Specials:Other lengths and sizes on requestDelivery Countries:Worldwide

€0.00

Threaded Rod SS for ECO-Feet

Fmax (N): 3430 SW (mm): 13 M x L (mm): M8 x 25 Material: Stainless steel K (mm): 5.3

Description:Threaded Rod for ECO FeetMaterial:Stainless steel SS305Surface:PlainTip:Mounting pin 098XEE included (ECO feet are provided factory assembled)Specials:Other lengths and sizes on requestDelivery Countries:Worldwide

€0.00

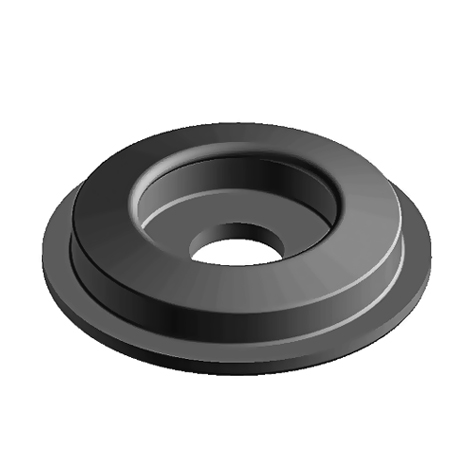

Anti-slip Plate for ECO Feet

D (mm): 28 for Base: 30 h (mm): 2.0

Description:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore AColor:BlackSpecials:ESD electrostatical discharging on requestDelivery Countries:Worldwide

€0.00

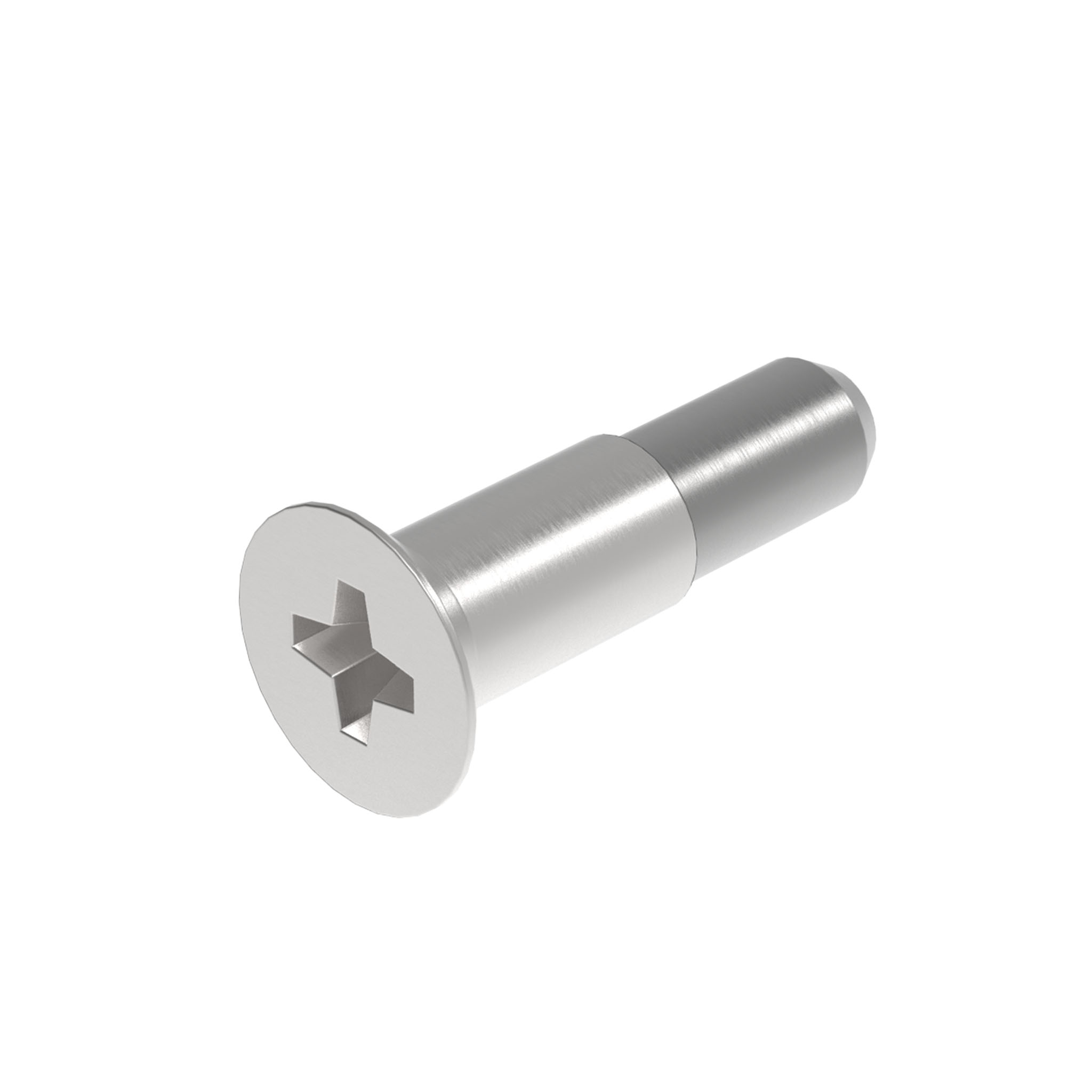

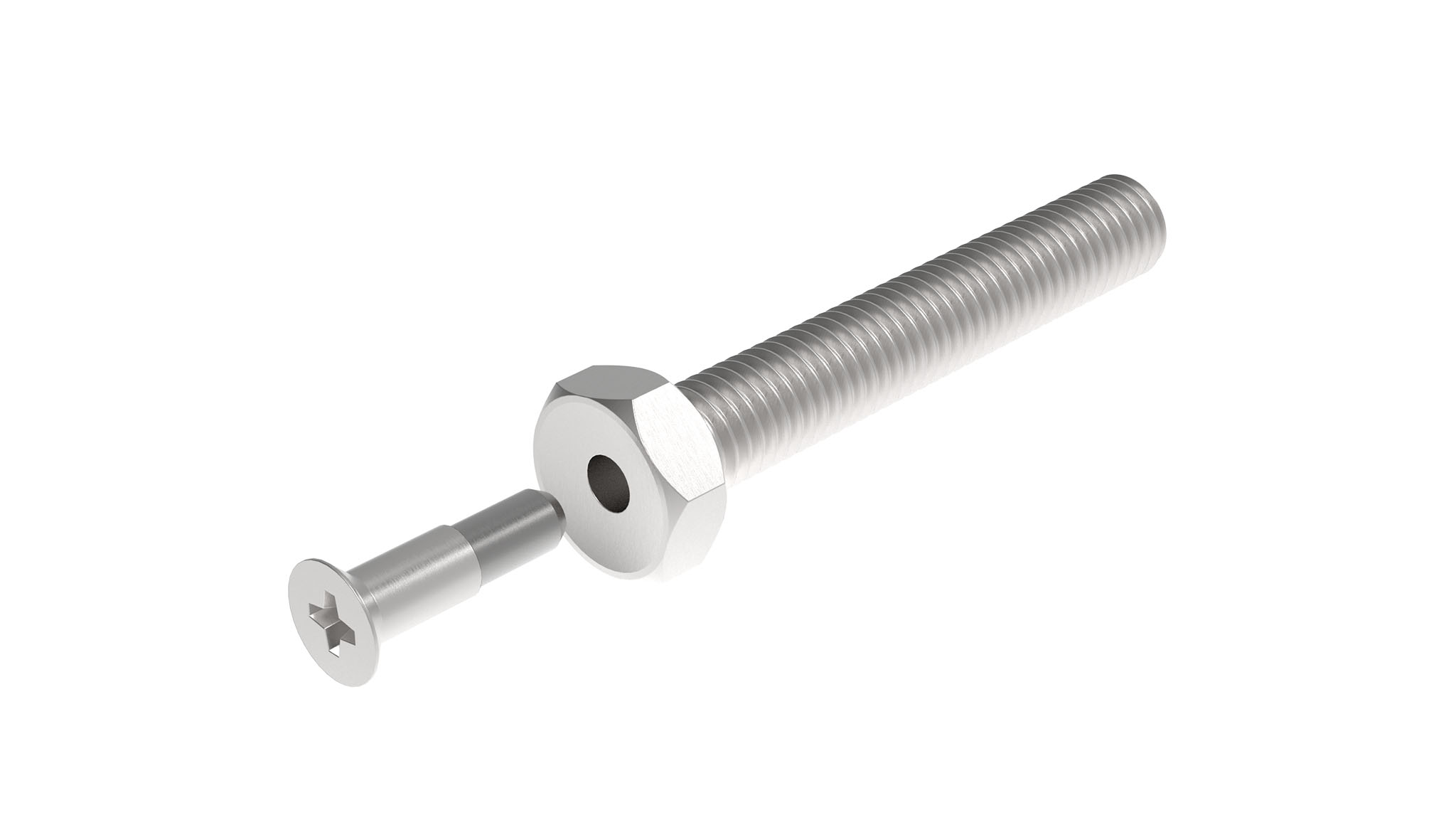

Assembly Pin for ECO Feet

Description:To assemble ECO feetMaterial:Stainless steel SS304Surface:PlainTip:Compatible threaded rod ST for ECO-Feet see 098EM08025M, Compatible threaded rod SS for ECO-Feet see 098EM08025EDelivery Countries:Worldwide

€0.00
