Base SS for ECO Feet

Product information "Base SS for ECO Feet"

Delivery Countries:
Worldwide

Description:
Economical leveling foot for strong positioning on slightly uneven floors

Material:
Stainless steel SS316

Specials:
Other sizes, glued anti-slip plate on request

Surface:
Plain

Tip:

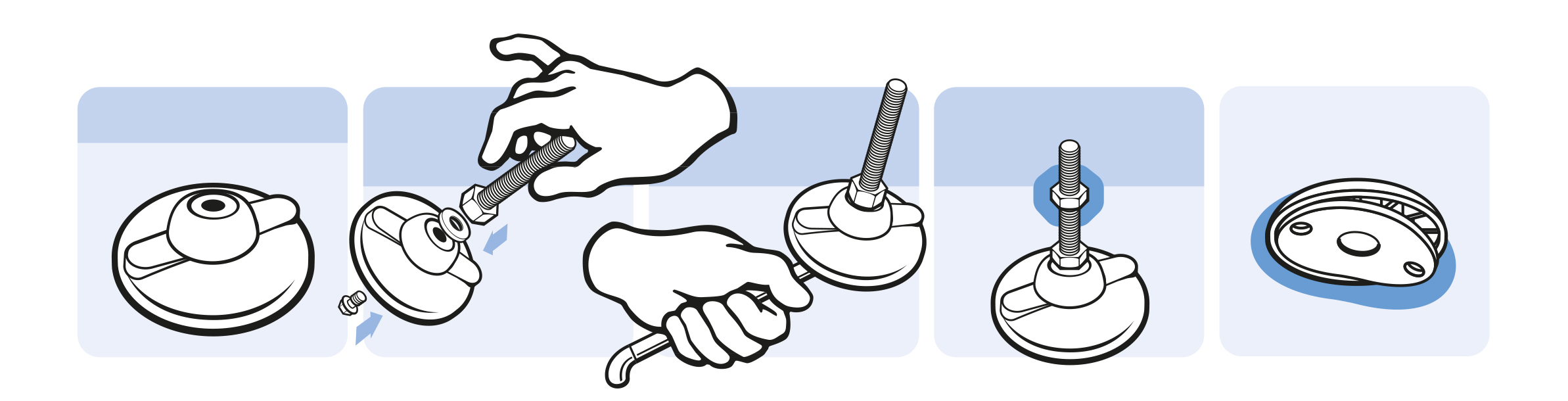

Compatible Threaded Rod see 098EM08025E,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip-Plate see 098EG030;
(ECO feet are provided factory assembled)

Zolltarifnummer:
73269098900
Model: Stainless steel
Pack Quantity: 100 pieces
Pack Quantity (1): 1
Weight (g): 20.0

Variants

Product ID D (mm) H (mm) F2 (mm) Fmax (N) Version F1 (mm) F4 (mm) h (mm) F3 (mm) Base
098E030E 29 11.5 16.5 21580 without anti-slip plate 16.0 20.0 2.0 17.5 30
098E030EG 29 11.5 16.5 21580 with anti-slip plate 16.0 20.0 2.0 17.5 30
098E040E 39 12.0 17.0 23500 without anti-slip plate 16.5 20.5 2.5 18.0 40
098E040EG 39 12.0 17.0 23500 with anti-slip plate 16.5 20.5 2.5 18.0 40
098E050E 50 15.3 19.5 25500 without anti-slip plate 19.0 23.0 3.0 20.5 50
098E050EG 50 15.3 19.5 25500 with anti-slip plate 19.0 23.0 3.0 20.5 50
