Extended Pivot Foot, ZN / ST

Product information "Extended Pivot Foot, ZN / ST"

Color:
Base: Black

Delivery Countries:
Worldwide

Description:

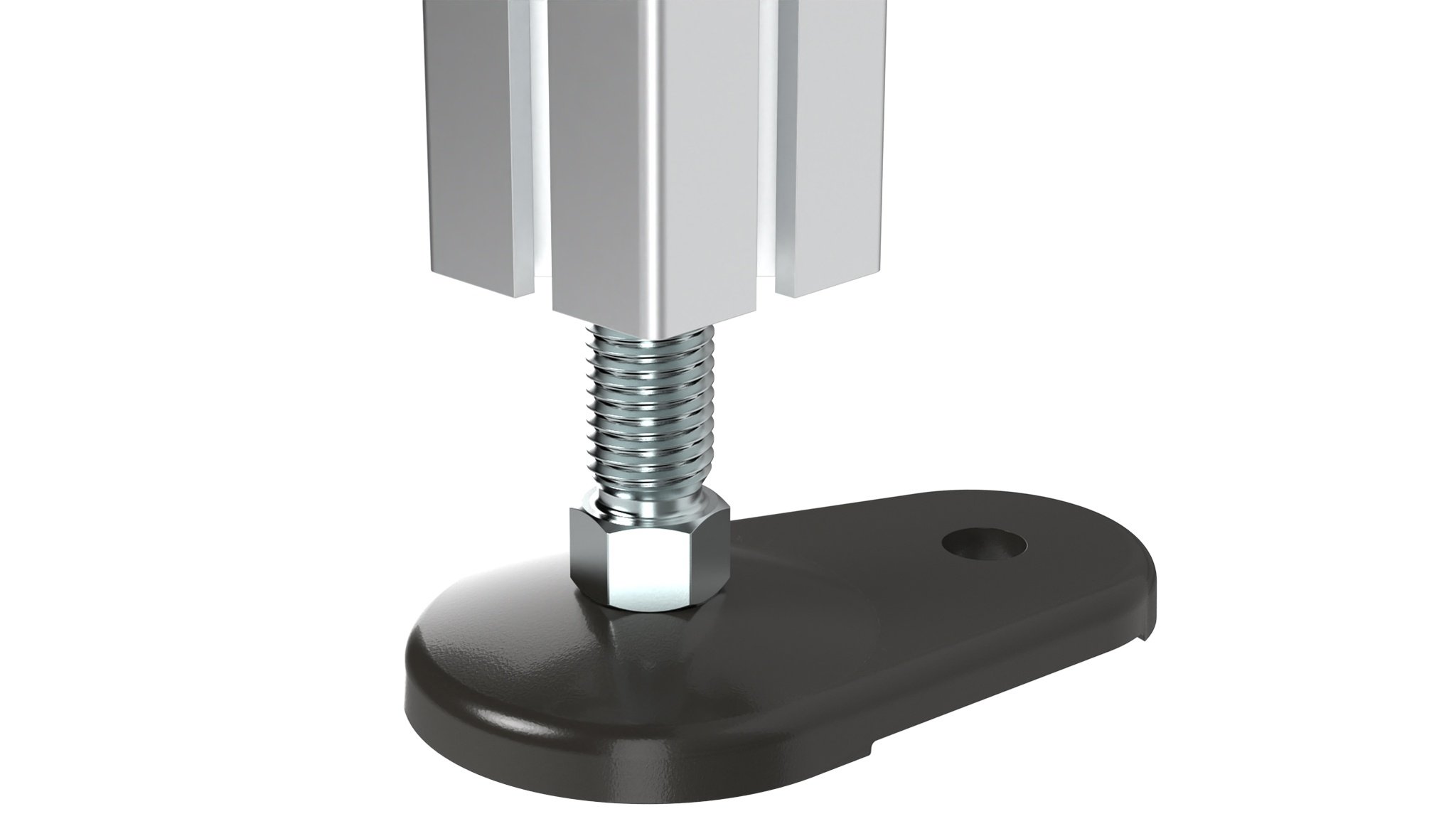

Extended leveling foot which can be fixed to the floor

Material:
Base: Zinc die-cast
Threaded rod: Steel

Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Stainless steel, other lengths and other sizes on request

Surface:
Base: Powder coated
Threaded rod: Zinc plated

Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,

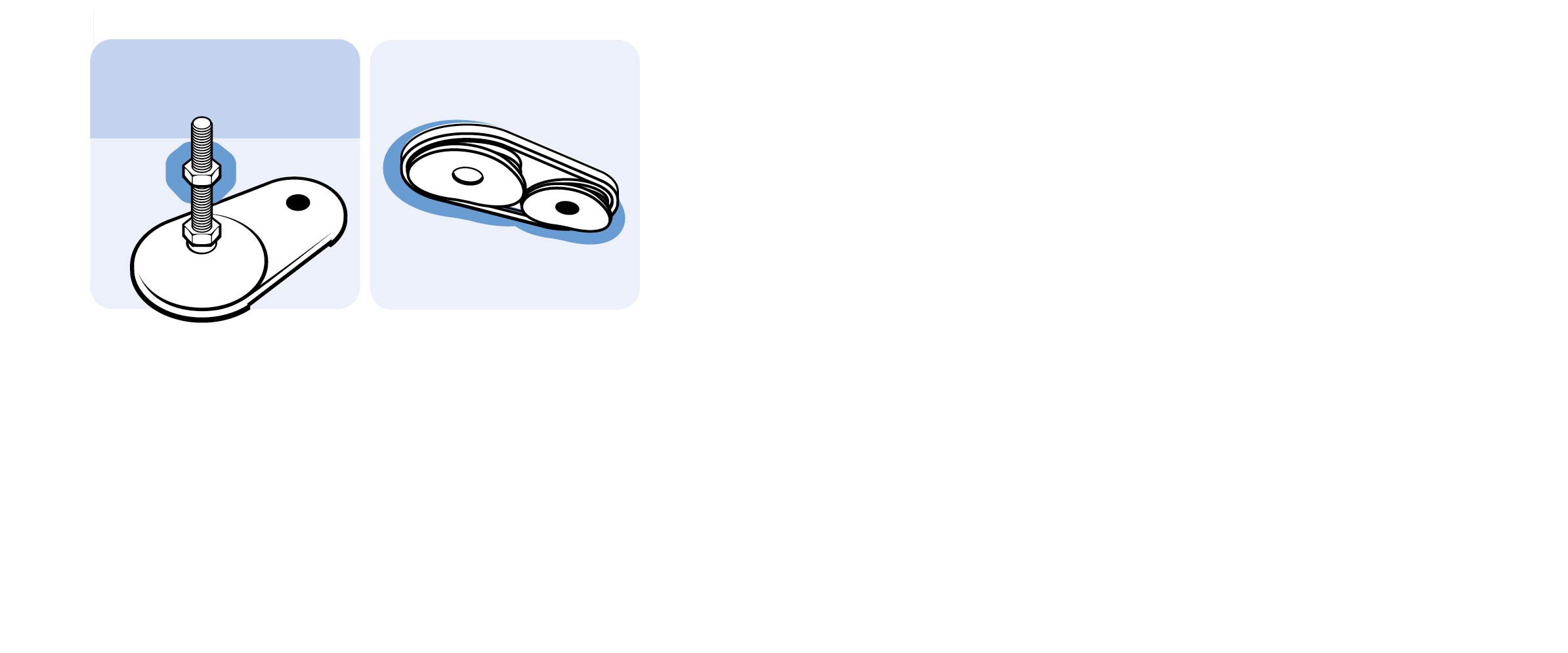

Compatible Anti-Slip Plate see 098AG050 et sq.

Zolltarifnummer:
73269098900
Model: Zinc die-cast / steel
Pack Quantity: 1 piece
Screw Joint: Swiveling range ±4°
Weight (g): 755.8

Variants

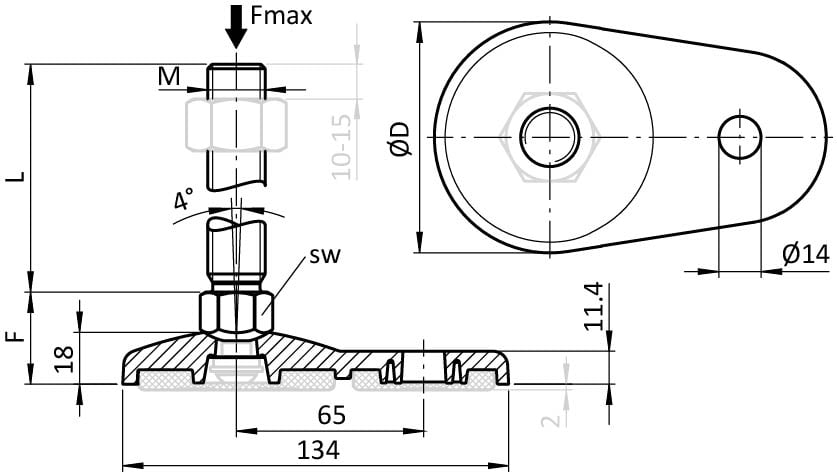

Product ID M x L (mm) Version D (mm) F (mm) SW (mm) Fmax (N) Base
9AA080ZS20150M M20 x 150 without anti-slip plate 79 31 22 23800 80
